Bosch ---- / 0602305401 / --- 265 Volt Spare Parts

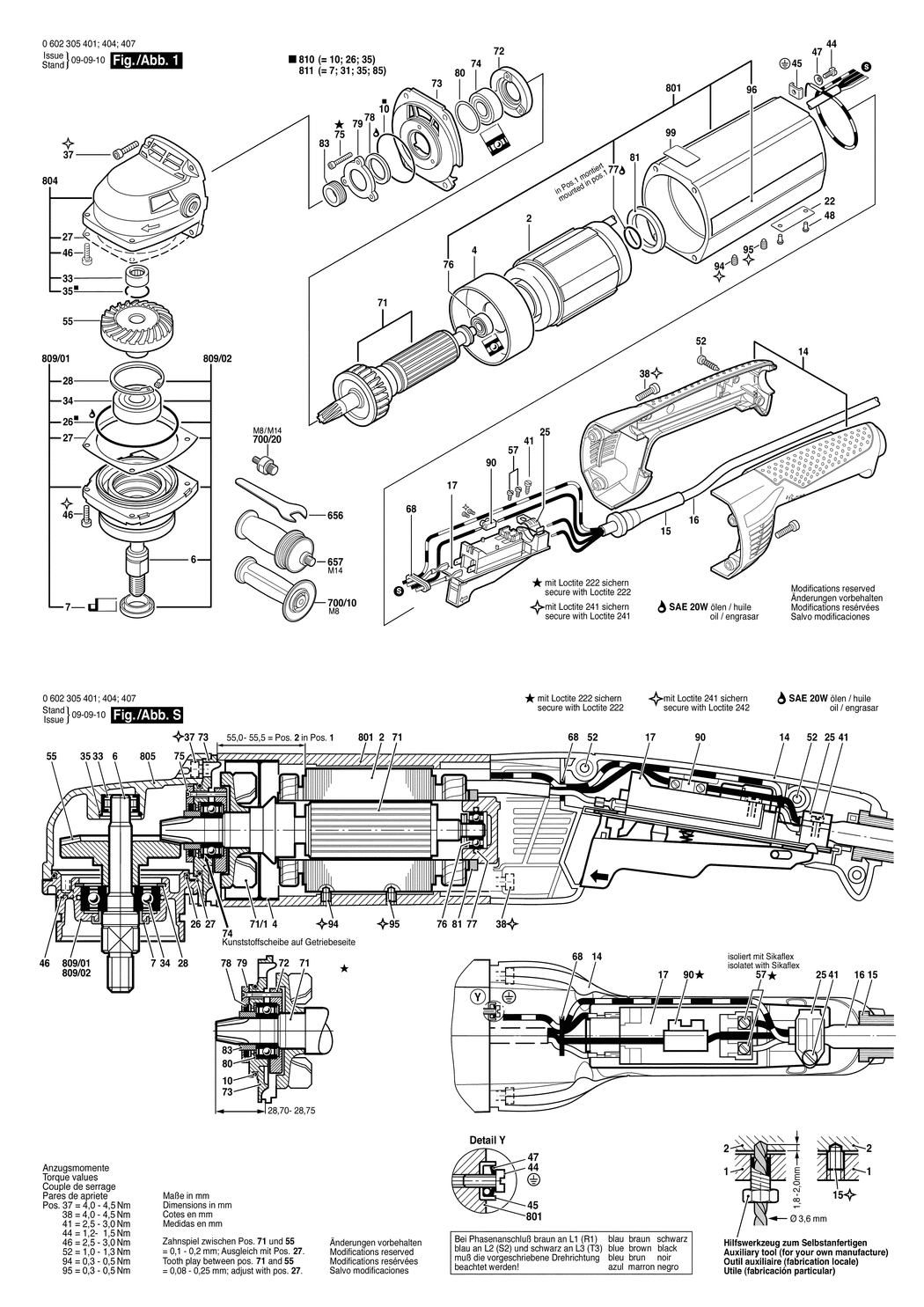

An exploded drawing and listing for the Bosch ---- / 0602305401 / --- 265 Volt

	Ex VAT	Inc VAT
2 - STATOR 265V/200HZ BSD-3604229129.A1 3604229129	£410.78	£492.94
4 - AIR-DEFLECTOR RING BSD-1600209002.A136 1600209002	£5.30	£6.36
6 - GRINDING SPINDLE BSD-3603523032.A31 3603523032	£54.42	£65.30
7 - SEAL RING BSD-1600290020.A260 1600290020	£1.75	£2.10
10 - O-RING 45x3MM BSD-1900210146.A36 1900210146	£4.26	£5.11
14 - HANDLE BSD-3605132079.A20 3605132079	£45.67	£54.80
15 - GROMMET dia12.8xdia13.5x100 MM BSD-3600703003.A5 3600703003	£5.30	£6.36
16 - ELEC. CABLE W/CONNECTION BSD-3604462017.A93 3604462017	£54.42	£65.30
17 - SWITCH BSD-3607200055.A35 3607200055	£93.88	£112.65
22 - NAMEPLATE BSD-3601106053.A107 3601106053	£5.30	£6.36
25 - FASTENING CLAMP BSD-3601303004.A274 3601303004	£5.58	£6.70
26 - O-RING 66.0x3.0 MM BSD-1600210005.A186 1600210005	£2.80	£3.36
27 - SHIM BSD-3600100075.A20 3600100075	£11.30	£13.56
27 - SHIM BSD-3600100076.A28 3600100076	£11.30	£13.56
27 - SHIM BSD-3600100077.A20 3600100077	£12.04	£14.45
28 - SPRING RETAINING RING BSD-3603435038.A20 3603435038	£2.61	£3.13
33 - NEEDLE BEARING dia22x11.3 MM BSD-1600910010.A74 1600910010	£45.67	£54.80
34 - GROOVE BALL BEARING 6303-2RS1 BSD-3608870382.A16 3608870382	£31.64	£37.97
35 - RETAINING RING dia22 MM BSD-2916620011.A185 2916620011	£1.75	£2.10
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x20-8.8 BSD-2910141162.A61 2910141162	£2.16	£2.59
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x18-8.8 BSD-2910141160.A32 2910141160	£2.16	£2.59
41 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2117 2910211019	£1.75	£2.10
44 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A234 2910110120	£1.75	£2.10
45 - CLAMPING SADDLE BSD-3601321001.A715 3601321001	£3.72	£4.47
46 - THREAD-FORMING TAP. SCREW BSD-3603435004.A50 3603435004	£2.80	£3.36
47 - SPRING WASHER dia4.2 MM BSD-3600150006.A508 3600150006	£2.61	£3.13
48 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A668 3603133001	£2.61	£3.13
52 - SCREW 4x16 BSD-2603490022.A84 2603490022	£1.75	£2.10
55 - BEVEL GEAR Z=48 BSD-1606333087.A1 1606333087	£135.25	£162.30
57 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A1868 2910021118	£1.75	£2.10
68 - SEALING PLATE BSD-3600054006.A14 3600054006	£3.72	£4.47
71 - ROTOR WITHOUT WINDING BSD-1604080036.A2 1604080036	£357.27	£428.72
72 - BEARING COVER BSD-1600501019.A403 1600501019	£23.86	£28.63
73 - BEARING FLANGE BSD-3605820064.A9 3605820064	£68.42	£82.10
74 - GROOVE BALL BEARING BSD-3600905095.A83 3600905095	£21.52	£25.83
75 - TORX FLAT-HEAD SCREW M4x20 BSD-3603435051.A18 3603435051	£1.75	£2.10
76 - GROOVE BALL BEARING 7x22x7 BSD-3600905147.A34 3600905147	£13.12	£15.75
77 - O-RING 22x2 MM BSD-1900210321.A145 1900210321	£5.30	£6.36
78 - FELT DISC BSD-1600108018.A53 1600108018	£2.61	£3.13
79 - COVER DISC BSD-1600501024.A91 1600501024	£16.41	£19.69
80 - SHIM 0.1 MM BSD-1600102633.A15 1600102633	£1.75	£2.10
80 - SHIM 0.15 MM BSD-1600102634.A13 1600102634	£2.61	£3.13
80 - SHIM 0.05 MM BSD-1600102632.A13 1600102632	£2.16	£2.59
81 - SEAL RING BSD-1600209004.A88 1600209004	£2.80	£3.36
83 - THREADED RING BSD-1603344029.A69 1603344029	£68.42	£82.10
90 - STRIP TERMINAL BSD-1901091110.A3 1901091110	£1.75	£2.10
94 - SET SCREW BSD-1603402002.A76 1603402002	£1.75	£2.10
95 - SET SCREW BSD-1603402004.A48 1603402004	£2.61	£3.13
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A305 3601110047	£2.80	£3.36
99 - REFERENCE PLATE BSD-3601119236.A1682 3601119236	£3.72	£4.47
656 - SINGLE-HEAD ENG. WRENCH SW17 BSD-2607950511.A382 2607950511	£4.26	£5.11
657 - AUXILIARY HANDLE M14. dia37x115 MM BSD-1602025030.A226 1602025030	£18.96	£22.75
700/10 - AUXILIARY HANDLE BSD-160202507H.A629 160202507H	£11.30	£13.56
700/20 - ADAPTER M8/M14 BSD-3603523013.A14 3603523013	£16.41	£19.69
801 - MOTOR HOUSING BSD-3605102079.A91 3605102079	£179.37	£215.24
804 - GEAR HOUSING BSD-3607030321.A42 3607030321	£283.50	£340.20
809/01 - BEARING FLANGE BSD-3607030375.A92 3607030375	£195.26	£234.31
809/02 - BEARING FLANGE BSD-3607030376.A7 3607030376	£120.11	£144.13
810 - SEAL KIT BSD-1607000039.A41 1607000039	£13.12	£15.75
811 - SEAL KIT BSD-1607000044.A45 1607000044	£9.49	£11.39
835 - HANDLE BSD-3607031870.A17 3607031870	-
