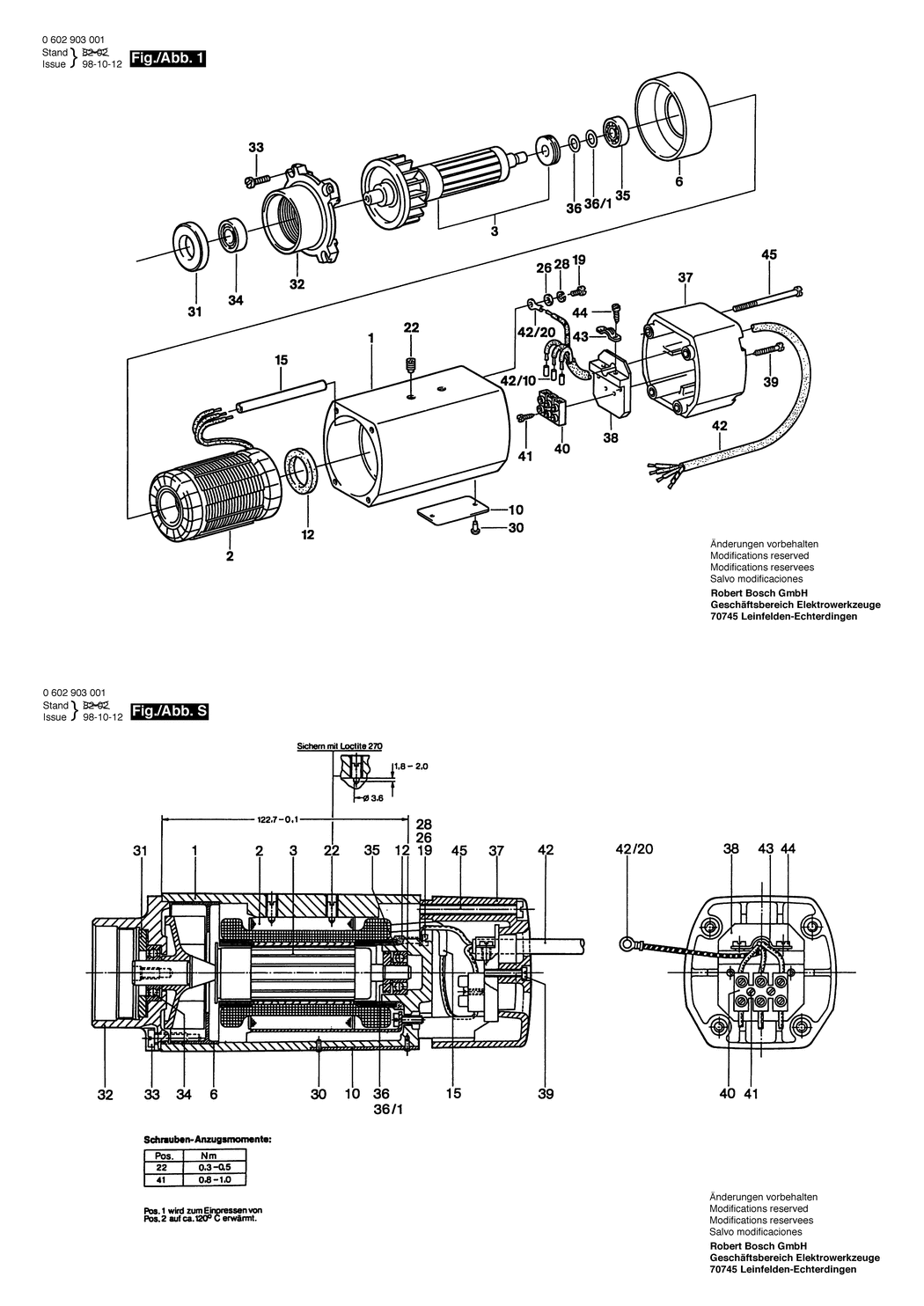

1 - MOTOR HOUSING
BSD-3605102040.A2
3605102040
|
£218.41
|
£262.09
|
|
3 - ROTOR
BSD-3604080009.A1
3604080009
|
-
|
|
|
6 - AIR-DEFLECTOR RING
BSD-1600209003.A34
1600209003
|
£8.13
|
£9.76
|
|
8 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A40
1900452000
|
-
|
|
|
10 - NAMEPLATE
BSD-3601106053.A928
3601106053
|
£5.30
|
£6.36
|
|
12 - SEAL RING
BSD-1600209006.A128
1600209006
|
£2.80
|
£3.36
|
|
19 - PAN HEAD SCREW DIN 85-MS-M 4x12
BSD-2910110122.A36
2910110122
|
£1.75
|
£2.10
|
|
22 - SET SCREW
BSD-1603402003.A0
1603402003
|
-
|
|
|
26 - CLAMPING SADDLE
BSD-3601321001.A14
3601321001
|
£3.72
|
£4.47
|
|
28 - SPRING WASHER dia4.2 MM
BSD-3600150006.A184
3600150006
|
£2.61
|
£3.13
|
|
30 - ROUND-HEAD GROOVED PIN DIN 1476-2x5-ST
BSD-2917721033.A2
2917721033
|
-
|
|
|
31 - STOP DISC
BSD-3600102013.A0
3600102013
|
-
|
|
|
32 - INTERMEDIATE BEARING
BSD-3605700050.A2
3605700050
|
-
|
|
|
33 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A416
2910011157
|
-
|
|
|
34 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A190
1900905121
|
£18.96
|
£22.75
|
|
35 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A221
1610900025
|
£16.41
|
£19.69
|
|
37 - SEALING CAP
BSD-1605500097.A5
1605500097
|
-
|
|
|
38 - CONNECTION PLATE
BSD-3602309001.A3
3602309001
|
-
|
|
|
39 - TAPPING SCREW DIN 7971-BZ3.5x19
BSD-2910211013.A23
2910211013
|
-
|
|
|
40 - STRIP TERMINAL
BSD-1901091110.A77
1901091110
|
£1.75
|
£2.10
|
|
41 - TAPPING SCREW DIN 7971-BZ2.9x16
BSD-2910211007.A147
2910211007
|
£1.75
|
£2.10
|
|
42 - ELEC. CABLE W/CONNECTION
BSD-3604462055.A12
3604462055
|
-
|
|
|
43 - SCREWED CABLE GLAND
BSD-3603386007.A5
3603386007
|
-
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-BM5x55-5.8
BSD-2910011176.A4
2910011176
|
-
|
|
|
69 - O-RING 22.0x1.5 MM
BSD-3600210016.A93
3600210016
|
£1.75
|
£2.10
|
|
73 - PARTS SET
BSD-2609201067.A8
2609201067
|
-
|
|
|
810 - STATOR 200V/300HZ
BSD-1604229089.A12
1604229089
|
£410.78
|
£492.94
|
|
