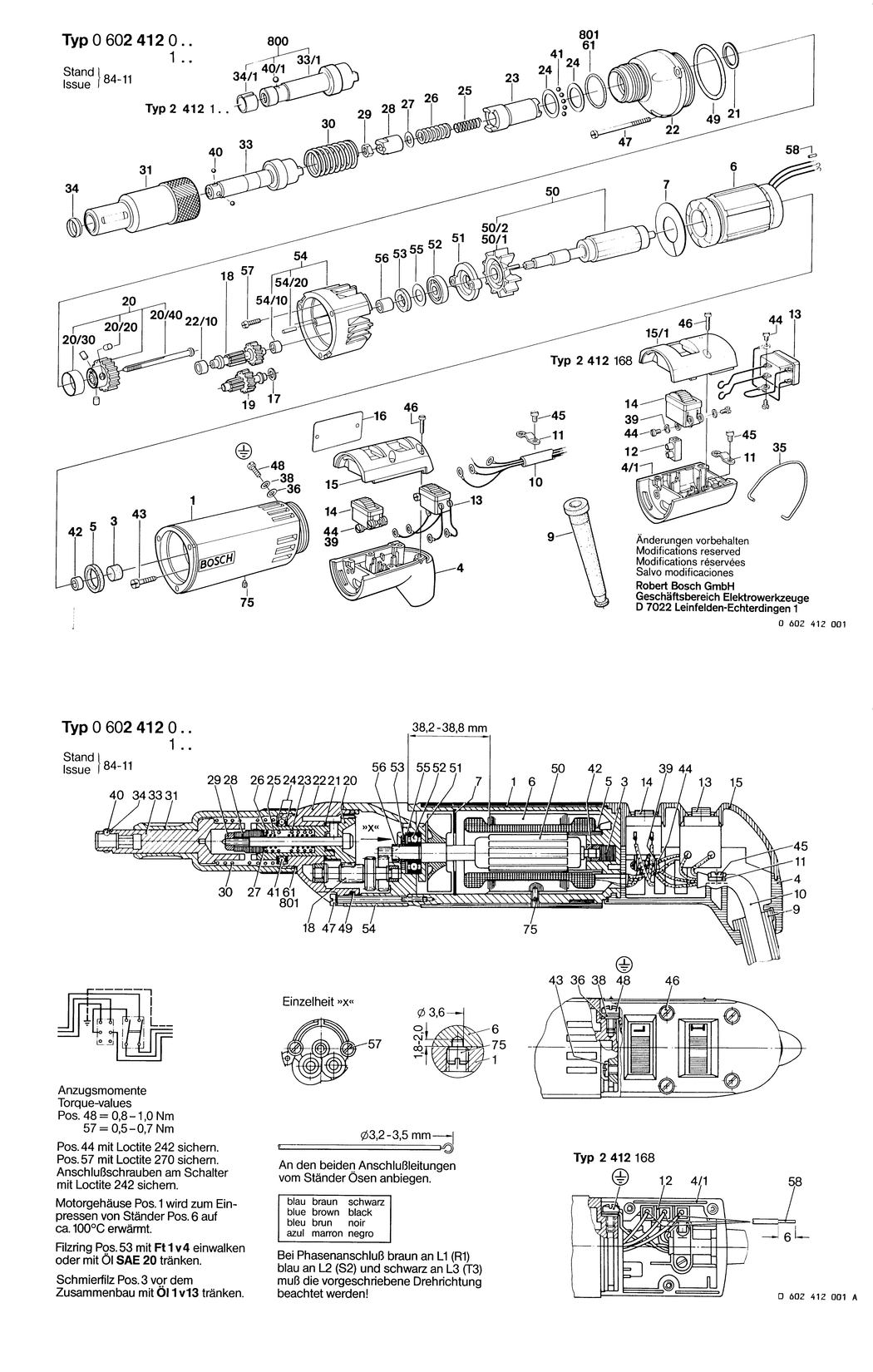

An exploded drawing and listing for the Bosch ---- / 0602412011 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102063.A2 3605102063 -
3 - LUBRICATING FELT BSD-1603212000.A86 1603212000 -
4 - HANDLE BSD-3605132046.A46 3605132046 -
5 - FELT WASHER BSD-1600205026.A72 1600205026 £2.61 £3.13
6 - STATOR 42V/300HZ.42V.200HZ BSD-1604229185.A14 1604229185 -
7 - AIR-DEFLECTOR RING BSD-1600117001.A86 1600117001 £2.16 £2.59
9 - GROMMET dia5.5-dia8.3x75 MM BSD-1600703012.A147 1600703012 £2.52 £3.02
10 - POWER SUPPLY CORD BSD-1604421026.A1 1604421026 -
11 - FASTENING CLAMP BSD-1601302001.A81 1601302001 £1.75 £2.10
12 - STRIP TERMINAL BSD-1901091014.A5 1901091014 -
13 - SWITCH BSD-1607200067.A93 1607200067 -
15 - HOUSING COVER BSD-3605130033.A2 3605130033 -
16 - NAMEPLATE BSD-3601106053.A720 3601106053 £5.30 £6.36
17 - SHIM 0.3 MM BSD-1420100666.A36 1420100666 -
18 - SPINDLE WITH GEAR Z=9/25 BSD-1603160013.A16 1603160013 -
19 - SPINDLE WITH GEAR Z=9/25 BSD-1603160017.A6 1603160017 -
20 - SPINDLE WITH GEAR Z=32 BSD-1606100021.A16 1606100021 -
20/20 - CYLINDRICAL ROLLER BSD-1603200011.A14 1603200011 -
20/30 - RETAINING SNAP RING BSD-1600209001.A21 1600209001 -
20/40 - SEMIFINISHED PART BSD-1603520005.A35 1603520005 -
21 - PLAIN WASHER 0.5 MM BSD-1600101603.A5 1600101603 £1.95 £2.34
22 - SPINDLE BEARING BSD-1605806241.A5 1605806241 -
22/10 - BUSHING BSD-1600300080.A43 1600300080 -
23 - COUPLING HALF BSD-1606432011.A27 1606432011 -
24 - PLAIN WASHER BSD-1600101007.A46 1600101007 -
25 - COMPRESSION SPRING BSD-1604612001.A25 1604612001 -
26 - COMPRESSION SPRING BSD-1604617001.A40 1604617001 £2.80 £3.36
27 - PLAIN WASHER BSD-1600100629.A23 1600100629 £1.75 £2.10
28 - BUSHING BSD-1600321004.A34 1600321004 -
29 - HEX NUT BSD-1603301000.A20 1603301000 -
30 - COMPRESSION SPRING BSD-1604615003.A27 1604615003 -
31 - BEARING SLEEVE BSD-1600460013.A5 1600460013 -
33 - CARRIER BSD-1606455022.A5 1606455022 -
34 - SPRING LOCK WASHER BSD-1600224011.A24 1600224011 -
35 - SUSPENSION LOOP BSD-1604682008.A0 1604682008 -
36 - PLAIN WASHER DIN 46 255-DPG 9 BSD-2916010409.A18 2916010409 -
40 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A287 1903230003 £2.61 £3.13
41 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A201 1903230004 £2.16 £2.59
42 - SINTERED-METAL BUSHING J4G7x8R6x6DIN1850 BSD-1900301003.A30 1900301003 -
43 - TAPPING SCREW DIN 7971-BZ4.2x13 BSD-2910211025.A53 2910211025 £1.75 £2.10
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8 BSD-2910011048.A40 2910011048 £1.75 £2.10
46 - SOCKET HEAD CAP SCREW DIN 84-AM3x12-8.8 BSD-2910021054.A20 2910021054 £1.75 £2.10
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x45-8.8 BSD-2910021072.A24 2910021072 -
49 - O-RING 35.0x1.5 MM BSD-1600210010.A39 1600210010 £2.80 £3.36
50 - ROTOR WITHOUT WINDING BSD-1604080053.A51 1604080053 £134.16 £160.99
51 - CONICAL SPRING WASHER BSD-1600501030.A67 1600501030 -
52 - GROOVE BALL BEARING 6x19x6 BSD-1900900428.A124 1900900428 £16.74 £20.09
53 - FELT WASHER BSD-1600205025.A108 1600205025 -
54 - GEAR HOUSING BSD-1605806246.A15 1605806246 -
54/10 - SINTERED-METAL BUSHING BSD-1600301000.A20 1600301000 -
54/20 - STRAIGHT PIN 2 H 8x12 DIN 7 BSD-2917500037.A38 2917500037 £1.32 £1.58
55 - SHIM 0.60 MM BSD-3600101016.A24 3600101016 -
56 - INTERMEDIATE RING BSD-1600300044.A10 1600300044 -
57 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-8.8 BSD-2910021052.A35 2910021052 -
58 - END SPLICE A 0.5-6 DIN 46 228 BSD-1900452000.A87 1900452000 -
61 - PARTS SET BSD-3607010025.A26 3607010025 -
75 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A195 2912081116 £2.61 £3.13
99 - REFERENCE PLATE BSD-3601119236.A552 3601119236 £3.72 £4.47
650 - SINGLE-HEAD ENG. WRENCH DIN 894 SW7 BSD-1907950501.A43 1907950501 -
651 - DOUBLE HEAD ENGIN WRENCH BSD-1907950532.A10 1907950532 -
