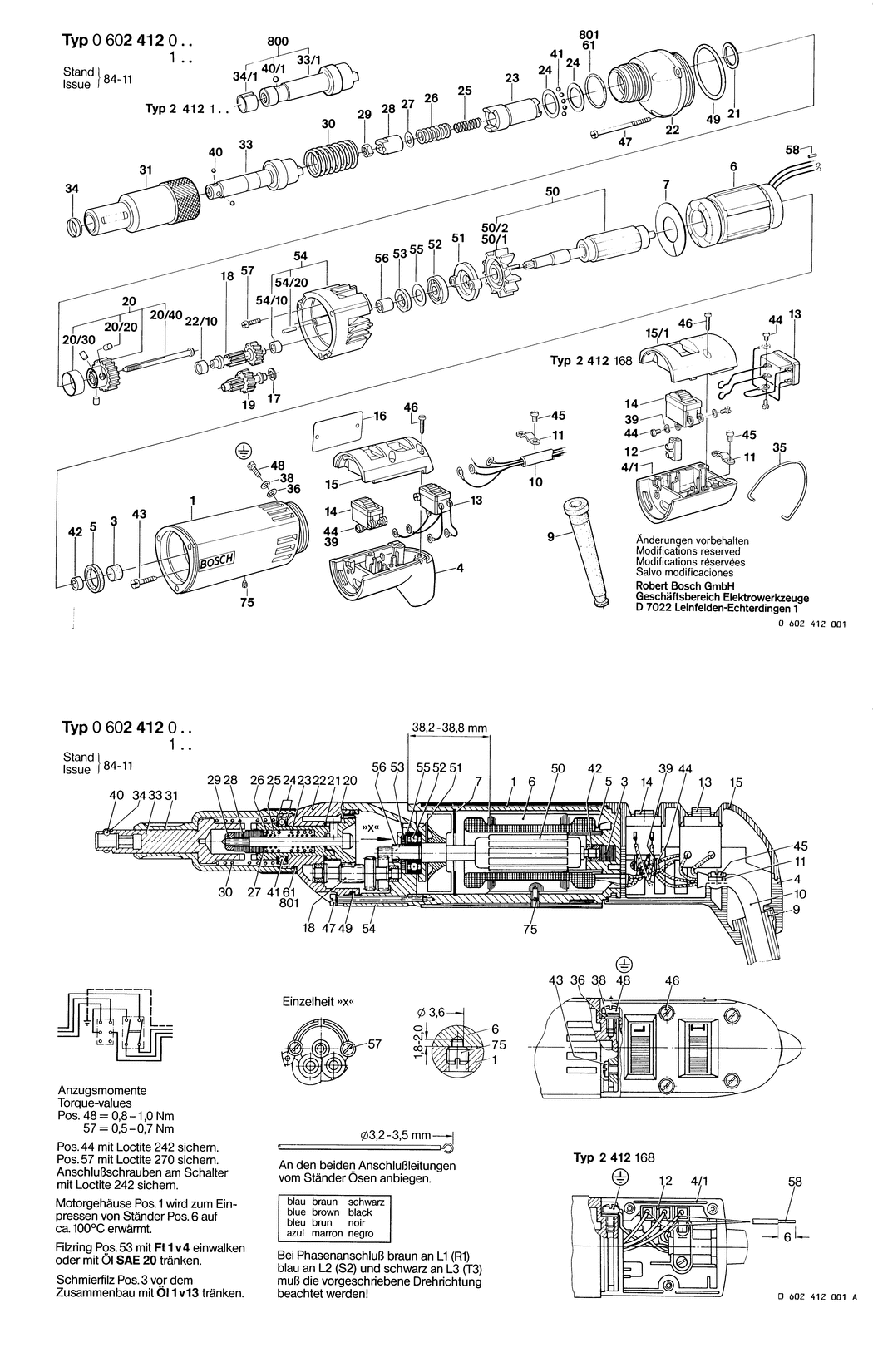

1 - MOTOR HOUSING
BSD-3605102048.A33
3605102048
|
£103.14
|
£123.77
|
|
|
3 - LUBRICATING FELT
BSD-1603212000.A97
1603212000
|
-
|
|
|
|
4 - HANDLE
BSD-3605132046.A40
3605132046
|
-
|
|
|
|
5 - FELT WASHER
BSD-1600205026.A90
1600205026
|
£2.61
|
£3.13
|
|
|
6 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229182.A29
1604229182
|
£357.27
|
£428.72
|
|
|
7 - AIR-DEFLECTOR RING
BSD-1600117001.A53
1600117001
|
£2.16
|
£2.59
|
|
|
9 - GROMMET dia5.5-dia8.3x75 MM
BSD-1600703012.A126
1600703012
|
£2.52
|
£3.02
|
|
|
10 - ELEC. CABLE W/CONNECTION
BSD-3604462048.A55
3604462048
|
-
|
|
|
|
11 - FASTENING CLAMP
BSD-1601302001.A105
1601302001
|
£1.75
|
£2.10
|
|
|
13 - SWITCH
BSD-1607200067.A115
1607200067
|
-
|
|
|
|
14 - REVERSING SWITCH
BSD-1607200066.A3
1607200066
|
£63.50
|
£76.20
|
|
|
15/1 - HOUSING COVER
BSD-3605500067.A35
3605500067
|
-
|
|
|
|
16 - NAMEPLATE
BSD-3601106053.A750
3601106053
|
£5.30
|
£6.36
|
|
|
17 - SHIM 0.3 MM
BSD-1420100666.A41
1420100666
|
-
|
|
|
|
18 - SPINDLE WITH GEAR Z=9/25
BSD-1603160013.A2
1603160013
|
-
|
|
|
|
19 - SPINDLE WITH GEAR Z=9/25
BSD-1603160017.A16
1603160017
|
-
|
|
|
|
20 - SPINDLE WITH GEAR Z=32
BSD-1606100021.A0
1606100021
|
-
|
|
|
|
20/20 - CYLINDRICAL ROLLER
BSD-1603200011.A2
1603200011
|
-
|
|
|
|
20/30 - RETAINING SNAP RING
BSD-1600209001.A3
1600209001
|
-
|
|
|
|
20/40 - SEMIFINISHED PART
BSD-1603520005.A7
1603520005
|
-
|
|
|
|
21 - PLAIN WASHER 0.5 MM
BSD-1600101603.A37
1600101603
|
£1.95
|
£2.34
|
|
|
22 - SPINDLE BEARING
BSD-1605806241.A15
1605806241
|
-
|
|
|
|
22/10 - BUSHING
BSD-1600300080.A18
1600300080
|
-
|
|
|
|
23 - COUPLING HALF
BSD-1606432011.A3
1606432011
|
-
|
|
|
|
24 - PLAIN WASHER
BSD-1600101007.A11
1600101007
|
-
|
|
|
|
25 - COMPRESSION SPRING
BSD-1604612001.A39
1604612001
|
-
|
|
|
|
26 - COMPRESSION SPRING
BSD-1604617001.A14
1604617001
|
£2.80
|
£3.36
|
|
|
27 - PLAIN WASHER
BSD-1600100629.A18
1600100629
|
£1.75
|
£2.10
|
|
|
28 - BUSHING
BSD-1600321004.A8
1600321004
|
-
|
|
|
|
29 - HEX NUT
BSD-1603301000.A9
1603301000
|
-
|
|
|
|
30 - COMPRESSION SPRING
BSD-1604615003.A12
1604615003
|
-
|
|
|
|
31 - BEARING SLEEVE
BSD-3600460002.A17
3600460002
|
-
|
|
|
|
33/1 - COUPLING HALF
BSD-3606455009.A10
3606455009
|
-
|
|
|
|
34/1 - HOLDING SPRING
BSD-3604682003.A14
3604682003
|
-
|
|
|
|
35 - CLAMPING SADDLE
BSD-3601321004.A26
3601321004
|
£2.16
|
£2.59
|
|
|
36 - PLAIN WASHER DIN 46 255-DPG 9
BSD-2916010409.A29
2916010409
|
-
|
|
|
|
36 - CLAMPING SADDLE
BSD-3601321002.A63
3601321002
|
£2.52
|
£3.02
|
|
|
38 - SPRING WASHER
BSD-3600150009.A35
3600150009
|
£2.80
|
£3.36
|
|
|
39 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A41
2916060003
|
£1.32
|
£1.58
|
|
|
40/1 - BALL DIN 5401-3.5 MM-III-ST
BSD-1903230006.A213
1903230006
|
£2.16
|
£2.59
|
|
|
41 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A235
1903230004
|
£2.16
|
£2.59
|
|
|
42 - SINTERED-METAL BUSHING J4G7x8R6x6DIN1850
BSD-1900301003.A3
1900301003
|
-
|
|
|
|
43 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A60
2910211025
|
£1.75
|
£2.10
|
|
|
44 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8
BSD-2910091046.A6
2910091046
|
£1.75
|
£2.10
|
|
|
45 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A20
2910011048
|
£1.75
|
£2.10
|
|
|
46 - TAPPING SCREW DIN 7971-BZ3.5x19
BSD-2910211013.A9
2910211013
|
-
|
|
|
|
47 - SOCKET HEAD CAP SCREW DIN 84-BM3x45-8.8
BSD-2910021072.A8
2910021072
|
-
|
|
|
|
48 - PAN HEAD SCREW DIN 85-AM3x8-MS
BSD-2910110050.A106
2910110050
|
£1.75
|
£2.10
|
|
|
49 - O-RING 35.0x1.5 MM
BSD-1600210010.A7
1600210010
|
£2.80
|
£3.36
|
|
|
50 - ROTOR WITHOUT WINDING
BSD-1604080053.A40
1604080053
|
£134.16
|
£160.99
|
|
|
51 - CONICAL SPRING WASHER
BSD-1600501030.A50
1600501030
|
-
|
|
|
|
52 - GROOVE BALL BEARING 6x19x6
BSD-1900900428.A106
1900900428
|
£16.74
|
£20.09
|
|
|
53 - FELT WASHER
BSD-1600205025.A89
1600205025
|
-
|
|
|
|
54 - GEAR HOUSING
BSD-1605806246.A3
1605806246
|
-
|
|
|
|
54/10 - SINTERED-METAL BUSHING
BSD-1600301000.A44
1600301000
|
-
|
|
|
|
54/20 - STRAIGHT PIN 2 H 8x12 DIN 7
BSD-2917500037.A14
2917500037
|
£1.32
|
£1.58
|
|
|
55 - SHIM 0.60 MM
BSD-3600101016.A12
3600101016
|
-
|
|
|
|
56 - INTERMEDIATE RING
BSD-1600300044.A34
1600300044
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-8.8
BSD-2910021052.A24
2910021052
|
-
|
|
|
|
61 - PARTS SET
BSD-3607010025.A38
3607010025
|
-
|
|
|
|
75 - SET SCREW DIN 915-M4x6-45H
BSD-2912081116.A187
2912081116
|
£2.61
|
£3.13
|
|
|
77 - END SPLICE A 0.5-6 DIN 46 228
BSD-1900452000.A104
1900452000
|
-
|
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A573
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SINGLE-HEAD ENG. WRENCH DIN 894 SW7
BSD-1907950501.A48
1907950501
|
-
|
|
|
|
651 - DOUBLE HEAD ENGIN WRENCH
BSD-1907950532.A5
1907950532
|
-
|
|
|
|
700 - QUICK-CHANGE COLLET CHUCK 1/4
BSD-3608120000.A2
3608120000
|
-
|
|
|
|
800 - TOOLHOLDER
BSD-3606455017.A7
3606455017
|
-
|
|
|
