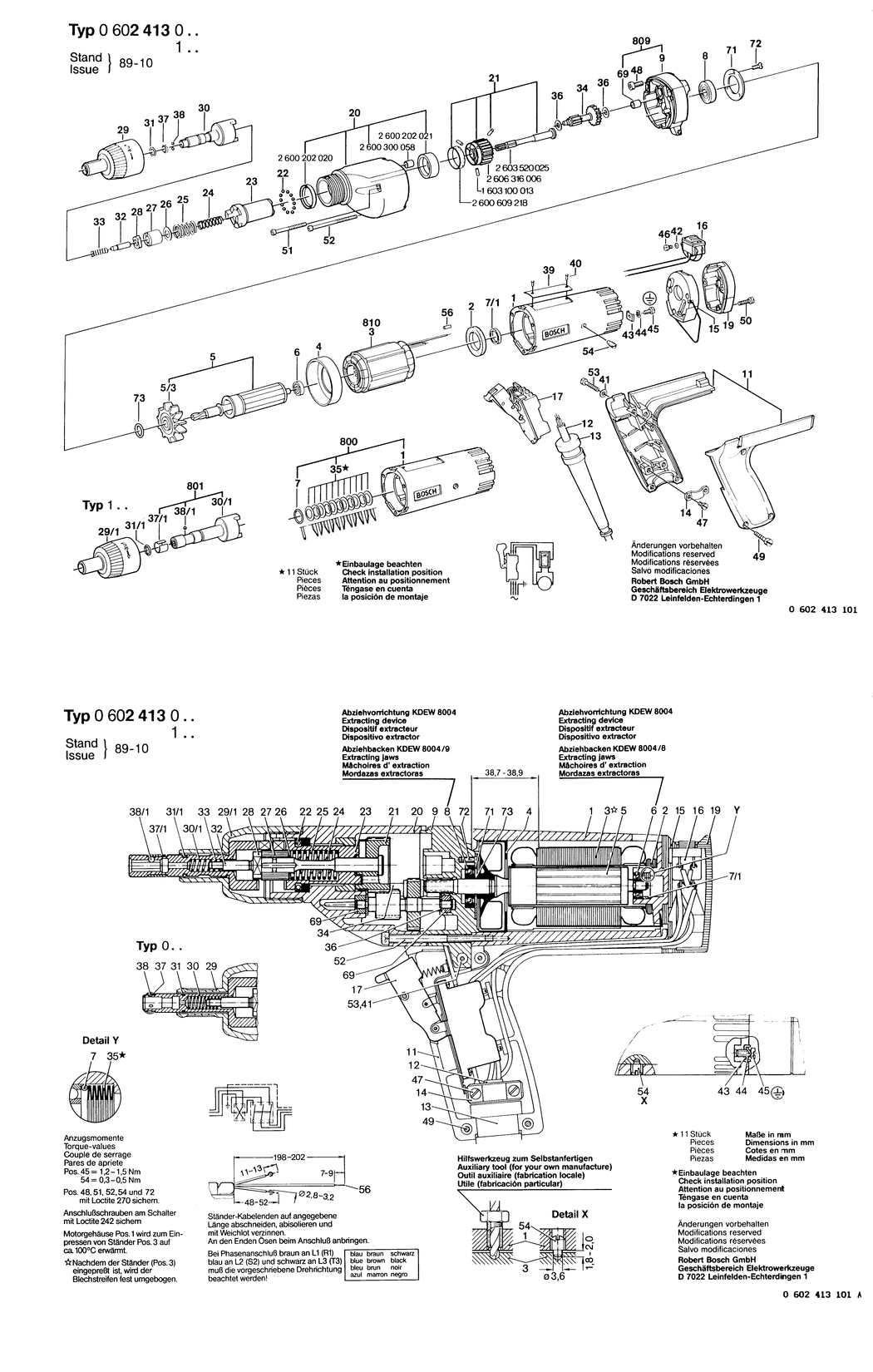

An exploded drawing and listing for the Bosch ---- / 0602413014 / --- 120 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102058.A74 3605102058 £120.11 £144.13
2 - SEAL RING BSD-1600209011.A237 1600209011 £2.80 £3.36
4 - AIR-DEFLECTOR RING BSD-1600502005.A131 1600502005 £2.61 £3.13
5 - ROTOR BSD-3604080020.A95 3604080020 -
6 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A120 1900905015 £30.42 £36.51
7 - O-RING 12.0x2.25 MM BSD-3600210039.A38 3600210039 £7.36 £8.83
7/1 - RUBBER RING 6MM.dia12xdia16.4x3MM BSD-3600206002.A183 3600206002 -
8 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A206 1900905017 £23.86 £28.63
9 - BEARING HOUSING BSD-3605820046.A37 3605820046 -
11 - HANDLE BSD-3605132044.A52 3605132044 -
12 - ELEC. CABLE W/CONNECTION BSD-3604462049.A13 3604462049 -
13 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A369 3600703011 £2.80 £3.36
14 - FASTENING CLAMP BSD-1601302014.A118 1601302014 £2.61 £3.13
15 - CONNECTION HOUSING BSD-3600099005.A31 3600099005 £16.41 £19.69
16 - REVERSING SWITCH BSD-1607200043.A1 1607200043 -
17 - SWITCH BSD-1607200038.A25 1607200038 £54.42 £65.30
19 - SEALING CAP BSD-3605500071.A6 3605500071 £16.41 £19.69
20 - GEAR HOUSING BSD-2605806227.A64 2605806227 -
21 - SPINDLE WITH GEAR Z=37 BSD-2606100052.A54 2606100052 -
22 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A236 1903230004 £2.16 £2.59
23 - COUPLING HALF BSD-2606445000.A14 2606445000 -
24 - COMPRESSION SPRING BSD-1604616010.A28 1604616010 -
25 - COMPRESSION SPRING BSD-1604619005.A15 1604619005 -
26 - SHIM BSD-1600100607.A52 1600100607 -
27 - BUSHING BSD-1600309004.A51 1600309004 -
28 - ROUND NUT BSD-1603341000.A8 1603341000 -
29 - GUIDE SLEEVE BSD-2600460001.A28 2600460001 -
30 - CARRIER 6 KT.. 6.3 MM BSD-2606455002.A17 2606455002 -
31 - O-RING 8.0x1.5 MM BSD-1900210103.A81 1900210103 £2.80 £3.36
32 - PRESSURE SPINDLE BSD-1603120022.A10 1603120022 -
33 - COMPRESSION SPRING BSD-1604626002.A7 1604626002 -
34 - SPINDLE WITH GEAR Z=14/34 BSD-1606328086.A12 1606328086 -
35 - DISC SPRING BSD-3600150013.A164 3600150013 £3.72 £4.47
36 - SHIM 0.50 MM BSD-2600100613.A100 2600100613 £1.75 £2.10
37 - SPRING LOCK WASHER BSD-1600224011.A14 1600224011 -
38 - BALL DIN 5401-2.5MM-III-ST BSD-1903230003.A279 1903230003 £2.61 £3.13
39 - NAMEPLATE BSD-3601106053.A743 3601106053 £5.30 £6.36
40 - GROOVED NAIL BSD-3603133000.A712 3603133000 £2.61 £3.13
41 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A195 2916060006 £1.32 £1.58
42 - SPRING WASHER A 3 DIN 137-ST BSD-2916060003.A35 2916060003 £1.32 £1.58
43 - PLAIN WASHER DIN 46 255-DPG 9 BSD-2916010409.A36 2916010409 -
44 - SPRING WASHER DIN 137-A4 BSD-1600150006.A778 1600150006 -
45 - PAN HEAD SCREW DIN 85 AM 4x6-MS BSD-2910110116.A207 2910110116 £1.75 £2.10
46 - PAN HEAD SCREW DIN 85-AM3.5x15-4.8 BSD-2910091046.A1 2910091046 £1.75 £2.10
47 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A615 2910021116 £2.16 £2.59
48 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A199 2910141122 £2.16 £2.59
49 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A263 2910021122 £2.16 £2.59
50 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8 BSD-2910141131.A68 2910141131 £2.16 £2.59
51 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A44 2910141140 £1.75 £2.10
52 - HEX SOCKET HEAD CAP SCREW BSD-3603414001.A59 3603414001 -
53 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8 BSD-2910011162.A394 2910011162 £1.75 £2.10
54 - SET SCREW BSD-3603402000.A426 3603402000 £1.75 £2.10
56 - END SPLICE BSD-3604477008.A376 3604477008 £1.75 £2.10
69 - BUSHING BSD-2600300058.A52 2600300058 -
71 - RETAINING WASHER BSD-3600190012.A87 3600190012 -
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A30 2910780050 -
73 - O-RING 8.0x1.0 MM BSD-1600210045.A121 1600210045 £1.75 £2.10
99 - REFERENCE PLATE BSD-3601119236.A579 3601119236 £3.72 £4.47
652 - STRAIGHT PIN 4x60 MM BSD-2603101035.A20 2603101035 £2.80 £3.36
800 - MOTOR HOUSING BSD-3605102028.A113 3605102028 £156.22 £187.46
801 - CARRIER BSD-3606455019.A4 3606455019 -
809 - BEARING HOUSING BSD-1605820162.A14 1605820162 -
810 - STATOR 220V/360HZ BSD-1604229204.A13 1604229204 -
