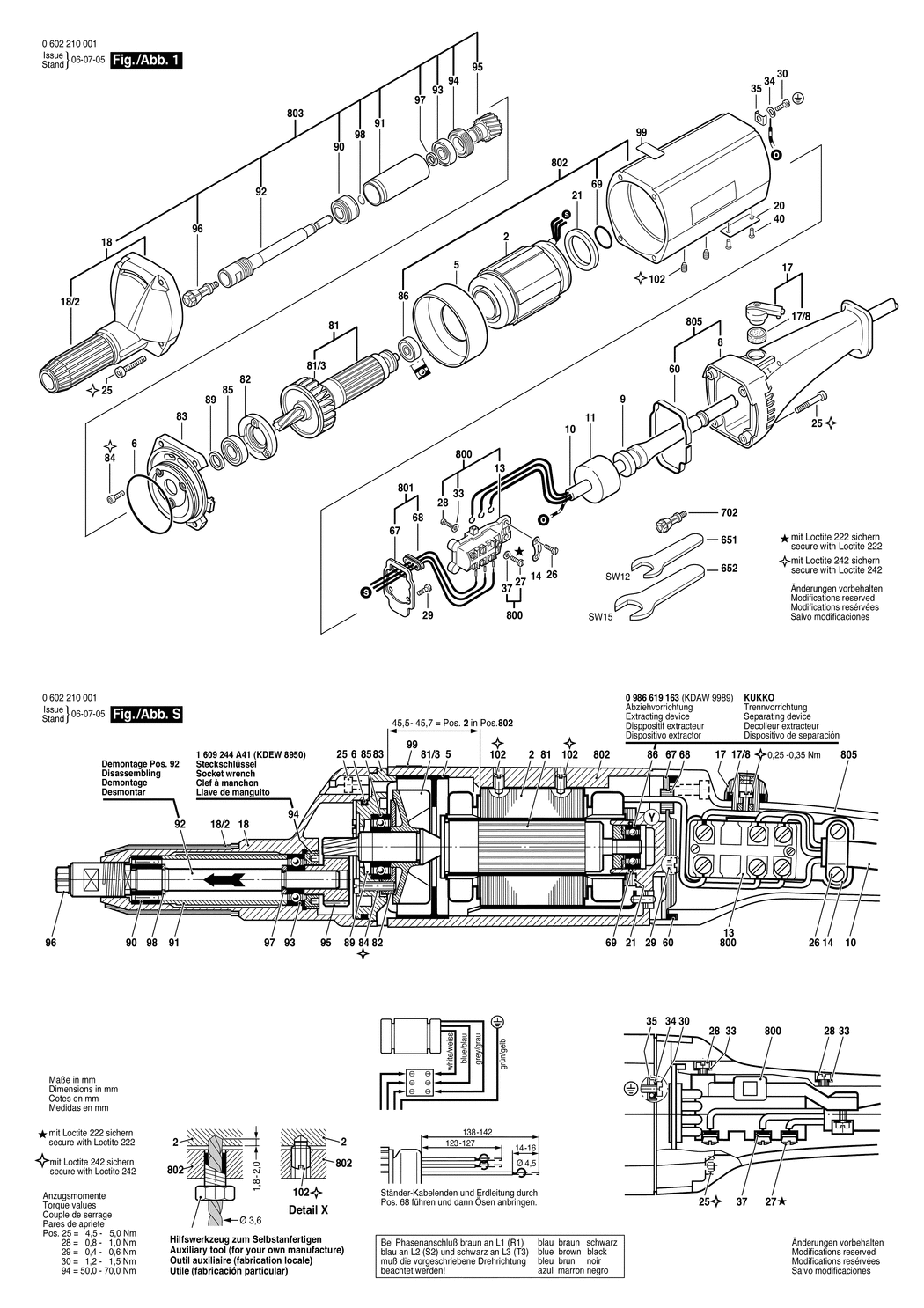

2 - STATOR 200V/300HZ
BSD-1604229089.A32
1604229089
|
£410.78
|
£492.94
|
|
|
5 - AIR-DEFLECTOR RING
BSD-1600209003.A95
1600209003
|
£8.13
|
£9.76
|
|
|
6 - O-RING 45x3MM
BSD-1900210146.A134
1900210146
|
£4.26
|
£5.11
|
|
|
8 - HANDLE
BSD-3605132024.A20
3605132024
|
£27.23
|
£32.68
|
|
|
9 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A610
1600703009
|
£5.58
|
£6.70
|
|
|
10 - ELEC. CABLE W/CONNECTION
BSD-3607030236.A54
3607030236
|
£61.98
|
£74.38
|
|
|
11 - SEALING PLATE
BSD-1600113003.A190
1600113003
|
£2.80
|
£3.36
|
|
|
13 - SWITCH
BSD-1607200020.A69
1607200020
|
-
|
|
|
|
14 - FASTENING CLAMP
BSD-1601303003.A393
1601303003
|
£2.16
|
£2.59
|
|
|
17 - CONTROL LEVER
BSD-1602026030.A113
1602026030
|
£10.10
|
£12.12
|
|
|
17/8 - FELT WASHER
BSD-1600205008.A202
1600205008
|
£1.75
|
£2.10
|
|
|
18 - SPINDLE BEARING
BSD-3605806117.A8
3605806117
|
£179.37
|
£215.24
|
|
|
18/2 - SHRINKABLE TUBE
BSD-3600712004.A17
3600712004
|
-
|
|
|
|
20 - NAMEPLATE
BSD-3601106053.A579
3601106053
|
£5.30
|
£6.36
|
|
|
21 - SEAL RING
BSD-1600209006.A69
1600209006
|
£2.80
|
£3.36
|
|
|
25 - THREAD-FORMING TAP. SCREW
BSD-3603435003.A32
3603435003
|
£2.80
|
£3.36
|
|
|
26 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1351
2910021118
|
£1.75
|
£2.10
|
|
|
27 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A83
2910110120
|
£1.75
|
£2.10
|
|
|
28 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A561
2910211006
|
£1.75
|
£2.10
|
|
|
29 - SOCKET HEAD CAP SCREW
BSD-3603450008.A52
3603450008
|
£2.16
|
£2.59
|
|
|
30 - THREAD-FORMING TAP. SCREW
BSD-2914461403.A38
2914461403
|
£2.16
|
£2.59
|
|
|
33 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A424
2916011005
|
£1.75
|
£2.10
|
|
|
34 - SPRING WASHER dia4.2 MM
BSD-3600150006.A742
3600150006
|
£2.61
|
£3.13
|
|
|
35 - CLAMPING SADDLE
BSD-3601321001.A435
3601321001
|
£3.72
|
£4.47
|
|
|
37 - SPRING WASHER dia4.2 MM
BSD-3600150006.A743
3600150006
|
£2.61
|
£3.13
|
|
|
40 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A538
3603133001
|
£2.61
|
£3.13
|
|
|
60 - SEALING CORD
BSD-1601014000.A55
1601014000
|
£2.80
|
£3.36
|
|
|
67 - SEALING PLATE
BSD-1602388006.A71
1602388006
|
£5.58
|
£6.70
|
|
|
68 - GROMMET
BSD-1600306001.A291
1600306001
|
£2.61
|
£3.13
|
|
|
69 - O-RING 22.0x1.5 MM
BSD-3600210016.A82
3600210016
|
£1.75
|
£2.10
|
|
|
81 - ROTOR WITHOUT WINDING
BSD-3604080057.A10
3604080057
|
£283.50
|
£340.20
|
|
|
81/3 - FAN
BSD-3606610010.A96
3606610010
|
£4.26
|
£5.11
|
|
|
82 - CONICAL SPRING WASHER
BSD-1600501025.A93
1600501025
|
£33.74
|
£40.49
|
|
|
83 - BEARING FLANGE
BSD-3605820055.A5
3605820055
|
£102.57
|
£123.08
|
|
|
84 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A352
2910011128
|
£1.75
|
£2.10
|
|
|
85 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A365
1900905121
|
£18.96
|
£22.75
|
|
|
86 - GROOVE BALL BEARING 7x22x7
BSD-1610900025.A39
1610900025
|
£16.41
|
£19.69
|
|
|
89 - SEALING DISK
BSD-1600108030.A21
1600108030
|
£3.72
|
£4.47
|
|
|
90 - NEEDLE-ROLLER BEARING
BSD-1600910002.A27
1600910002
|
£23.86
|
£28.63
|
|
|
91 - GUIDE SLEEVE
BSD-3600320015.A9
3600320015
|
£27.23
|
£32.68
|
|
|
92 - GRINDING SPINDLE
BSD-1603123011.A26
1603123011
|
£179.37
|
£215.24
|
|
|
93 - GROOVE BALL BEARING
BSD-3600905063.A24
3600905063
|
£23.86
|
£28.63
|
|
|
94 - THREADED RING
BSD-3603344059.A76
3603344059
|
£39.17
|
£47.00
|
|
|
95 - CYLINDRICAL GEAR
BSD-1606320035.A4
1606320035
|
£135.25
|
£162.30
|
|
|
96 - COLLET dia6 MM
BSD-1608570025.A28
1608570025
|
£37.27
|
£44.72
|
|
|
97 - SPACER RING
BSD-1600202016.A19
1600202016
|
£5.30
|
£6.36
|
|
|
98 - RETAINING RING
BSD-1600224025.A23
1600224025
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1295
3601119236
|
£3.72
|
£4.47
|
|
|
102 - SET SCREW
BSD-1603402002.A181
1603402002
|
£1.75
|
£2.10
|
|
|
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW 12
BSD-1907950506.A78
1907950506
|
£13.12
|
£15.75
|
|
|
652 - SINGLE-HEAD ENG. WRENCH DIN 894 SW 15
BSD-1907950509.A10
1907950509
|
£13.12
|
£15.75
|
|
|
702 - COLLET dia 1/4 (6.35 MM)
BSD-1608570058.A21
1608570058
|
£37.27
|
£44.72
|
|
|
800 - SWITCH KIT
BSD-1607000036.A103
1607000036
|
-
|
|
|
|
801 - SEALING PLATE
BSD-1602388007.A192
1602388007
|
£12.04
|
£14.45
|
|
|
802 - MOTOR HOUSING
BSD-3605102040.A74
3605102040
|
£218.41
|
£262.09
|
|
|
803 - SPINDLE BEARING
BSD-1605806210.A6
1605806210
|
£458.51
|
£550.21
|
|
|
805 - HANDLE
BSD-3605132048.A55
3605132048
|
£63.50
|
£76.20
|
|
