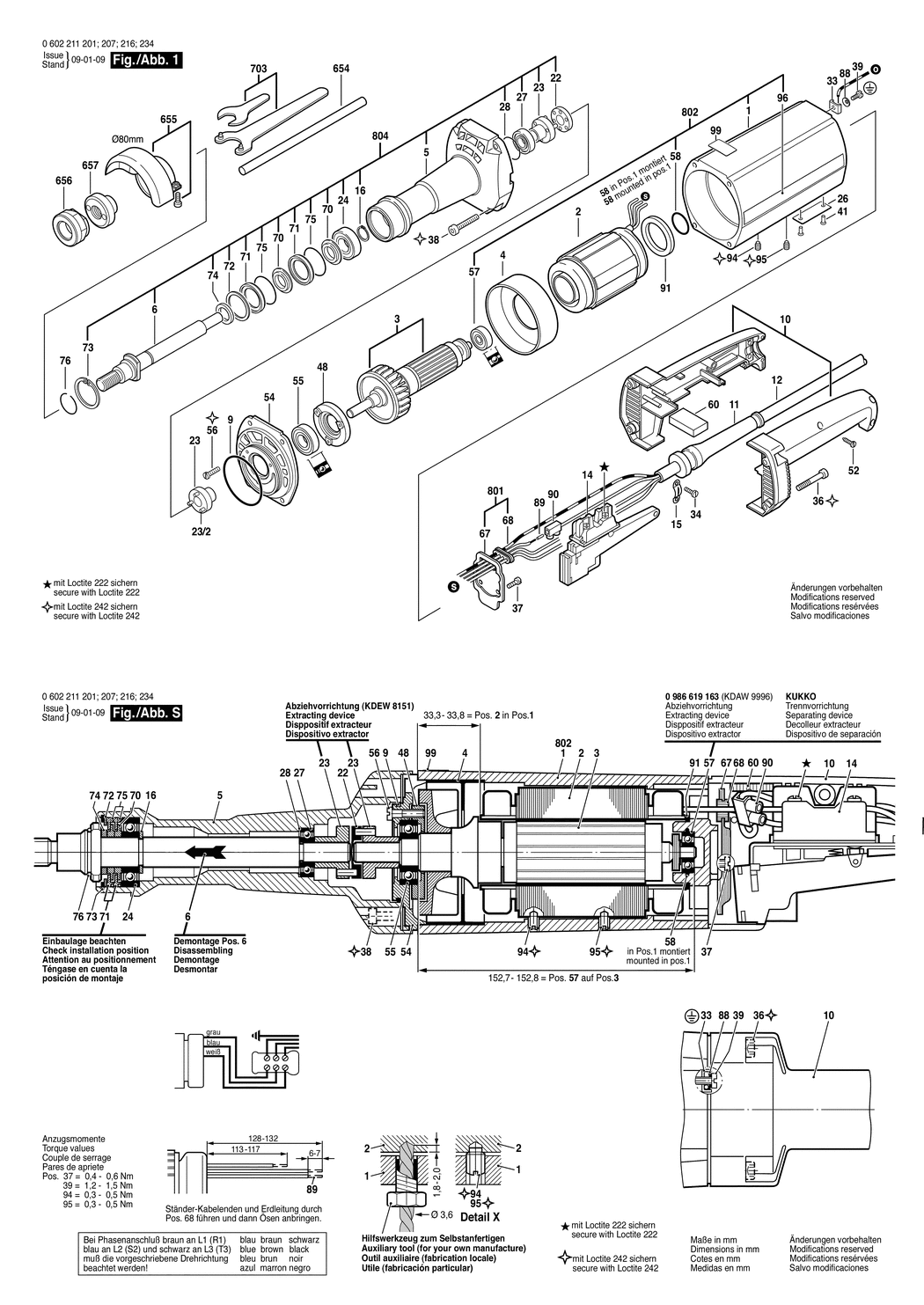

1 - MOTOR HOUSING
BSD-3605102081.A39
3605102081
|
£156.22
|
£187.46
|
|
|
2 - STATOR 72V/200HZ
BSD-1604229100.A2
1604229100
|
-
|
|
|
|
3 - ROTOR WITHOUT WINDING
BSD-1604080032.A29
1604080032
|
£195.26
|
£234.31
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209002.A261
1600209002
|
£5.30
|
£6.36
|
|
|
5 - SPINDLE BEARING
BSD-3605806142.A4
3605806142
|
£553.99
|
£664.79
|
|
|
6 - GRINDING SPINDLE
BSD-3603050012.A34
3603050012
|
£156.22
|
£187.46
|
|
|
9 - O-RING 45x3MM
BSD-1900210146.A219
1900210146
|
£4.26
|
£5.11
|
|
|
10 - HANDLE
BSD-3605132077.A2
3605132077
|
£23.86
|
£28.63
|
|
|
11 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A243
1600703009
|
£5.58
|
£6.70
|
|
|
12 - ELEC. CABLE W/CONNECTION
BSD-3604462045.A4
3604462045
|
£68.42
|
£82.10
|
|
|
14 - SWITCH
BSD-3607200005.A0
3607200005
|
£120.11
|
£144.13
|
|
|
15 - FASTENING CLAMP
BSD-1601303003.A74
1601303003
|
£2.16
|
£2.59
|
|
|
16 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A229
2916650008
|
£1.75
|
£2.10
|
|
|
22 - CARRIER
BSD-1606442000.A42
1606442000
|
£5.58
|
£6.70
|
|
|
23 - CARRIER
BSD-1600320026.A51
1600320026
|
£48.38
|
£58.06
|
|
|
23/2 - STRAIGHT PIN 4 H 8x12 DIN 7
BSD-2917500095.A128
2917500095
|
£1.75
|
£2.10
|
|
|
24 - GROOVE BALL BEARING
BSD-3600905058.A43
3600905058
|
£21.52
|
£25.83
|
|
|
26 - NAMEPLATE
BSD-3601106053.A1081
3601106053
|
£5.30
|
£6.36
|
|
|
27 - GROOVE BALL BEARING
BSD-3608870093.A4
3608870093
|
£18.96
|
£22.75
|
|
|
28 - O-RING 28x2 MM
BSD-1900210127.A62
1900210127
|
£5.30
|
£6.36
|
|
|
33 - CLAMPING SADDLE
BSD-3601321001.A110
3601321001
|
£3.72
|
£4.47
|
|
|
34 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A211
2603490021
|
£1.75
|
£2.10
|
|
|
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8
BSD-2910141166.A35
2910141166
|
£1.75
|
£2.10
|
|
|
37 - SOCKET HEAD CAP SCREW
BSD-3603450008.A162
3603450008
|
£2.16
|
£2.59
|
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x25-8.8
BSD-2910141164.A166
2910141164
|
£2.16
|
£2.59
|
|
|
39 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A456
2910110120
|
£1.75
|
£2.10
|
|
|
41 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A196
3603133001
|
£2.61
|
£3.13
|
|
|
48 - BEARING COVER
BSD-1600501019.A48
1600501019
|
£23.86
|
£28.63
|
|
|
52 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A566
2910211021
|
£1.75
|
£2.10
|
|
|
54 - BEARING FLANGE
BSD-3605820064.A111
3605820064
|
£68.42
|
£82.10
|
|
|
55 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A242
1900905234
|
£31.64
|
£37.97
|
|
|
56 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8
BSD-2910021125.A638
2910021125
|
£1.75
|
£2.10
|
|
|
57 - GROOVE BALL BEARING 7x22x7
BSD-3600905147.A22
3600905147
|
£13.12
|
£15.75
|
|
|
58 - O-RING 22x2 MM
BSD-1900210321.A45
1900210321
|
£5.30
|
£6.36
|
|
|
60 - INSULATING PLATE 20x20x50 MM
BSD-1602381006.A179
1602381006
|
£1.75
|
£2.10
|
|
|
67 - SEALING PLATE
BSD-1602388006.A120
1602388006
|
£5.58
|
£6.70
|
|
|
68 - GROMMET
BSD-1600306001.A15
1600306001
|
£2.61
|
£3.13
|
|
|
70 - PROTECTIVE RING
BSD-3600222004.A29
3600222004
|
£27.23
|
£32.68
|
|
|
71 - SPACER RING
BSD-3600200057.A6
3600200057
|
£27.23
|
£32.68
|
|
|
72 - SHIM
BSD-3600150019.A29
3600150019
|
£2.16
|
£2.59
|
|
|
73 - SPRING RETAINING RING DIN472-35x1.5
BSD-2916669114.A31
2916669114
|
£2.16
|
£2.59
|
|
|
74 - SPACER RING
BSD-3600202015.A29
3600202015
|
£21.68
|
£26.01
|
|
|
75 - O-RING 32.0x1.5 MM
BSD-3600210057.A29
3600210057
|
£2.61
|
£3.13
|
|
|
76 - RETAINING RING 24x2 DIN9045-24
BSD-2916609112.A80
2916609112
|
£2.61
|
£3.13
|
|
|
88 - SPRING WASHER dia4.2 MM
BSD-3600150006.A68
3600150006
|
£2.61
|
£3.13
|
|
|
89 - END SPLICE
BSD-3604477009.A144
3604477009
|
£2.61
|
£3.13
|
|
|
90 - STRIP TERMINAL
BSD-1901091110.A84
1901091110
|
£1.75
|
£2.10
|
|
|
91 - SEAL RING
BSD-1600209004.A126
1600209004
|
£2.80
|
£3.36
|
|
|
94 - SET SCREW
BSD-1603402002.A253
1603402002
|
£1.75
|
£2.10
|
|
|
95 - SET SCREW
BSD-1603402004.A207
1603402004
|
£2.61
|
£3.13
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110047.A103
3601110047
|
£2.80
|
£3.36
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A261
3601119236
|
£3.72
|
£4.47
|
|
|
650 - PIN-TYPE FACE-WRENCH
BSD-2607950022.A55
2607950022
|
£31.64
|
£37.97
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW32
BSD-2607950021.A14
2607950021
|
£27.23
|
£32.68
|
|
|
655 - PROTECTIVE COVER dia 80 MM
BSD-3605510033.A27
3605510033
|
£93.88
|
£112.65
|
|
|
656 - CLAMPING-FLANGE
BSD-3605703089.A66
3605703089
|
£63.50
|
£76.20
|
|
|
657 - CLAMPING RING
BSD-3605703074.A29
3605703074
|
£21.68
|
£26.01
|
|
|
703 - ACCESSORY SET
BSD-3607000036.A4
3607000036
|
£54.42
|
£65.30
|
|
|
801 - SEALING PLATE
BSD-1602388007.A69
1602388007
|
£12.04
|
£14.45
|
|
|
802 - MOTOR HOUSING
BSD-3605102079.A14
3605102079
|
£179.37
|
£215.24
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031220.A30
3607031220
|
£653.78
|
£784.53
|
|
|
810 - HOUSING SECTION
BSD-3607031661.A4
3607031661
|
£33.74
|
£40.49
|
|
|
831 - SET OF SCREWS
BSD-3607031663.A7
3607031663
|
-
|
|
|
