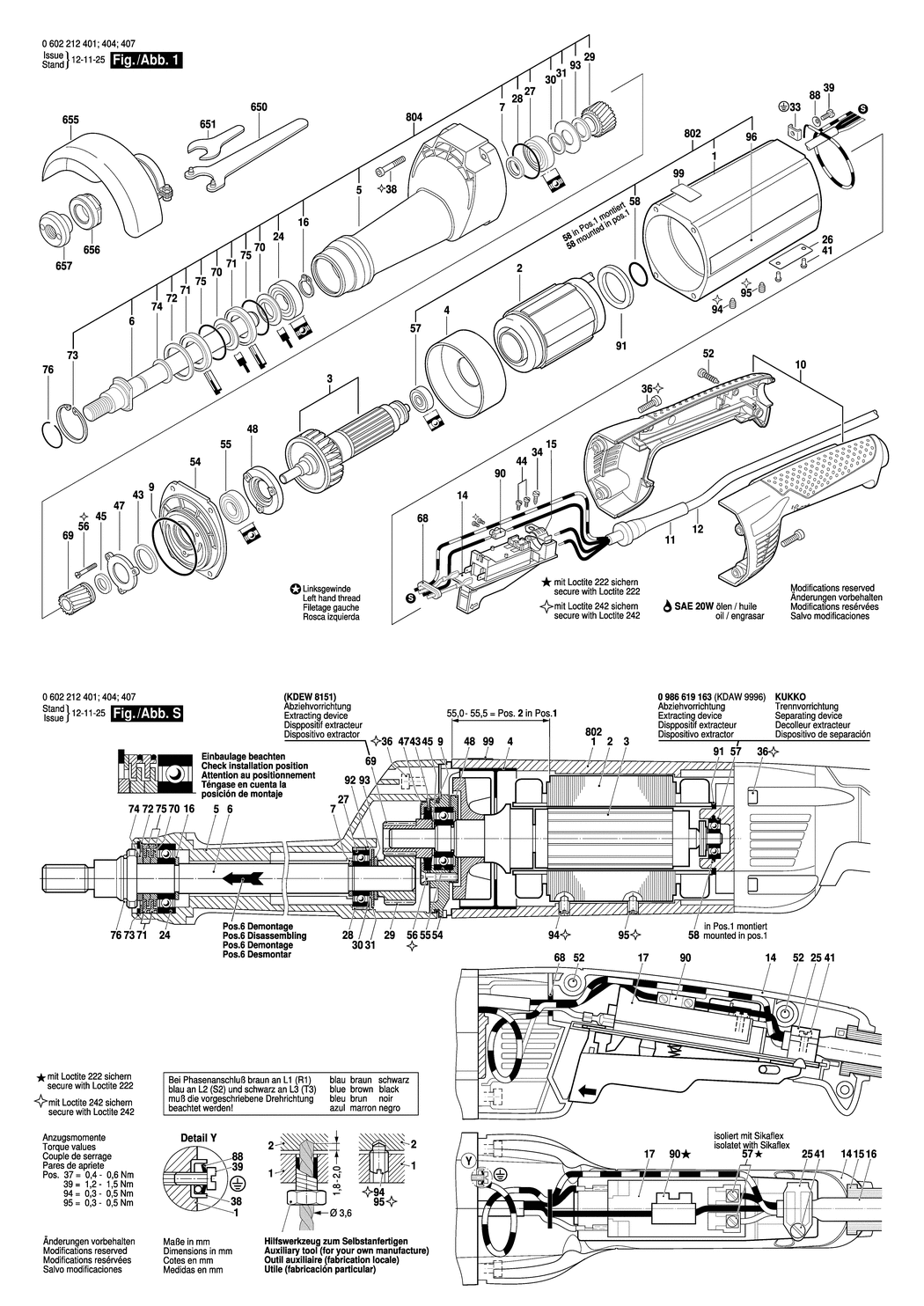

1 - MOTOR HOUSING
BSD-3605102081.A46
3605102081
|
£156.22
|
£187.46
|
|
|
2 - STATOR 135V/200HZ
BSD-3604229130.A4
3604229130
|
£458.51
|
£550.21
|
|
|
3 - ROTOR WITHOUT WINDING
BSD-1604080032.A3
1604080032
|
£195.26
|
£234.31
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600209002.A241
1600209002
|
£5.30
|
£6.36
|
|
|
5 - SPINDLE BEARING
BSD-3605806140.A2
3605806140
|
£352.76
|
£423.31
|
|
|
6 - GRINDING SPINDLE
BSD-3603050013.A15
3603050013
|
£195.26
|
£234.31
|
|
|
7 - INTERMEDIATE RING
BSD-1600200009.A40
1600200009
|
£6.52
|
£7.83
|
|
|
9 - O-RING 54.0x3.0 MM
BSD-1600210004.A104
1600210004
|
£2.80
|
£3.36
|
|
|
10 - HANDLE
BSD-3605132079.A4
3605132079
|
£45.67
|
£54.80
|
|
|
11 - GROMMET dia12.8xdia13.5x100 MM
BSD-3600703003.A78
3600703003
|
£5.30
|
£6.36
|
|
|
12 - ELEC. CABLE W/CONNECTION
BSD-3604462017.A105
3604462017
|
£54.42
|
£65.30
|
|
|
14 - SWITCH
BSD-3607200055.A1
3607200055
|
£93.88
|
£112.65
|
|
|
15 - FASTENING CLAMP
BSD-3601303004.A161
3601303004
|
£5.58
|
£6.70
|
|
|
16 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A254
2916650008
|
£1.75
|
£2.10
|
|
|
24 - GROOVE BALL BEARING
BSD-3600905058.A21
3600905058
|
£21.52
|
£25.83
|
|
|
26 - NAMEPLATE
BSD-3601106053.A1060
3601106053
|
£5.30
|
£6.36
|
|
|
27 - GROOVE BALL BEARING
BSD-3600905060.A112
3600905060
|
£21.52
|
£25.83
|
|
|
28 - O-RING 35.0x2.0 MM
BSD-2600210026.A24
2600210026
|
£2.16
|
£2.59
|
|
|
29 - CYLINDRICAL GEAR Z=28
BSD-1606319007.A15
1606319007
|
£93.88
|
£112.65
|
|
|
30 - SHIM WASHER 0.4 MM
BSD-1600101600.A12
1600101600
|
£1.75
|
£2.10
|
|
|
31 - COVER DISC
BSD-1600101016.A50
1600101016
|
£5.30
|
£6.36
|
|
|
33 - CLAMPING SADDLE
BSD-3601321001.A92
3601321001
|
£3.72
|
£4.47
|
|
|
34 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1131
2910211019
|
£1.75
|
£2.10
|
|
|
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x18-8.8
BSD-2910141160.A1
2910141160
|
£2.16
|
£2.59
|
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x30-8.8
BSD-2910141166.A39
2910141166
|
£1.75
|
£2.10
|
|
|
39 - PAN HEAD SCREW DIN 85-AM4x10-MS
BSD-2910110120.A480
2910110120
|
£1.75
|
£2.10
|
|
|
41 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A158
3603133001
|
£2.61
|
£3.13
|
|
|
43 - FELT DISC
BSD-1600108018.A320
1600108018
|
£2.61
|
£3.13
|
|
|
44 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A565
2910021118
|
£1.75
|
£2.10
|
|
|
45 - SHIM
BSD-1600101625.A13
1600101625
|
£3.72
|
£4.47
|
|
|
47 - COVER DISC
BSD-1600501024.A337
1600501024
|
£16.41
|
£19.69
|
|
|
48 - BEARING COVER
BSD-1600501019.A46
1600501019
|
£23.86
|
£28.63
|
|
|
52 - SCREW 4x16
BSD-2603490022.A1650
2603490022
|
£1.75
|
£2.10
|
|
|
54 - BEARING FLANGE
BSD-3605820002.A17
3605820002
|
£68.42
|
£82.10
|
|
|
55 - GROOVE BALL BEARING 15x35x11
BSD-1900905234.A213
1900905234
|
£31.64
|
£37.97
|
|
|
56 - TORX FLAT-HEAD SCREW M4x20
BSD-3603435051.A87
3603435051
|
£1.75
|
£2.10
|
|
|
57 - GROOVE BALL BEARING 7x22x7
BSD-3600905147.A5
3600905147
|
£13.12
|
£15.75
|
|
|
58 - O-RING 22x2 MM
BSD-1900210321.A59
1900210321
|
£5.30
|
£6.36
|
|
|
68 - SEALING PLATE
BSD-3600054006.A11
3600054006
|
£3.72
|
£4.47
|
|
|
69 - CYLINDRICAL GEAR Z=21
BSD-1606302001.A1
1606302001
|
£179.37
|
£215.24
|
|
|
70 - PROTECTIVE RING
BSD-3600222004.A2
3600222004
|
£27.23
|
£32.68
|
|
|
71 - SPACER RING
BSD-3600200057.A1
3600200057
|
£27.23
|
£32.68
|
|
|
72 - SHIM
BSD-3600150019.A2
3600150019
|
£2.16
|
£2.59
|
|
|
73 - SPRING RETAINING RING DIN472-35x1.5
BSD-2916669114.A1
2916669114
|
£2.16
|
£2.59
|
|
|
74 - SPACER RING
BSD-3600202015.A2
3600202015
|
£21.68
|
£26.01
|
|
|
75 - O-RING 32.0x1.5 MM
BSD-3600210057.A24
3600210057
|
£2.61
|
£3.13
|
|
|
76 - RETAINING RING 24x2 DIN9045-24
BSD-2916609112.A39
2916609112
|
£2.61
|
£3.13
|
|
|
88 - SPRING WASHER dia4.2 MM
BSD-3600150006.A54
3600150006
|
£2.61
|
£3.13
|
|
|
90 - STRIP TERMINAL
BSD-1901091110.A98
1901091110
|
£1.75
|
£2.10
|
|
|
91 - SEAL RING
BSD-1600209004.A147
1600209004
|
£2.80
|
£3.36
|
|
|
93 - PLAIN WASHER
BSD-1600101002.A48
1600101002
|
£13.12
|
£15.75
|
|
|
94 - SET SCREW
BSD-1603402002.A218
1603402002
|
£1.75
|
£2.10
|
|
|
95 - SET SCREW
BSD-1603402004.A226
1603402004
|
£2.61
|
£3.13
|
|
|
96 - MANUFACTURER'S NAMEPLATE
BSD-3601110047.A116
3601110047
|
£2.80
|
£3.36
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A236
3601119236
|
£3.72
|
£4.47
|
|
|
650 - PIN-TYPE FACE-WRENCH
BSD-2607950022.A68
2607950022
|
£31.64
|
£37.97
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW32
BSD-2607950021.A1
2607950021
|
£27.23
|
£32.68
|
|
|
655 - PROTECTIVE COVER dia100 MM
BSD-3605510032.A0
3605510032
|
£179.37
|
£215.24
|
|
|
656 - CLAMPING-FLANGE
BSD-3605703089.A60
3605703089
|
£63.50
|
£76.20
|
|
|
657 - CLAMPING RING
BSD-3605703074.A3
3605703074
|
£21.68
|
£26.01
|
|
|
703 - ACCESSORY SET
BSD-3607000036.A2
3607000036
|
£54.42
|
£65.30
|
|
|
802 - MOTOR HOUSING
BSD-3605102079.A5
3605102079
|
£179.37
|
£215.24
|
|
|
804 - ASSEMBLY OF SERVICE PARTS
BSD-3607031221.A14
3607031221
|
£522.92
|
£627.51
|
|
|
835 - HANDLE
BSD-3607031870.A2
3607031870
|
-
|
|
|
