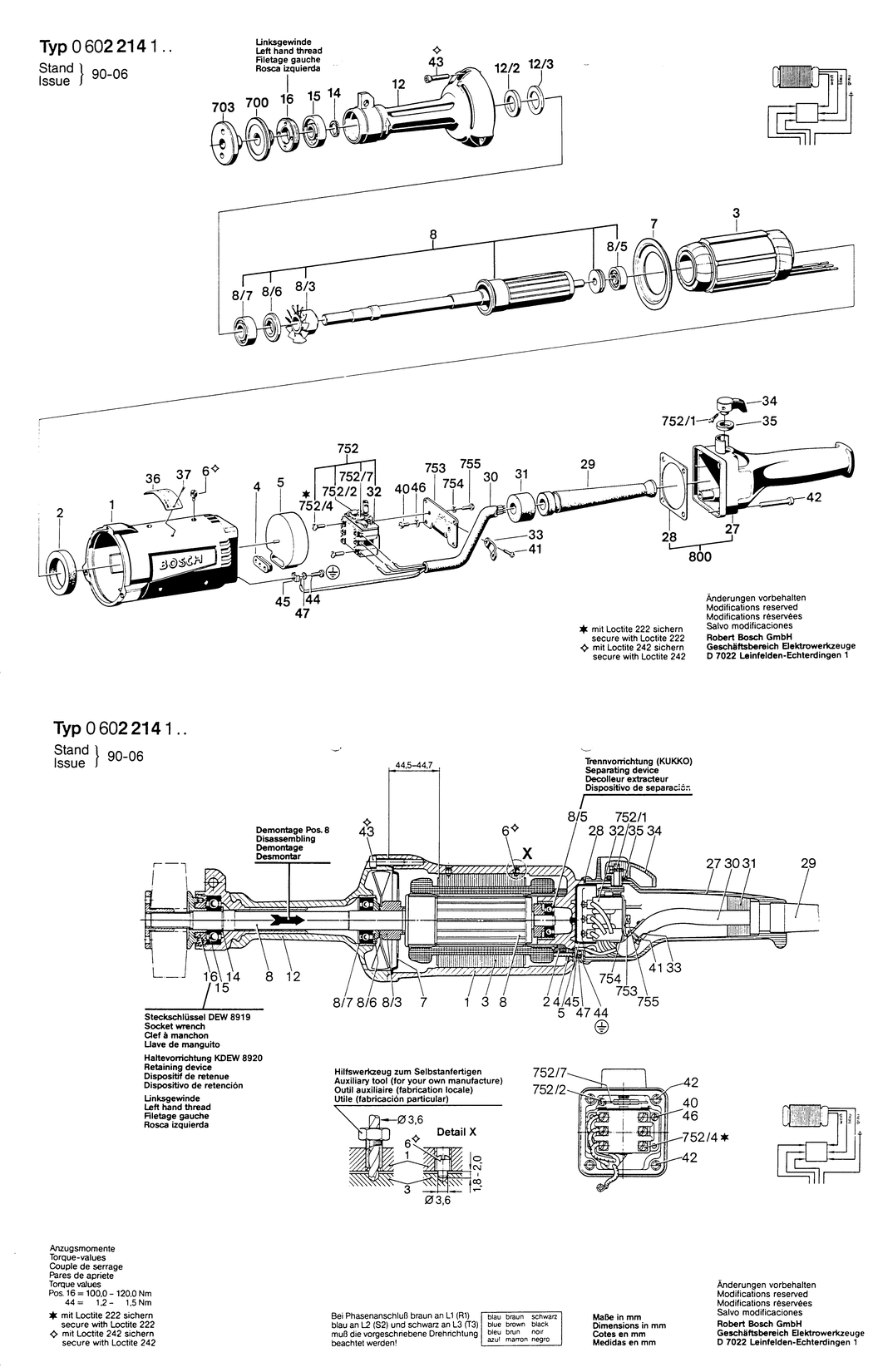

1 - MOTOR HOUSING
BSD-1605102075.A1
1605102075
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209009.A99
1600209009
|
£6.52
|
£7.83
|
|
|
3 - STATOR 72V/200HZ.110V/300HZ
BSD-1604229162.A3
1604229162
|
-
|
|
|
|
4 - GROMMET
BSD-1600306000.A51
1600306000
|
£1.95
|
£2.34
|
|
|
5 - PROTECTIVE COVER
BSD-1600502004.A26
1600502004
|
£4.26
|
£5.11
|
|
|
6 - SET SCREW
BSD-1603402004.A25
1603402004
|
£2.61
|
£3.13
|
|
|
7 - GUIDE PULLEY
BSD-1600500014.A113
1600500014
|
-
|
|
|
|
8 - ROTOR WITHOUT WINDING
BSD-1604080075.A6
1604080075
|
-
|
|
|
|
8/5 - GROOVE BALL BEARING 6200-Z DIN 625
BSD-1900905200.A7
1900905200
|
-
|
|
|
|
8/6 - COVER DISC
BSD-1600120024.A8
1600120024
|
-
|
|
|
|
8/7 - GROOVE BALL BEARING 6203-TH/C3 DIN 625
BSD-1900900413.A137
1900900413
|
-
|
|
|
|
12 - SPINDLE BEARING
BSD-1605806110.A5
1605806110
|
-
|
|
|
|
12/2 - SEAL RING
BSD-1600108043.A3
1600108043
|
-
|
|
|
|
12/3 - SHIM
BSD-1600103016.A7
1600103016
|
-
|
|
|
|
14 - PLAIN WASHER
BSD-1600101002.A67
1600101002
|
£13.12
|
£15.75
|
|
|
15 - GROOVE BALL BEARING 15x42x13
BSD-1900900351.A3
1900900351
|
£24.45
|
£29.34
|
|
|
27 - HANDLE
BSD-3605132035.A8
3605132035
|
£40.80
|
£48.96
|
|
|
28 - SEAL
BSD-1601015011.A40
1601015011
|
£3.80
|
£4.56
|
|
|
29 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A373
1600703009
|
£5.58
|
£6.70
|
|
|
30 - ELEC. CABLE W/CONNECTION
BSD-3604462043.A14
3604462043
|
£54.42
|
£65.30
|
|
|
31 - SEALING PLATE
BSD-1600113003.A32
1600113003
|
£2.80
|
£3.36
|
|
|
33 - FASTENING CLAMP
BSD-1601303003.A253
1601303003
|
£2.16
|
£2.59
|
|
|
34 - CONTROL LEVER
BSD-1602026038.A101
1602026038
|
£5.30
|
£6.36
|
|
|
35 - SEALING DISK dia18xdia10x4 MM
BSD-1600108024.A59
1600108024
|
£1.75
|
£2.10
|
|
|
36 - NAMEPLATE
BSD-3601106053.A127
3601106053
|
£5.30
|
£6.36
|
|
|
37 - GROOVED NAIL DIN 1476-2x5 MM
BSD-3603133001.A701
3603133001
|
£2.61
|
£3.13
|
|
|
40 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1772
2910021118
|
£1.75
|
£2.10
|
|
|
41 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A720
2910021122
|
£2.16
|
£2.59
|
|
|
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x40-8.8
BSD-2910141209.A25
2910141209
|
£2.61
|
£3.13
|
|
|
42 - HEX SOCKET HEAD CAP SCREW DIN 912-M5x40-8.8
BSD-2910141170.A114
2910141170
|
£2.61
|
£3.13
|
|
|
43 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x25-8.8
BSD-2910141203.A59
2910141203
|
£1.75
|
£2.10
|
|
|
43 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x55-8.8
BSD-2910141215.A68
2910141215
|
£3.72
|
£4.47
|
|
|
44 - PAN HEAD SCREW DIN 85-MS-M 4x12
BSD-2910110122.A100
2910110122
|
£1.75
|
£2.10
|
|
|
45 - CLAMPING SADDLE
BSD-3601321001.A653
3601321001
|
£3.72
|
£4.47
|
|
|
46 - SPRING WASHER DIN 137-A4
BSD-1600150006.A27
1600150006
|
-
|
|
|
|
47 - SPRING WASHER dia4.2 MM
BSD-3600150006.A580
3600150006
|
£2.61
|
£3.13
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1784
3601119236
|
£3.72
|
£4.47
|
|
|
651 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A144
2607950004
|
£1.75
|
£2.10
|
|
|
652 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A531
1907950007
|
£5.30
|
£6.36
|
|
|
700 - CLAMPING-FLANGE dia 100 MM
BSD-1605703005.A25
1605703005
|
-
|
|
|
|
703 - ROUND NUT
BSD-1603345009.A38
1603345009
|
-
|
|
|
|
752 - ON-OFF SWITCH
BSD-1607200006.A124
1607200006
|
£81.81
|
£98.17
|
|
|
752/1 - SOCKET HEAD CAP SCREW DIN 84-AM3x10-4.8
BSD-2910001052.A39
2910001052
|
£2.16
|
£2.59
|
|
|
752/2 - EXTENSION SPRING
BSD-1604650009.A20
1604650009
|
£1.75
|
£2.10
|
|
|
752/4 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A275
2910091118
|
£1.75
|
£2.10
|
|
|
752/7 - DETENT ROLLER
BSD-1603200007.A6
1603200007
|
-
|
|
|
|
753 - FIXING PLATE
BSD-3601023015.A176
3601023015
|
£21.68
|
£26.01
|
|
|
754 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A504
2916690003
|
£1.75
|
£2.10
|
|
|
755 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1770
2910021118
|
£1.75
|
£2.10
|
|
|
800 - HANDLE
BSD-1605132067.A94
1605132067
|
-
|
|
|
