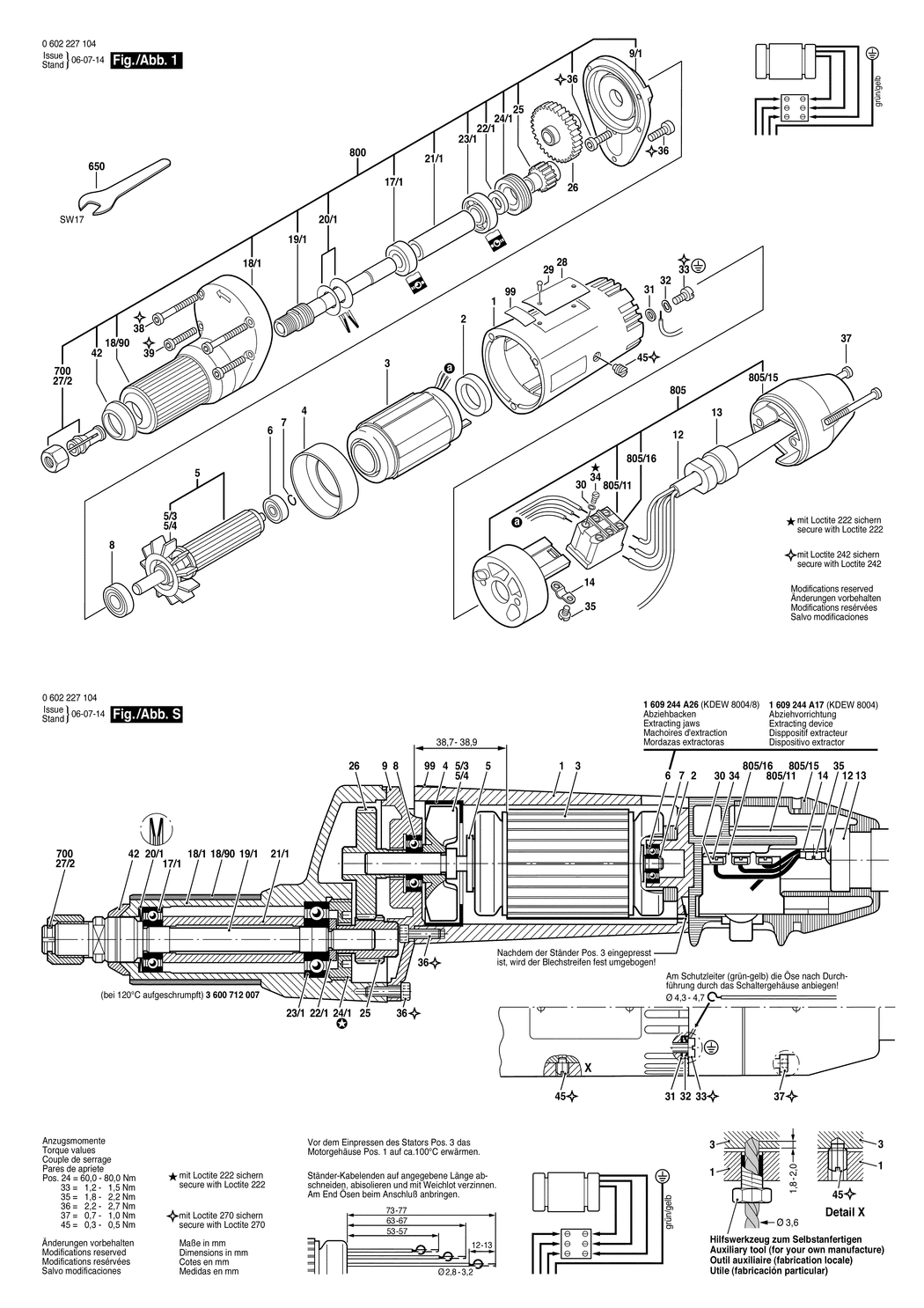

1 - MOTOR HOUSING
BSD-1605102085.A9
1605102085
|
-
|
|
|
|
3 - STATOR 200V/300HZ.135V/200HZ
BSD-1604229201.A24
1604229201
|
£410.78
|
£492.94
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A105
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR WITHOUT WINDING
BSD-3604080003.A15
3604080003
|
£179.37
|
£215.24
|
|
|
5/4 - INTERMEDIATE RING
BSD-3600202008.A12
3600202008
|
£2.61
|
£3.13
|
|
|
6 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A20
1900900232
|
£16.74
|
£20.09
|
|
|
7 - RETAINING RING 5 DIN 9045
BSD-2916600002.A7
2916600002
|
-
|
|
|
|
8 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A233
1900905017
|
£23.86
|
£28.63
|
|
|
9/1 - INTERMEDIATE BEARING
BSD-3605820062.A0
3605820062
|
£120.11
|
£144.13
|
|
|
12 - POWER SUPPLY CORD
BSD-1604462053.A6
1604462053
|
-
|
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A297
3600703011
|
£2.80
|
£3.36
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A77
1601302014
|
£2.61
|
£3.13
|
|
|
17/1 - GROOVE BALL BEARING 12x28x8
BSD-1900905121.A10
1900905121
|
£18.96
|
£22.75
|
|
|
18/1 - SPINDLE BEARING
BSD-3605806120.A15
3605806120
|
£283.50
|
£340.20
|
|
|
18/90 - SHRINKABLE TUBE L=120 MM
BSD-3600712007.A0
3600712007
|
-
|
|
|
|
19/1 - GRINDING SPINDLE
BSD-1603523082.A9
1603523082
|
£179.37
|
£215.24
|
|
|
20/1 - DISC SPRING
BSD-1600550008.A32
1600550008
|
£2.80
|
£3.36
|
|
|
21/1 - SPACER BUSHING
BSD-1600300083.A25
1600300083
|
£18.96
|
£22.75
|
|
|
22/1 - SHIM WASHER
BSD-1600103027.A0
1600103027
|
£27.23
|
£32.68
|
|
|
23/1 - BALL BEARING 9x26x8
BSD-1900905025.A37
1900905025
|
£21.52
|
£25.83
|
|
|
24/1 - THREADED RING
BSD-1603344053.A2
1603344053
|
£54.42
|
£65.30
|
|
|
25 - CYLINDRICAL GEAR Z=29
BSD-1606329020.A5
1606329020
|
£81.81
|
£98.17
|
|
|
26 - CYLINDRICAL GEAR Z=47
BSD-1606329016.A3
1606329016
|
£135.25
|
£162.30
|
|
|
27/2 - COLLET dia 6 MM
BSD-2608570129.A10
2608570129
|
£18.96
|
£22.75
|
|
|
28 - NAMEPLATE
BSD-3601106053.A815
3601106053
|
£5.30
|
£6.36
|
|
|
29 - GROOVED NAIL
BSD-3603133000.A687
3603133000
|
£2.61
|
£3.13
|
|
|
30 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A84
2916060003
|
£1.32
|
£1.58
|
|
|
31 - PLAIN WASHER DIN 46 255-DPG 9
BSD-2916010409.A52
2916010409
|
-
|
|
|
|
32 - SPRING WASHER dia4.2 MM
BSD-3600150006.A311
3600150006
|
£2.61
|
£3.13
|
|
|
33 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A181
2910110116
|
£1.75
|
£2.10
|
|
|
34 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A19
2910110048
|
£1.75
|
£2.10
|
|
|
35 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A645
2910021116
|
£2.16
|
£2.59
|
|
|
36 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A171
2910141122
|
£2.16
|
£2.59
|
|
|
37 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A15
2910141140
|
£1.75
|
£2.10
|
|
|
38 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8
BSD-2910141136.A165
2910141136
|
£2.80
|
£3.36
|
|
|
39 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8
BSD-2910141131.A71
2910141131
|
£2.16
|
£2.59
|
|
|
42 - PROTECTIVE RING
BSD-3600250007.A1
3600250007
|
£21.52
|
£25.83
|
|
|
45 - SET SCREW
BSD-3603402000.A388
3603402000
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A670
3601119236
|
£3.72
|
£4.47
|
|
|
650 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A359
2607950511
|
£4.26
|
£5.11
|
|
|
700 - COLLET dia 8 MM
BSD-2608570081.A48
2608570081
|
£21.68
|
£26.01
|
|
|
800 - SPINDLE BEARING
BSD-1606120008.A3
1606120008
|
-
|
|
|
|
805 - HANDLE
BSD-3607031145.A13
3607031145
|
-
|
|
|
|
805/11 - CONNECTION HOUSING
BSD-3600099004.A5
3600099004
|
£21.68
|
£26.01
|
|
|
805/15 - SEALING CAP
BSD-3605500074.A102
3605500074
|
£21.68
|
£26.01
|
|
|
805/16 - SWITCH
BSD-3607200001.A110
3607200001
|
£68.42
|
£82.10
|
|
