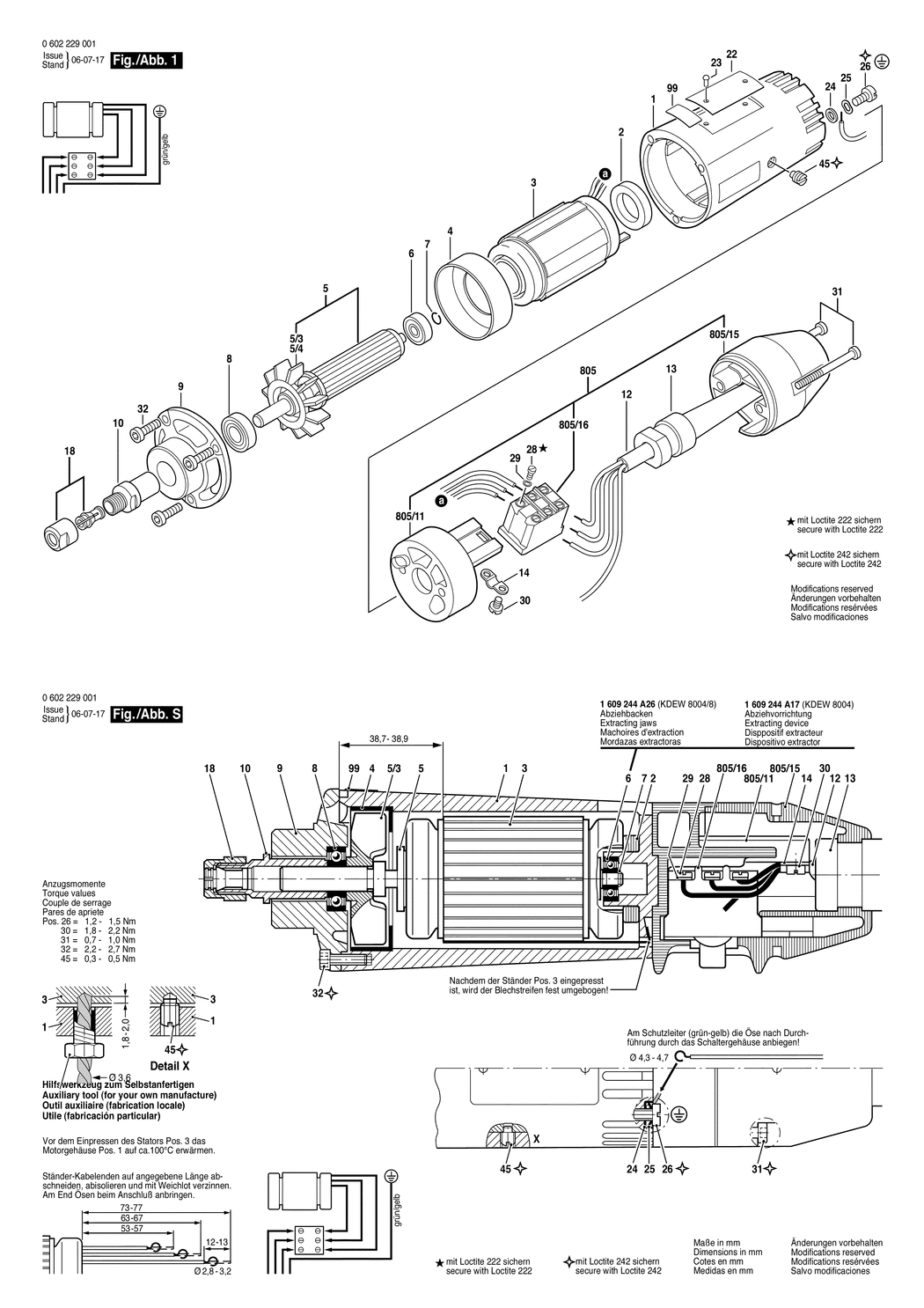

1 - MOTOR HOUSING
BSD-1605102085.A43
1605102085
|
-
|
|
|
|
2 - SEAL RING
BSD-1600209011.A159
1600209011
|
£2.80
|
£3.36
|
|
|
3 - STATOR 265V/200HZ. 200V/150HZ
BSD-1604229200.A5
1604229200
|
£458.51
|
£550.21
|
|
|
4 - AIR-DEFLECTOR RING
BSD-1600502005.A188
1600502005
|
£2.61
|
£3.13
|
|
|
5 - ROTOR WITHOUT WINDING
BSD-3604080003.A49
3604080003
|
£179.37
|
£215.24
|
|
|
5/4 - INTERMEDIATE RING
BSD-3600202008.A127
3600202008
|
£2.61
|
£3.13
|
|
|
6 - GROOVE BALL BEARING 5x16x5
BSD-1900900232.A189
1900900232
|
£16.74
|
£20.09
|
|
|
7 - RETAINING RING 5 DIN 9045
BSD-2916600002.A75
2916600002
|
-
|
|
|
|
8 - GROOVE BALL BEARING 9x24x7
BSD-1900905017.A156
1900905017
|
£23.86
|
£28.63
|
|
|
9 - BEARING FLANGE
BSD-1605808050.A9
1605808050
|
-
|
|
|
|
10 - THREADED BUSHING
BSD-1600362023.A11
1600362023
|
-
|
|
|
|
12 - POWER SUPPLY CORD
BSD-1604462053.A45
1604462053
|
-
|
|
|
|
13 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A817
3600703011
|
£2.80
|
£3.36
|
|
|
14 - FASTENING CLAMP
BSD-1601302014.A1126
1601302014
|
£2.61
|
£3.13
|
|
|
18 - COLLET dia 6 MM
BSD-1608570061.A20
1608570061
|
-
|
|
|
|
18 - SHRINKABLE TUBE L=120 MM
BSD-3600712007.A12
3600712007
|
-
|
|
|
|
22 - NAMEPLATE
BSD-3601106053.A517
3601106053
|
£5.30
|
£6.36
|
|
|
23 - GROOVED NAIL
BSD-3603133000.A439
3603133000
|
£2.61
|
£3.13
|
|
|
24 - PLAIN WASHER DIN 46 255-DPG 9
BSD-2916010409.A290
2916010409
|
-
|
|
|
|
25 - SPRING WASHER dia4.2 MM
BSD-3600150006.A873
3600150006
|
£2.61
|
£3.13
|
|
|
26 - PAN HEAD SCREW DIN 85 AM 4x6-MS
BSD-2910110116.A86
2910110116
|
£1.75
|
£2.10
|
|
|
28 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A282
2910110048
|
£1.75
|
£2.10
|
|
|
29 - SPRING WASHER A 3 DIN 137-ST
BSD-2916060003.A431
2916060003
|
£1.32
|
£1.58
|
|
|
30 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A328
2910021116
|
£2.16
|
£2.59
|
|
|
31 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8
BSD-2910141140.A256
2910141140
|
£1.75
|
£2.10
|
|
|
32 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8
BSD-2910141122.A107
2910141122
|
£2.16
|
£2.59
|
|
|
45 - SET SCREW
BSD-3603402000.A72
3603402000
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A1162
3601119236
|
£3.72
|
£4.47
|
|
|
805 - HANDLE
BSD-3607031145.A75
3607031145
|
-
|
|
|
|
805/11 - CONNECTION HOUSING
BSD-3600099004.A21
3600099004
|
£21.68
|
£26.01
|
|
|
805/15 - SEALING CAP
BSD-3605500074.A34
3605500074
|
£21.68
|
£26.01
|
|
|
805/16 - SWITCH
BSD-3607200001.A78
3607200001
|
£68.42
|
£82.10
|
|
|
899 - MOTOR PROTECTION SWITCH 12.5 - 16.0 A
BSD-1609202995.A8
1609202995
|
-
|
|
|
