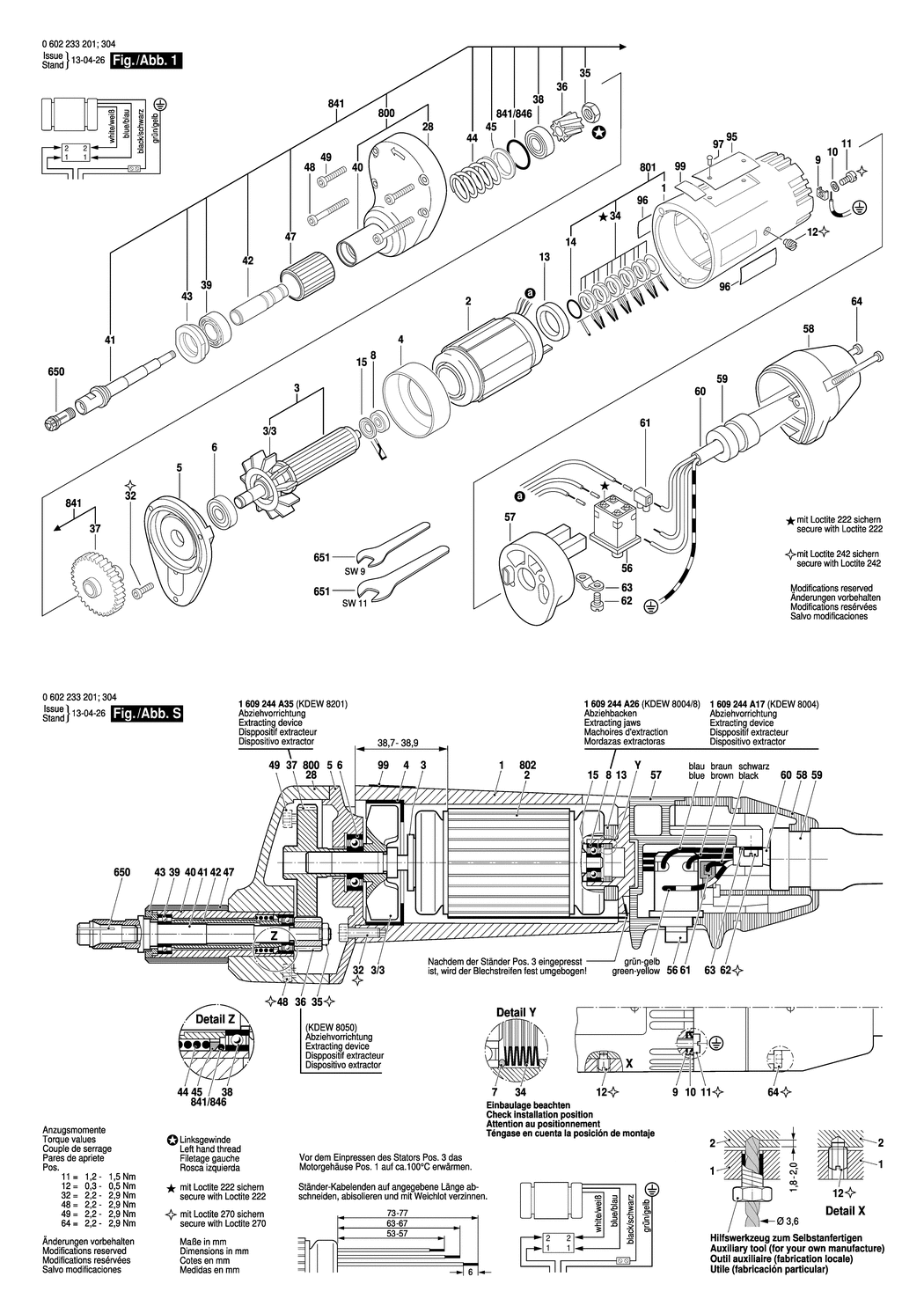

An exploded drawing and listing for the Bosch ---- / 0602233304 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102058.A30 3605102058 £120.11 £144.13
2 - STATOR 200V/300HZ.135V/200HZ BSD-1604229201.A85 1604229201 £410.78 £492.94
3 - ROTOR WITHOUT WINDING BSD-3604080003.A45 3604080003 £179.37 £215.24
3/3 - FAN BSD-1606610105.A31 1606610105 £14.91 £17.89
4 - AIR-DEFLECTOR RING BSD-1600502005.A328 1600502005 £2.61 £3.13
5 - BEARING FLANGE BSD-3605820059.A3 3605820059 £63.50 £76.20
6 - GROOVE BALL BEARING 9x24x7 BSD-1900905017.A21 1900905017 £23.86 £28.63
8 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A351 1900905015 £30.42 £36.51
9 - CLAMPING SADDLE BSD-3601321001.A686 3601321001 £3.72 £4.47
10 - SPRING WASHER dia4.2 MM BSD-3600150006.A530 3600150006 £2.61 £3.13
11 - PAN HEAD SCREW DIN 85-AM4x8-MS BSD-2910110118.A182 2910110118 £1.75 £2.10
12 - SET SCREW BSD-3603402000.A156 3603402000 £1.75 £2.10
13 - SEAL RING BSD-1600209011.A104 1600209011 £2.80 £3.36
14 - O-RING 12.0x2.25 MM BSD-3600210039.A138 3600210039 £7.36 £8.83
15 - INTERMEDIATE RING BSD-3600202008.A66 3600202008 £2.61 £3.13
28 - GEAR HOUSING BSD-3605806108.A2 3605806108 £156.22 £187.46
32 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A73 2910141122 £2.16 £2.59
34 - DISC SPRING BSD-3600150013.A74 3600150013 £3.72 £4.47
35 - HEX NUT BSD-3603300001.A2 3603300001 £10.10 £12.12
36 - CYLINDRICAL GEAR Z=17 BSD-3606320005.A2 3606320005 £102.57 £123.08
37 - CYLINDRICAL GEAR Z=46 BSD-3606330004.A0 3606330004 £135.25 £162.30
38 - GROOVE BALL BEARING BSD-3600900008.A1 3600900008 £40.80 £48.96
39 - GROOVE BALL BEARING BSD-3600900007.A19 3600900007 £37.27 £44.72
40 - BEARING SLEEVE BSD-3600328030.A16 3600328030 £48.38 £58.06
41 - GRINDING SPINDLE BSD-3603054001.A9 3603054001 £195.26 £234.31
42 - SPACER SLEEVE BSD-3600328031.A1 3600328031 £72.18 £86.62
43 - THREADED RING BSD-3603344017.A11 3603344017 £48.38 £58.06
44 - COMPRESSION SPRING BSD-3604617003.A19 3604617003 £2.61 £3.13
45 - ADAPTOR PLATE BSD-3600120003.A9 3600120003 £2.80 £3.36
47 - PROTECTION SLEEVE BSD-3600409002.A11 3600409002 £13.12 £15.75
48 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x22-8.8 BSD-2910141131.A34 2910141131 £2.16 £2.59
49 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x35-8.8 BSD-2910141136.A78 2910141136 £2.80 £3.36
56 - SWITCH BSD-3607200001.A6 3607200001 £68.42 £82.10
57 - CONNECTION HOUSING BSD-3600099004.A125 3600099004 £21.68 £26.01
58 - SEALING CAP BSD-3605500074.A28 3605500074 £21.68 £26.01
59 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A1215 3600703011 £2.80 £3.36
60 - PVC-INSULATED CABLE BSD-3604462052.A8 3604462052 £54.42 £65.30
61 - SOCKET-TERMINAL STRIP 1x1.5 MM/2 BSD-1901091012.A229 1901091012 £5.30 £6.36
62 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A99 2910021116 £2.16 £2.59
63 - FASTENING CLAMP BSD-1601302014.A721 1601302014 £2.61 £3.13
64 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A119 2910141140 £1.75 £2.10
95 - NAMEPLATE BSD-3601106053.A184 3601106053 £5.30 £6.36
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A31 1601110481 £2.16 £2.59
97 - GROOVED NAIL BSD-3603133000.A97 3603133000 £2.61 £3.13
99 - REFERENCE PLATE BSD-3601119236.A1741 3601119236 £3.72 £4.47
650 - COLLET dia3.0 MM BSD-2608570019.A9 2608570019 £48.38 £58.06
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW 9 BSD-1907950503.A25 1907950503 £5.30 £6.36
651 - SINGLE-HEAD ENG. WRENCH DIN 894 SW11 BSD-1907950505.A17 1907950505 £12.04 £14.45
800 - SPINDLE BEARING BSD-3605806052.A3 3605806052 £218.41 £262.09
801 - MOTOR HOUSING BSD-3605102028.A62 3605102028 £156.22 £187.46
841 - GRINDING SPINDLE BSD-3607031179.A0 3607031179 £653.78 £784.53
841/846 - O-RING BSD-3607010027.A15 3607010027 £5.58 £6.70
