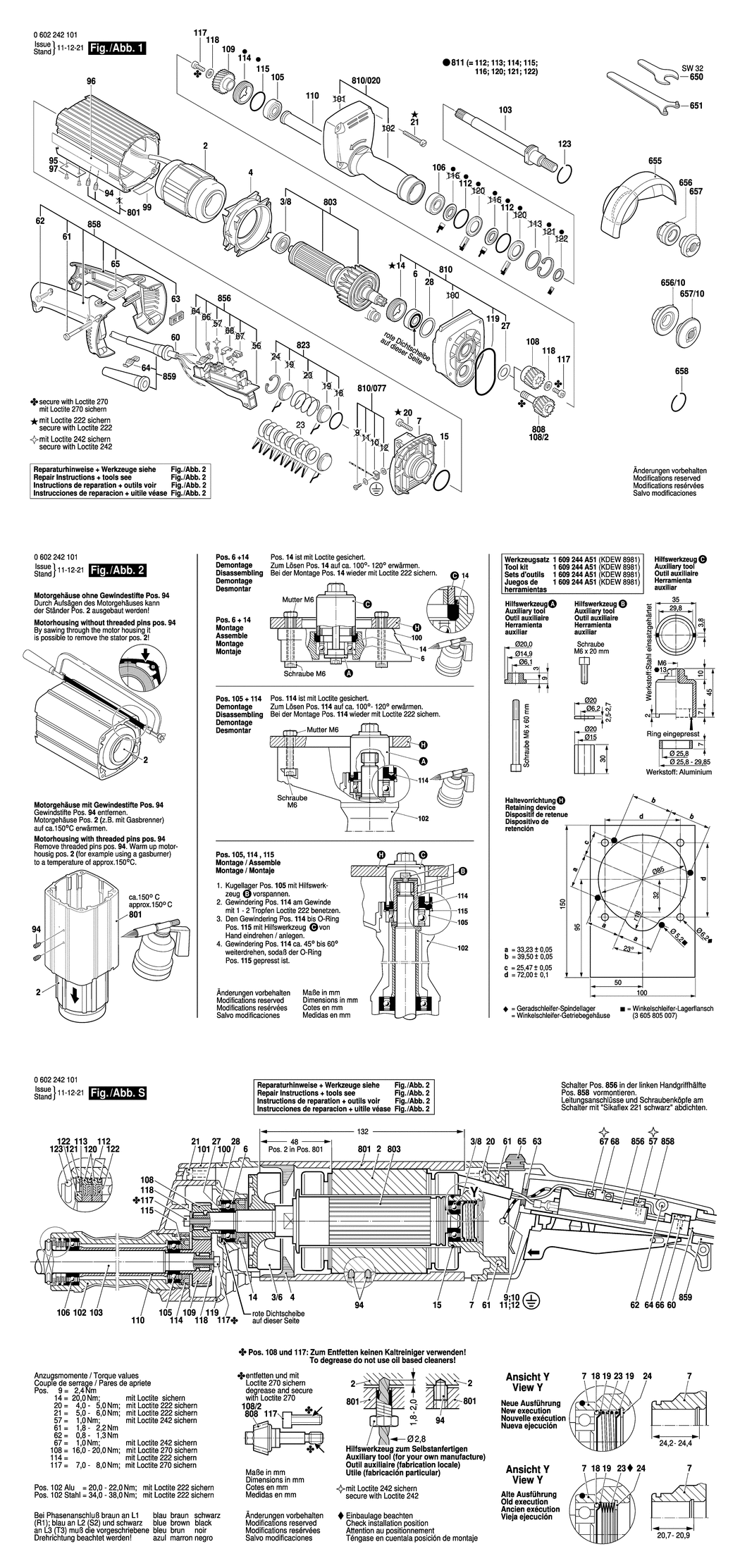

An exploded drawing and listing for the Bosch 2 242 / 0602242102 / --- 265 Volt
Ex VAT Inc VAT
2 - STATOR 265V/200HZ BSD-3604229081.A3 3604229081 £458.51 £550.21
3/8 - GROOVE BALL BEARING 12x32x10 BSD-3600905119.A150 3600905119 £27.23 £32.68
4 - AIR-DEFLECTOR RING BSD-3600209008.A56 3600209008 £8.67 £10.41
6 - GROOVE BALL BEARING BSD-3600905095.A201 3600905095 £21.52 £25.83
7 - BEARING FLANGE BSD-3605805009.A122 3605805009 £59.53 £71.44
14 - THREADED RING BSD-3603344024.A268 3603344024 £16.41 £19.69
15 - O-RING 38.1x2.2 MM BSD-1600210037.A128 1600210037 £2.61 £3.13
20 - THREAD-FORMING TAP. SCREW BSD-2914451079.A31 2914451079 £2.61 £3.13
21 - THREAD-FORMING TAP. SCREW AM 6x80-ST BSD-3603410007.A105 3603410007 £3.72 £4.47
23 - COMPRESSION SPRING BSD-3604611019.A184 3604611019 £2.61 £3.13
27 - SEALING DISC BSD-3600100049.A95 3600100049 £3.72 £4.47
28 - SEALING DISC BSD-3600100048.A181 3600100048 £2.80 £3.36
60 - ELEC. CABLE W/CONNECTION BSD-3604462017.A152 3604462017 £54.42 £65.30
62 - TAPPING SCREW DIN 7971-BZ3.9x19 BSD-2910211020.A369 2910211020 £2.16 £2.59
63 - CABLE ROUTING BSD-1602388027.A284 1602388027 £2.61 £3.13
64 - FASTENING CLAMP BSD-3601303002.A30 3601303002 £2.61 £3.13
64 - FASTENING CLAMP BSD-3601303004.A129 3601303004 £5.58 £6.70
65 - STORAGE LEDGE BSD-1602388029.A329 1602388029 £1.75 £2.10
94 - SET SCREW DIN 915-M4x6-45H BSD-2912081116.A355 2912081116 £2.61 £3.13
95 - NAMEPLATE BSD-3601106053.A1198 3601106053 £5.30 £6.36
96 - MANUFACTURER'S NAMEPLATE BSD-3601110047.A87 3601110047 £2.80 £3.36
97 - GROOVED NAIL DIN 1476-2x5 MM BSD-3603133001.A336 3603133001 £2.61 £3.13
99 - REFERENCE PLATE BSD-3601119236.A169 3601119236 £3.72 £4.47
103 - GRINDING SPINDLE BSD-3606120005.A24 3606120005 £179.37 £215.24
105 - GROOVE BALL BEARING BSD-3600905060.A69 3600905060 £21.52 £25.83
106 - GROOVE BALL BEARING BSD-3600905058.A60 3600905058 £21.52 £25.83
108 - TOOTHED GEAR Z=29 BSD-3606300085.A2 3606300085 £72.18 £86.62
109 - TOOTHED GEAR Z=40 BSD-3606300086.A7 3606300086 £81.81 £98.17
110 - SPACER SLEEVE BSD-3600700055.A2 3600700055 £31.64 £37.97
112 - O-RING 32.0x1.5 MM BSD-3600210057.A65 3600210057 £2.61 £3.13
114 - THREADED RING BSD-3603344024.A290 3603344024 £16.41 £19.69
115 - O-RING 33.0x2.5 MM BSD-3600210050.A52 3600210050 £2.61 £3.13
117 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x20-8.8 BSD-2910141201.A352 2910141201 £2.61 £3.13
118 - PLAIN WASHER BSD-3600100043.A111 3600100043 £3.72 £4.47
119 - O-RING 82.27x1.78 MM BSD-3600210052.A9 3600210052 -
123 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A84 2916609112 £2.61 £3.13
650 - SINGLE-HEAD ENG. WRENCH SW32 BSD-2607950021.A21 2607950021 £27.23 £32.68
651 - PIN-TYPE FACE-WRENCH BSD-2607950022.A48 2607950022 £31.64 £37.97
655 - PROTECTIVE COVER dia100 MM BSD-3605510032.A18 3605510032 £179.37 £215.24
656 - CLAMPING-FLANGE BSD-3605703089.A49 3605703089 £63.50 £76.20
656/10 - CLAMPING-FLANGE BSD-3605703070.A11 3605703070 £93.88 £112.65
657 - CLAMPING RING BSD-3605703074.A44 3605703074 £21.68 £26.01
657/10 - CLAMPING RING BSD-3605703066.A22 3605703066 -
658 - RETAINING RING 24x2 DIN9045-24 BSD-2916609112.A85 2916609112 £2.61 £3.13
801 - MOTOR HOUSING GR.85 BSD-3605108159.A31 3605108159 £218.41 £262.09
803 - ROTOR BSD-3604080037.A5 3604080037 £410.78 £492.94
810 - BEARING FLANGE BSD-3607031292.A49 3607031292 £156.22 £187.46
810/020 - SPINDLE BEARING BSD-3607031289.A10 3607031289 £458.51 £550.21
810/077 - SET OF EARTLING MATERIAL BSD-3607031299.A148 3607031299 £8.67 £10.41
811 - FASTENING PARTS KIT BSD-3607031288.A38 3607031288 £120.11 £144.13
823 - SPRING SET BSD-3607031296.A129 3607031296 £16.41 £19.69
856 - SWITCH KIT BSD-3607031295.A39 3607031295 -
858 - HANDLE BSD-3607031297.A133 3607031297 £37.27 £44.72
859 - GROMMET BSD-3607031550.A40 3607031550 £13.12 £15.75
