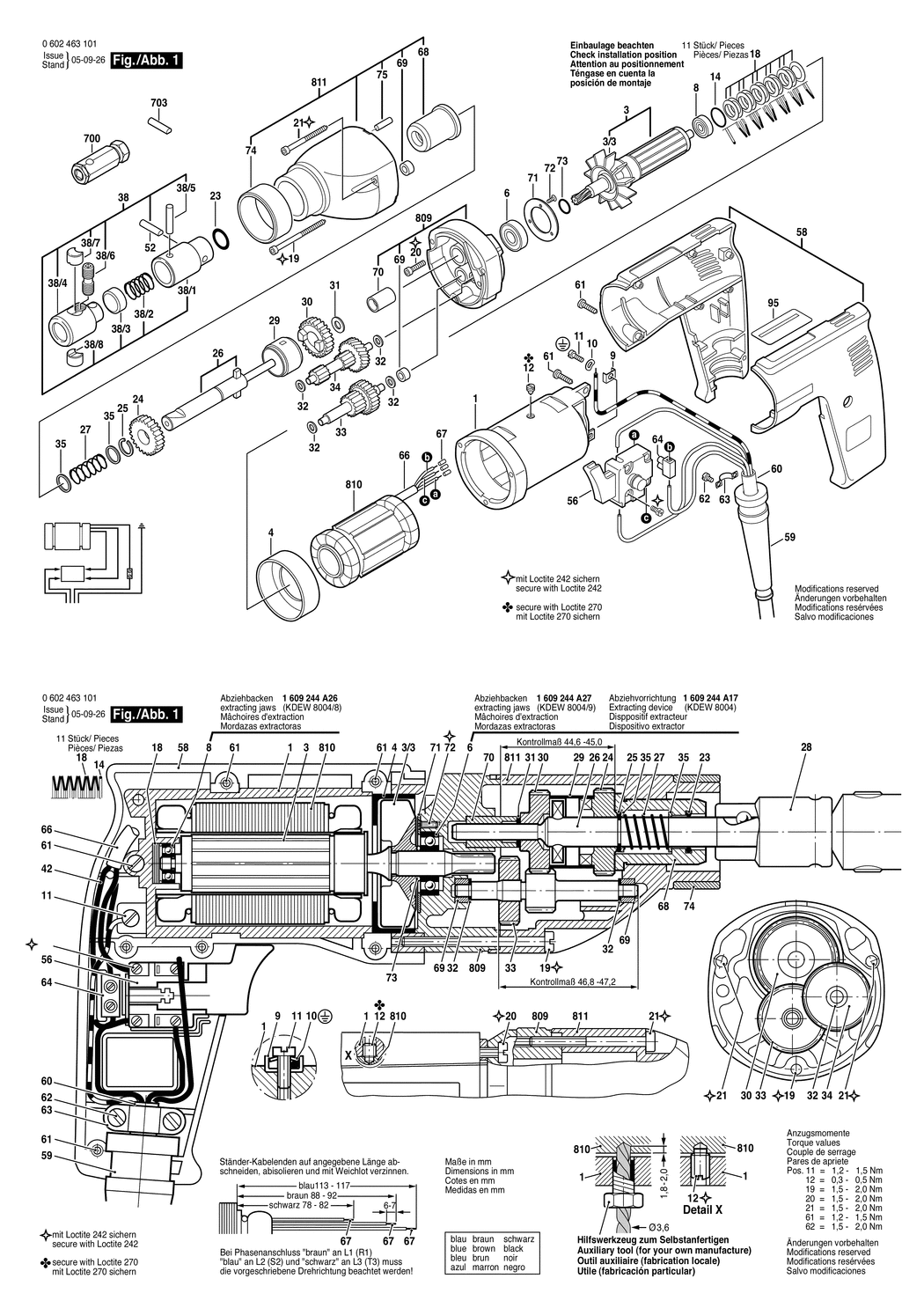

An exploded drawing and listing for the Bosch ---- / 0602463101 / --- 265 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605102044.A17 3605102044 £218.41 £262.09
3 - ROTOR BSD-3604080020.A134 3604080020 -
3/3 - FAN BSD-1606610105.A156 1606610105 £14.91 £17.89
4 - AIR-DEFLECTOR RING BSD-1600502005.A160 1600502005 £2.61 £3.13
6 - GROOVE BALL BEARING 9x24x7 BSD-1610905011.A53 1610905011 £14.91 £17.89
8 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A140 1900905015 £30.42 £36.51
9 - CLAMPING SADDLE BSD-3601321001.A208 3601321001 £3.72 £4.47
10 - SPRING WASHER dia4.2 MM BSD-3600150006.A369 3600150006 £2.61 £3.13
11 - PAN HEAD SCREW DIN 85-AM4x10-MS BSD-2910110120.A354 2910110120 £1.75 £2.10
12 - SET SCREW BSD-3603402000.A316 3603402000 £1.75 £2.10
14 - O-RING 12.0x2.25 MM BSD-3600210039.A2 3600210039 £7.36 £8.83
18 - DISC SPRING BSD-3600150013.A174 3600150013 £3.72 £4.47
19 - HEX SOCKET HEAD CAP SCREW BSD-3603414001.A65 3603414001 -
20 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A237 2910141122 £2.16 £2.59
21 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x45-8.8 BSD-2910141140.A74 2910141140 £1.75 £2.10
23 - O-RING 12x2 MM BSD-1900210009.A27 1900210009 -
24 - CYLINDRICAL GEAR Z=40 BSD-1606325010.A1 1606325010 -
25 - RETAINING RING BSD-1600224025.A4 1600224025 £2.61 £3.13
26 - DRIVE SHAFT BSD-2603124066.A3 2603124066 -
27 - COMPRESSION SPRING BSD-2604630000.A18 2604630000 -
29 - SPACER BUSHING BSD-2600400023.A24 2600400023 -
30 - CYLINDRICAL GEAR Z=37 BSD-1606325011.A5 1606325011 -
31 - SHIM 0.5 MM BSD-1600100631.A17 1600100631 £1.75 £2.10
32 - SHIM 0.50 MM BSD-2600100613.A132 2600100613 £1.75 £2.10
33 - SPINDLE WITH GEAR Z=18/35 BSD-1606328092.A1 1606328092 -
34 - SPINDLE WITH GEAR Z=11/12/34 BSD-1606328093.A5 1606328093 -
35 - PLAIN WASHER BSD-2600101513.A15 2600101513 £1.75 £2.10
38 - TWO-JAW DRILL JUCK M4-M12 BSD-2608573000.A16 2608573000 £134.16 £160.99
38/1 - CARRIER BSD-1600328021.A6 1600328021 £68.42 £82.10
38/2 - COMPRESSION SPRING BSD-1604617002.A1 1604617002 £2.80 £3.36
38/3 - SPRING RETAINER BSD-1600506000.A5 1600506000 £8.49 £10.19
38/4 - CARRIER BSD-1603219006.A4 1603219006 £116.15 £139.38
38/5 - STRAIGHT PIN BSD-1613100012.A103 1613100012 £2.61 £3.13
38/6 - STUD BOLT BSD-1603502000.A29 1603502000 £21.52 £25.83
38/7 - CLAMPING JAWS M 12x1.5 BSD-1600390002.A3 1600390002 -
38/8 - CLAMPING JAWS M 12x1.5 BSD-1600390003.A30 1600390003 -
52 - GRIPPING WEDGE 5x18 MM BSD-3603111003.A7 3603111003 £6.52 £7.83
52 - GRIPPING WEDGE dia 5x18 MM/3.0 MM BSD-1603110003.A11 1603110003 -
52 - GRIPPING WEDGE dia 5x18 MM/3.3 MM BSD-1603110004.A5 1603110004 -
56 - SWITCH BSD-3607200003.A31 3607200003 £27.23 £32.68
58 - HANDLE BSD-3605132039.A2 3605132039 -
59 - GROMMET dia9.2-dia12x120 MM BSD-3600703011.A383 3600703011 £2.80 £3.36
60 - ELEC. CABLE W/CONNECTION BSD-3604462050.A58 3604462050 £27.23 £32.68
61 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A241 2603490023 £1.75 £2.10
62 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A713 2910021116 £2.16 £2.59
63 - FASTENING CLAMP BSD-1601302014.A132 1601302014 £2.61 £3.13
64 - SOCKET-TERMINAL STRIP 1x1.5 MM/2 BSD-1901091012.A85 1901091012 £5.30 £6.36
66 - SHRINKABLE TUBE BSD-3600707032.A19 3600707032 £2.52 £3.02
67 - END SPLICE BSD-3604477008.A352 3604477008 £1.75 £2.10
68 - BUSHING BSD-2600322043.A22 2600322043 -
69 - BUSHING BSD-2600300058.A32 2600300058 -
70 - BUSHING BSD-3600328036.A30 3600328036 -
71 - RETAINING WASHER BSD-3600190012.A126 3600190012 -
72 - COUNTERSUNK-HEAD SCREW DIN 963-M3x8-8.8 BSD-2910780050.A52 2910780050 -
73 - O-RING 8.0x1.0 MM BSD-1600210045.A86 1600210045 £1.75 £2.10
74 - LOCATING RING BSD-2600400026.A7 2600400026 -
75 - STRAIGHT PIN DIN 7-5h8x16-ST BSD-2917500120.A10 2917500120 -
95 - NAMEPLATE BSD-3601106053.A918 3601106053 £5.30 £6.36
99 - REFERENCE PLATE BSD-3601119236.A789 3601119236 £3.72 £4.47
700 - TAP CHUCK BSD-3608502000.A13 3608502000 -
703 - GRIPPING WEDGE dia 5x18 MM/3.6 MM BSD-1603110000.A4 1603110000 -
809 - BEARING HOUSING BSD-1605820179.A11 1605820179 -
810 - STATOR 265V/200HZ. 200V/150HZ BSD-1604229200.A45 1604229200 £458.51 £550.21
811 - GEAR HOUSING BSD-2605806097.A19 2605806097 -
