Bosch GHG 650 LCE / 0601943732 / CH 230 Volt Spare Parts

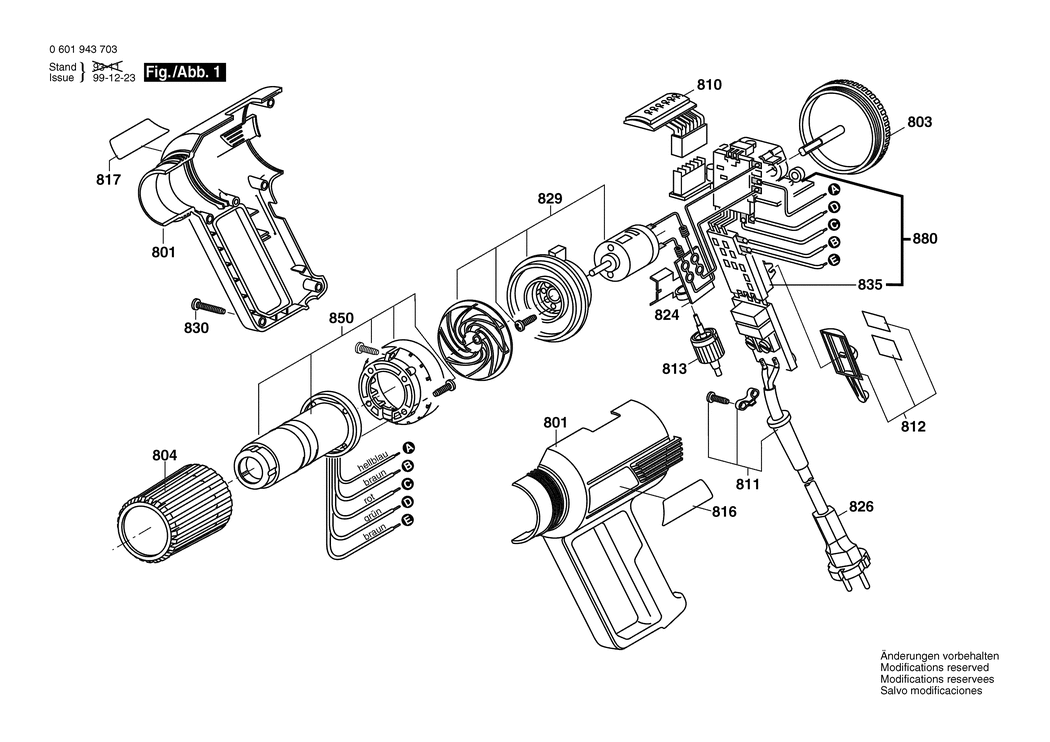

An exploded drawing and listing for the Bosch GHG 650 LCE / 0601943732 / CH 230 Volt

	Ex VAT	Inc VAT
753 - TOOL CASE BSD-2605438391.A1 2605438391	-
801 - HOUSING SECTION BSD-1609202602.A1 1609202602	£33.45	£40.14
803 - THUMBWHEEL BSD-1609202603.A3 1609202603	-
804 - PROTECTIVE TUBE BSD-1609202604.A12 1609202604	£11.30	£13.56
810 - LIGHT CONDUCTOR BSD-1609202605.A2 1609202605	£5.30	£6.36
811 - GROMMET BSD-1609202606.A12 1609202606	£2.61	£3.13
812 - SWITCH BUTTON BSD-1609202607.A3 1609202607	-
813 - THUMBWHEEL BSD-1609202608.A1 1609202608	£6.61	£7.93
816 - MANUFACTURER'S NAMEPLATE BSD-1601118058.A1 1601118058	-
817 - NAMEPLATE BSD-1601118066.A0 1601118066	-
824 - PRINTED-BOARD ASSEMBLY 100-230V BSD-1609202609.A2 1609202609	-
826 - POWER SUPPLY CORD BSD-1609203V15.A3 1609203V15	-
829 - DC MOTOR 115-240V BSD-1609202611.A1 1609202611	£27.23	£32.68
830 - TAPPING SCREW DIN 7981-ST2.9x16-F-H BSD-2910615407.A1 2910615407	£1.75	£2.10
835 - ON-OFF SWITCH BSD-1609202612.A13 1609202612	£14.91	£17.89
850 - CYLINDRICAL HEATING ELEM 230V BSD-1609202613.A1 1609202613	£59.53	£71.44
880 - CONNECTING BLOCK 230V BSD-1609202689.A1 1609202689	-

Attribute Name	Value
Brand	Bosch
