Bosch PHG 600-E / 0603268732 / CH 220 Volt Spare Parts

Bosch PHG 600-E / 0603268732 / CH 220 Volt Spare Parts

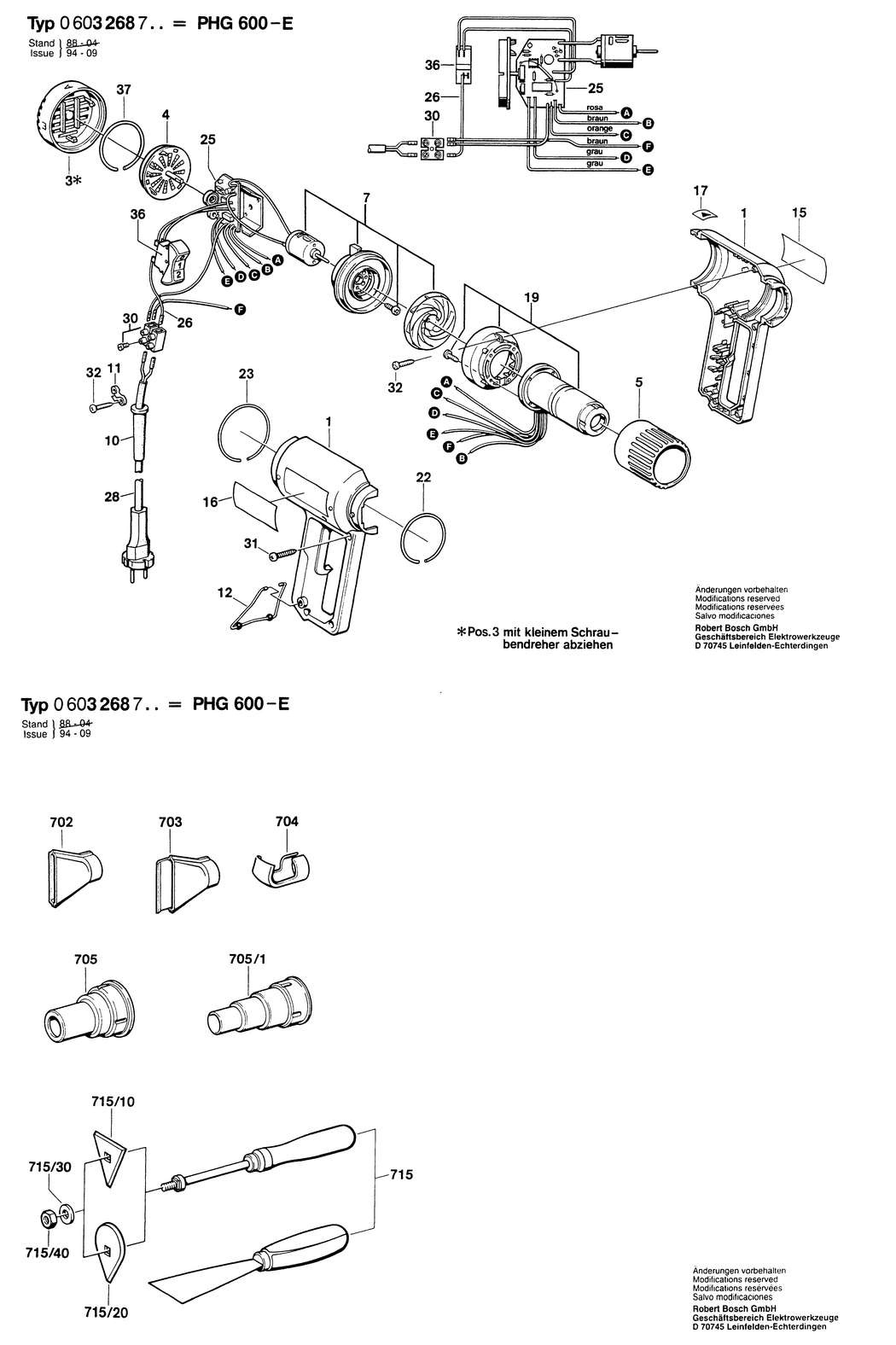

An exploded drawing and listing for the Bosch PHG 600-E / 0603268732 / CH 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1609201481.A8 1609201481 -
3 - SEALING CAP BSD-1609201571.A2 1609201571 -
4 - SLOTTED DISC BSD-1609201483.A5 1609201483 -
5 - PROTECTIVE TUBE BSD-1609201484.A9 1609201484 £10.10 £12.12
7 - DC MOTOR 115-240V BSD-1609201572.A3 1609201572 £16.41 £19.69
10 - GROMMET BSD-1609202793.A10 1609202793 £2.61 £3.13
11 - FASTENING CLAMP BSD-1609201487.A12 1609201487 -
12 - TRANSPORT BRACKET BSD-1609202794.A9 1609202794 £2.52 £3.02
13 - RUBBER BUFFER BSD-1609201489.A5 1609201489 -
15 - MANUFACTURER'S NAMEPLATE BSD-1601110367.A1 1601110367 -
16 - NAMEPLATE BSD-1601110370.A0 1601110370 -
17 - STICKER BSD-1601110369.A1 1601110369 -
19 - HEATING ELEMENT 220V BSD-1609201573.A0 1609201573 -
22 - RETAINING RING CA.dia2.3xdia47 MM BSD-1609201490.A15 1609201490 £2.16 £2.59
23 - RETAINING RING CA.dia2.5xdia62 MM BSD-1609201491.A5 1609201491 -
25 - PRINTED-BOARD ASSEMBLY 220V BSD-1609201574.A0 1609201574 -
26 - CABLE BSD-1609201492.A11 1609201492 -
28 - CABLE BSD-1609201494.A4 1609201494 -
30 - CONNECTING TERMINAL BSD-1609390042.A35 1609390042 £3.34 £4.01
31 - TAPPING SCREW DIN 7983-B2.9x16 BSD-2910615507.A13 2910615507 £1.32 £1.58
32 - TAPPING SCREW DIN 7981-ST 2.9x13-F-H BSD-2910614406.A25 2910614406 £1.75 £2.10
36 - ON-OFF SWITCH BSD-1609201500.A2 1609201500 £11.30 £13.56
37 - CLAMPING RING dia1.5xdia47 MM BSD-1609201723.A8 1609201723 -
702 - WIDE ANGLE NOZZLE 75 MM BSD-1609390451.A7 1609390451 £10.49 £12.59
703 - FLAT-SPRAY NOZZLE 75 MM BSD-1609390452.A23 1609390452 £8.47 £10.16
704 - CYLINDRICAL-SPRAY NOZZLE BSD-1609390453.A7 1609390453 £8.74 £10.49
705 - REDUCTION SLEEVE dia 22/20 MM BSD-1609201648.A22 1609201648 £6.99 £8.39
705 - REDUCTION SLEEVE dia22/dia14 MM BSD-1609201647.A3 1609201647 £8.02 £9.63
708 - ANGULAR JET NOZZLE BSD-1609201751.A18 1609201751 £12.24 £14.69
709 - EXTENSION CABLE BSD-1609201752.A3 1609201752 -
715 - PARTS SET 75 MM BSD-1609390450.A23 1609390450 -
715/10 - BLADE BSD-1609201745.A22 1609201745 -
715/20 - SCRAPER BSD-1609201746.A8 1609201746 -
715/30 - PLAIN WASHER 8.4 DIN 433-ST BSD-2916011015.A70 2916011015 £1.75 £2.10
715/40 - HEX NUT DIN 934-M8-8-A BSD-2915011009.A64 2915011009 £2.61 £3.13
