Dewalt DW292 Type 1 Impact Wrench Spare Parts

Home Details Reviews Delivery

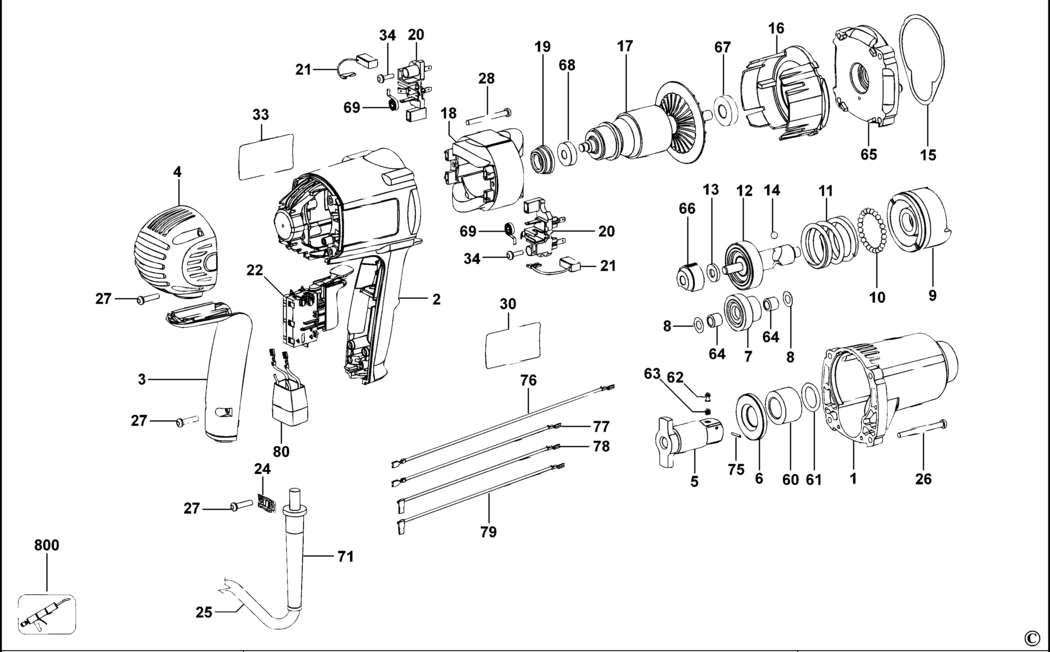

An exploded drawing and spare parts listing for the Dewalt DW292 Type 1 Impact Wrench

	Ex VAT	Inc VAT
1 - GEARCASE SA Inc Items 60 & 61 BDE-616822-00SV.A0 616822-00SV	£24.39	£29.27
1 - GEARCASE SA Inc Items 60 & 61 BDE-N407273.A1 N407273	-
2 - FIELDCASE BDE-616828-05.A3 616828-05	£16.03	£19.24
2 - FIELDCASE BDE-616828-05.A4 616828-05	£16.03	£19.24
3 - HANDLE COVER BDE-616829-01.A3 616829-01	£7.85	£9.42
3 - HANDLE COVER BDE-616829-01.A4 616829-01	£7.85	£9.42
4 - END CAP BDE-616830-00.A1 616830-00	£3.80	£4.56
4 - END CAP BDE-616830-00.A2 616830-00	£3.80	£4.56
5 - ANVIL ASSEMBLY Inc items 62-63-75 BDE-627238-00SV.A1 627238-00SV	£71.44	£85.73
5 - ANVIL ASSEMBLY Inc items 62-63-75 BDE-627238-00SV.A2 627238-00SV	£71.44	£85.73
6 - WASHER THRUST BDE-616859-00.A1 616859-00	£3.80	£4.56
6 - WASHER THRUST BDE-616859-00.A2 616859-00	£3.80	£4.56
7 - GEAR & PINION BDE-135093-01SV.A9 135093-01SV	£58.69	£70.43
7 - GEAR & PINION BDE-135093-01SV.A10 135093-01SV	£58.69	£70.43
8 - WASHER BDE-135089-00.A0 135089-00	£1.50	£1.80
8 - WASHER BDE-135089-00.A1 135089-00	£1.50	£1.80
9 - IMPACTOR BDE-628129-00.A0 628129-00	£45.14	£54.17
9 - IMPACTOR BDE-628129-00.A1 628129-00	£45.14	£54.17
10 - BALL STEEL 3/16" BDE-000475-00.A3 000475-00	£1.50	£1.80
10 - BALL STEEL 3/16" BDE-475-00.A23 475-00	£1.50	£1.80
11 - SPRING BDE-618843-00.A3 618843-00	£3.80	£4.56
11 - SPRING BDE-618843-00.A4 618843-00	£3.80	£4.56
12 - GEAR & CAM SA BDE-659923-00.A0 659923-00	£34.00	£40.80
12 - GEAR & CAM SA BDE-659923-00.A1 659923-00	£34.00	£40.80
13 - WASHER BDE-450667-00.A6 450667-00	£1.42	£1.70
14 - BALL STEEL BDE-618844-00.A6 618844-00	£1.50	£1.80
14 - BALL STEEL BDE-618844-00.A7 618844-00	£1.50	£1.80
15 - GASKET BDE-616847-00.A1 616847-00	£1.50	£1.80
15 - GASKET BDE-616847-00.A2 616847-00	£1.50	£1.80
16 - BAFFLE FAN BDE-655537-00.A0 655537-00	£3.80	£4.56
16 - BAFFLE FAN BDE-655537-00.A1 655537-00	£3.80	£4.56
17 - ARMATURE 115V LX BDE-658751-00SV.A1 658751-00SV	£71.44	£85.73
17 - ARMATURE KIT 220 GB BDE-5140071-79.A0 5140071-79	£71.44	£85.73
17 - ARMATURE 230V BDE-658751-01SV.A0 658751-01SV	£74.15	£88.98
18 - FIELD BDE-617862-01SV.A0 617862-01SV	£34.00	£40.80
18 - FIELD GB BDE-617862-01SV.A1 617862-01SV	£34.00	£40.80
18 - FIELD 115V LX BDE-617862-00.A1 617862-00	£18.42	£22.10
19 - SLEEVE BDE-445217-01.A0 445217-01	-
19 - SLEEVE BDE-445217-02.A49 445217-02	£1.50	£1.80
20 - BRUSH HOLDER BDE-616857-00.A4 616857-00	£7.18	£8.62
20 - BRUSH HOLDER BDE-616857-00.A5 616857-00	£7.18	£8.62
21 - BRUSH 230V BDE-617848-03.A6 617848-03	£7.18	£8.62
21 - BRUSH 115V LX BDE-655213-02.A2 655213-02	£2.78	£3.34
21 - BRUSH 230V GB BDE-617848-03.A7 617848-03	£7.18	£8.62
22 - SWITCH BDE-616849-00.A3 616849-00	£30.08	£36.10
22 - SWITCH BDE-616849-00.A4 616849-00	£30.08	£36.10
24 - CORD CLAMP BDE-450877-00.A4 450877-00	£1.50	£1.80
24 - CORD CLAMP BDE-450877-00.A5 450877-00	£1.50	£1.80
25 - CORDSET (M/PLUG) LX BDE-330061-10.A3 330061-10	£58.69	£70.43
25 - CORDSET (M/PLUG) GB BDE-330060-44.A21 330060-44	£14.57	£17.48
26 - SCREW BDE-330019-50.A34 330019-50	£1.50	£1.80
26 - SCREW BDE-330019-18.A7 330019-18	£1.50	£1.80
27 - SCREW BDE-330019-13.A415 330019-13	£1.50	£1.80
27 - SCREW BDE-330019-13.A416 330019-13	£1.50	£1.80
28 - SCREW BDE-330019-17.A51 330019-17	£1.50	£1.80
28 - SCREW BDE-330019-17.A52 330019-17	£1.50	£1.80
30 - NO LONGER AVAILABLE LX BDE-000000-00.A92734 000000-00	-
30 - NO LONGER AVAILABLE GB BDE-000000-00.A92735 000000-00	-
33 - IDENTITY LABEL BDE-605523-00.A3 605523-00	£1.50	£1.80
33 - IDENTITY LABEL BDE-605523-00.A4 605523-00	£1.50	£1.80
34 - SCREW BDE-176951-00.A19 176951-00	£1.50	£1.80
34 - SCREW BDE-176951-00.A20 176951-00	£1.50	£1.80
60 - SLEEVE BDE-616844-00.A1 616844-00	£3.30	£3.96
60 - SLEEVE BDE-616844-00.A2 616844-00	£3.30	£3.96
61 - O RING BDE-616863-00.A1 616863-00	£1.50	£1.80
61 - O RING BDE-616863-00.A2 616863-00	£1.50	£1.80
62 - DETENT BDE-N020802.A3 N020802	£2.78	£3.34
62 - DETENT BDE-N020802.A4 N020802	£2.78	£3.34
63 - SPRING BDE-038769-00.A28 038769-00	£1.50	£1.80
63 - SPRING BDE-038769-00.A29 038769-00	£1.50	£1.80
64 - BEARING NEEDLE BDE-330004-02.A23 330004-02	£1.50	£1.80
64 - BEARING NEEDLE BDE-330004-02.A24 330004-02	£1.50	£1.80
65 - GEARCASE COVER SA Inc Items 66 & 67 BDE-616823-00SV.A2 616823-00SV	£24.39	£29.27
65 - GEARCASE COVER SA Inc Items 66 & 67 BDE-616823-00.A0 616823-00	£24.39	£29.27
66 - BEARING BLOCK BDE-616841-00.A1 616841-00	£2.78	£3.34
66 - BEARING BLOCK BDE-616841-00.A2 616841-00	£2.78	£3.34
67 - GEARCASE COVER SA INCL 6665 BDE-616823-00SV.A3 616823-00SV	£24.39	£29.27
68 - BEARING BDE-605040-06.A166 605040-06	£3.80	£4.56
68 - BEARING BDE-605040-06.A167 605040-06	£3.80	£4.56
69 - BRUSH SPRING BDE-383387-00.A19 383387-00	£3.80	£4.56
69 - BRUSH SPRING BDE-383387-00.A20 383387-00	£3.80	£4.56
71 - CORD PROTECTOR GB BDE-N542553.A396 N542553	£3.80	£4.56
71 - CORD PROTECTOR LX BDE-148809-00.A5 148809-00	£1.50	£1.80
71 - CORD PROTECTOR BDE-330005-01.A42 330005-01	£1.50	£1.80
75 - ROLLPIN BDE-99205-07.A2 99205-07	£1.50	£1.80
75 - ROLL PIN BDE-099205-07.A36 099205-07	£1.50	£1.80
76 - LEAD BLUE BDE-616852-00.A6 616852-00	£1.50	£1.80
76 - LEAD BLUE BDE-616852-00.A7 616852-00	£1.50	£1.80
77 - LEAD WHITE BDE-616852-01.A1 616852-01	£1.50	£1.80
77 - LEAD WHITE BDE-616852-01.A2 616852-01	£1.50	£1.80
78 - LEAD BLACK BDE-616852-02.A2 616852-02	£1.50	£1.80
79 - CHOKE LEAD RED BDE-616853-01.A3 616853-01	£7.18	£8.62
79 - LEAD RED BDE-616852-03.A1 616852-03	£2.26	£2.71
80 - CHOKE LEAD SA BDE-N038758.A2 N038758	£16.03	£19.24
80 - FILTER BDE-623976-00.A0 623976-00	£38.80	£46.56
82 - LEADWIRE BDE-N055722.A2 N055722	£3.30	£3.96
83 - LEAD BLACK BDE-N055724.A0 N055724	£2.78	£3.34
800 - GREASE BDE-429698-00.A74 429698-00	£84.42	£101.30
800 - GREASE BDE-429698-00.A75 429698-00	£84.42	£101.30
836 - SERVICE TOOL BDE-233804-32.A1 233804-32	-
