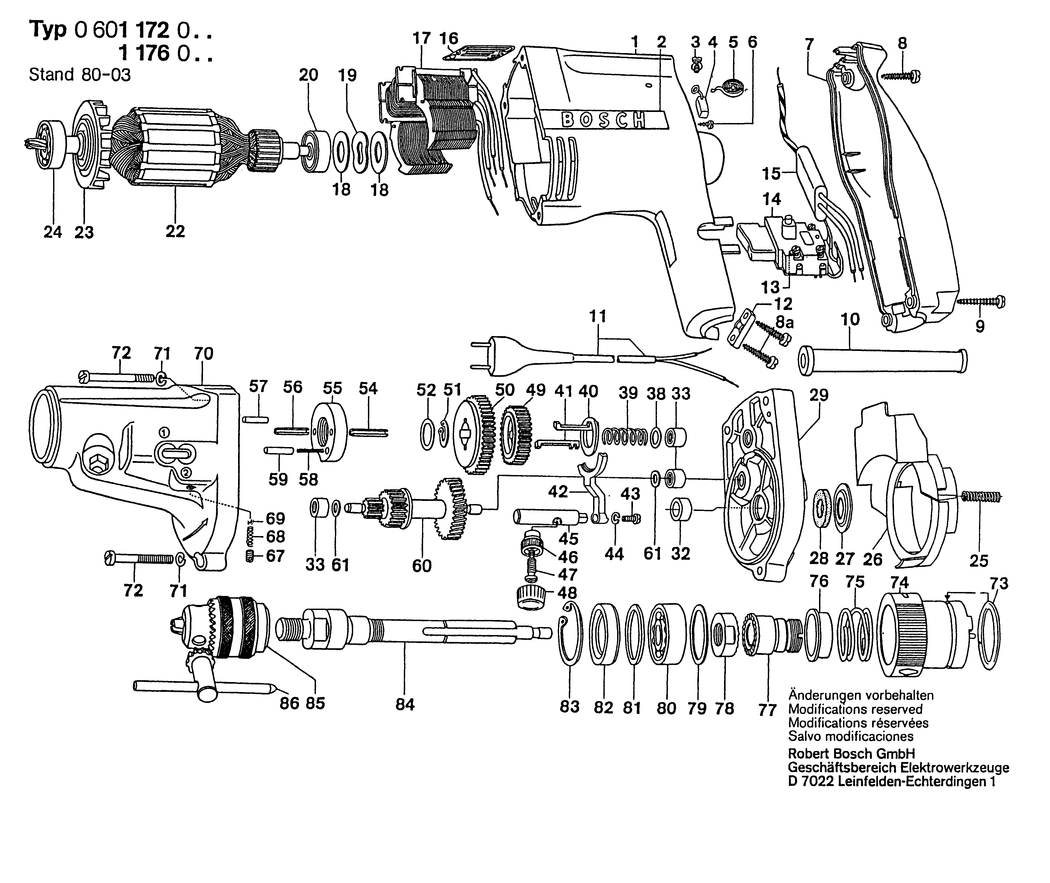

1 - MOTOR HOUSING
BSD-2605104900.A12
2605104900
|
-
|
|
|
|
2 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A250
2601007003
|
-
|
|
|
|
3 - SOCKET HEAD CAP SCREW
BSD-2603410010.A315
2603410010
|
-
|
|
|
|
5 - SPIRAL SPRING
BSD-2604652002.A59
2604652002
|
-
|
|
|
|
6 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A277
2910211004
|
-
|
|
|
|
7 - HOUSING COVER
BSD-2605132005.A56
2605132005
|
-
|
|
|
|
8 - TAPPING SCREW DIN 7971-BZ3.9x19
BSD-2910211020.A433
2910211020
|
£2.16
|
£2.59
|
|
|
8 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A731
2910211019
|
£1.75
|
£2.10
|
|
|
9 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A357
2910211021
|
£1.75
|
£2.10
|
|
|
10 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A856
2600703011
|
£2.80
|
£3.36
|
|
|
10 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A267
2600703012
|
£2.80
|
£3.36
|
|
|
10 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A824
2600703013
|
£2.61
|
£3.13
|
|
|
12 - CABLE CLIP
BSD-2601035001.A1580
2601035001
|
£1.75
|
£2.10
|
|
|
13 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A279
2603410023
|
-
|
|
|
|
14 - ON-OFF SWITCH
BSD-2607200043.A137
2607200043
|
-
|
|
|
|
15 - SUPPRESSION FILTER
BSD-2607329051.A151
2607329051
|
-
|
|
|
|
16 - NAMEPLATE
BSD-2601100038.A88
2601100038
|
-
|
|
|
|
17 - POLE SHOE 110-115V
BSD-2604222219.A4
2604222219
|
-
|
|
|
|
18 - SHIM 0.2 MM
BSD-2600101655.A82
2600101655
|
-
|
|
|
|
18 - SHIM 0.3 MM
BSD-2600101656.A99
2600101656
|
-
|
|
|
|
18 - SHIM 0.5 MM
BSD-2600101657.A82
2600101657
|
-
|
|
|
|
19 - SHIM
BSD-2600150003.A60
2600150003
|
£2.16
|
£2.59
|
|
|
20 - GROOVE BALL BEARING 6x19x6
BSD-1900905019.A218
1900905019
|
£14.91
|
£17.89
|
|
|
22 - ARMATURE WITH FAN 110-115V
BSD-2604010296.A4
2604010296
|
-
|
|
|
|
23 - FAN
BSD-2606610013.A70
2606610013
|
-
|
|
|
|
24 - BALL BEARING 8x22x7
BSD-1900905029.A26
1900905029
|
£21.52
|
£25.83
|
|
|
25 - COMPRESSION SPRING
BSD-2604611024.A37
2604611024
|
£2.16
|
£2.59
|
|
|
26 - COVER DISC
BSD-2601328016.A42
2601328016
|
-
|
|
|
|
27 - CUPPED WASHER
BSD-2600500030.A160
2600500030
|
-
|
|
|
|
28 - FELT DISC
BSD-2600108000.A155
2600108000
|
-
|
|
|
|
29 - INTERMEDIATE FLANGE
BSD-2605700914.A17
2605700914
|
-
|
|
|
|
32 - SEAL BUSHING
BSD-2600300049.A186
2600300049
|
-
|
|
|
|
33 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A82
2600914010
|
£2.80
|
£3.36
|
|
|
38 - SHIM 0.3 MM
BSD-2600100570.A77
2600100570
|
£1.75
|
£2.10
|
|
|
39 - COMPRESSION SPRING
BSD-2604611027.A45
2604611027
|
-
|
|
|
|
40 - PLAIN WASHER
BSD-2600101001.A23
2600101001
|
-
|
|
|
|
41 - FLAT KEY
BSD-2602300001.A28
2602300001
|
-
|
|
|
|
42 - AXLE
BSD-2607010007.A23
2607010007
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM3x6-5.8
BSD-2910011048.A132
2910011048
|
£1.75
|
£2.10
|
|
|
44 - SPRING LOCK WASHER A3-FSt
BSD-2916690001.A160
2916690001
|
-
|
|
|
|
46 - SHIFT-LEVER KNOB
BSD-2603340016.A14
2603340016
|
-
|
|
|
|
47 - PAN HEAD SCREW
BSD-2603413020.A31
2603413020
|
-
|
|
|
|
48 - SEALING CAP
BSD-2600508029.A20
2600508029
|
-
|
|
|
|
49 - CYLINDRICAL GEAR Z=31
BSD-2606316034.A18
2606316034
|
-
|
|
|
|
50 - CYLINDRICAL GEAR Z=40
BSD-2606316035.A1
2606316035
|
-
|
|
|
|
51 - SPRING RETAINING RING DIN 471-12x1-FSt
BSD-2916650003.A149
2916650003
|
£1.75
|
£2.10
|
|
|
52 - SHIM
BSD-2600101610.A15
2600101610
|
-
|
|
|
|
54 - COILED SPRING PIN
BSD-2917780081.A17
2917780081
|
-
|
|
|
|
55 - UNION NUT
BSD-2603340001.A13
2603340001
|
-
|
|
|
|
56 - SLOTTED SPRING PIN 3x16 DIN 1481
BSD-2917760079.A40
2917760079
|
-
|
|
|
|
57 - NEEDLE ROLLER DIN 5402-A3x11.8-G2
BSD-1903201042.A78
1903201042
|
£2.16
|
£2.59
|
|
|
58 - COMPRESSION SPRING
BSD-2604612001.A39
2604612001
|
-
|
|
|
|
59 - STRAIGHT PIN
BSD-2600556001.A46
2600556001
|
-
|
|
|
|
60 - TOOTHED SHAFT Z= 41/21/12
BSD-2606308904.A14
2606308904
|
-
|
|
|
|
61 - SHIM 0.3 MM
BSD-2600100607.A228
2600100607
|
£1.75
|
£2.10
|
|
|
67 - SET SCREW M 5x5 DIN 551-5.8
BSD-2912031147.A11
2912031147
|
-
|
|
|
|
68 - COMPRESSION SPRING
BSD-2604611030.A1
2604611030
|
-
|
|
|
|
69 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A680
1903230007
|
£1.75
|
£2.10
|
|
|
70 - GEAR HOUSING
BSD-2605806932.A5
2605806932
|
-
|
|
|
|
71 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1084
2916690003
|
£1.75
|
£2.10
|
|
|
72 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A235
2910021134
|
£1.75
|
£2.10
|
|
|
73 - O-RING 32.0x2.0 MM
BSD-2600210024.A23
2600210024
|
£1.75
|
£2.10
|
|
|
74 - RECEPTACLE
BSD-2605801002.A12
2605801002
|
-
|
|
|
|
75 - COMPRESSION SPRING
BSD-2604616000.A31
2604616000
|
-
|
|
|
|
76 - CAPSULE
BSD-2600521016.A36
2600521016
|
-
|
|
|
|
77 - THREADED BUSHING
BSD-2600324002.A5
2600324002
|
-
|
|
|
|
78 - LOCATING WASHER
BSD-2600190009.A16
2600190009
|
-
|
|
|
|
79 - SHIM
BSD-2600102654.A25
2600102654
|
-
|
|
|
|
80 - GROOVE BALL BEARING 15x32x9
BSD-1900900272.A23
1900900272
|
-
|
|
|
|
81 - SHIM
BSD-2600102036.A53
2600102036
|
£2.61
|
£3.13
|
|
|
82 - ROTARY SHAFT LIP SEAL
BSD-2600283009.A39
2600283009
|
-
|
|
|
|
83 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A548
2916660013
|
£2.16
|
£2.59
|
|
|
84 - DRILLING SPINDLE 1/2
BSD-2603523034.A24
2603523034
|
-
|
|
|
|
85 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A94
1608571005
|
-
|
|
|
|
86 - CHUCK WRENCH SG2
BSD-2607950007.A81
2607950007
|
£6.52
|
£7.83
|
|
|
654 - HANDLE M6
BSD-2602025023.A40
2602025023
|
-
|
|
|
|
655 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A618
2915011007
|
-
|
|
|
|
656 - DEPTH-GAUGE
BSD-2607010001.A6
2607010001
|
-
|
|
|
|
657 - SOCKET HEAD CAP SCREW DIN 84-AM3x20-8.8
BSD-2910021201.A8
2910021201
|
-
|
|
|
|
658 - CARRYING CASE
BSD-2605438001.A15
2605438001
|
-
|
|
|
|
804 - CARBON-BRUSH SET
BSD-2604320902.A110
2604320902
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A5056
160111A3H3
|
£2.61
|
£3.13
|
|
