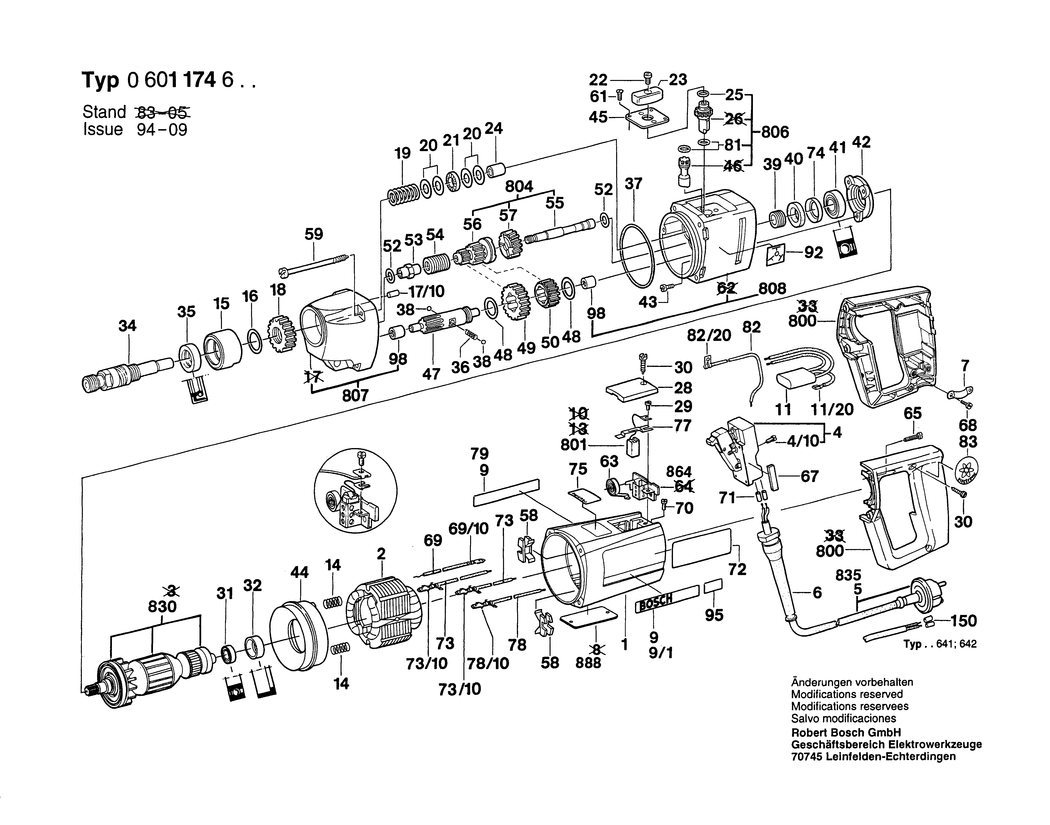

1 - MOTOR HOUSING
BSD-3605108145.A126
3605108145
|
£27.23
|
£32.68
|
|
|
2 - FIELD 220V
BSD-1604220231.A23
1604220231
|
-
|
|
|
|
4 - SWITCH
BSD-1607200075.A55
1607200075
|
£68.42
|
£82.10
|
|
|
6 - GROMMET dia7.9-dia12.0x120 MM
BSD-1600703022.A102
1600703022
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A282
1601302014
|
£2.61
|
£3.13
|
|
|
9 - STICKER
BSD-1601110046.A124
1601110046
|
£1.75
|
£2.10
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328028.A17
1607328028
|
£5.30
|
£6.36
|
|
|
11/20 - BLADE TERMINAL
BSD-2601355007.A21
2601355007
|
-
|
|
|
|
14 - COMPRESSION SPRING
BSD-1604613006.A29
1604613006
|
£1.75
|
£2.10
|
|
|
15 - BUSHING
BSD-1605801026.A2
1605801026
|
-
|
|
|
|
16 - SHIM 0.6 MM
BSD-1600102676.A40
1600102676
|
-
|
|
|
|
17/10 - STRAIGHT PIN 5 H 8x18 DIN 7
BSD-2917500121.A19
2917500121
|
£1.75
|
£2.10
|
|
|
18 - CYLINDRICAL GEAR Z=43
BSD-1606317077.A41
1606317077
|
£27.23
|
£32.68
|
|
|
19 - COMPRESSION SPRING
BSD-1604616018.A4
1604616018
|
-
|
|
|
|
20 - SUPPORT DISC
BSD-1600103026.A8
1600103026
|
-
|
|
|
|
21 - NEEDLE-ROLLER BEARING
BSD-1600920003.A23
1600920003
|
-
|
|
|
|
22 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A56
2910091118
|
£1.75
|
£2.10
|
|
|
23 - CONTROL LEVER
BSD-1602026044.A66
1602026044
|
£7.36
|
£8.83
|
|
|
24 - SINTERED-METAL BUSHING
BSD-1600301006.A34
1600301006
|
-
|
|
|
|
25 - O-RING 12.0x1.5 MM
BSD-3600210086.A31
3600210086
|
£2.80
|
£3.36
|
|
|
28 - SEALING CAP
BSD-1605500089.A15
1605500089
|
-
|
|
|
|
29 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A339
2910021118
|
£1.75
|
£2.10
|
|
|
30 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A231
2910211220
|
-
|
|
|
|
31 - BALL BEARING 7x19x6
BSD-2600905032.A1378
2600905032
|
£5.30
|
£6.36
|
|
|
32 - INTERMEDIATE RING
BSD-1600502011.A518
1600502011
|
£2.61
|
£3.13
|
|
|
34 - DRILLING SPINDLE 5/8-16 UN-2A
BSD-1603528005.A16
1603528005
|
-
|
|
|
|
35 - ROTARY SHAFT LIP SEAL
BSD-3600283043.A27
3600283043
|
£12.04
|
£14.45
|
|
|
36 - COMPRESSION SPRING
BSD-1604611022.A105
1604611022
|
£1.75
|
£2.10
|
|
|
37 - O-RING 74.0x1.5 MM
BSD-1600210030.A29
1600210030
|
-
|
|
|
|
38 - BALL DIN 5401-5 G28
BSD-1903230009.A512
1903230009
|
£1.75
|
£2.10
|
|
|
39 - THREADED RING
BSD-1603344062.A4
1603344062
|
-
|
|
|
|
40 - FELT WASHER
BSD-1600205032.A9
1600205032
|
-
|
|
|
|
41 - BALL BEARING 9x26x8
BSD-1900905025.A47
1900905025
|
£21.52
|
£25.83
|
|
|
42 - BEARING COVER
BSD-1605500126.A3
1605500126
|
-
|
|
|
|
43 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A87
2910021122
|
£2.16
|
£2.59
|
|
|
44 - AIR-DEFLECTOR RING
BSD-1600502019.A22
1600502019
|
£3.72
|
£4.47
|
|
|
45 - NOTCHED PLATE
BSD-1601038025.A66
1601038025
|
£1.75
|
£2.10
|
|
|
47 - SPINDLE WITH GEAR Z=15
BSD-1606309062.A30
1606309062
|
-
|
|
|
|
48 - SHIM 0.6 MM
BSD-1600101647.A44
1600101647
|
£2.16
|
£2.59
|
|
|
49 - CYLINDRICAL GEAR Z=41
BSD-1606317075.A30
1606317075
|
-
|
|
|
|
50 - CYLINDRICAL GEAR Z=32
BSD-1606317074.A45
1606317074
|
£31.64
|
£37.97
|
|
|
52 - PLAIN WASHER 0.5 MM
BSD-1600101653.A26
1600101653
|
-
|
|
|
|
53 - THREADED BUSHING
BSD-1600363011.A32
1600363011
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-1604619013.A9
1604619013
|
-
|
|
|
|
55 - DRIVE SHAFT
BSD-1603520018.A34
1603520018
|
-
|
|
|
|
56 - CYLINDRICAL GEAR
BSD-F000635176.A11
F000635176
|
£40.80
|
£48.96
|
|
|
57 - CYLINDRICAL GEAR Z=29
BSD-1606325024.A17
1606325024
|
-
|
|
|
|
58 - WIRE GUIDE
BSD-1601025001.A114
1601025001
|
£1.75
|
£2.10
|
|
|
59 - THREAD-FORMING SCREW B4.8x107.5 MM
BSD-1603435009.A35
1603435009
|
£2.16
|
£2.59
|
|
|
61 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x10-5.8
BSD-2910501120.A9
2910501120
|
£1.75
|
£2.10
|
|
|
63 - SPIRAL SPRING
BSD-1604652006.A299
1604652006
|
£1.75
|
£2.10
|
|
|
65 - TORX OVAL-HEAD SCREW
BSD-2914201527.A90
2914201527
|
£2.16
|
£2.59
|
|
|
67 - INSULATING STRIP 33x10x6 MM
BSD-1602381001.A209
1602381001
|
-
|
|
|
|
68 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8
BSD-2910021116.A757
2910021116
|
£2.16
|
£2.59
|
|
|
69 - TAB WASHER
BSD-1601030022.A348
1601030022
|
£1.75
|
£2.10
|
|
|
69/10 - SUPPRESSION FILTER
BSD-1607328034.A100
1607328034
|
£4.26
|
£5.11
|
|
|
71 - END SPLICE
BSD-3604477009.A93
3604477009
|
£2.61
|
£3.13
|
|
|
72 - STICKER
BSD-1601110267.A3
1601110267
|
-
|
|
|
|
73 - CONNECTING CABLE L=330 MM
BSD-1604438012.A44
1604438012
|
£7.36
|
£8.83
|
|
|
73/10 - BLADE TERMINAL
BSD-1604477002.A3
1604477002
|
£1.75
|
£2.10
|
|
|
74 - COVER DISC
BSD-1600500026.A3
1600500026
|
-
|
|
|
|
77 - BLADE TERMINAL
BSD-1604477001.A72
1604477001
|
£1.75
|
£2.10
|
|
|
78 - CONNECTING CABLE L=345 MM
BSD-1604438013.A22
1604438013
|
£7.36
|
£8.83
|
|
|
78/10 - BLADE TERMINAL
BSD-1604477001.A71
1604477001
|
£1.75
|
£2.10
|
|
|
81 - SEAL RING 10.0x1.5 MM
BSD-2600210016.A6
2600210016
|
-
|
|
|
|
82 - CONNECTING CABLE L=290 MM
BSD-1604445006.A9
1604445006
|
£5.58
|
£6.70
|
|
|
82/20 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A147
1901350003
|
£1.75
|
£2.10
|
|
|
83 - STICKER
BSD-2601110041.A31
2601110041
|
-
|
|
|
|
92 - STICKER
BSD-1601110214.A4
1601110214
|
-
|
|
|
|
98 - NEEDLE BEARING dia8xdia12x10 MM
BSD-1610910057.A117
1610910057
|
£2.80
|
£3.36
|
|
|
800 - HANDLE
BSD-3605133012.A3
3605133012
|
-
|
|
|
|
801 - CARBON-BRUSH SET
BSD-1607014126.A135
1607014126
|
£16.41
|
£19.69
|
|
|
804 - SET OF GEARS Z=13/22/29
BSD-1607016017.A19
1607016017
|
-
|
|
|
|
806 - PARTS SET
BSD-1607000126.A7
1607000126
|
-
|
|
|
|
807 - SPINDLE BEARING
BSD-1605806321.A11
1605806321
|
-
|
|
|
|
808 - INTERMEDIATE BEARING
BSD-1605820237.A4
1605820237
|
-
|
|
|
|
830 - ARMATURE 220V
BSD-1604010278.A7
1604010278
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A203
1607000228
|
£23.86
|
£28.63
|
|
|
864 - BRUSH HOLDER
BSD-1604336017.A77
1604336017
|
£7.36
|
£8.83
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4114
160111A3H3
|
£2.61
|
£3.13
|
|
