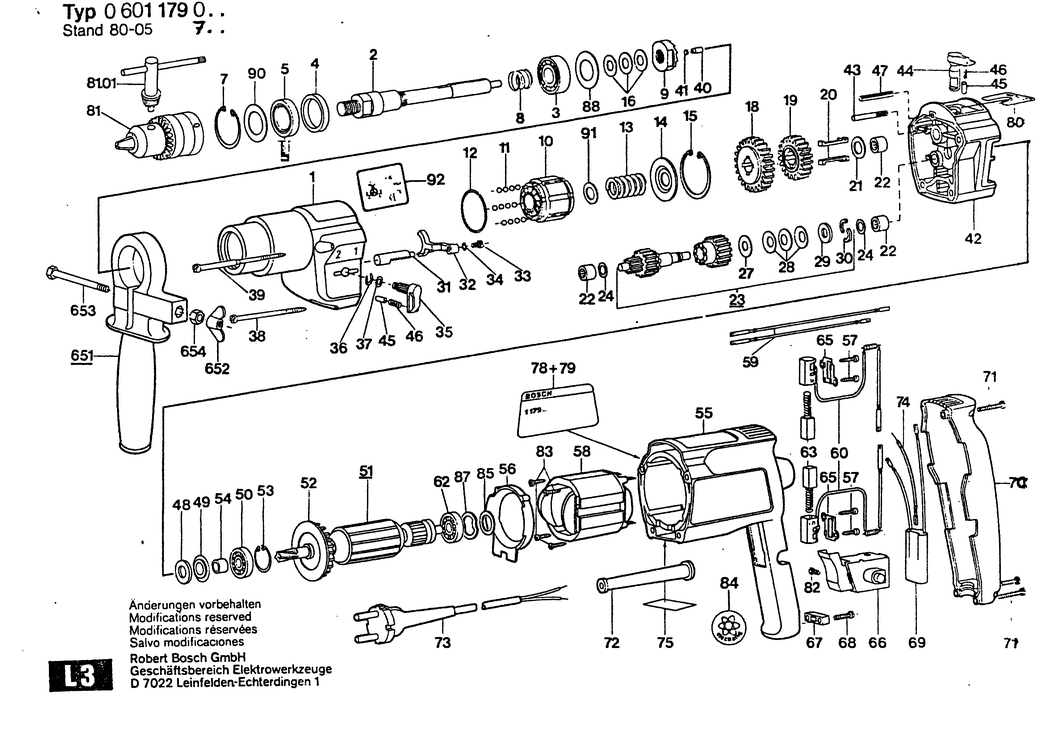

An exploded drawing and listing for the Bosch ---- / 0601179003 / EU 220 Volt
Ex VAT Inc VAT
1 - GEAR HOUSING BSD-2605806954.A0 2605806954 -
2 - DRILLING SPINDLE BSD-2606135003.A4 2606135003 -
3 - GROOVE BALL BEARING 160 03 DIN 625 BSD-1900900202.A12 1900900202 -
4 - SPACER RING BSD-2600201007.A12 2600201007 -
5 - RADIAL SEAL BSD-2600283011.A7 2600283011 -
7 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A428 2916660014 £1.75 £2.10
8 - COMPRESSION SPRING BSD-2604616002.A14 2604616002 £1.75 £2.10
9 - LOCATING WASHER BSD-2600190025.A11 2600190025 -
10 - STRIKER BSD-2608710008.A12 2608710008 -
11 - BALL 5/32 BSD-1903230204.A16 1903230204 -
12 - RETAINING RING BSD-2604601011.A16 2604601011 -
13 - COMPRESSION SPRING BSD-2604619008.A23 2604619008 -
14 - SUPPORTING DISC BSD-2600101082.A12 2600101082 -
15 - SPRING RETAINING RING 40x1.75 DIN 472 BSD-2916663018.A22 2916663018 -
16 - SHIM WASHER 0.3 MM BSD-2600101027.A229 2600101027 £1.75 £2.10
16 - SHIM WASHER 0.3 MM BSD-2600101666.A22 2600101666 -
16 - SHIM WASHER 0.5 MM BSD-2600101667.A54 2600101667 £1.75 £2.10
18 - CYLINDRICAL GEAR Z=48 BSD-2606317028.A4 2606317028 -
19 - CYLINDRICAL GEAR Z=36 BSD-2606317029.A7 2606317029 -
20 - FLAT KEY BSD-2602300001.A36 2602300001 -
21 - PLAIN WASHER BSD-2600101001.A42 2600101001 -
22 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A490 2600914010 £2.80 £3.36
23 - OVERLOAD CLUTCH BSD-2606309903.A5 2606309903 -
24 - SHIM 0.3 MM BSD-2600100570.A237 2600100570 £1.75 £2.10
27 - SHIM 0.5 MM BSD-2600100682.A15 2600100682 -
27 - SHIM 0.3 MM BSD-2600100683.A49 2600100683 -
27 - SHIM 0.2 MM BSD-2600100684.A12 2600100684 -
28 - DISC SPRING BSD-2600550008.A17 2600550008 £1.75 £2.10
29 - COVER DISC BSD-2600114001.A29 2600114001 -
30 - LOCKING WASHER BSD-2600116001.A17 2600116001 -
31 - TOOTHED RACK BSD-2603070010.A6 2603070010 -
32 - FORK LEVER BSD-2602033000.A5 2602033000 -
33 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8 BSD-2914501011.A132 2914501011 £1.75 £2.10
34 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A85 2916690001 -
35 - ROTARY KNOB BSD-2602026023.A36 2602026023 -
36 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A21 2916080007 £2.61 £3.13
37 - SHIM WASHER BSD-2600100618.A225 2600100618 £1.75 £2.10
38 - HEADLESS SCREW 65 MM BSD-2603435071.A89 2603435071 -
39 - TAPPING SCREW 79 MM BSD-2603435012.A65 2603435012 -
40 - PRESSURE SPINDLE 0.2 MM BSD-2603200019.A12 2603200019 -
41 - SHIM WASHER 0.3 MM BSD-2600000015.A22 2600000015 -
41 - SHIM WASHER BSD-2600000016.A1 2600000016 -
41 - SHIM WASHER 0.5 MM BSD-2600000017.A22 2600000017 -
41 - SHIM WASHER 0.8 MM BSD-2600000019.A6 2600000019 -
42 - ASSEMBLY OF SERVICE PARTS BSD-2605700923.A0 2605700923 -
43 - HOLDING PIN BSD-2603200011.A11 2603200011 -
44 - ROTARY KNOB BSD-2602026027.A11 2602026027 -
45 - RATCHET CAP BSD-2600590006.A1132 2600590006 £1.75 £2.10
46 - RATCHET CAP BSD-2600590006.A1133 2600590006 £1.75 £2.10
47 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A212 2917780105 £1.75 £2.10
48 - FELT WASHER BSD-2600108077.A8 2600108077 £1.75 £2.10
49 - CUPPED WASHER BSD-2600500002.A221 2600500002 £1.75 £2.10
50 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A645 2600905021 £8.67 £10.41
51 - ARMATURE 220-240V BSD-2604010524.A0 2604010524 -
53 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A794 2916660008 £2.16 £2.59
54 - RECEPTACLE BSD-2600400008.A306 2600400008 £1.75 £2.10
55 - MOTOR HOUSING BSD-2605104116.A24 2605104116 -
56 - COVER DISC BSD-2601328033.A104 2601328033 -
57 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1544 2603490017 £2.16 £2.59
58 - FIELD 220-230V BSD-2604220491.A34 2604220491 £21.68 £26.01
59 - CABLE L=130 MM BSD-2604448005.A425 2604448005 £1.75 £2.10
60 - SUPPRESSOR BOX BSD-2604465062.A22 2604465062 -
62 - BALL BEARING 7x22x7 BSD-1900905018.A1153 1900905018 £18.96 £22.75
65 - BRUSH PLATE BSD-2601015047.A153 2601015047 -
66 - ON-OFF SWITCH BSD-2607200137.A33 2607200137 -
67 - CABLE CLIP BSD-2601035001.A1183 2601035001 £1.75 £2.10
68 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A2389 2910211019 £1.75 £2.10
69 - SUPPRESSION FILTER BSD-2607329096.A83 2607329096 £7.36 £8.83
70 - HOUSING COVER BSD-2605132040.A54 2605132040 -
71 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A983 2910211021 £1.75 £2.10
72 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A121 2600703011 £2.80 £3.36
72 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A1510 2600703012 £2.80 £3.36
74 - CABLE BSD-2604448003.A287 2604448003 -
78 - STICKER BSD-2601110093.A82 2601110093 -
79 - STICKER BSD-2601110094.A0 2601110094 -
80 - STICKER BSD-2601110076.A69 2601110076 -
81 - KEY CHUCK dia 1-10 MM. 1/2 BSD-1608571045.A20 1608571045 £29.74 £35.69
81 - CHUCK WRENCH SG2. SW4 BSD-1607950044.A33 1607950044 £6.12 £7.34
82 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1065 2603410001 £1.75 £2.10
83 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A164 2603435015 £2.16 £2.59
84 - STICKER BSD-2601110041.A217 2601110041 -
85 - SHIM 0.3 MM BSD-2600101023.A214 2600101023 £1.75 £2.10
85 - SHIM 0.2 MM BSD-2600101022.A385 2600101022 £1.75 £2.10
85 - SHIM 0.5 MM BSD-2600101020.A247 2600101020 £1.75 £2.10
87 - SHIM BSD-2600150004.A262 2600150004 £2.16 £2.59
88 - SHIM WASHER BSD-2600102042.A17 2600102042 -
90 - SHIM 0.5 MM BSD-2600102044.A5 2600102044 -
90 - SHIM 0.3 MM BSD-2600102043.A6 2600102043 -
91 - SHIM 0.2 MM BSD-2600100692.A24 2600100692 -
91 - SHIM 0.3 MM BSD-2600100693.A11 2600100693 -
91 - SHIM 0.5 MM BSD-2600100695.A160 2600100695 £1.75 £2.10
92 - REFERENCE PLATE BSD-2601110158.A0 2601110158 -
651 - AUXILIARY HANDLE BSD-2602025031.A23 2602025031 -
652 - WING NUT M6 DIN 315-G-GTW-40 BSD-2915191006.A82 2915191006 -
653 - HEX SCREW DIN 931-M6x75-8.8 BSD-2911011220.A45 2911011220 -
654 - CONICAL SPRING WASHER BSD-2601098001.A59 2601098001 -
810 - CARBON-BRUSH SET BSD-2604321905.A393 2604321905 £11.30 £13.56
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A3 1607000386 £21.52 £25.83
888 - NAMEPLATE BSD-160111A3H3.A2377 160111A3H3 £2.61 £3.13
