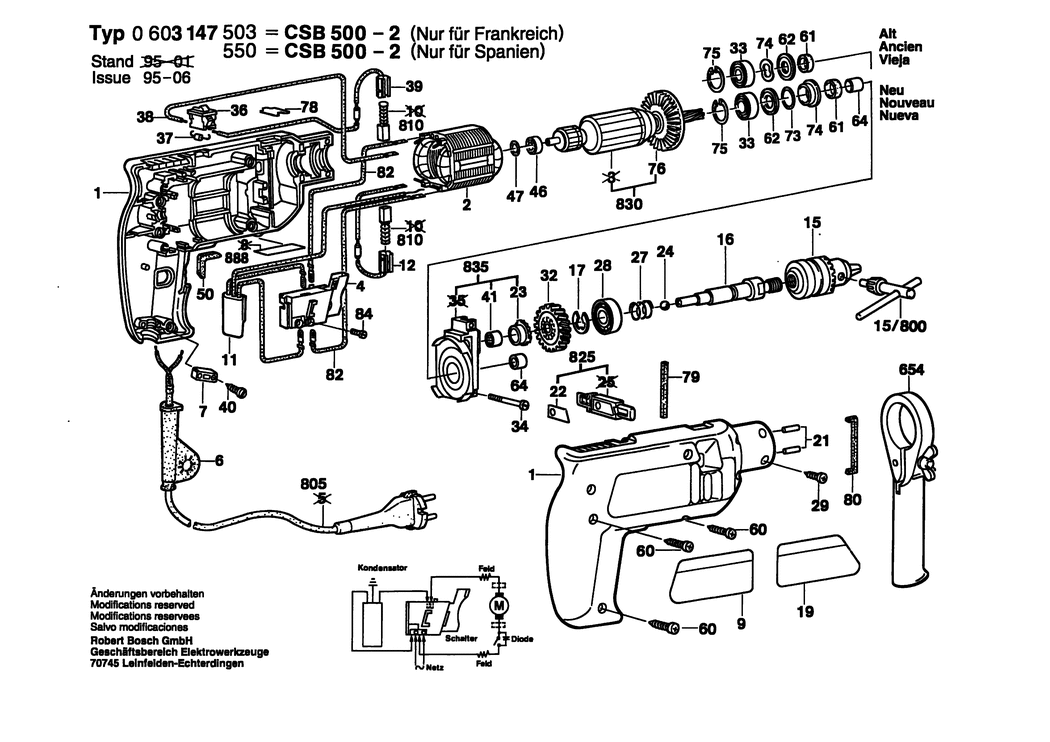

1 - HOUSING SECTION
BSD-2605104993.A0
2605104993
|
-
|
|
|
|
2 - FIELD 240V
BSD-2604220411.A41
2604220411
|
£21.68
|
£26.01
|
|
|
4 - SWITCH
BSD-2607200084.A36
2607200084
|
£10.10
|
£12.12
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A496
2600707059
|
£3.72
|
£4.47
|
|
|
7 - CABLE CLIP
BSD-2601035001.A564
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110449.A1
2601110449
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329095.A74
2607329095
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2604465054.A9
2604465054
|
-
|
|
|
|
15 - KEY CHUCK dia1-10 MM. 1/2-24UNF
BSD-1608571054.A20
1608571054
|
-
|
|
|
|
15/800 - CHUCK WRENCH SG2
BSD-2607950007.A1510
2607950007
|
£6.52
|
£7.83
|
|
|
16 - DRILLING SPINDLE 1/2-UNF-2
BSD-2606135000.A1
2606135000
|
-
|
|
|
|
17 - LOCKING WASHER 1.0 MM
BSD-2600118003.A1
2600118003
|
-
|
|
|
|
17 - LOCKING WASHER 0.8 MM
BSD-2600118002.A185
2600118002
|
£1.75
|
£2.10
|
|
|
17 - LOCKING WASHER 0.6 MM
BSD-2600118001.A6
2600118001
|
£1.75
|
£2.10
|
|
|
17 - LOCKING WASHER 0.3 MM
BSD-2600118006.A41
2600118006
|
-
|
|
|
|
19 - STICKER
BSD-2601110388.A9
2601110388
|
-
|
|
|
|
21 - O-RING 28x3 MM
BSD-1900210129.A9
1900210129
|
£2.61
|
£3.13
|
|
|
22 - MODIFICATION SET
BSD-2607001039.A9
2607001039
|
-
|
|
|
|
23 - CATCH DISK
BSD-2606490040.A15
2606490040
|
£6.52
|
£7.83
|
|
|
24 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A493
1903230010
|
£1.75
|
£2.10
|
|
|
27 - COMPRESSION SPRING
BSD-2604617000.A121
2604617000
|
£2.61
|
£3.13
|
|
|
28 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A128
1900905102
|
-
|
|
|
|
29 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A205
2603490018
|
£1.75
|
£2.10
|
|
|
32 - CYLINDRICAL GEAR Z=40
BSD-2606320035.A14
2606320035
|
-
|
|
|
|
33 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A561
2600905021
|
£8.67
|
£10.41
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A91
2910021134
|
£1.75
|
£2.10
|
|
|
36 - CHANGE-OVER SWITCH
BSD-2607200039.A9
2607200039
|
-
|
|
|
|
37 - SILICON DIODE
BSD-2607320007.A2
2607320007
|
-
|
|
|
|
38 - CABLE
BSD-2604448002.A16
2604448002
|
-
|
|
|
|
39 - CARB BRUSH HOLD W-SUPR
BSD-2604465069.A1
2604465069
|
-
|
|
|
|
40 - SCREW 4x16
BSD-2603490022.A1422
2603490022
|
£1.75
|
£2.10
|
|
|
41 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A666
2600917003
|
£2.80
|
£3.36
|
|
|
46 - BUSHING
BSD-2600420900.A21
2600420900
|
-
|
|
|
|
47 - O-RING 15x2 MM
BSD-1900210012.A57
1900210012
|
£1.75
|
£2.10
|
|
|
50 - DAMPING PLATE
BSD-2601022000.A597
2601022000
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A872
2912401020
|
£2.16
|
£2.59
|
|
|
61 - FELT WASHER
BSD-2600108009.A5
2600108009
|
-
|
|
|
|
62 - CUPPED WASHER
BSD-2600500002.A351
2600500002
|
£1.75
|
£2.10
|
|
|
64 - CLAMP BUSHING
BSD-2600400011.A0
2600400011
|
-
|
|
|
|
73 - O-RING 18x3 MM
BSD-1900210017.A0
1900210017
|
-
|
|
|
|
74 - BACKUP RING
BSD-2600220014.A2
2600220014
|
-
|
|
|
|
75 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A636
2916660008
|
£2.16
|
£2.59
|
|
|
76 - FAN
BSD-2606610047.A11
2606610047
|
-
|
|
|
|
78 - REFERENCE PLATE
BSD-2601105060.A2
2601105060
|
-
|
|
|
|
79 - FELT STRIP 51 MM
BSD-2601005006.A20
2601005006
|
-
|
|
|
|
80 - FELT STRIP 68 MM
BSD-2601005007.A7
2601005007
|
-
|
|
|
|
82 - CONNECTING CABLE L=154 MM
BSD-2604448000.A57
2604448000
|
-
|
|
|
|
84 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A534
2603410001
|
£1.75
|
£2.10
|
|
|
654 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A135
2602025032
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A193
1607000386
|
£21.52
|
£25.83
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321905.A589
2604321905
|
£11.30
|
£13.56
|
|
|
825 - MODIFICATION SET
BSD-2607001039.A8
2607001039
|
-
|
|
|
|
830 - ARMATURE 230V
BSD-2604010907.A1
2604010907
|
-
|
|
|
|
835 - BEARING BRACKET
BSD-2605807913.A7
2605807913
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1558
160111A3H3
|
£2.61
|
£3.13
|
|
