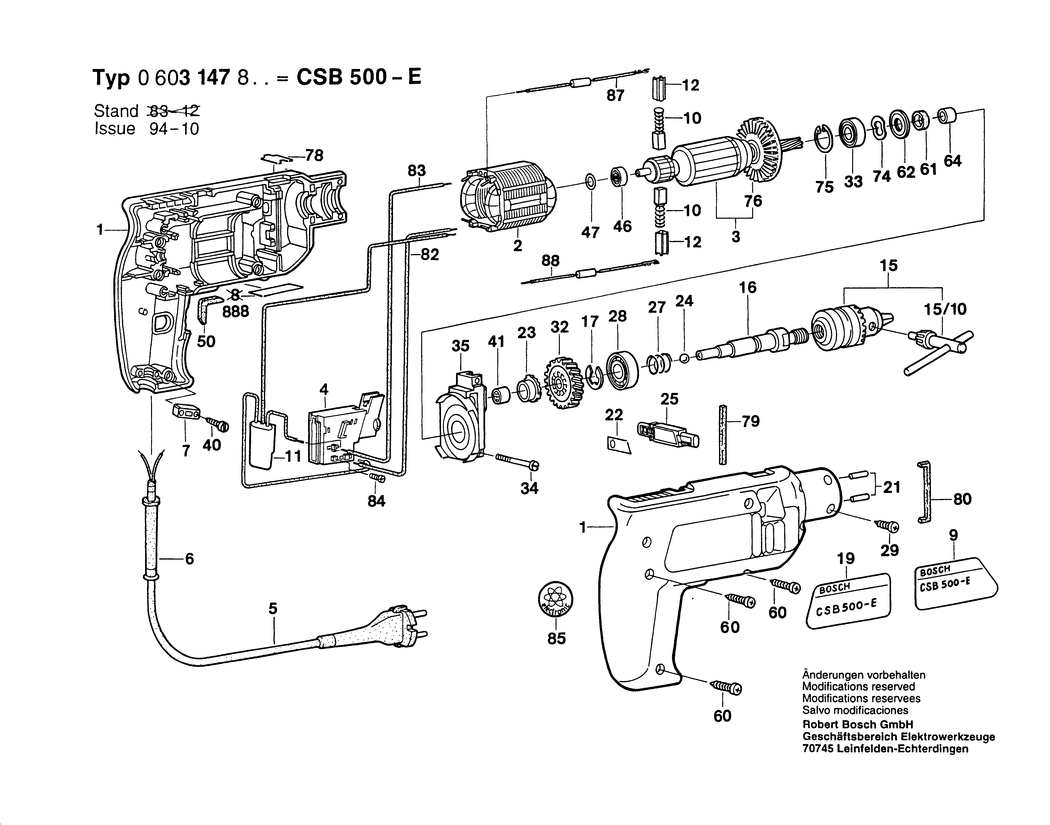

1 - HOUSING SECTION
BSD-2605104972.A3
2605104972
|
-
|
|
|
|
1 - HOUSING SECTION
BSD-2605104973.A0
2605104973
|
-
|
|
|
|
2 - FIELD 240V
BSD-2604220411.A38
2604220411
|
£21.68
|
£26.01
|
|
|
3 - ARMATURE 230V
BSD-2604010907.A4
2604010907
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200137.A99
2607200137
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A201
1607000386
|
£21.52
|
£25.83
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A484
2600707059
|
£3.72
|
£4.47
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A242
2600707061
|
£2.80
|
£3.36
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A67
2600707060
|
£2.61
|
£3.13
|
|
|
7 - CABLE CLIP
BSD-2601035001.A577
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110387.A0
2601110387
|
-
|
|
|
|
10 - CARBON-BRUSH SET
BSD-2604321905.A594
2604321905
|
£11.30
|
£13.56
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329095.A81
2607329095
|
-
|
|
|
|
12 - BRUSH HOLDER
BSD-2604330017.A31
2604330017
|
-
|
|
|
|
15 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571055.A23
1608571055
|
-
|
|
|
|
15/10 - CHUCK WRENCH SG2
BSD-2607950007.A1526
2607950007
|
£6.52
|
£7.83
|
|
|
16 - DRILLING SPINDLE 1/2-UNF-2
BSD-2606135000.A11
2606135000
|
-
|
|
|
|
17 - LOCKING WASHER 0.6 MM
BSD-2600118001.A26
2600118001
|
£1.75
|
£2.10
|
|
|
17 - LOCKING WASHER 0.8 MM
BSD-2600118002.A170
2600118002
|
£1.75
|
£2.10
|
|
|
17 - LOCKING WASHER 1.0 MM
BSD-2600118003.A16
2600118003
|
-
|
|
|
|
17 - LOCKING WASHER 0.3 MM
BSD-2600118006.A21
2600118006
|
-
|
|
|
|
19 - STICKER
BSD-2601110388.A3
2601110388
|
-
|
|
|
|
21 - O-RING 28x3 MM
BSD-1900210129.A17
1900210129
|
£2.61
|
£3.13
|
|
|
22 - MODIFICATION SET
BSD-2607001039.A14
2607001039
|
-
|
|
|
|
23 - CATCH DISK
BSD-2606490040.A4
2606490040
|
£6.52
|
£7.83
|
|
|
24 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A503
1903230010
|
£1.75
|
£2.10
|
|
|
25 - MODIFICATION SET
BSD-2607001039.A13
2607001039
|
-
|
|
|
|
27 - COMPRESSION SPRING
BSD-2604617000.A133
2604617000
|
£2.61
|
£3.13
|
|
|
28 - GROOVE BALL BEARING 6002-Z DIN 625
BSD-1900905102.A137
1900905102
|
-
|
|
|
|
29 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A218
2603490018
|
£1.75
|
£2.10
|
|
|
32 - CYLINDRICAL GEAR Z=40
BSD-2606320035.A4
2606320035
|
-
|
|
|
|
33 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A548
2600905021
|
£8.67
|
£10.41
|
|
|
34 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A66
2910021134
|
£1.75
|
£2.10
|
|
|
35 - BEARING BRACKET
BSD-2605807909.A4
2605807909
|
-
|
|
|
|
40 - SCREW 4x16
BSD-2603490022.A1417
2603490022
|
£1.75
|
£2.10
|
|
|
41 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A677
2600917003
|
£2.80
|
£3.36
|
|
|
46 - GROOVE BALL BEARING
BSD-2600905029.A15
2600905029
|
-
|
|
|
|
47 - O-RING 15x2 MM
BSD-1900210012.A42
1900210012
|
£1.75
|
£2.10
|
|
|
50 - DAMPING PLATE
BSD-2601022000.A586
2601022000
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A882
2912401020
|
£2.16
|
£2.59
|
|
|
61 - FELT WASHER
BSD-2600108002.A64
2600108002
|
£2.16
|
£2.59
|
|
|
62 - CUPPED WASHER
BSD-2600500002.A371
2600500002
|
£1.75
|
£2.10
|
|
|
64 - CLAMP BUSHING
BSD-2600400011.A7
2600400011
|
-
|
|
|
|
74 - SHIM
BSD-2600150005.A55
2600150005
|
£1.75
|
£2.10
|
|
|
75 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A652
2916660008
|
£2.16
|
£2.59
|
|
|
76 - FAN
BSD-2606610047.A8
2606610047
|
-
|
|
|
|
78 - REFERENCE PLATE
BSD-2601105060.A18
2601105060
|
-
|
|
|
|
79 - FELT STRIP 51 MM
BSD-2601005006.A9
2601005006
|
-
|
|
|
|
80 - FELT STRIP 68 MM
BSD-2601005007.A18
2601005007
|
-
|
|
|
|
82 - CONNECTING CABLE L=154 MM
BSD-2604448000.A66
2604448000
|
-
|
|
|
|
83 - CONNECTING CABLE L=184 MM
BSD-2604448001.A73
2604448001
|
£1.95
|
£2.34
|
|
|
84 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A523
2603410001
|
£1.75
|
£2.10
|
|
|
85 - STICKER
BSD-2601110041.A125
2601110041
|
-
|
|
|
|
87 - SUPPRESSION FILTER
BSD-2604465054.A6
2604465054
|
-
|
|
|
|
88 - SUPPRESSION FILTER
BSD-2604465054.A7
2604465054
|
-
|
|
|
|
654 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A114
2602025032
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1561
160111A3H3
|
£2.61
|
£3.13
|
|
