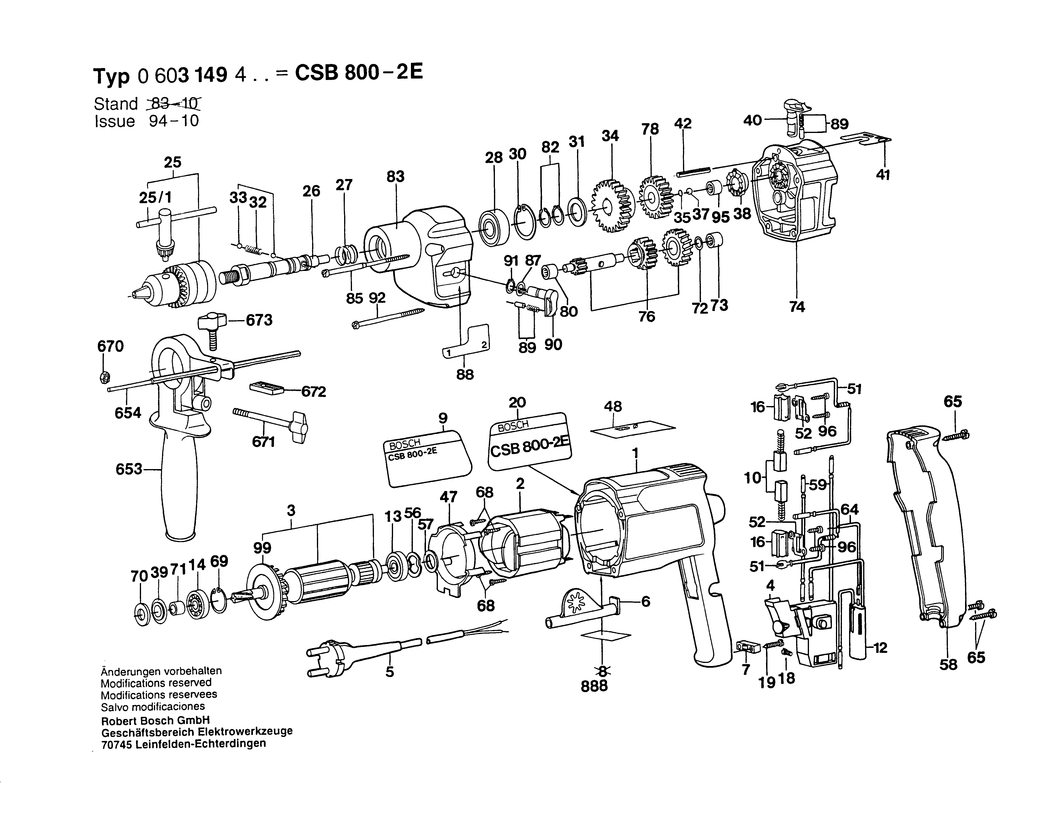

1 - MOTOR HOUSING
BSD-2605104108.A4
2605104108
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220436.A34
2604220436
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-2604010634.A2
2604010634
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200158.A3
2607200158
|
-
|
|
|
|
5 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A124
2604460053
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A526
2600707059
|
£3.91
|
£4.69
|
|
|
6 - GROMMET dia11.6-dia12.5x84 MM
BSD-2600707060.A39
2600707060
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia8.8 MM
BSD-2600707061.A272
2600707061
|
£2.80
|
£3.36
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1531
2601035001
|
£1.84
|
£2.21
|
|
|
9 - STICKER
BSD-2601110641.A3
2601110641
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329111.A3
2607329111
|
-
|
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A976
1900905018
|
£19.91
|
£23.89
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A760
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-2604330017.A0
2604330017
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1330
2603410001
|
£1.84
|
£2.21
|
|
|
19 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2164
2910211019
|
£1.84
|
£2.21
|
|
|
20 - STICKER
BSD-2601110331.A1
2601110331
|
-
|
|
|
|
25 - KEY CHUCK dia1.5-13 MM. 1/2
BSD-1608571055.A57
1608571055
|
-
|
|
|
|
25/1 - CHUCK WRENCH SG2
BSD-2607950007.A1220
2607950007
|
£6.85
|
£8.22
|
|
|
26 - DRILLING SPINDLE 1/2-UNF-2
BSD-2606135001.A27
2606135001
|
-
|
|
|
|
27 - COMPRESSION SPRING
BSD-2604617000.A199
2604617000
|
£2.61
|
£3.13
|
|
|
28 - GROOVE BALL BEARING 15x32x9
BSD-2600905014.A5
2600905014
|
-
|
|
|
|
30 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A7
2916660013
|
£2.16
|
£2.59
|
|
|
31 - SHIM 1.0 MM
BSD-2600101515.A65
2600101515
|
£2.05
|
£2.46
|
|
|
32 - COMPRESSION SPRING
BSD-2604610007.A25
2604610007
|
-
|
|
|
|
33 - BALL DIN 5401-4 MM-III-ST
BSD-1903230007.A98
1903230007
|
£1.84
|
£2.21
|
|
|
34 - CYLINDRICAL GEAR Z=48
BSD-2606317014.A59
2606317014
|
-
|
|
|
|
35 - SHIM WASHER 0.2 MM
BSD-2600000012.A65
2600000012
|
£1.75
|
£2.10
|
|
|
35 - SHIM WASHER 0.5 MM
BSD-2600000014.A24
2600000014
|
£1.84
|
£2.21
|
|
|
37 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A714
1903230010
|
£1.84
|
£2.21
|
|
|
38 - LOCATING WASHER
BSD-2606490031.A47
2606490031
|
-
|
|
|
|
39 - CUPPED WASHER
BSD-2600500002.A17
2600500002
|
£1.75
|
£2.10
|
|
|
40 - ROTARY KNOB
BSD-2602026017.A8
2602026017
|
£7.72
|
£9.27
|
|
|
41 - STICKER
BSD-2601110076.A6
2601110076
|
-
|
|
|
|
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A169
2917780105
|
£1.75
|
£2.10
|
|
|
47 - COVER DISC
BSD-2601328032.A7
2601328032
|
-
|
|
|
|
48 - STICKER
BSD-2601110408.A3
2601110408
|
-
|
|
|
|
51 - SUPPRESSOR BOX
BSD-2604465091.A20
2604465091
|
-
|
|
|
|
51 - ELEC. CABLE W/CONNECTION
BSD-2604448076.A3
2604448076
|
-
|
|
|
|
52 - BRUSH PLATE
BSD-2601015047.A181
2601015047
|
-
|
|
|
|
56 - SHIM
BSD-2600150004.A447
2600150004
|
£2.27
|
£2.72
|
|
|
57 - SHIM 0.5 MM
BSD-2600101020.A218
2600101020
|
£1.84
|
£2.21
|
|
|
57 - SHIM 0.2 MM
BSD-2600101022.A431
2600101022
|
£1.84
|
£2.21
|
|
|
57 - SHIM 0.3 MM
BSD-2600101023.A188
2600101023
|
£1.84
|
£2.21
|
|
|
58 - HOUSING COVER
BSD-2605132045.A19
2605132045
|
-
|
|
|
|
59 - CABLE L=130 MM
BSD-2604448005.A379
2604448005
|
£1.84
|
£2.21
|
|
|
64 - CABLE
BSD-2604448003.A245
2604448003
|
-
|
|
|
|
65 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A928
2910211021
|
£1.75
|
£2.10
|
|
|
68 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F
BSD-2603435015.A105
2603435015
|
£2.27
|
£2.72
|
|
|
69 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A961
2916660008
|
£2.16
|
£2.59
|
|
|
70 - FELT WASHER
BSD-2600108077.A172
2600108077
|
£1.84
|
£2.21
|
|
|
71 - RECEPTACLE
BSD-2600400008.A436
2600400008
|
£1.75
|
£2.10
|
|
|
72 - SHIM 0.3 MM
BSD-2600100607.A1094
2600100607
|
£1.75
|
£2.10
|
|
|
73 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A559
2600914010
|
£2.94
|
£3.53
|
|
|
74 - FLANGED BEARING
BSD-2605700928.A18
2605700928
|
-
|
|
|
|
76 - TOOTHED SHAFT Z=10/22/21
BSD-2606309902.A18
2606309902
|
-
|
|
|
|
78 - CYLINDRICAL GEAR Z=36
BSD-2606317025.A5
2606317025
|
-
|
|
|
|
80 - NEEDLE BEARING dia6/12 MM
BSD-2600914017.A13
2600914017
|
£11.30
|
£13.56
|
|
|
82 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A406
2916650006
|
£1.75
|
£2.10
|
|
|
83 - GEAR HOUSING
BSD-2605806951.A13
2605806951
|
-
|
|
|
|
85 - TAPPING SCREW 79 MM
BSD-2603435012.A114
2603435012
|
-
|
|
|
|
87 - SHIM 0.2 MM
BSD-2600100575.A124
2600100575
|
£2.16
|
£2.59
|
|
|
87 - SHIM 0.3 MM
BSD-2600100576.A195
2600100576
|
-
|
|
|
|
87 - SHIM 0.5 MM
BSD-2600100577.A127
2600100577
|
£1.84
|
£2.21
|
|
|
88 - STICKER
BSD-2601110072.A26
2601110072
|
-
|
|
|
|
89 - RATCHET CAP
BSD-2600590006.A1348
2600590006
|
£1.84
|
£2.21
|
|
|
90 - ROTARY KNOB
BSD-2602026018.A23
2602026018
|
-
|
|
|
|
91 - SPRING RETAINING RING DIN 471-10x1MM-FSt
BSD-2916650001.A493
2916650001
|
£2.74
|
£3.29
|
|
|
92 - HEADLESS SCREW 65 MM
BSD-2603435071.A167
2603435071
|
-
|
|
|
|
95 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A343
2600917003
|
£2.94
|
£3.53
|
|
|
96 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1352
2603490017
|
£2.27
|
£2.72
|
|
|
99 - FAN
BSD-2606610049.A259
2606610049
|
£2.27
|
£2.72
|
|
|
653 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A377
1619P10682
|
£12.49
|
£14.99
|
|
|
654 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A44
1613001005
|
-
|
|
|
|
670 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A776
2915011007
|
-
|
|
|
|
671 - WING SCREW M6x(15)55
BSD-1613480007.A387
1613480007
|
£1.75
|
£2.10
|
|
|
672 - CLAMPING PLATE M6
BSD-2608040014.A314
2608040014
|
-
|
|
|
|
673 - WING SCREW M6x20 MM
BSD-1613480008.A23
1613480008
|
£1.84
|
£2.21
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321907.A20
2604321907
|
£15.65
|
£18.78
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2723
160111A3H3
|
£2.74
|
£3.29
|
|
