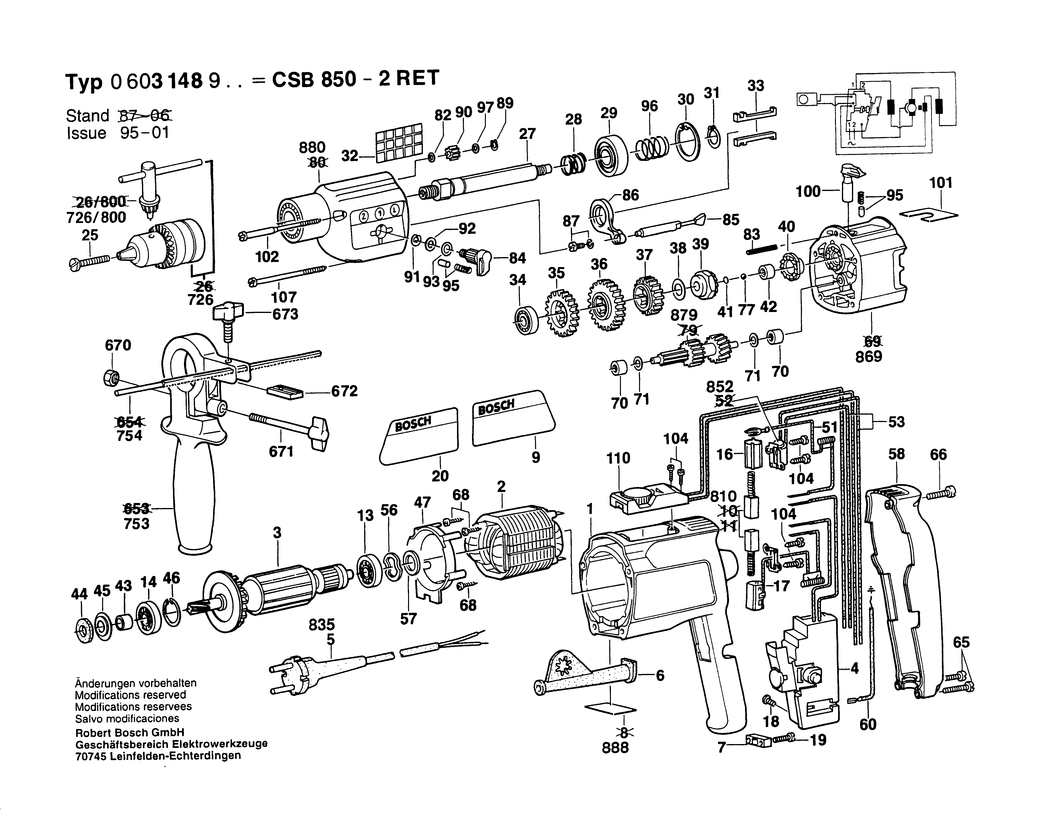

1 - MOTOR HOUSING
BSD-2605104278.A1
2605104278
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220436.A41
2604220436
|
-
|
|
|
|
3 - ARMATURE 230V
BSD-2604010601.A3
2604010601
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200155.A4
2607200155
|
-
|
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A530
2600707059
|
£3.72
|
£4.47
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1521
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110616.A4
2601110616
|
-
|
|
|
|
13 - BALL BEARING 7x22x7
BSD-1900905018.A966
1900905018
|
£18.96
|
£22.75
|
|
|
14 - GROOVE BALL BEARING 9x24x7
BSD-2600905021.A752
2600905021
|
£8.67
|
£10.41
|
|
|
16 - BRUSH HOLDER
BSD-2604330017.A7
2604330017
|
-
|
|
|
|
17 - SUPPRESSOR BOX
BSD-2604465062.A34
2604465062
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1311
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A255
2910611019
|
£2.80
|
£3.36
|
|
|
20 - STICKER
BSD-2601110631.A15
2601110631
|
-
|
|
|
|
25 - COUNTERSUNK-HEAD SCREW M6x27
BSD-2603421226.A29
2603421226
|
£1.75
|
£2.10
|
|
|
27 - DRILLING SPINDLE 1/2
BSD-2606135026.A33
2606135026
|
-
|
|
|
|
28 - COMPRESSION SPRING
BSD-2604616002.A51
2604616002
|
£1.75
|
£2.10
|
|
|
29 - GROOVE BALL BEARING 17x35x10
BSD-1900905163.A474
1900905163
|
£11.30
|
£13.56
|
|
|
30 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A574
2916660014
|
£1.75
|
£2.10
|
|
|
31 - SPRING RETAINING RING DIN 471 17x1 MM
BSD-2916650008.A266
2916650008
|
£1.75
|
£2.10
|
|
|
32 - STICKER
BSD-2601110654.A0
2601110654
|
-
|
|
|
|
33 - FLAT KEY
BSD-2602300027.A34
2602300027
|
-
|
|
|
|
34 - GROOVE BALL BEARING
BSD-2600900006.A15
2600900006
|
-
|
|
|
|
35 - CYLINDRICAL GEAR Z=43
BSD-2606317038.A2
2606317038
|
-
|
|
|
|
36 - CYLINDRICAL GEAR Z=48
BSD-2606317036.A3
2606317036
|
-
|
|
|
|
37 - CYLINDRICAL GEAR Z=36
BSD-2606317037.A178
2606317037
|
-
|
|
|
|
38 - SHIM 0.5 MM
BSD-2600101616.A317
2600101616
|
-
|
|
|
|
38 - SHIM 0.3 MM
BSD-2600101617.A63
2600101617
|
£1.75
|
£2.10
|
|
|
39 - CATCH DISK
BSD-2600190052.A176
2600190052
|
£7.78
|
£9.33
|
|
|
40 - CATCH DISK
BSD-2600190051.A2
2600190051
|
-
|
|
|
|
41 - SHIM WASHER 0.2 MM
BSD-2600000012.A45
2600000012
|
£1.75
|
£2.10
|
|
|
41 - SHIM WASHER 0.5 MM
BSD-2600000014.A1
2600000014
|
£1.75
|
£2.10
|
|
|
42 - NEEDLE-ROLLER BEARING dia8x8 MM
BSD-2600917003.A350
2600917003
|
£2.80
|
£3.36
|
|
|
43 - RECEPTACLE
BSD-2600400008.A427
2600400008
|
£1.75
|
£2.10
|
|
|
44 - FELT WASHER
BSD-2600108077.A180
2600108077
|
£1.75
|
£2.10
|
|
|
45 - CUPPED WASHER
BSD-2600500002.A26
2600500002
|
£1.75
|
£2.10
|
|
|
46 - SPRING RETAINING RING DIN 472-24x1.2 MM
BSD-2916660008.A940
2916660008
|
£2.16
|
£2.59
|
|
|
47 - COVER DISC
BSD-2601328032.A16
2601328032
|
-
|
|
|
|
48 - GASKET
BSD-2601073011.A8
2601073011
|
-
|
|
|
|
51 - SUPPRESSOR BOX
BSD-2604465091.A25
2604465091
|
-
|
|
|
|
53 - CABLE
BSD-2604448066.A13
2604448066
|
-
|
|
|
|
56 - SHIM
BSD-2600150004.A459
2600150004
|
£2.16
|
£2.59
|
|
|
57 - SHIM 0.5 MM
BSD-2600101020.A241
2600101020
|
£1.75
|
£2.10
|
|
|
57 - SHIM 0.2 MM
BSD-2600101022.A408
2600101022
|
£1.75
|
£2.10
|
|
|
57 - SHIM 0.3 MM
BSD-2600101023.A211
2600101023
|
£1.75
|
£2.10
|
|
|
58 - HOUSING COVER
BSD-2605132045.A14
2605132045
|
-
|
|
|
|
60 - EARTH CONDUCTOR dia0.35 MM
BSD-2604448010.A7
2604448010
|
-
|
|
|
|
65 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1619
2603490023
|
£1.75
|
£2.10
|
|
|
66 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A19
2603490024
|
£1.75
|
£2.10
|
|
|
68 - TAPPING SCREW
BSD-2603435086.A321
2603435086
|
£1.75
|
£2.10
|
|
|
70 - NEEDLE-ROLLER BEARING dia6 MM
BSD-2600914010.A569
2600914010
|
£2.80
|
£3.36
|
|
|
71 - SHIM 0.3 MM
BSD-2600100607.A1083
2600100607
|
£1.75
|
£2.10
|
|
|
77 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A735
1903230010
|
£1.75
|
£2.10
|
|
|
82 - SHIM 0.3 MM
BSD-2600101654.A83
2600101654
|
£2.33
|
£2.80
|
|
|
83 - SLOTTED SPRING PIN 4x30 MM DIN 7346
BSD-2917780105.A149
2917780105
|
£1.75
|
£2.10
|
|
|
84 - ROTARY KNOB
BSD-2602026034.A49
2602026034
|
-
|
|
|
|
85 - TOOTHED RACK
BSD-2603070014.A9
2603070014
|
-
|
|
|
|
86 - FORK LEVER
BSD-2602033003.A6
2602033003
|
-
|
|
|
|
87 - SCREW AND WASHER ASSEMBLY DIN7985-M3x6-Z1-4.8
BSD-2914501011.A100
2914501011
|
£1.75
|
£2.10
|
|
|
89 - SPRING RETAINING RING DIN 471-8x0.8 FSt
BSD-2916640005.A81
2916640005
|
£1.75
|
£2.10
|
|
|
90 - CYLINDRICAL GEAR Z=15
BSD-2606317039.A37
2606317039
|
-
|
|
|
|
91 - LOCKING WASHER DIN 6799-7-FSt
BSD-2916080910.A409
2916080910
|
£2.16
|
£2.59
|
|
|
92 - SHIM 0.5 MM
BSD-2600101612.A107
2600101612
|
£1.75
|
£2.10
|
|
|
93 - O-RING 12.0x1.0 MM
BSD-1600210024.A95
1600210024
|
-
|
|
|
|
95 - RATCHET CAP
BSD-2600590006.A1365
2600590006
|
£1.75
|
£2.10
|
|
|
97 - SHIM
BSD-2600150018.A5
2600150018
|
-
|
|
|
|
100 - ROTARY KNOB
BSD-2602026017.A13
2602026017
|
£7.36
|
£8.83
|
|
|
101 - STICKER
BSD-2601110076.A22
2601110076
|
-
|
|
|
|
102 - TAPPING SCREW 79 MM
BSD-2603435012.A93
2603435012
|
-
|
|
|
|
104 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1334
2603490017
|
£2.16
|
£2.59
|
|
|
107 - HEADLESS SCREW 74 MM
BSD-2603435019.A15
2603435019
|
-
|
|
|
|
110 - TORQUE CONTROL
BSD-2607233002.A6
2607233002
|
-
|
|
|
|
656 - DRILL HOLDER
BSD-2607000122.A241
2607000122
|
-
|
|
|
|
670 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A769
2915011007
|
-
|
|
|
|
671 - WING SCREW M6x20 MM
BSD-1613480008.A27
1613480008
|
£1.75
|
£2.10
|
|
|
672 - CLAMPING PLATE M6
BSD-2608040014.A308
2608040014
|
-
|
|
|
|
673 - WING SCREW M6x(15)55
BSD-1613480007.A383
1613480007
|
£1.75
|
£2.10
|
|
|
726 - CHUCK dia1.5-13 MM. 1/2
BSD-1608571069.A172
1608571069
|
£23.86
|
£28.63
|
|
|
726/800 - CHUCK WRENCH SG2
BSD-2607950007.A1242
2607950007
|
£6.52
|
£7.83
|
|
|
753 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A373
1619P10682
|
£12.49
|
£14.99
|
|
|
754 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001005.A48
1613001005
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-2604321907.A13
2604321907
|
£14.91
|
£17.89
|
|
|
821 - SHIM 0.3 MM
BSD-2600101654.A84
2600101654
|
£2.33
|
£2.80
|
|
|
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A41
1607000386
|
£21.52
|
£25.83
|
|
|
852 - ROT.-SPEED SENSOR 220-240V
BSD-2607233003.A2
2607233003
|
-
|
|
|
|
869 - INTERMEDIATE FLANGE
BSD-2605700939.A0
2605700939
|
-
|
|
|
|
879 - TOOTHED SHAFT Z=10/22/21
BSD-2606309908.A15
2606309908
|
-
|
|
|
|
880 - GEAR HOUSING
BSD-2605806988.A5
2605806988
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2712
160111A3H3
|
£2.61
|
£3.13
|
|
