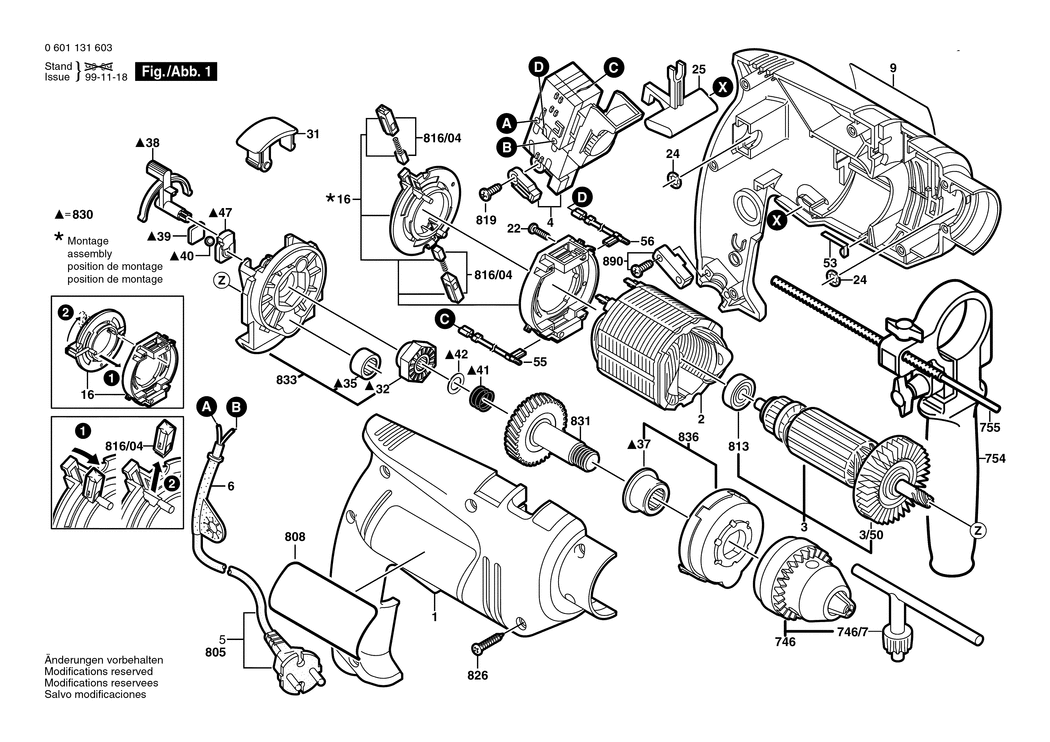

1 - HOUSING SECTION
BSD-2605104733.A6
2605104733
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220601.A37
2604220601
|
-
|
|
|
|
3 - ARMATURE 220-230V
BSD-2604011259.A4
2604011259
|
-
|
|
|
|
3/50 - ARMATURE WITH FAN
BSD-2606610097.A23
2606610097
|
£3.72
|
£4.47
|
|
|
4 - SWITCH
BSD-2607200556.A24
2607200556
|
£27.23
|
£32.68
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460432.A136
1604460432
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.2-dia6.9x90 MM
BSD-2600707066.A128
2600707066
|
£2.48
|
£2.97
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601116652.A1
2601116652
|
£3.72
|
£4.47
|
|
|
16 - BRUSH PLATE
BSD-2604337104.A9
2604337104
|
£13.41
|
£16.09
|
|
|
22 - TAPPING SCREW DIN 7981-ST2.2x9.5-C-H
BSD-2910611002.A230
2910611002
|
£1.75
|
£2.10
|
|
|
24 - O-RING 5.0x1.5 MM
BSD-1900210000.A496
1900210000
|
£1.75
|
£2.10
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2602098008.A128
2602098008
|
£1.75
|
£2.10
|
|
|
31 - LOCKING PIECE
BSD-2605510189.A6
2605510189
|
£3.72
|
£4.47
|
|
|
32 - CATCH DISK
BSD-2600190078.A8
2600190078
|
£5.87
|
£7.04
|
|
|
35 - NEEDLE BEARING
BSD-2600914019.A33
2600914019
|
£5.30
|
£6.36
|
|
|
37 - FLANGED BEARING
BSD-2605805009.A17
2605805009
|
-
|
|
|
|
38 - INDEXING DISK
BSD-2601990010.A6
2601990010
|
-
|
|
|
|
39 - PRESSURE PLATE
BSD-2601074004.A112
2601074004
|
£1.75
|
£2.10
|
|
|
40 - BALL DIN 5401-5 G28
BSD-1903230009.A271
1903230009
|
£1.75
|
£2.10
|
|
|
41 - COMPRESSION SPRING
BSD-2604616006.A70
2604616006
|
£1.75
|
£2.10
|
|
|
42 - SHIM 0.3 MM
BSD-2600101047.A348
2600101047
|
£1.75
|
£2.10
|
|
|
47 - FRAME
BSD-2608040120.A3
2608040120
|
£2.61
|
£3.13
|
|
|
53 - CONTACT STRAP
BSD-2601329043.A28
2601329043
|
£1.32
|
£1.58
|
|
|
55 - PVC-INSULATED CABLE L=95 MM
BSD-1614431025.A69
1614431025
|
£2.61
|
£3.13
|
|
|
56 - PVC-INSULATED CABLE L=120 MM
BSD-2604448228.A88
2604448228
|
£2.16
|
£2.59
|
|
|
746 - KEY CHUCK 1/2
BSD-2608571056.A19
2608571056
|
£17.49
|
£20.99
|
|
|
746/7 - CHUCK WRENCH SG2
BSD-2607950007.A1456
2607950007
|
£6.52
|
£7.83
|
|
|
754 - AUXILIARY HANDLE dia43 MM
BSD-1619P10682.A389
1619P10682
|
£12.49
|
£14.99
|
|
|
755 - DEPTH-GAUGE SW 6x210 MM
BSD-1613001009.A547
1613001009
|
£3.72
|
£4.47
|
|
|
808 - NAMEPLATE
BSD-2601117526.A0
2601117526
|
-
|
|
|
|
813 - BALL BEARING 7x19x6
BSD-2600905032.A204
2600905032
|
£5.30
|
£6.36
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014017.A37
2607014017
|
-
|
|
|
|
819 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A1232
2603490017
|
£2.16
|
£2.59
|
|
|
826 - SCREW 4x16
BSD-2603490022.A1510
2603490022
|
£1.75
|
£2.10
|
|
|
830 - GEAR UNIT
BSD-2606200094.A1
2606200094
|
-
|
|
|
|
831 - DRILLING SPINDLE
BSD-2606135933.A9
2606135933
|
-
|
|
|
|
833 - BEARING BRACKET
BSD-2605807933.A1
2605807933
|
-
|
|
|
|
836 - GEAR COVER
BSD-2605808925.A1
2605808925
|
£14.72
|
£17.67
|
|
|
890 - FASTENING PARTS KIT
BSD-2607001305.A105
2607001305
|
£4.26
|
£5.11
|
|
