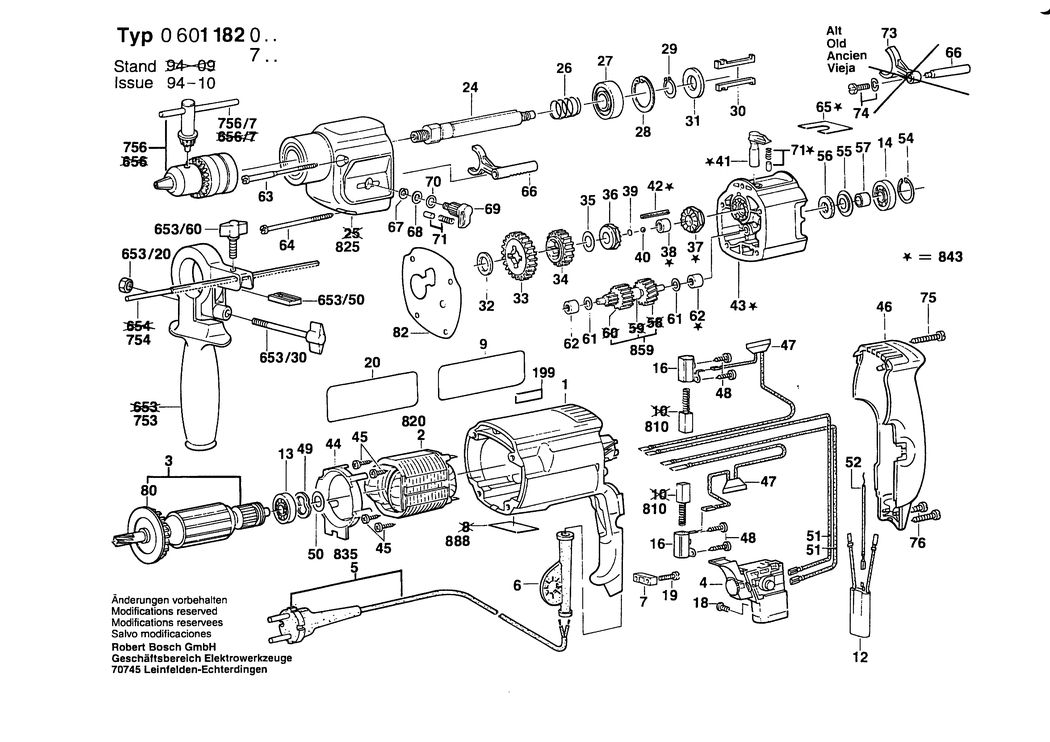

An exploded drawing and listing for the Bosch GSB 16-2 / 0601182703 / EU 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104116.A68 2605104116 -
2 - FIELD 220-230V BSD-2604220429.A116 2604220429 £23.86 £28.63
3 - ARMATURE 220-240V BSD-2604010575.A18 2604010575 £54.42 £65.30
4 - SWITCH BSD-1617200089.A25 1617200089 -
6 - GROMMET dia6.9 MM BSD-2600707059.A334 2600707059 £3.72 £4.47
6 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A136 2600707060 £2.61 £3.13
6 - GROMMET dia8.8 MM BSD-2600707061.A172 2600707061 £2.80 £3.36
7 - CABLE CLIP BSD-2601035001.A1687 2601035001 £1.75 £2.10
9 - STICKER BSD-2601110314.A3 2601110314 -
12 - SUPPRESSION FILTER BSD-2607329096.A128 2607329096 £7.36 £8.83
13 - BALL BEARING 7x22x7 BSD-1900905018.A303 1900905018 £18.96 £22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A330 2600905021 £8.67 £10.41
16 - BRUSH HOLDER BSD-2604337003.A7 2604337003 £2.16 £2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A1993 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A2116 2603490022 £1.75 £2.10
20 - STICKER BSD-2601110093.A33 2601110093 -
24 - DRILLING SPINDLE 1/2 BSD-2606135013.A71 2606135013 £21.42 £25.71
26 - COMPRESSION SPRING BSD-2604616002.A148 2604616002 £1.75 £2.10
27 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A245 1900905163 £11.30 £13.56
28 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A212 2916660014 £1.75 £2.10
29 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A189 2916650008 £1.75 £2.10
30 - FLAT KEY BSD-2602300028.A62 2602300028 -
31 - RETAINING WASHER BSD-2600101671.A216 2600101671 £1.75 £2.10
32 - SHIM 1.0 MM BSD-2600101515.A120 2600101515 £1.95 £2.34
33 - CYLINDRICAL GEAR Z=48 BSD-2606317045.A57 2606317045 £14.72 £17.67
34 - CYLINDRICAL GEAR Z=36 BSD-2606317037.A99 2606317037 -
35 - SHIM 0.5 MM BSD-2600101616.A171 2600101616 -
35 - SHIM 0.3 MM BSD-2600101617.A159 2600101617 £1.75 £2.10
36 - CATCH DISK BSD-2600190052.A5 2600190052 £7.78 £9.33
37 - CATCH DISK BSD-2600190051.A41 2600190051 -
38 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A288 2600917003 £2.80 £3.36
39 - SHIM WASHER 0.2 MM BSD-2600000012.A171 2600000012 £1.75 £2.10
39 - SHIM WASHER 0.5 MM BSD-2600000014.A187 2600000014 £1.75 £2.10
40 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A39 1903230010 £1.75 £2.10
41 - ROTARY KNOB BSD-2602026017.A143 2602026017 £7.36 £8.83
42 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A68 2917780105 £1.75 £2.10
43 - INTERMEDIATE FLANGE BSD-2605700936.A72 2605700936 £46.82 £56.18
44 - COVER DISC BSD-2601328033.A281 2601328033 -
45 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A652 2603435015 £2.16 £2.59
46 - HOUSING COVER BSD-2605132040.A45 2605132040 -
47 - SUPPRESSION FILTER BSD-2604465068.A72 2604465068 -
48 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A703 2603490017 £2.16 £2.59
49 - SHIM BSD-2600150004.A671 2600150004 £2.16 £2.59
50 - SHIM 0.5 MM BSD-2600101020.A528 2600101020 £1.75 £2.10
50 - SHIM 0.2 MM BSD-2600101022.A104 2600101022 £1.75 £2.10
50 - SHIM 0.3 MM BSD-2600101023.A443 2600101023 £1.75 £2.10
51 - CABLE L=130 MM BSD-2604448005.A258 2604448005 £1.75 £2.10
52 - CABLE BSD-2604448003.A56 2604448003 -
54 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A342 2916660008 £2.16 £2.59
55 - CUPPED WASHER BSD-2600500002.A591 2600500002 £1.75 £2.10
56 - FELT WASHER BSD-2600108077.A427 2600108077 £1.75 £2.10
57 - RECEPTACLE BSD-2600400008.A535 2600400008 £1.75 £2.10
61 - SHIM 0.3 MM BSD-2600100607.A150 2600100607 £1.75 £2.10
62 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A137 2600914010 £2.80 £3.36
63 - TAPPING SCREW 79 MM BSD-2603435012.A24 2603435012 -
64 - HEADLESS SCREW 65 MM BSD-2603435071.A53 2603435071 -
65 - STICKER BSD-2601110076.A160 2601110076 -
66 - ADJUSTING SLIDE BSD-2602033006.A108 2602033006 £2.80 £3.36
67 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A373 2916080007 £2.61 £3.13
68 - SHIM WASHER BSD-2600100618.A27 2600100618 £1.75 £2.10
69 - ROTARY KNOB BSD-2602026038.A49 2602026038 -
70 - PARTS SET BSD-2607010226.A17 2607010226 £2.33 £2.80
71 - RATCHET CAP BSD-2600590006.A90 2600590006 £1.75 £2.10
75 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A704 2603490024 £1.75 £2.10
76 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A493 2603490023 £1.75 £2.10
80 - FAN BSD-2606610049.A50 2606610049 £2.16 £2.59
82 - GASKET BSD-2601073012.A107 2601073012 £1.75 £2.10
199 - STICKER BSD-1601110265.A267 1601110265 -
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A155 1619P10682 £12.49 £14.99
754 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A217 1613001005 -
756 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A336 1608571069 £23.86 £28.63
756 - CHUCK WRENCH SG2 BSD-2607950007.A113 2607950007 £6.52 £7.83
810 - CARBON-BRUSH SET BSD-2604321905.A85 2604321905 £11.30 £13.56
825 - GEAR HOUSING BSD-2605806990.A11 2605806990 -
835 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A79 1607000385 £14.91 £17.89
859 - TOOTHED SHAFT Z= 10/22/29 BSD-2606100903.A48 2606100903 -
888 - NAMEPLATE BSD-160111A3H3.A4968 160111A3H3 £2.61 £3.13
