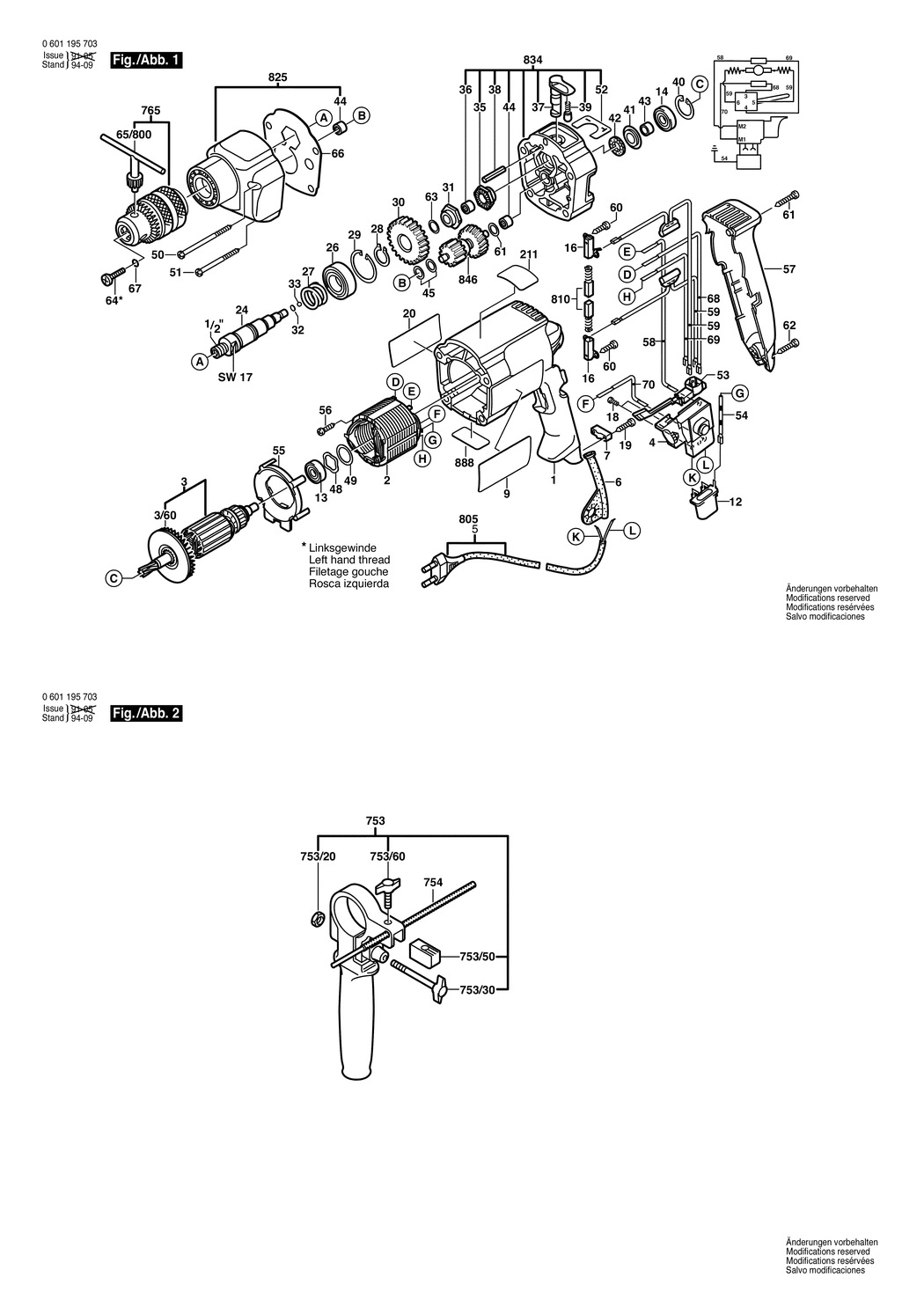

An exploded drawing and listing for the Bosch GSB 18 RE / 0601195732 / CH 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104309.A39 2605104309 £23.86 £28.63
2 - FIELD 220-230V BSD-2604220429.A147 2604220429 £23.86 £28.63
3 - ARMATURE 230-240V BSD-2604010739.A48 2604010739 -
3/60 - FAN BSD-2606610029.A43 2606610029 £2.61 £3.13
4 - SWITCH BSD-2607200209.A174 2607200209 £40.80 £48.96
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1604460432.A78 1604460432 £11.30 £13.56
6 - GROMMET dia6.9 MM BSD-2600707059.A632 2600707059 £3.72 £4.47
6 - GROMMET dia11.6-dia12.5x84 MM BSD-2600707060.A22 2600707060 £2.61 £3.13
6 - GROMMET dia8.8 MM BSD-2600707061.A342 2600707061 £2.80 £3.36
7 - CABLE CLIP BSD-2601035001.A1258 2601035001 £1.75 £2.10
9 - STICKER BSD-2601110937.A0 2601110937 -
12 - SUPPRESSION FILTER BSD-2607329114.A124 2607329114 -
13 - BALL BEARING 7x22x7 BSD-1900905018.A1104 1900905018 £18.96 £22.75
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905039.A220 2600905039 £12.04 £14.45
16 - BRUSH HOLDER BSD-2604337003.A160 2604337003 £2.16 £2.59
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A966 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A250 2603490022 £1.75 £2.10
20 - STICKER BSD-2601110984.A4 2601110984 -
26 - GROOVE BALL BEARING 17x35x10 BSD-1900905163.A385 1900905163 £11.30 £13.56
27 - COMPRESSION SPRING BSD-2604616002.A9 2604616002 £1.75 £2.10
28 - SPRING RETAINING RING DIN 471 17x1 MM BSD-2916650008.A289 2916650008 £1.75 £2.10
29 - SPRING RETAINING RING DIN 472 35x1.5 MM BSD-2916660014.A477 2916660014 £1.75 £2.10
30 - CYLINDRICAL GEAR Z=39 BSD-2606317053.A1 2606317053 -
31 - CATCH DISK BSD-2600190052.A218 2600190052 £7.78 £9.33
32 - SHIM WASHER 0.2 MM BSD-2600000012.A71 2600000012 £1.75 £2.10
32 - SHIM WASHER 0.5 MM BSD-2600000014.A70 2600000014 £1.75 £2.10
33 - BALL DIN 5401-5.5MM-III-ST BSD-1903230010.A631 1903230010 £1.75 £2.10
35 - CATCH DISK BSD-2600190057.A83 2600190057 -
36 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A455 2600917003 £2.80 £3.36
37 - ROTARY KNOB BSD-2602026017.A30 2602026017 £7.36 £8.83
38 - SLOTTED SPRING PIN 4x30 MM DIN 7346 BSD-2917780105.A220 2917780105 £1.75 £2.10
39 - RATCHET CAP BSD-2600590006.A1234 2600590006 £1.75 £2.10
40 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A773 2916660008 £2.16 £2.59
41 - CUPPED WASHER BSD-2600500002.A156 2600500002 £1.75 £2.10
42 - FELT WASHER BSD-2600108077.A65 2600108077 £1.75 £2.10
43 - RECEPTACLE BSD-2600400008.A278 2600400008 £1.75 £2.10
44 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A432 2600914010 £2.80 £3.36
45 - SHIM 0.3 MM BSD-2600100607.A1036 2600100607 £1.75 £2.10
48 - SHIM BSD-2600150004.A316 2600150004 £2.16 £2.59
49 - SHIM WASHER 0.3 MM BSD-2600101027.A182 2600101027 £1.75 £2.10
49 - SHIM WASHER 0.5 MM BSD-2600101667.A114 2600101667 £1.75 £2.10
50 - SCREW BSD-2603435034.A3 2603435034 -
51 - HEADLESS SCREW 65 MM BSD-2603435071.A145 2603435071 -
52 - STICKER BSD-2601110076.A77 2601110076 -
53 - CHANGE-OVER SWITCH BSD-2607200231.A349 2607200231 £16.41 £19.69
54 - EARTH CONDUCTOR BSD-2604448097.A100 2604448097 £1.75 £2.10
55 - COVER DISC BSD-2601328033.A123 2601328033 -
56 - TAPPING SCREW BSD-2603435086.A333 2603435086 £1.75 £2.10
57 - HOUSING COVER BSD-2605132049.A7 2605132049 £7.36 £8.83
58 - CABLE L=130 MM BSD-2604448005.A476 2604448005 £1.75 £2.10
59 - SUPPRESSION FILTER L=126 MM BSD-2604465097.A131 2604465097 £5.58 £6.70
60 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1635 2603490017 £2.16 £2.59
61 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A115 2603490024 £1.75 £2.10
63 - SHIM 0.5 MM BSD-2600101616.A195 2600101616 -
63 - SHIM 0.3 MM BSD-2600101617.A124 2600101617 £1.75 £2.10
64 - COUNTERSUNK-HEAD SCREW M6x38/12(dia11) BSD-2603421208.A25 2603421208 -
65/800 - CHUCK WRENCH SG2 BSD-2607950007.A969 2607950007 £6.52 £7.83
66 - GASKET BSD-2601073012.A10 2601073012 £1.75 £2.10
67 - RETAINING RING BSD-2604601004.A453 2604601004 £1.75 £2.10
68 - CONNECTING CABLE L=98 MM BSD-2604448074.A3 2604448074 £2.16 £2.59
69 - CONNECTING CABLE L=68 MM BSD-2604448100.A39 2604448100 £1.75 £2.10
70 - CONNECTING CABLE L=110 MM BSD-2604448146.A41 2604448146 £1.75 £2.10
85 - SUPPRESSION FILTER L=148 MM BSD-2604465086.A65 2604465086 £5.58 £6.70
753 - AUXILIARY HANDLE dia43 MM BSD-1619P10682.A302 1619P10682 £12.49 £14.99
753/20 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A912 2915011007 -
753/30 - WING SCREW M6x(15)55 BSD-1613480007.A276 1613480007 £1.75 £2.10
753/50 - CLAMPING PLATE M6 BSD-2608040014.A339 2608040014 -
753/60 - WING SCREW M6x20 MM BSD-1613480008.A146 1613480008 £1.75 £2.10
754 - DEPTH-GAUGE SW 6x210 MM BSD-1613001005.A76 1613001005 -
765 - CHUCK dia1.5-13 MM. 1/2 BSD-1608571069.A205 1608571069 £23.86 £28.63
810 - CARBON-BRUSH SET BSD-2604321905.A470 2604321905 £11.30 £13.56
825 - GEAR HOUSING BSD-2605806993.A1 2605806993 -
834 - INTERMEDIATE FLANGE BSD-2605700936.A33 2605700936 £46.82 £56.18
846 - TOOTHED SHAFT BSD-2606309911.A3 2606309911 -
888 - NAMEPLATE BSD-160111A3H3.A2274 160111A3H3 £2.61 £3.13
