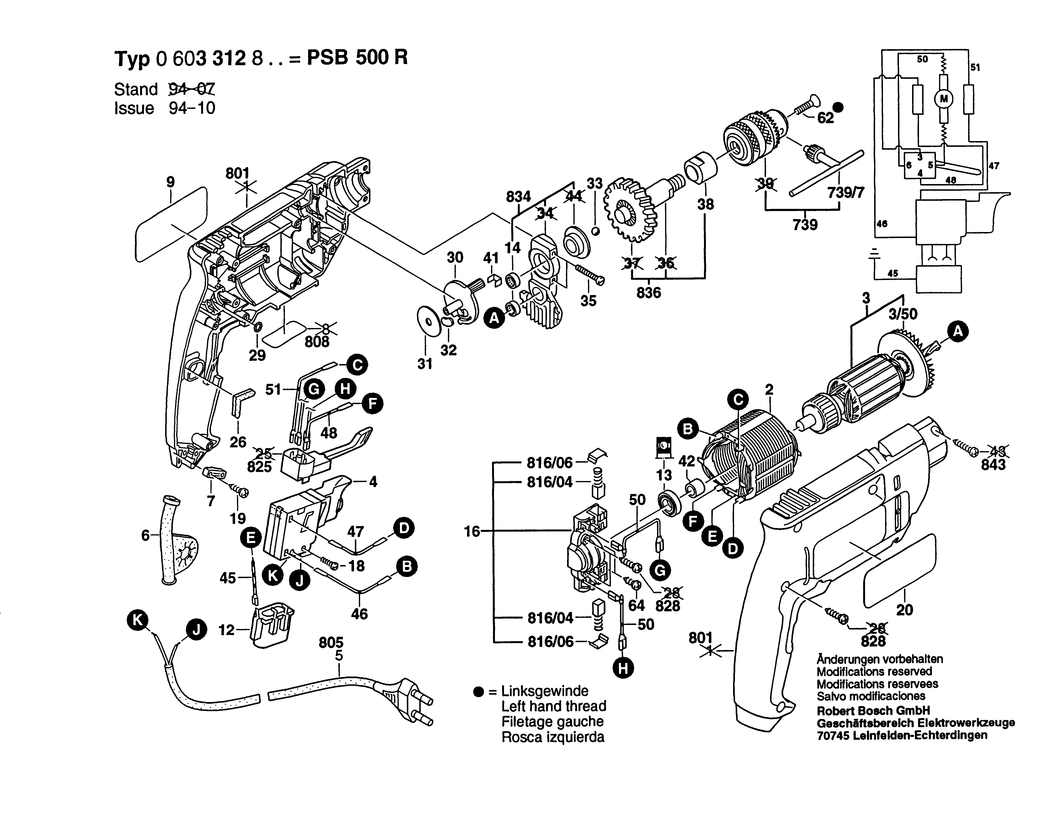

An exploded drawing and listing for the Bosch PSB 500 R / 0603312803 / EU 230 Volt
Ex VAT Inc VAT
2 - FIELD 220-240V BSD-2604220515.A0 2604220515 £21.68 £26.01
3 - ARMATURE 220-240V BSD-2604010707.A15 2604010707 -
3/50 - FAN BSD-1606610116.A153 1606610116 £2.52 £3.02
4 - SWITCH BSD-2607200404.A10 2607200404 -
6 - GROMMET dia6.9 MM BSD-2600707059.A36 2600707059 £3.72 £4.47
7 - CABLE CLIP BSD-2601035001.A2721 2601035001 £1.75 £2.10
9 - MANUFACTURER'S NAMEPLATE BSD-2601118765.A2 2601118765 -
12 - SUPPRESSION FILTER BSD-2607329114.A466 2607329114 -
13 - BALL BEARING 7x19x6 BSD-2600905032.A1487 2600905032 £5.30 £6.36
14 - NEEDLE-ROLLER BEARING dia8x8 MM BSD-2600917003.A10 2600917003 £2.80 £3.36
16 - BRUSH PLATE BSD-2605807060.A35 2605807060 -
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2042 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A2606 2603490022 £1.75 £2.10
20 - REFERENCE PLATE BSD-2601118672.A2 2601118672 £2.52 £3.02
26 - DAMPING PLATE BSD-2601022000.A73 2601022000 £1.75 £2.10
29 - O-RING 5.0x1.5 MM BSD-1900210000.A49 1900210000 £1.75 £2.10
30 - INDEXING DISK BSD-2601990000.A9 2601990000 £1.75 £2.10
31 - SUPPORTING DISC BSD-2600100034.A4 2600100034 £1.75 £2.10
32 - PRESSURE PLATE BSD-2600025005.A59 2600025005 £1.75 £2.10
33 - BALL DIN 5401-6 G28 BSD-1903230011.A275 1903230011 £2.61 £3.13
35 - OVAL-HEAD SCREW DIN 7985-M4x25-8.8 BSD-2910951132.A63 2910951132 -
38 - SINTERED-METAL BUSHING BSD-2600301013.A48 2600301013 -
41 - DISC SPRING BSD-2601290014.A74 2601290014 £1.75 £2.10
42 - SPACER RING BSD-2600209004.A111 2600209004 -
45 - EARTH CONDUCTOR BSD-2604448103.A50 2604448103 -
46 - CABLE L=173 MM BSD-2604448060.A178 2604448060 -
47 - CABLE L=98 MM BSD-2604448045.A251 2604448045 -
48 - CONNECTING CABLE L=88 MM BSD-2604448034.A53 2604448034 £1.75 £2.10
50 - CONNECTING CABLE L=73 MM BSD-2604448115.A5 2604448115 £1.75 £2.10
51 - CONNECTING CABLE L=103 MM BSD-2604448132.A40 2604448132 £1.75 £2.10
62 - COUNTERSUNK-HEAD SCREW M6x27 BSD-2603421226.A113 2603421226 £1.75 £2.10
64 - TAPPING SCREW DIN 7981-B2.9x16-C-H BSD-2910611007.A39 2910611007 £1.75 £2.10
739 - KEY CHUCK R/L dia13 MM. 1/2-20 UNF BSD-1608571062.A14 1608571062 £17.49 £20.99
739/7 - CHUCK WRENCH SG2 BSD-2607950007.A919 2607950007 £6.52 £7.83
780 - AUXILIARY HANDLE BSD-2602025057.A1 2602025057 -
801 - HOUSING SECTION BSD-2605104837.A10 2605104837 £14.72 £17.67
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F BSD-1607000388.A238 1607000388 £12.04 £14.45
808 - NAMEPLATE BSD-160111A3H3.A3397 160111A3H3 £2.61 £3.13
816/04 - CARBON-BRUSH SET BSD-2604321905.A178 2604321905 £11.30 £13.56
816/06 - RATCHET CAP BSD-2601322013.A382 2601322013 £1.75 £2.10
825 - CHANGE-OVER SWITCH BSD-2607200231.A90 2607200231 £16.41 £19.69
828 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A25 2912401020 £2.16 £2.59
834 - BEARING BRACKET BSD-2605807917.A5 2605807917 -
836 - DRILLING SPINDLE 1/2-24 UNF-2A BSD-2606135923.A9 2606135923 £21.42 £25.71
843 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A428 2910611006 £1.75 £2.10
