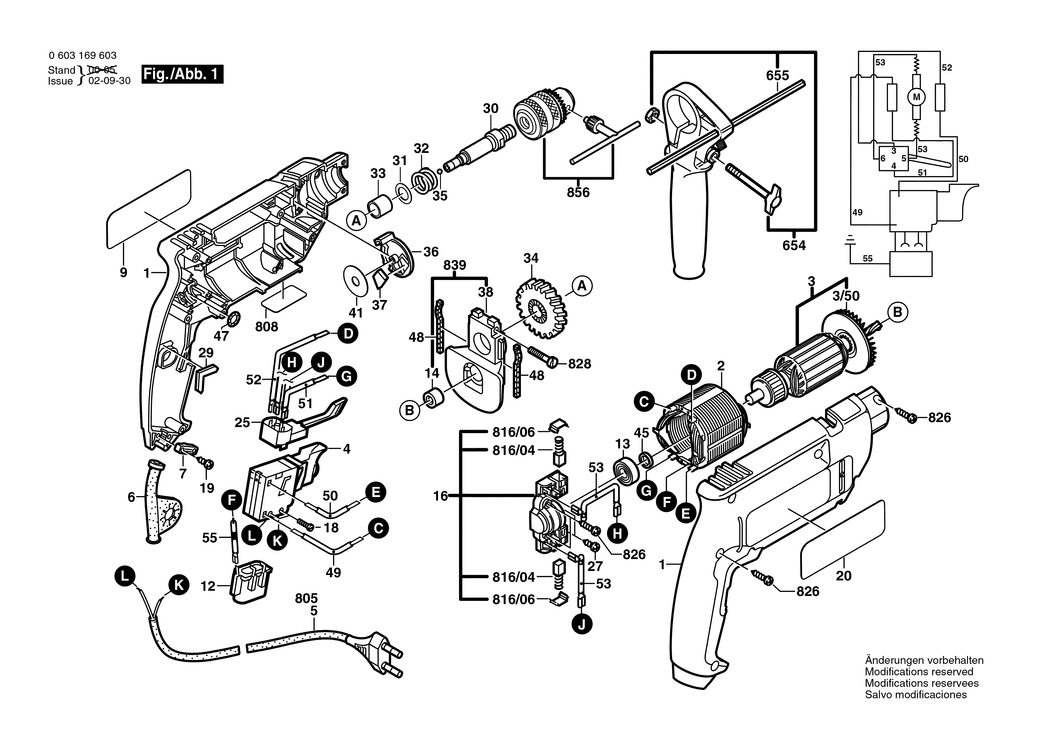

1 - HOUSING SECTION
BSD-2605104540.A6
2605104540
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220562.A12
2604220562
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-2604011084.A6
2604011084
|
-
|
|
|
|
3/50 - FAN
BSD-2606610029.A128
2606610029
|
£2.61
|
£3.13
|
|
|
4 - SWITCH
BSD-2607200209.A102
2607200209
|
£40.80
|
£48.96
|
|
|
5 - POWER SUPPLY CORD CN 220V 2.65m 2 x 0.75mm H05 VV-F
BSD-1604460262.A2
1604460262
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.9 MM
BSD-2600707059.A534
2600707059
|
£3.72
|
£4.47
|
|
|
7 - CABLE CLIP
BSD-2601035001.A1457
2601035001
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2609130302.A1
2609130302
|
£3.34
|
£4.01
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1212
2600905032
|
£5.30
|
£6.36
|
|
|
14 - NEEDLE BEARING
BSD-2600914019.A57
2600914019
|
£5.30
|
£6.36
|
|
|
16 - BRUSH PLATE
BSD-2609992617.A0
2609992617
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1229
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A189
2910611019
|
£2.80
|
£3.36
|
|
|
20 - REFERENCE PLATE
BSD-2601118668.A15
2601118668
|
-
|
|
|
|
25 - CHANGE-OVER SWITCH
BSD-2607200231.A285
2607200231
|
£16.41
|
£19.69
|
|
|
27 - TAPPING SCREW
BSD-2610611007.A3
2610611007
|
-
|
|
|
|
29 - DAMPING PLATE
BSD-2601022000.A656
2601022000
|
£1.75
|
£2.10
|
|
|
30 - DRILLING SPINDLE
BSD-2609110126.A2
2609110126
|
£13.12
|
£15.75
|
|
|
31 - SHIM 0.2 MM
BSD-2600100692.A36
2600100692
|
-
|
|
|
|
32 - COMPRESSION SPRING
BSD-2604617006.A5
2604617006
|
£1.75
|
£2.10
|
|
|
33 - SINTERED-METAL BUSHING
BSD-2600301028.A1
2600301028
|
£1.95
|
£2.34
|
|
|
34 - CYLINDRICAL GEAR
BSD-2606320060.A3
2606320060
|
£6.61
|
£7.93
|
|
|
35 - BALL DIN 5401-5.5MM-III-ST
BSD-1903230010.A690
1903230010
|
£1.75
|
£2.10
|
|
|
36 - INDEXING DISK
BSD-2601990001.A1
2601990001
|
£1.32
|
£1.58
|
|
|
37 - PRESSURE PLATE
BSD-2601074003.A2
2601074003
|
£1.75
|
£2.10
|
|
|
38 - BEARING BRACKET
BSD-2609110369.A1
2609110369
|
-
|
|
|
|
41 - PLAIN WASHER
BSD-2600100066.A49
2600100066
|
£1.75
|
£2.10
|
|
|
45 - SPACER RING
BSD-2600209012.A13
2600209012
|
£1.32
|
£1.58
|
|
|
47 - O-RING 5.0x1.5 MM
BSD-1900210000.A522
1900210000
|
£1.75
|
£2.10
|
|
|
48 - FELT STRIP
BSD-2601005011.A48
2601005011
|
-
|
|
|
|
49 - CABLE L=173 MM
BSD-2604448060.A102
2604448060
|
-
|
|
|
|
50 - CABLE L=98 MM
BSD-2604448045.A30
2604448045
|
-
|
|
|
|
51 - CONNECTING CABLE L=88 MM
BSD-2604448034.A303
2604448034
|
£1.75
|
£2.10
|
|
|
52 - CONNECTING CABLE L=103 MM
BSD-2604448132.A98
2604448132
|
£1.75
|
£2.10
|
|
|
53 - CONNECTING CABLE L=73 MM
BSD-2604448115.A117
2604448115
|
£1.75
|
£2.10
|
|
|
654 - AUXILIARY HANDLE
BSD-2602025094.A100
2602025094
|
£7.36
|
£8.83
|
|
|
655 - DEPTH-GAUGE
BSD-2609005615.A155
2609005615
|
£4.26
|
£5.11
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A2682
160111A3H3
|
£2.61
|
£3.13
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321917.A121
2604321917
|
-
|
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A147
2601329051
|
£2.33
|
£2.80
|
|
|
826 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A608
2912401020
|
£2.16
|
£2.59
|
|
|
828 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8
BSD-2910021134.A28
2910021134
|
£1.75
|
£2.10
|
|
|
839 - BUSHING
BSD-2609110370.A3
2609110370
|
£19.45
|
£23.34
|
|
|
856 - KEY CHUCK dia1.5-13 MM
BSD-1608571080.A66
1608571080
|
£27.23
|
£32.68
|
|
