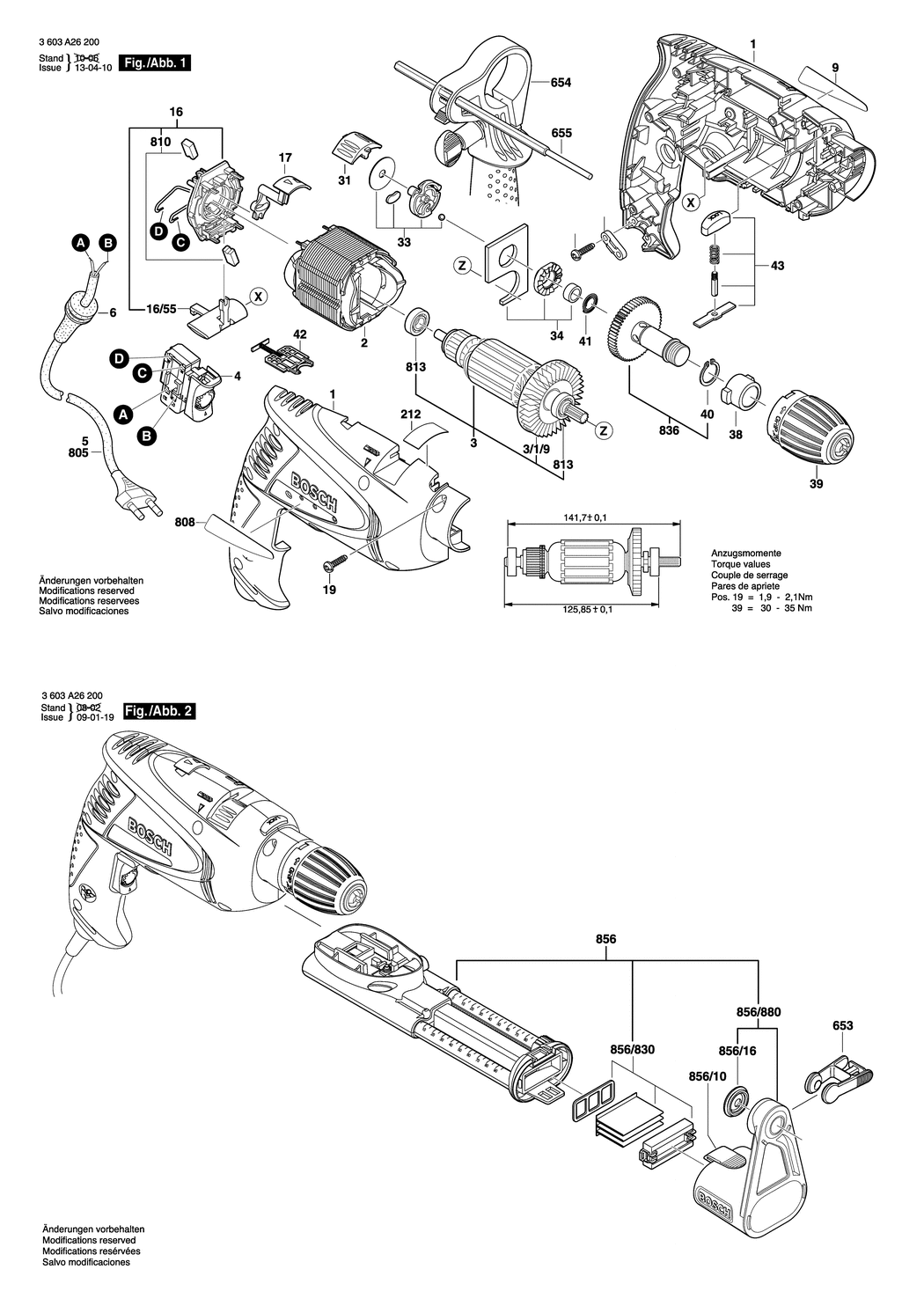

An exploded drawing and listing for the Bosch PSB 650 RE / 3603A26230 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING BSD-2609002140.A3 2609002140 £14.75 £17.70
2 - FIELD 220-240V BSD-2609003024.A19 2609003024 £13.12 £15.75
3 - ARMATURE 220-240V BSD-2609002170.A3 2609002170 £19.45 £23.34
3/1/9 - FAN BSD-2609002159.A3 2609002159 £2.16 £2.59
4 - SWITCH BSD-1607200503.A11 1607200503 £24.45 £29.34
5 - POWER SUPPLY CORD CH 2.65m 2 x 0.75mm H05 VV-F BSD-1604460433.A31 1604460433 £11.30 £13.56
6 - GROMMET BSD-2609002019.A147 2609002019 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE PSB 650 RE BSD-2609002343.A1 2609002343 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE PSB 650 RA BSD-2609002344.A1 2609002344 £2.33 £2.80
16 - BRUSH HOLDER BSD-2609005889.A5 2609005889 £12.04 £14.45
16/55 - CHANGE-OVER SWITCH BSD-2609002160.A16 2609002160 £1.88 £2.26
17 - INDICATOR BSD-2609002163.A2 2609002163 -
19 - SCREW 4x16 BSD-2603490022.A761 2603490022 £1.75 £2.10
31 - CHANGE-OVER SWITCH BSD-2609000684.A14 2609000684 £2.16 £2.59
33 - INDEXING DISK BSD-2601901012.A35 2601901012 -
34 - BEARING BRACKET BSD-2609002255.A12 2609002255 £8.67 £10.41
38 - POROUS BEARING BSD-2609002158.A3 2609002158 -
39 - KEYLESS CHUCK BSD-2609002138.A4 2609002138 £27.31 £32.77
40 - RETAINING CLIP DIN 471-15x1-FSt BSD-2916650006.A472 2916650006 £1.75 £2.10
41 - COMPRESSION SPRING BSD-2609002581.A10 2609002581 £1.75 £2.10
42 - SHUT-OFF VALVE BSD-2609002750.A1 2609002750 £1.75 £2.10
43 - KNOB BSD-2609002149.A4 2609002149 -
212 - REFERENCE PLATE BSD-2601119602.A95 2601119602 £3.72 £4.47
653 - LOCK BSD-2607030115.A31 2607030115 £2.16 £2.59
654 - AUXILIARY HANDLE BSD-2602025125.A110 2602025125 £10.10 £12.12
655 - DEPTH-GAUGE BSD-2609005615.A77 2609005615 £4.26 £5.11
808 - NAMEPLATE BSD-2609002353.A0 2609002353 £2.33 £2.80
810 - CARBON-BRUSH SET BSD-2610391290.A117 2610391290 £8.67 £10.41
813 - GROOVE BALL BEARING 8x22x7 608-2Z/C3 BSD-3130900020.A85 3130900020 £6.52 £7.83
836 - SPINDLE BSD-2609002742.A5 2609002742 £21.68 £26.01
856 - EXHAUSTER BSD-2609000636.A26 2609000636 £24.45 £29.34
856/10 - IMPULSE STARTING DEVICE BSD-2605510217.A16 2605510217 £1.75 £2.10
856/16 - FRICTION RING BSD-2600206003.A54 2600206003 £2.52 £3.02
856/830 - DUST BAG BSD-2605411902.A30 2605411902 £6.61 £7.93
856/880 - INTAKE MANIFOLD MODULE BSD-2605190920.A8 2605190920 £14.72 £17.67
