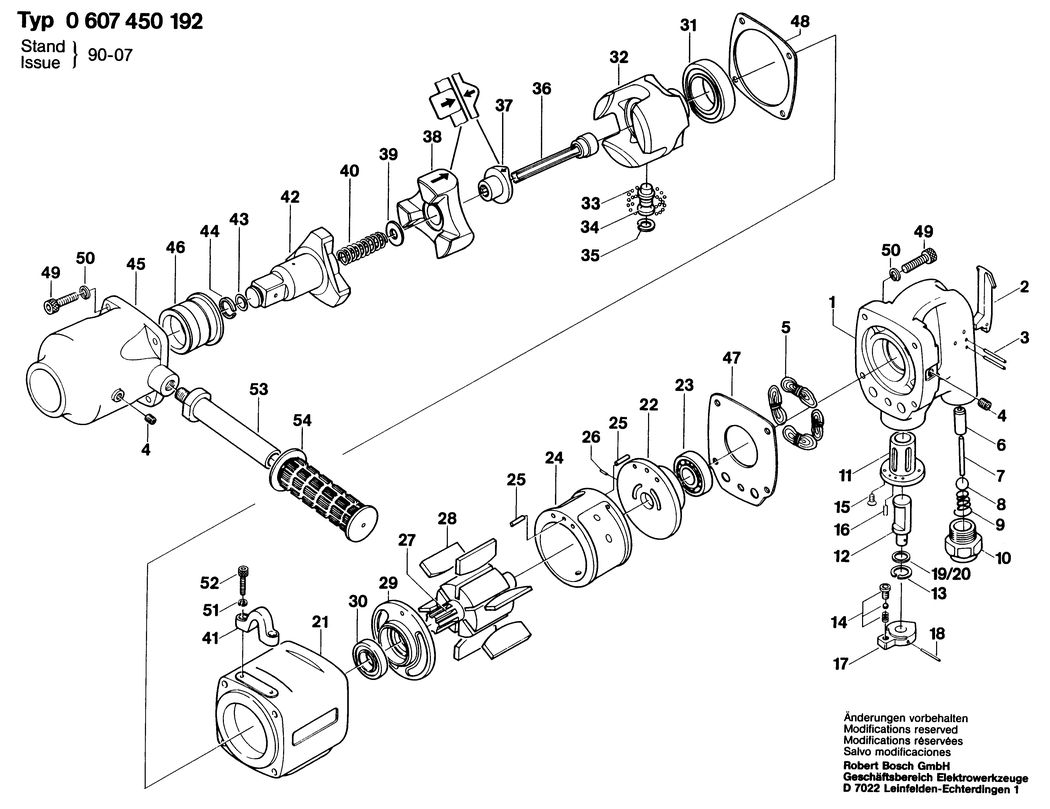

1 - HANDLE
BSD-1609301449.A0
1609301449
|
-
|
|
|
|
2 - CONTROL LEVER
BSD-1609301389.A3
1609301389
|
-
|
|
|
|
3 - STRAIGHT PIN
BSD-1609301450.A0
1609301450
|
-
|
|
|
|
4 - SCREW PLUG
BSD-1609301390.A0
1609301390
|
£5.87
|
£7.04
|
|
|
5 - OILER
BSD-1609301097.A2
1609301097
|
-
|
|
|
|
6 - VALVE BUSHING
BSD-1609301454.A2
1609301454
|
-
|
|
|
|
7 - STRAIGHT PIN
BSD-1609301455.A0
1609301455
|
-
|
|
|
|
8 - BALL
BSD-1609301212.A2
1609301212
|
-
|
|
|
|
9 - COMPRESSION SPRING
BSD-1609301124.A2
1609301124
|
-
|
|
|
|
10 - FITTING
BSD-1609301099.A0
1609301099
|
-
|
|
|
|
11 - VALVE BUSHING
BSD-1609301474.A0
1609301474
|
-
|
|
|
|
12 - CONTROL VALVE
BSD-1609301101.A2
1609301101
|
-
|
|
|
|
13 - RETAINING RING
BSD-1609301125.A0
1609301125
|
-
|
|
|
|
14 - DETENT PIN
BSD-1609301059.A0
1609301059
|
-
|
|
|
|
15 - COUNTERSUNK-HEAD SCREW
BSD-1609301452.A0
1609301452
|
-
|
|
|
|
16 - STRAIGHT PIN
BSD-1609301451.A2
1609301451
|
-
|
|
|
|
17 - CONTROL LEVER
BSD-1609301102.A0
1609301102
|
-
|
|
|
|
18 - SLOTTED SPRING PIN
BSD-1609301051.A0
1609301051
|
-
|
|
|
|
19 - SEAL RING
BSD-1609301130.A0
1609301130
|
-
|
|
|
|
20 - SEAL RING
BSD-1609301131.A2
1609301131
|
-
|
|
|
|
21 - MOTOR HOUSING
BSD-1609301475.A0
1609301475
|
-
|
|
|
|
22 - BEARING FLANGE
BSD-1609301104.A2
1609301104
|
£156.22
|
£187.46
|
|
|
23 - GROOVE BALL BEARING
BSD-1609301132.A0
1609301132
|
-
|
|
|
|
24 - STATOR
BSD-1609301476.A0
1609301476
|
-
|
|
|
|
25 - SLOTTED SPRING PIN
BSD-1609301133.A2
1609301133
|
£2.80
|
£3.36
|
|
|
26 - SLOTTED SPRING PIN
BSD-1609301402.A1
1609301402
|
£2.16
|
£2.59
|
|
|
27 - ROTOR
BSD-1609301477.A0
1609301477
|
-
|
|
|
|
28 - ROTOR LAMELLA
BSD-1609301478.A0
1609301478
|
-
|
|
|
|
29 - BEARING FLANGE
BSD-1609301479.A0
1609301479
|
-
|
|
|
|
30 - GROOVE BALL BEARING 25x42x9
BSD-1609301480.A0
1609301480
|
-
|
|
|
|
31 - GROOVE BALL BEARING 40x68x15
BSD-1609301481.A0
1609301481
|
-
|
|
|
|
32 - STRIKER HOLDER
BSD-1609301482.A0
1609301482
|
-
|
|
|
|
33 - ROLLING BEARING
BSD-1609301483.A0
1609301483
|
-
|
|
|
|
34 - DOWEL PIN
BSD-1609301484.A0
1609301484
|
-
|
|
|
|
35 - SPRING RETAINING RING
BSD-1609301485.A0
1609301485
|
-
|
|
|
|
36 - SPLINED SHAFT
BSD-1609301486.A0
1609301486
|
-
|
|
|
|
37 - CARRIER
BSD-1609301487.A0
1609301487
|
-
|
|
|
|
38 - STRIKER
BSD-1609301488.A0
1609301488
|
-
|
|
|
|
39 - PLAIN WASHER
BSD-1609301489.A0
1609301489
|
-
|
|
|
|
40 - COMPRESSION SPRING
BSD-1609301490.A0
1609301490
|
-
|
|
|
|
41 - SUSPENSION LOOP
BSD-1609300236.A0
1609300236
|
-
|
|
|
|
42 - STRIKER SPINDLE
BSD-1609301491.A0
1609301491
|
-
|
|
|
|
43 - O-RING
BSD-1609301141.A2
1609301141
|
£6.52
|
£7.83
|
|
|
44 - RETAINING RING
BSD-1609301142.A2
1609301142
|
£7.36
|
£8.83
|
|
|
45 - IMPACT MECHANISM HOUSING
BSD-1609301492.A0
1609301492
|
-
|
|
|
|
46 - BUSHING
BSD-1609301493.A0
1609301493
|
-
|
|
|
|
47 - SEALING PLATE
BSD-1609301117.A0
1609301117
|
-
|
|
|
|
48 - SEALING PLATE
BSD-1609301494.A0
1609301494
|
-
|
|
|
|
49 - HEX SOCKET HEAD CAP SCREW
BSD-1609301137.A0
1609301137
|
-
|
|
|
|
50 - SPRING LOCK WASHER
BSD-1609301495.A0
1609301495
|
£6.52
|
£7.83
|
|
|
51 - HEX SOCKET HEAD CAP SCREW
BSD-1609301498.A1
1609301498
|
£6.52
|
£7.83
|
|
|
53 - HANDLE
BSD-1609301501.A0
1609301501
|
-
|
|
|
|
54 - GUIDE SLEEVE
BSD-1609301502.A0
1609301502
|
-
|
|
|
|
97 - ROUND-HEAD GROOVED PIN DIN 1476-2x3-St
BSD-2917721031.A0
2917721031
|
£1.75
|
£2.10
|
|
|
99 - REFERENCE PLATE
BSD-3601119236.A327
3601119236
|
£3.72
|
£4.47
|
|
|
701 - AUXILIARY HANDLE
BSD-1609301116.A2
1609301116
|
-
|
|
|
