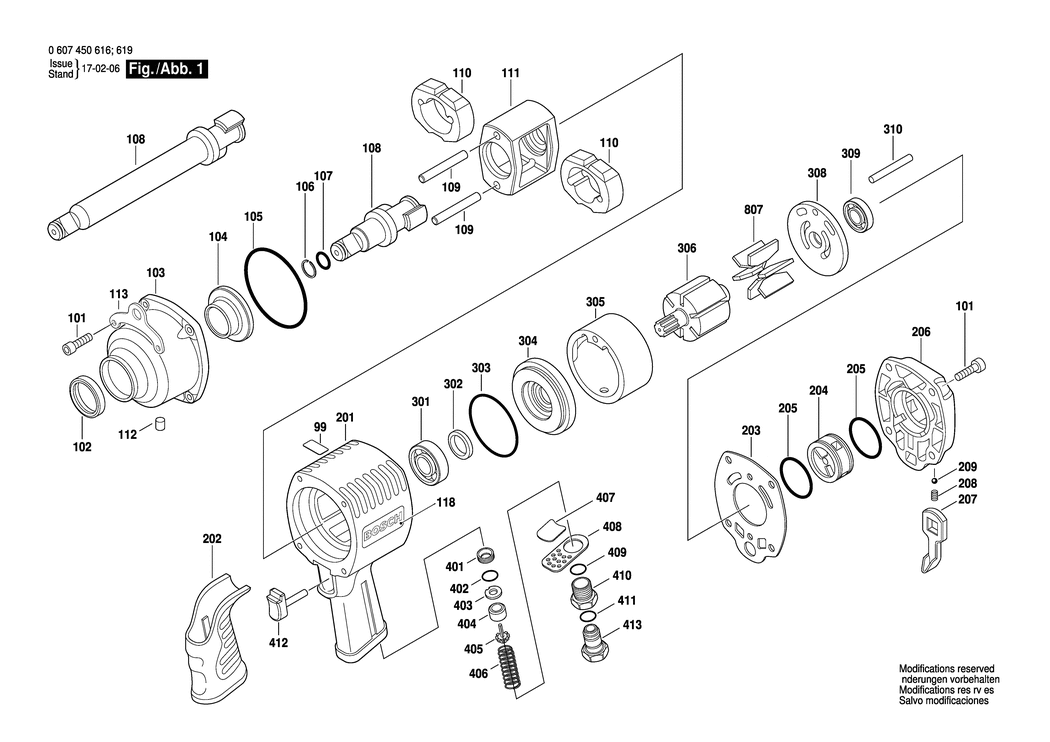

An exploded drawing and listing for the Bosch ---- / 0607450622 / ---
Ex VAT Inc VAT
99 - STICKER BSD-3601110562.A7 3601110562 £2.61 £3.13
101 - SOCKET HEAD CAP SCREW BSD-3609202917.A2 3609202917 £3.72 £4.47
102 - SEAL RING BSD-3609202953.A2 3609202953 £6.52 £7.83
103 - GRINDING GLASS BSD-3609202991.A1 3609202991 £68.42 £82.10
104 - BUSHING BSD-3609202873.A1 3609202873 £12.04 £14.45
105 - O-RING BSD-3609202937.A2 3609202937 £2.80 £3.36
106 - RETAINING RING BSD-3609202922.A1 3609202922 £1.75 £2.10
107 - O-RING BSD-3609202944.A2 3609202944 £1.75 £2.10
108 - STRIKER SPINDLE BSD-3609202858.A0 3609202858 £156.22 £187.46
109 - GUIDE PIN BSD-3609202852.A0 3609202852 £5.30 £6.36
110 - HAMMER PISTON BSD-3609202855.A2 3609202855 £102.57 £123.08
111 - CAGE BSD-3609202861.A2 3609202861 £120.11 £144.13
112 - STUD BSD-3609202919.A4 3609202919 £1.75 £2.10
113 - SUSPENSION LOOP BSD-3609202913.A1 3609202913 £4.26 £5.11
118 - NAMEPLATE BSD-3609202998.A0 3609202998 -
201 - HOUSING BSD-3609202992.A0 3609202992 £93.88 £112.65
202 - HANDLE BSD-3609202881.A0 3609202881 £10.10 £12.12
203 - SEAL BSD-3609202885.A1 3609202885 £2.80 £3.36
204 - CHANGE-OVER SWITCH BSD-3609202877.A0 3609202877 £16.41 £19.69
205 - O-RING BSD-3609202939.A1 3609202939 £1.75 £2.10
206 - HOUSING COVER BSD-3609202993.A1 3609202993 £48.38 £58.06
207 - LEVER BSD-3609202879.A0 3609202879 £4.26 £5.11
208 - SPRING BSD-3609202867.A0 3609202867 £1.75 £2.10
209 - BALL BSD-3609202928.A10 3609202928 £1.75 £2.10
301 - BALL BEARING BSD-3609202950.A1 3609202950 £48.38 £58.06
302 - SEAL RING BSD-3609202956.A1 3609202956 £5.30 £6.36
303 - O-RING BSD-3609202936.A1 3609202936 £5.30 £6.36
304 - HOUSING COVER BSD-3609202888.A0 3609202888 £63.50 £76.20
305 - STATOR BSD-3609202897.A1 3609202897 £93.88 £112.65
306 - ROTOR BSD-3609202891.A0 3609202891 £81.81 £98.17
308 - COVER PLATE BSD-3609202900.A0 3609202900 £59.53 £71.44
309 - BALL BEARING BSD-3609202951.A2 3609202951 £31.64 £37.97
310 - DOWEL PIN BSD-3609202853.A3 3609202853 £1.75 £2.10
401 - BUSHING BSD-3609202872.A2 3609202872 £3.72 £4.47
402 - O-RING BSD-3609202941.A3 3609202941 £1.75 £2.10
403 - SEAL BSD-3609202905.A2 3609202905 £1.75 £2.10
404 - BUSHING BSD-3609202874.A2 3609202874 £2.16 £2.59
405 - TAPPET BSD-3609202841.A2 3609202841 £3.72 £4.47
406 - SPRING BSD-3609202845.A2 3609202845 £1.75 £2.10
407 - SILENCER BSD-3609202910.A1 3609202910 £1.75 £2.10
408 - DEFLECTOR BSD-3609202909.A2 3609202909 £2.61 £3.13
409 - RING BSD-3609202920.A1 3609202920 £1.32 £1.58
410 - FITTING BSD-3609202847.A1 3609202847 £8.67 £10.41
411 - O-RING BSD-3609202933.A1 3609202933 £1.75 £2.10
412 - SWITCH BSD-3609202839.A1 3609202839 £5.30 £6.36
413 - FITTING BSD-3609202848.A1 3609202848 £11.30 £13.56
807 - SET OF CLUTCH PLATES BSD-3609202A01.A0 3609202A01 £21.68 £26.01
