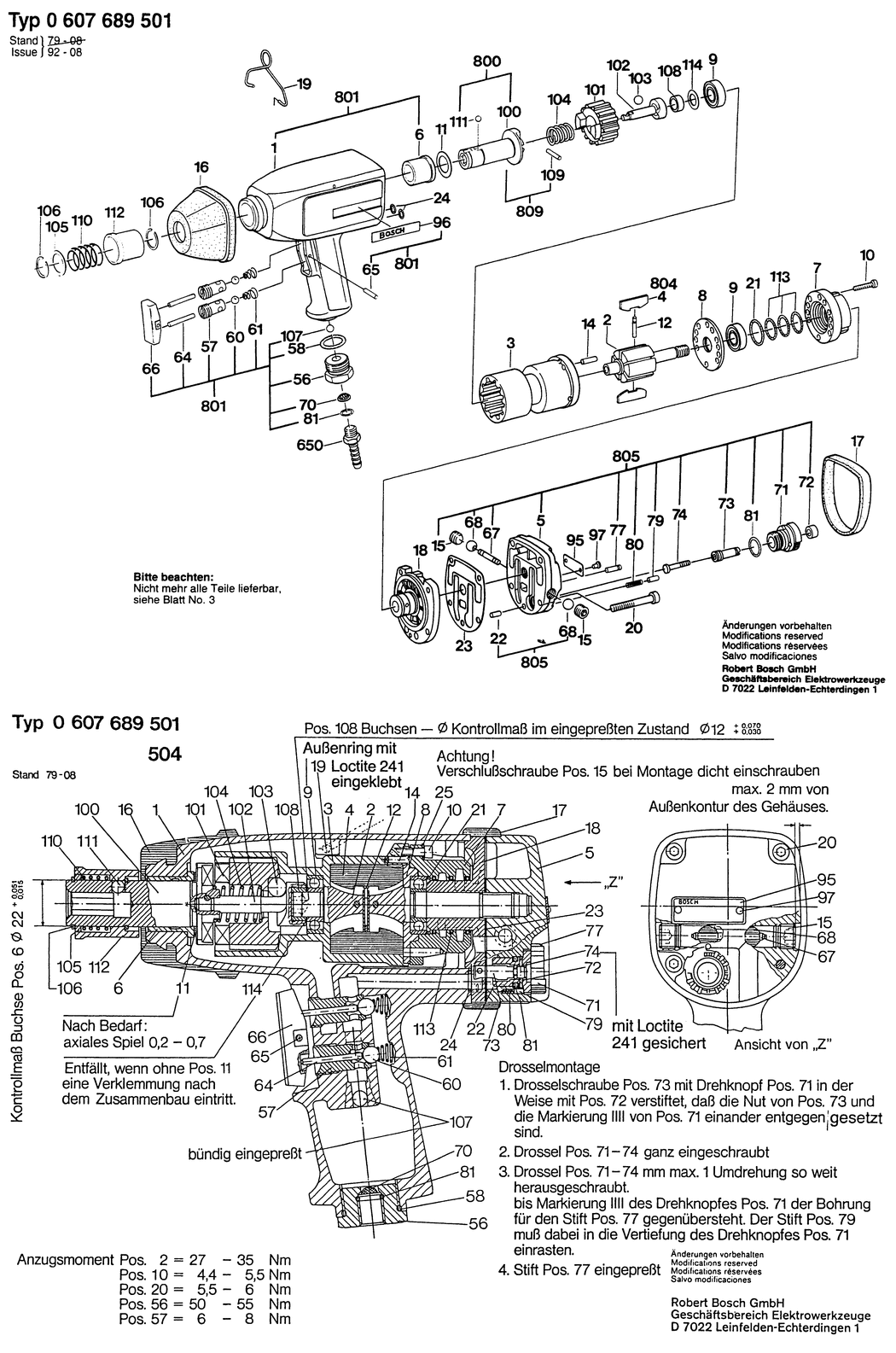

An exploded drawing and listing for the Bosch ---- / 0607689501 / ---
Ex VAT Inc VAT
1 - HOUSING BSD-3605108001.A2 3605108001 -
2 - STATOR BSD-3604220000.A1 3604220000 -
3 - ROTOR BSD-3604090000.A2 3604090000 -
5 - HOUSING COVER BSD-3605500001.A2 3605500001 -
6 - BUSHING BSD-3600301002.A1 3600301002 -
7 - BEARING FLANGE BSD-3605700024.A3 3605700024 -
8 - BEARING FLANGE BSD-3605700001.A1 3605700001 -
9 - GROOVE BALL BEARING BSD-3600905008.A2 3600905008 -
10 - HEX SOCKET HEAD CAP SCREW BSD-3603414004.A0 3603414004 -
11 - ADAPTOR PLATE BSD-3600113002.A0 3600113002 -
12 - SPRING PIN BSD-3604610004.A2 3604610004 -
14 - STRAIGHT PIN 4 M 6x16 DIN 7-C35K BSD-2917610097.A3 2917610097 -
15 - SCREW PLUG BSD-3603464000.A2 3603464000 -
16 - PROTECTIVE CAP BSD-3600522001.A3 3600522001 -
17 - PROTECTIVE RING BSD-3600206001.A1 3600206001 -
18 - INTERMEDIATE FLANGE BSD-3605700031.A1 3605700031 -
19 - SUSPENSION LOOP BSD-3604720001.A1 3604720001 -
20 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A11 2910141168 £3.80 £4.56
21 - O-RING BSD-3600109000.A2 3600109000 -
22 - STRAIGHT PIN 4 H 8x14 DIN 7-C35K BSD-2917500096.A4 2917500096 -
23 - SEALING PLATE BSD-3601015000.A4 3601015000 £2.16 £2.59
24 - O-RING 8.0x1.5 MM BSD-1900210103.A0 1900210103 £2.80 £3.36
25 - CONICAL SPRING WASHER BSD-3600114008.A2 3600114008 -
56 - FITTING BSD-3603458000.A0 3603458000 -
57 - VALVE BUSHING BSD-3600364000.A3 3600364000 -
58 - O-RING BSD-3607010005.A1 3607010005 -
60 - BALL BSD-3603230000.A47 3603230000 £2.80 £3.36
61 - COMPRESSION SPRING BSD-3604616002.A48 3604616002 £2.16 £2.59
64 - STRAIGHT PIN BSD-3603101000.A2 3603101000 -
65 - STRAIGHT PIN 3M6x24 DIN 7-C35K BSD-2917610083.A122 2917610083 £1.75 £2.10
66 - CONTROL LEVER BSD-3602053000.A24 3602053000 -
67 - HOLDING PIN BSD-3603203001.A1 3603203001 -
68 - BALL BSD-3603230001.A1 3603230001 -
70 - STRAINER BSD-3600002000.A201 3600002000 £3.72 £4.47
71 - ROTARY KNOB BSD-3603376000.A3 3603376000 -
72 - PUSH-BUTTON BSD-3600508000.A3 3600508000 -
73 - THREADED BUSHING BSD-3600362000.A1 3600362000 -
74 - THROTTLE SCREW BSD-3603520000.A1 3603520000 -
76 - O-RING 1.5x5 MM BSD-1900210100.A3 1900210100 £1.75 £2.10
77 - HALF-LENGTH GROOVED PIN BSD-3603111000.A2 3603111000 -
79 - STRAIGHT PIN 2.5H8x6 DIN 7-C35K BSD-2917500054.A1 2917500054 -
80 - COMPRESSION SPRING BSD-3604610000.A0 3604610000 -
81 - O-RING 10x2 MM BSD-1900210306.A204 1900210306 £1.75 £2.10
95 - NAMEPLATE BSD-160111A3HF.A139 160111A3HF £3.72 £4.47
96 - MANUFACTURER'S NAMEPLATE BSD-3601119055.A70 3601119055 £3.72 £4.47
97 - GROOVED NAIL BSD-3603133000.A282 3603133000 £2.61 £3.13
99 - REFERENCE PLATE BSD-3601119236.A1304 3601119236 £3.72 £4.47
100 - STRIKER SPINDLE BSD-3606455010.A1 3606455010 -
101 - STRIKER BSD-3606445000.A4 3606445000 -
102 - CAMSHAFT BSD-3606100006.A0 3606100006 -
103 - BALL DIN 5401-9 MM III-ST BSD-1903230015.A5 1903230015 £2.61 £3.13
104 - COMPRESSION SPRING BSD-3604619008.A4 3604619008 -
105 - PLAIN WASHER 1.0 MM BSD-1600102623.A25 1600102623 £1.32 £1.58
106 - RETAINING RING BSD-1600116001.A18 1600116001 -
107 - BALL 7.5 MM IIIDIN5401-ST BSD-1903230024.A8 1903230024 £2.80 £3.36
108 - BUSHING BSD-3600202001.A0 3600202001 -
110 - COMPRESSION SPRING BSD-1604616006.A22 1604616006 £7.36 £8.83
111 - BALL DIN 5401-6 G28 BSD-1903230011.A255 1903230011 £2.61 £3.13
112 - PROTECTION SLEEVE BSD-1600328001.A1 1600328001 -
113 - O-RING 23.25x1.78 MM BSD-3600210007.A0 3600210007 -
114 - SHIM BSD-1600101625.A24 1600101625 £3.72 £4.47
650 - HOSE FITTING BSD-2603386002.A208 2603386002 £5.30 £6.36
700 - HEX SCREW BSD-3603450003.A3 3603450003 -
701 - O-RING 10x2 MM BSD-1900210106.A4 1900210106 £1.75 £2.10
800 - ASSEMBLY OF SERVICE PARTS BSD-3607031000.A0 3607031000 -
801 - HOUSING BSD-3607031003.A3 3607031003 -
804 - SET OF CLUTCH PLATES BSD-3607030255.A4 3607030255 -
805 - ASSEMBLY OF SERVICE PARTS BSD-3607031100.A0 3607031100 -
