Fein ASb 648-EC 2 (50/60Hz 220/230V) / 72152100220 Spare Parts

Fein ASb 648-EC 2 ⡐/60Hz 220/230V) / 72152100220 Spare Parts

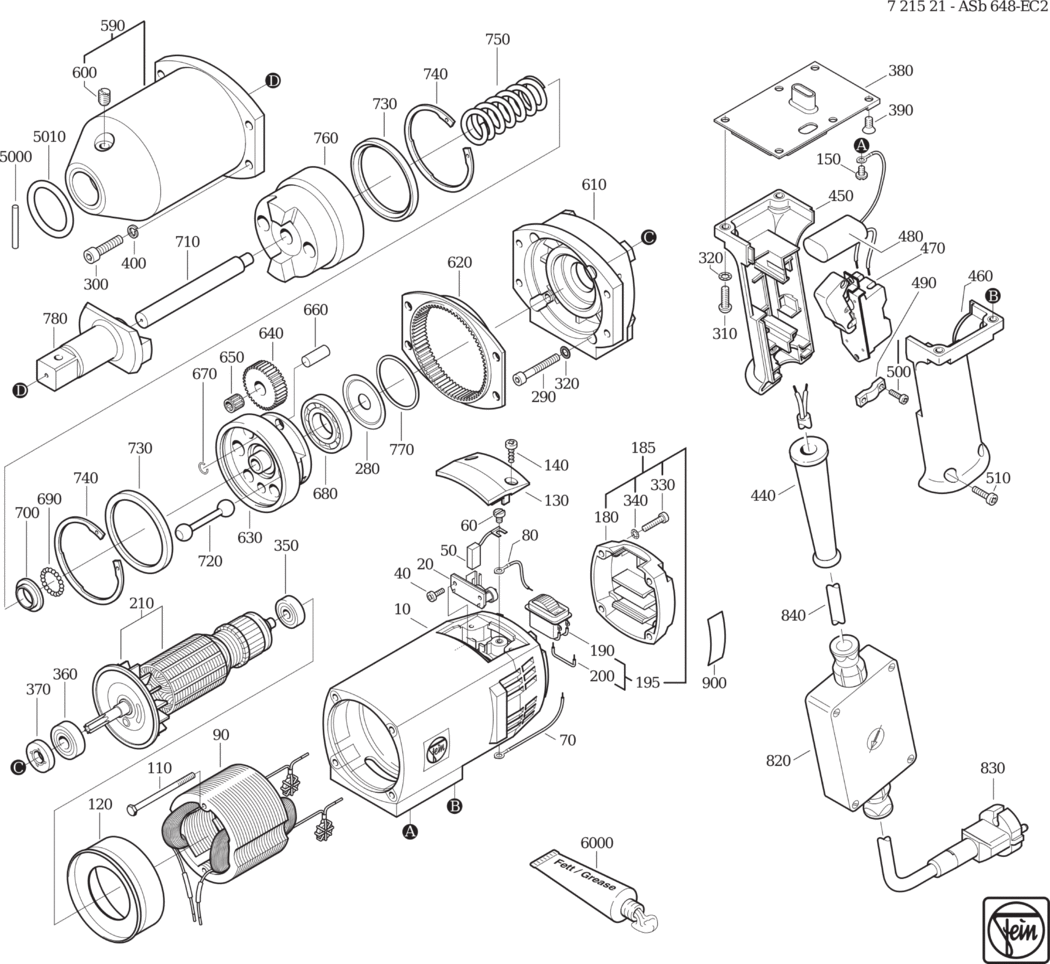

An exploded diagram and spare parts listing for the Fein ASb 648-EC 2 (50/60Hz 220/230V) / 72152100220

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903119003.A12 31903119003	£160.13	£192.16
20 - BRUSH HOLDER FEI-30712067017.A12 30712067017	£11.92	£14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A82 43041001994	£1.60	£1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A37 30711067004	£7.87	£9.44
60 - FLAT HEADED SCREW FEI-43003029048.A93 43003029048	-
70 - CONNECTING CABLE FEI-30719062017.A7 30719062017	£1.60	£1.92
80 - CONNECTING CABLE FEI-30719065013.A8 30719065013	£1.60	£1.92
90 - STATOR 50HZ220V FEI-51214001226.A3 51214001226	-
110 - HEXAGON SOCKET SCREW FEI-43001004042.A30 43001004042	£2.69	£3.23
120 - AIR GUIDE RING FEI-31428018008.A3 31428018008	£10.46	£12.55
130 - COVER FEI-32427040001.A30 32427040001	£3.39	£4.07
140 - SHEET METAL SCREW FEI-43046001002.A67 43046001002	-
150 - FLAT HEADED SCREW FEI-43003029048.A92 43003029048	-
180 - COVER FEI-31207066004.A3 31207066004	£15.29	£18.35
185 - COVER FEI-31207066013.A4 31207066013	-
195 - TOGGLE SWITCH FEI-30701085015.A3 30701085015	£37.68	£45.22
210 - ARMATURE 50HZ220V FEI-53214001228.A3 53214001228	£282.93	£339.52
280 - DISC FEI-32411070006.A7 32411070006	£6.03	£7.24
290 - CYLINDER HEAD SCREW FEI-43035020051.A15 43035020051	£1.60	£1.92
300 - CYLINDER HEAD SCREW FEI-43035034067.A11 43035034067	£1.60	£1.92
310 - FILLISTER HEAD SCREW FEI-43014042053.A11 43014042053	-
320 - CIRCLIP M5 FEI-42443004057.A76 42443004057	£1.60	£1.92
330 - CYLINDER HEAD SCREW FEI-43033005047.A8 43033005047	-
340 - CIRCLIP M4 FEI-42443003043.A285 42443003043	£1.60	£1.92
350 - GROOVED BALL BEARING FEI-41701204131.A41 41701204131	£9.10	£10.92
360 - GROOVED BALL BEARING FEI-41701020130.A31 41701020130	£11.73	£14.08
370 - SEALING RING FEI-30602010000.A12 30602010000	£15.52	£18.63
380 - PLATE FEI-32422094005.A3 32422094005	£13.09	£15.71
390 - COUNTERSUNK SCREW FEI-43042005050.A3 43042005050	-
400 - SPRING WASHER FEI-42445003060.A7 42445003060	£1.60	£1.92
440 - CABLE GROMMET FEI-31413090003.A76 31413090003	£3.40	£4.08
450 - HANDLE HALF SHELL FEI-31204090003.A5 31204090003	£31.44	£37.73
460 - HANDLE HALF SHELL FEI-31204091002.A4 31204091002	£20.93	£25.12
470 - SWITCH FEI-30701291000.A3 30701291000	£47.12	£56.55
480 - CAPACITOR FEI-30722074009.A6 30722074009	£15.62	£18.75
490 - CABLE CLAMPING PIECE FEI-32431021007.A62 32431021007	£1.60	£1.92
500 - FILLISTER HEAD SCREW FEI-43041011993.A29 43041011993	-
510 - FILLISTER HEAD SCREW FEI-43041023046.A27 43041023046	£1.60	£1.92
590 - GEARBOX HOUSING FEI-31508145015.A5 31508145015	£145.89	£175.07
600 - NIPPLE FEI-32131037005.A18 32131037005	-
610 - INTERMEDIATE GEAR BOX FEI-31506198008.A4 31506198008	£110.92	£133.10
620 - GEAR-WHEEL FEI-33804013003.A1 33804013003	-
630 - DRIVE BLOCK FEI-30110008005.A5 30110008005	£274.56	£329.47
640 - GEAR-WHEEL FEI-33613066007.A7 33613066007	£38.11	£45.73
650 - NEEDLE CAGE FEI-41715014007.A12 41715014007	£6.08	£7.29
660 - BOLT FEI-30216054007.A10 30216054007	£4.59	£5.51
670 - CIRCLIP FEI-42615062007.A10 42615062007	-
680 - GROOVED BALL BEARING FEI-41701604011.A7 41701604011	-
690 - BALL FEI-41708014001.A12 41708014001	£1.60	£1.92
700 - RING FEI-31710024007.A4 31710024007	£9.38	£11.26
710 - SHAFT FEI-33406079008.A6 33406079008	£44.81	£53.77
720 - BALL PIN FEI-30111006002.A3 30111006002	£44.81	£53.77
730 - RING FEI-32602031002.A6 32602031002	£40.34	£48.41
740 - CIRCLIP FEI-42616019002.A2 42616019002	-
750 - SPIRAL SPRING FEI-30901177001.A8 30901177001	£26.10	£31.32
760 - STRIKING BODY FEI-30112010004.A0 30112010004	£297.48	£356.97
770 - DISC FEI-32624039031.A0 32624039031	-
780 - TOOL HOLDER FEI-30104039008.A0 30104039008	£215.25	£258.30
820 - ELECTRIC TORQUE SHUTOFF FEI-30762041015.A1 30762041015	£338.70	£406.44
830 - CABLE WITH PLUG FEI-30707221016.A2 30707221016	£11.98	£14.38
840 - CABLE FEI-30706264016.A0 30706264016	£67.99	£81.59
900 - INFORMATION SIGN FEI-32217084000.A10 32217084000	£2.82	£3.38
5000 - LOCKING PIN BF35-7 FEI-30235007005.A5 30235007005	£5.08	£6.10
5010 - RUBBER RING FEI-40612028008.A6 40612028008	£4.38	£5.26
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A472 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A253 34130054061	-
