Fein ASb 658-1 (50/60Hz 220/230V) / 72152500224 Spare Parts

Fein ASb 658-1 ⡐/60Hz 220/230V) / 72152500224 Spare Parts

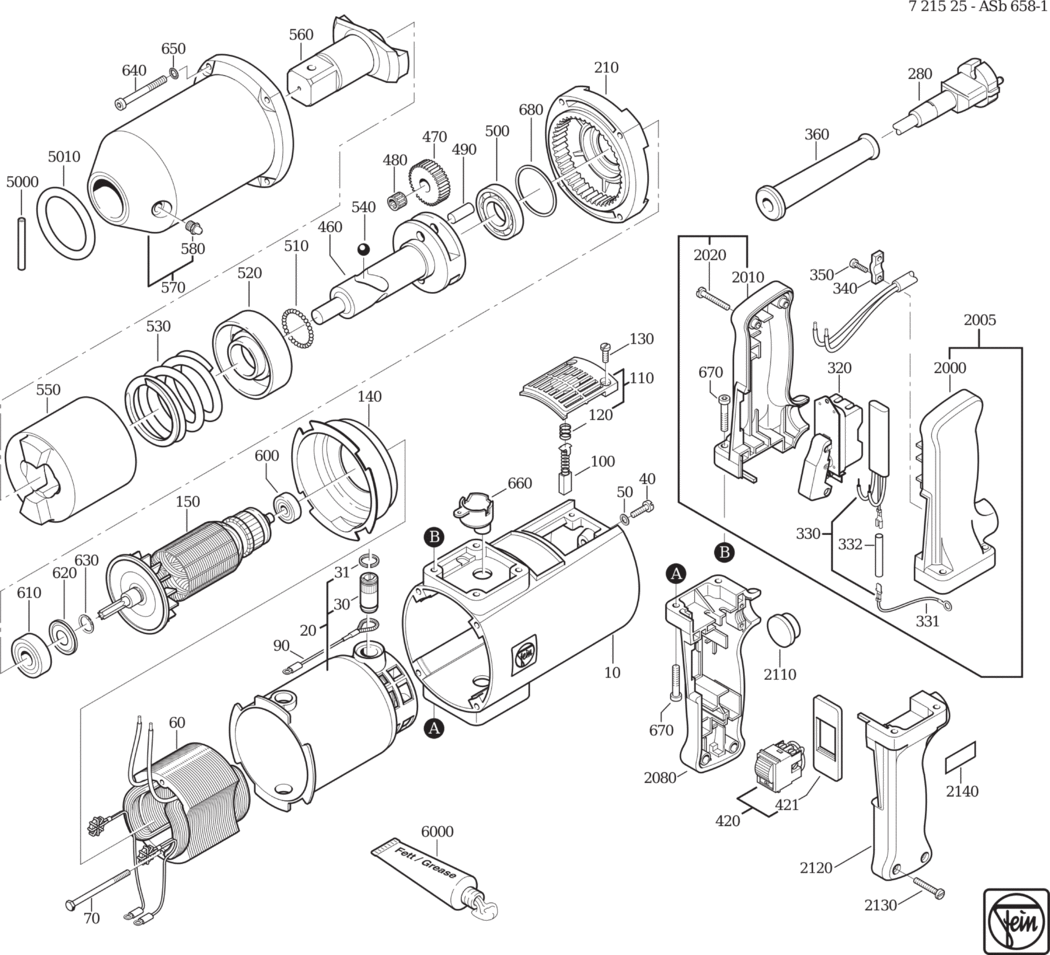

An exploded diagram and spare parts listing for the Fein ASb 658-1 (50/60Hz 220/230V) / 72152500224

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31903101015.A8 31903101015	£245.13	£294.16
20 - HOUSING FEI-31913011014.A1 31913011014	-
30 - BRUSH HOLDER FEI-30712050004.A6 30712050004	£6.65	£7.98
31 - CIRCLIP FEI-42615135005.A11 42615135005	£1.60	£1.92
40 - CYLINDER HEAD SCREW FEI-43002105055.A9 43002105055	-
50 - CIRCLIP M5 FEI-42443004057.A222 42443004057	£1.60	£1.92
60 - STATOR FEI-51226002228.A0 51226002228	£155.16	£186.19
70 - HEXAGON SOCKET SCREW FEI-43001004042.A0 43001004042	£2.69	£3.23
90 - CONNECTING CABLE FEI-30719051015.A1 30719051015	£15.52	£18.63
100 - CARBON BRUSH (SOLD SINGLY) FEI-30711070008.A0 30711070008	£9.45	£11.34
110 - COVER FEI-32427037016.A4 32427037016	£19.12	£22.95
120 - SPIRAL SPRING FEI-30901199001.A0 30901199001	£1.60	£1.92
130 - CYLINDER HEAD SCREW FEI-43002034043.A10 43002034043	£1.60	£1.92
140 - AIR GUIDE RING FEI-31428052003.A3 31428052003	£6.23	£7.48
150 - ARMATURE FEI-53226002220.A0 53226002220	£260.26	£312.31
210 - INTERMEDIATE GEAR BOX FEI-31506166018.A3 31506166018	£326.88	£392.25
280 - CABLE WITH PLUG FEI-30707119019.A0 30707119019	£30.14	£36.17
320 - SWITCH FEI-30701068003.A14 30701068003	£38.18	£45.82
330 - CAPACITOR FEI-30722122026.A10 30722122026	£25.42	£30.51
331 - CONNECTING CABLE FEI-30719164018.A0 30719164018	£3.92	£4.70
332 - INSULATING HOSE FEI-31413188006.A9 31413188006	£1.60	£1.92
340 - CABLE CLAMPING PIECE FEI-32431021007.A108 32431021007	£1.60	£1.92
350 - FILLISTER HEAD SCREW FEI-43041011993.A19 43041011993	-
360 - CABLE GROMMET FEI-31413090003.A59 31413090003	£3.40	£4.08
420 - TOGGLE SWITCH FEI-30701210019.A7 30701210019	£53.20	£63.84
421 - SWITCH INSERT FEI-32414106005.A4 32414106005	£9.88	£11.86
460 - SHAFT FEI-30110011000.A2 30110011000	£448.48	£538.17
470 - GEAR-WHEEL FEI-33613066007.A9 33613066007	£38.11	£45.73
480 - NEEDLE CAGE FEI-41715014007.A0 41715014007	£6.08	£7.29
490 - BOLT FEI-30216054007.A1 30216054007	£4.59	£5.51
500 - GROOVED BALL BEARING FEI-41701604011.A9 41701604011	-
510 - BALL FEI-41708014001.A31 41708014001	£1.60	£1.92
520 - RING FEI-32602040002.A2 32602040002	£108.62	£130.35
530 - SPIRAL SPRING FEI-30901213004.A4 30901213004	£47.15	£56.58
540 - BALL FEI-41708020006.A0 41708020006	-
550 - STRIKING BODY FEI-30112013000.A0 30112013000	£422.37	£506.84
560 - TOOL HOLDER FEI-30104045008.A0 30104045008	£241.02	£289.23
570 - GEARBOX HOUSING FEI-31508114014.A0 31508114014	£196.02	£235.22
580 - NIPPLE FEI-32131037005.A8 32131037005	-
600 - GROOVED BALL BEARING FEI-41701204095.A7 41701204095	£17.68	£21.22
610 - GROOVED BALL BEARING FEI-41701213027.A32 41701213027	£9.82	£11.79
620 - SEALING RING FEI-42640011002.A11 42640011002	£5.35	£6.42
630 - CIRCLIP FEI-42643001007.A6 42643001007	£1.60	£1.92
640 - CYLINDER HEAD SCREW FEI-43033018057.A0 43033018057	£1.60	£1.92
650 - CIRCLIP M5 FEI-42443004057.A223 42443004057	£1.60	£1.92
660 - SLEEVE FEI-31406028007.A5 31406028007	£5.05	£6.06
670 - CYLINDER HEAD SCREW M5X25 FEI-43033014058.A26 43033014058	£1.60	£1.92
680 - DISC FEI-32624039031.A1 32624039031	-
2000 - HANDLE HALF SHELL FEI-31204161004.A10 31204161004	£38.65	£46.38
2005 - HANDLE FEI-31204064019.A0 31204064019	£58.08	£69.69
2010 - HANDLE HALF SHELL FEI-31204163001.A0 31204163001	£40.17	£48.20
2020 - FILLISTER HEAD SCREW FEI-43041027045.A9 43041027045	£1.60	£1.92
2080 - HANDLE HALF SHELL FEI-31204162007.A4 31204162007	£60.22	£72.27
2110 - PLUG FEI-31416039009.A4 31416039009	£6.30	£7.56
2120 - HANDLE HALF SHELL FEI-31204163001.A1 31204163001	£40.17	£48.20
2130 - FLAT HEADED SCREW FEI-43003042041.A39 43003042041	£1.60	£1.92
2140 - INFORMATION SIGN FEI-32217084000.A11 32217084000	£2.82	£3.38
5000 - LOCKING PIN BF35-9 FEI-30235009007.A0 30235009007	£5.08	£6.10
5010 - RUBBER RING FEI-40612029002.A0 40612029002	£4.38	£5.26
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A471 32160003014	-
9020 - SAFETY INSTRUCTION FEI-34130054061.A252 34130054061	-
