Fein ASbe 647-1 (50Hz 110V) / 72151300118 Spare Parts

Fein ASbe 647-1 ⡐Hz 110V) / 72151300118 Spare Parts

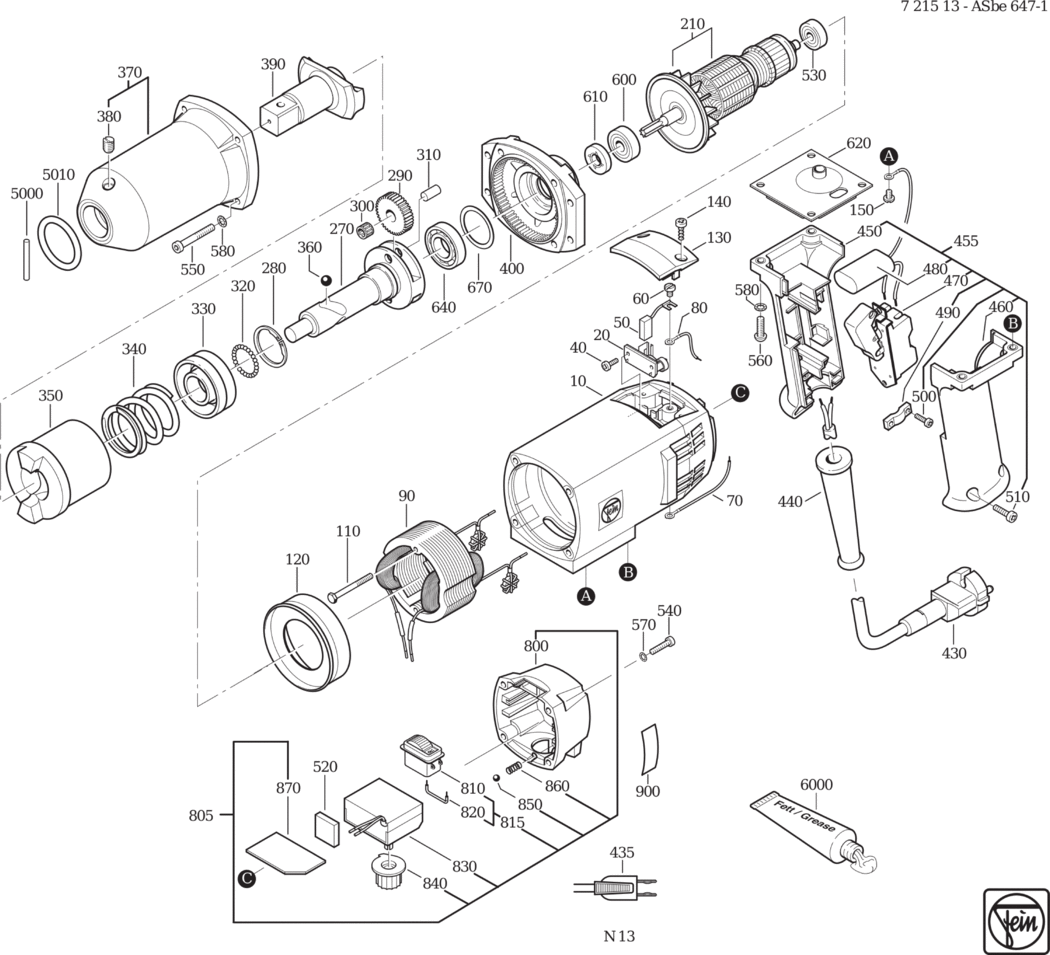

An exploded diagram and spare parts listing for the Fein ASbe 647-1 (50Hz 110V) / 72151300118
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31903119003.A0 31903119003 £160.13 £192.16
20 - BRUSH HOLDER FEI-30712067017.A30 30712067017 £11.92 £14.30
40 - FILLISTER HEAD SCREW M3 5X10 FEI-43041001994.A21 43041001994 £1.60 £1.92
50 - CARBON BRUSH (SOLD SINGLY) FEI-30711067004.A12 30711067004 £7.87 £9.44
60 - FLAT HEADED SCREW FEI-43003029048.A30 43003029048 -
70 - CONNECTING CABLE FEI-30719062017.A13 30719062017 £1.60 £1.92
80 - CONNECTING CABLE FEI-30719065013.A2 30719065013 £1.60 £1.92
90 - STATOR 50HZ110V FEI-51212002111.A2 51212002111 £102.18 £122.62
110 - HEXAGON SOCKET SCREW FEI-43001002040.A0 43001002040 -
120 - AIR GUIDE RING FEI-31428022006.A0 31428022006 £7.07 £8.48
130 - COVER FEI-32427040001.A2 32427040001 £3.39 £4.07
140 - SHEET METAL SCREW FEI-43046001002.A2 43046001002 -
150 - FLAT HEADED SCREW FEI-43003029048.A29 43003029048 -
210 - ARMATURE 50HZ110V FEI-53212002113.A0 53212002113 £256.69 £308.03
270 - SHAFT FEI-30110016002.A5 30110016002 £354.92 £425.91
280 - CIRCLIP FEI-42643009005.A22 42643009005 £3.40 £4.08
290 - GEAR-WHEEL FEI-33607072002.A1 33607072002 £33.52 £40.22
300 - NEEDLE CAGE FEI-41715009001.A4 41715009001 £6.37 £7.64
310 - ROLLER FEI-41709006000.A3 41709006000 £1.60 £1.92
320 - BALL FEI-41708014001.A42 41708014001 £1.60 £1.92
330 - RING FEI-32602045000.A4 32602045000 £79.48 £95.37
340 - SPIRAL SPRING FEI-30901231005.A5 30901231005 £14.91 £17.89
350 - STRIKING BODY FEI-30112023009.A4 30112023009 £309.83 £371.80
360 - BALL FEI-41708025004.A68 41708025004 £1.60 £1.92
370 - GEARBOX HOUSING FEI-31508124013.A1 31508124013 £139.71 £167.65
380 - NIPPLE FEI-32131037005.A5 32131037005 -
390 - TOOL HOLDER FEI-30104047005.A4 30104047005 £211.41 £253.69
400 - INTERMEDIATE GEAR BOX FEI-31506195012.A1 31506195012 £254.93 £305.92
430 - CABLE WITH PLUG FEI-30707200019.A13 30707200019 £19.62 £23.54
440 - CABLE GROMMET FEI-31413090003.A24 31413090003 £3.40 £4.08
450 - HANDLE HALF SHELL FEI-31204090003.A12 31204090003 £31.44 £37.73
455 - HANDLE FEI-31204090012.A3 31204090012 -
460 - HANDLE HALF SHELL FEI-31204091002.A12 31204091002 £20.93 £25.12
470 - SWITCH FEI-30701068003.A3 30701068003 £38.18 £45.82
480 - CAPACITOR FEI-30722074009.A15 30722074009 £15.62 £18.75
490 - CABLE CLAMPING PIECE FEI-32431021007.A212 32431021007 £1.60 £1.92
500 - FILLISTER HEAD SCREW FEI-43041011993.A3 43041011993 -
510 - FILLISTER HEAD SCREW FEI-43041023046.A3 43041023046 £1.60 £1.92
520 - STOP FEI-31415023004.A5 31415023004 £1.60 £1.92
530 - GROOVED BALL BEARING FEI-41701204131.A8 41701204131 £9.10 £10.92
540 - CYLINDER HEAD SCREW FEI-43033005047.A3 43033005047 -
550 - CYLINDER HEAD SCREW FEI-43033016055.A86 43033016055 £1.60 £1.92
560 - FILLISTER HEAD SCREW FEI-43014042053.A0 43014042053 -
570 - CIRCLIP M4 FEI-42443003043.A102 42443003043 £1.60 £1.92
580 - CIRCLIP M5 FEI-42443004057.A317 42443004057 £1.60 £1.92
600 - GROOVED BALL BEARING FEI-41701207033.A73 41701207033 £10.15 £12.18
610 - SEALING RING FEI-30602010000.A0 30602010000 £15.52 £18.63
620 - PLATE FEI-32422093007.A1 32422093007 £9.17 £11.00
640 - GROOVED BALL BEARING FEI-41701603013.A4 41701603013 £13.72 £16.46
670 - DISC FEI-32624046028.A13 32624046028 £1.60 £1.92
670 - DISC FEI-32624046034.A8 32624046034 £4.92 £5.90
800 - COVER FEI-31207067008.A7 31207067008 £26.15 £31.38
805 - COVER FEI-31207067039.A1 31207067039 -
815 - TOGGLE SWITCH FEI-30701085021.A4 30701085021 £40.21 £48.25
830 - SPEED SETTING SWITCH FEI-30762016010.A0 30762016010 £178.70 £214.44
840 - LEVER FEI-32805061006.A7 32805061006 £6.01 £7.21
850 - BALL FEI-41708018000.A40 41708018000 £1.60 £1.92
860 - SPIRAL SPRING FEI-30901003000.A3 30901003000 £1.60 £1.92
870 - PLATE FEI-32422095009.A3 32422095009 £13.30 £15.96
900 - INFORMATION SIGN FEI-32217084000.A15 32217084000 £2.82 £3.38
5000 - LOCKING PIN BF35-7 FEI-30235007005.A3 30235007005 £5.08 £6.10
5010 - RUBBER RING FEI-40612028008.A0 40612028008 £4.38 £5.26
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A163 32160003014 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A716 34130054061 -
