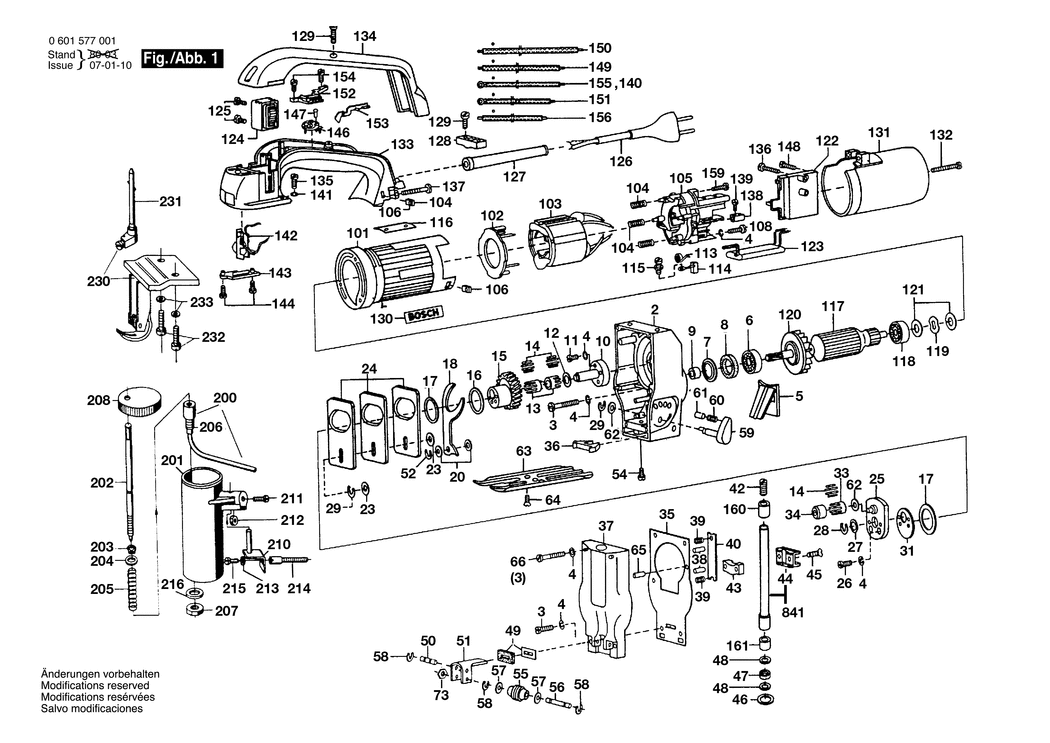

An exploded drawing and listing for the Bosch ---- / 0601577001 / EU 110 Volt
Ex VAT Inc VAT
2 - GEAR HOUSING BSD-2605806917.A0 2605806917 -
3 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A225 2910021122 £2.16 £2.59
4 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A597 2916690003 £1.75 £2.10
5 - HOUSING COVER BSD-2605500017.A10 2605500017 -
6 - GROOVE BALL BEARING 10 MM DIN 625 BSD-2600905007.A122 2600905007 -
7 - CUPPED WASHER BSD-2600500008.A10 2600500008 -
8 - FELT DISC BSD-2600108020.A15 2600108020 -
9 - RECEPTACLE BSD-2600400020.A83 2600400020 -
10 - BEARING BOLT BSD-2603123009.A10 2603123009 -
11 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A175 2910021118 £1.75 £2.10
12 - SHIM 0.5 MM BSD-2600101616.A30 2600101616 -
13 - NEEDLE-ROLLER CAGE BSD-2600913027.A14 2600913027 -
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A20 2603201037 £2.61 £3.13
15 - CYLINDRICAL GEAR Z=50 BSD-2606319037.A0 2606319037 -
16 - SHIM 1.0 MM BSD-2600102653.A58 2600102653 £1.75 £2.10
16 - SHIM 0.5 MM BSD-2600102652.A170 2600102652 £1.75 £2.10
18 - FORK LEVER BSD-2601923000.A17 2601923000 -
20 - SHIM 0.3 MM BSD-2600100515.A97 2600100515 £2.61 £3.13
20 - SHIM 0.5 MM BSD-2600100516.A128 2600100516 £2.16 £2.59
23 - SHIM 0.1 MM BSD-2600100625.A0 2600100625 -
23 - SHIM 0.2 MM BSD-2600100626.A238 2600100626 -
23 - SHIM 0.3 MM BSD-2600100627.A0 2600100627 -
23 - SHIM 0.5 MM BSD-2600100628.A298 2600100628 £1.75 £2.10
24 - COUNTERWEIGHT BSD-2601015030.A27 2601015030 -
25 - ECCENTRIC DISC BSD-2601072004.A1 2601072004 -
26 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910020120.A2 2910020120 -
27 - SHIM 0.2 MM BSD-2600100575.A78 2600100575 £2.16 £2.59
27 - SHIM 0.3 MM BSD-2600100576.A237 2600100576 -
27 - SHIM 0.5 MM BSD-2600100577.A81 2600100577 £1.75 £2.10
28 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A56 2916080910 £2.16 £2.59
29 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A2 2916080008 -
31 - ECCENTRIC DISC 0.3 MM BSD-2601072006.A13 2601072006 -
31 - ECCENTRIC DISC 0.5 MM BSD-2601072007.A1 2601072007 -
33 - NEEDLE-ROLLER CAGE BSD-2600913010.A5 2600913010 -
34 - NEEDLE BEARING BSD-2600917900.A101 2600917900 £8.67 £10.41
35 - SEALING PLATE BSD-2601015039.A3 2601015039 -
36 - AIR ELIMINATOR BSD-2602389001.A8 2602389001 -
37 - GEAR COVER BSD-2605808902.A0 2605808902 -
37 - GEAR COVER BSD-2605808901.A26 2605808901 -
38 - NEEDLE ROLLER A 3x15.8G2DIN5402 BSD-1903201044.A32 1903201044 £2.33 £2.80
39 - COMPRESSION SPRING BSD-2604613000.A22 2604613000 £1.75 £2.10
40 - GUIDE BSD-2601032014.A18 2601032014 -
42 - CLAMP SCREW BSD-2603400000.A0 2603400000 £4.26 £5.11
43 - CLAMPING SADDLE BSD-2602329011.A54 2602329011 £4.75 £5.70
44 - SLIDING PIECE 31/35 MM BSD-2601321022.A0 2601321022 -
45 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A259 2603421040 £1.75 £2.10
46 - SHIM 0.5 MM BSD-2600101612.A226 2600101612 £1.75 £2.10
47 - SEAL RING 0.5 MM BSD-2600290017.A147 2600290017 £1.75 £2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A224 2600112031 £1.75 £2.10
49 - SEALING PLATE BSD-2601015900.A13 2601015900 -
50 - PIVOT PIN BSD-2603105015.A9 2603105015 -
51 - GUIDE ROLLER BSD-2607001018.A5 2607001018 -
52 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A573 2916080007 £2.61 £3.13
54 - SOCKET HEAD CAP SCREW DIN 84-AM5x6-5.8 BSD-2910011148.A2 2910011148 £1.75 £2.10
55 - AXLE BSD-2600326900.A22 2600326900 -
58 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A12 2916080005 -
59 - SWITCH HANDLE BSD-2607200042.A15 2607200042 -
60 - COMPRESSION SPRING BSD-2604611023.A13 2604611023 -
61 - RATCHET SLEEVE BSD-2600506002.A17 2600506002 -
62 - SHIM 0.5 MM BSD-2600100568.A126 2600100568 £1.75 £2.10
62 - SHIM 1.0 MM BSD-2600100569.A148 2600100569 £1.75 £2.10
62 - SHIM 0.3 MM BSD-2600100570.A170 2600100570 £1.75 £2.10
63 - BASE PLATE BSD-2601016038.A10 2601016038 -
64 - COUNTERSUNK-HEAD SCREW DIN 63-AM5x10-8.8 BSD-2910501152.A5 2910501152 -
65 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A141 1903201042 £2.16 £2.59
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8 BSD-2910021132.A66 2910021132 £1.75 £2.10
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8 BSD-2910021122.A222 2910021122 £2.16 £2.59
73 - HEX NUT DIN 439-BM 4-04 BSD-2915051104.A59 2915051104 -
101 - GEAR HOUSING BSD-2607010003.A58 2607010003 -
102 - COVER DISC BSD-2600522009.A78 2600522009 -
103 - POLE SHOE 110V BSD-2604220250.A16 2604220250 -
104 - COMPRESSION SPRING BSD-2604611024.A57 2604611024 £2.16 £2.59
105 - COMMUTATOR END SHIELD BSD-2607010004.A1 2607010004 -
106 - SQUARE NUT M4 BSD-2603320001.A167 2603320001 £1.75 £2.10
108 - SOCKET HEAD CAP SCREW DIN 84-AM4x15-8.8 BSD-2910021125.A732 2910021125 £1.75 £2.10
113 - SPIRAL SPRING BSD-2604652000.A118 2604652000 -
114 - CARBON-BRUSH SET BSD-2604320902.A23 2604320902 -
115 - SOCKET HEAD CAP SCREW BSD-2603410010.A174 2603410010 -
116 - NAMEPLATE BSD-2601100038.A53 2601100038 -
117 - ARMATURE 110-115V BSD-2604010388.A3 2604010388 -
118 - GROOVE BALL BEARING 6x19x6 BSD-1900905019.A144 1900905019 £14.91 £17.89
119 - SHIM BSD-2600150003.A80 2600150003 £2.16 £2.59
120 - FAN BSD-2606610013.A109 2606610013 -
121 - SHIM 0.5 MM BSD-2600101657.A118 2600101657 -
121 - SHIM 0.2 MM BSD-2600101655.A118 2600101655 -
121 - SHIM 0.3 MM BSD-2600101656.A63 2600101656 -
123 - SUPPRESSION CAPACITOR BSD-2607329056.A55 2607329056 -
124 - ON-OFF SWITCH BSD-2607200048.A74 2607200048 -
125 - SOCKET HEAD CAP SCREW M3x10 MM BSD-2603410023.A115 2603410023 -
126 - ELEC. CABLE W/CONNECTION BSD-2604460080.A0 2604460080 -
127 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A588 2600703012 £2.80 £3.36
127 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A622 2600703013 £2.61 £3.13
127 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A619 2600703011 £2.80 £3.36
128 - CABLE CLIP BSD-2601035001.A2276 2601035001 £1.75 £2.10
129 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A278 2910211019 £1.75 £2.10
130 - MANUFACTURER'S NAMEPLATE BSD-1601110013.A126 1601110013 -
131 - HOUSING COVER BSD-2605500028.A5 2605500028 -
132 - TAPPING SCREW DIN 7971-3.9x38 BSD-2910215093.A33 2910215093 -
133 - AUXILIARY HANDLE BSD-2602025025.A1 2602025025 -
134 - STRAP-SHAPED HANDLE BSD-2602025026.A11 2602025026 -
135 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8 BSD-2910021154.A156 2910021154 £1.75 £2.10
136 - TAPPING SCREW DIN 7971-BZ3.9x25 BSD-2910211022.A117 2910211022 £1.75 £2.10
137 - SOCKET HEAD CAP SCREW DIN 84-BM4x30-8.8 BSD-2910021134.A213 2910021134 £1.75 £2.10
138 - CONNECTING TERMINAL BSD-2604490003.A9 2604490003 -
139 - SOCKET HEAD CAP SCREW BSD-2603410009.A21 2603410009 £1.32 £1.58
140 - CONNECTING CABLE L = 58 MM BSD-2604412016.A9 2604412016 -
141 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A150 2916690004 £1.75 £2.10
142 - NON-WW POTENTIOMETER BSD-2604505009.A9 2604505009 -
143 - FIXING PLATE BSD-2600099000.A9 2600099000 -
144 - TAPPING SCREW DIN 7971-ST2.9x9.5-F BSD-2910211005.A353 2910211005 £1.75 £2.10
146 - NON-WW POTENTIOMETER BSD-2604505004.A4 2604505004 -
147 - ROUND-HEAD GROOVED PIN BSD-2603133000.A5 2603133000 -
148 - SOCKET HEAD CAP SCREW DIN 84-AM3x4-5.8 BSD-2910011047.A4 2910011047 -
149 - CONNECTING CABLE L = 303 MM BSD-2604412013.A4 2604412013 -
150 - CONNECTING CABLE L = 368 MM BSD-2604412011.A9 2604412011 -
151 - ELEC. CABLE W/CONNECTION L = 273 MM BSD-2604440001.A4 2604440001 -
152 - ON-OFF SWITCH BSD-2607200141.A9 2607200141 -
153 - SWITCH-PAWL BSD-2602098003.A8 2602098003 -
154 - TAPPING SCREW DIN 7971-BZ2.2x6.5 BSD-2910211001.A13 2910211001 -
155 - CONNECTING CABLE L = 303 MM BSD-2604440004.A9 2604440004 -
156 - CONNECTING CABLE L = 243 MM BSD-2604412009.A4 2604412009 -
159 - TAPPING SCREW DIN 7971-BZ2.9x6.5 BSD-2910211004.A0 2910211004 -
160 - SINTERED-METAL BUSHING BSD-2600301046.A205 2600301046 £3.72 £4.47
161 - BUSHING BSD-2600301045.A22 2600301045 £2.80 £3.36
200 - COOLANT TANK BSD-2605405005.A5 2605405005 -
201 - COOLANT TANK BSD-2605405004.A8 2605405004 -
202 - VALVE NEEDLE BSD-2603102003.A8 2603102003 -
203 - SPRING RETAINING RING DIN 471-6x0.7-FSt BSD-2916640003.A22 2916640003 -
204 - PLAIN WASHER DIN 433-6.4-ST 50 BSD-2916011013.A48 2916011013 £1.75 £2.10
205 - COMPRESSION SPRING BSD-2604610002.A3 2604610002 -
206 - VALVE BOTTOM BSD-2600760001.A8 2600760001 -
207 - HEX NUT DIN 439-BM8-04 BSD-2915051107.A22 2915051107 £1.75 £2.10
208 - RESERVOIR CAP BSD-2600502005.A0 2600502005 -
210 - RETAINING BRACKET BSD-2601331016.A1 2601331016 -
211 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-5.8 BSD-2910011122.A104 2910011122 -
212 - HEX NUT DIN 439-BM 4-04 BSD-2915051104.A60 2915051104 -
213 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A598 2916690003 £1.75 £2.10
214 - STUD BOLT BSD-2603465007.A13 2603465007 -
215 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8 BSD-2910021118.A182 2910021118 £1.75 £2.10
216 - PLAIN WASHER 8.4 DIN 433-ST BSD-2916011015.A23 2916011015 £1.75 £2.10
231 - SUPPORT CLAMP BSD-2608598001.A16 2608598001 -
232 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8 BSD-2910011157.A272 2910011157 -
233 - SPRING LOCK WASHER DIN 128-A5-FST BSD-2916690004.A149 2916690004 £1.75 £2.10
654 - SAW BLADE SET T 101 B BSD-2608630030.A4 2608630030 £8.01 £9.61
655 - SAW BLADE SET HCS BSD-2608630033.A9 2608630033 £4.02 £4.82
656 - SAW BLADE SET BSD-2608630040.A4 2608630040 £6.22 £7.47
657 - SAW BLADE SET BSD-2608631013.A9 2608631013 £7.72 £9.26
841 - LIFTING ROD BSD-2600780913.A96 2600780913 -
