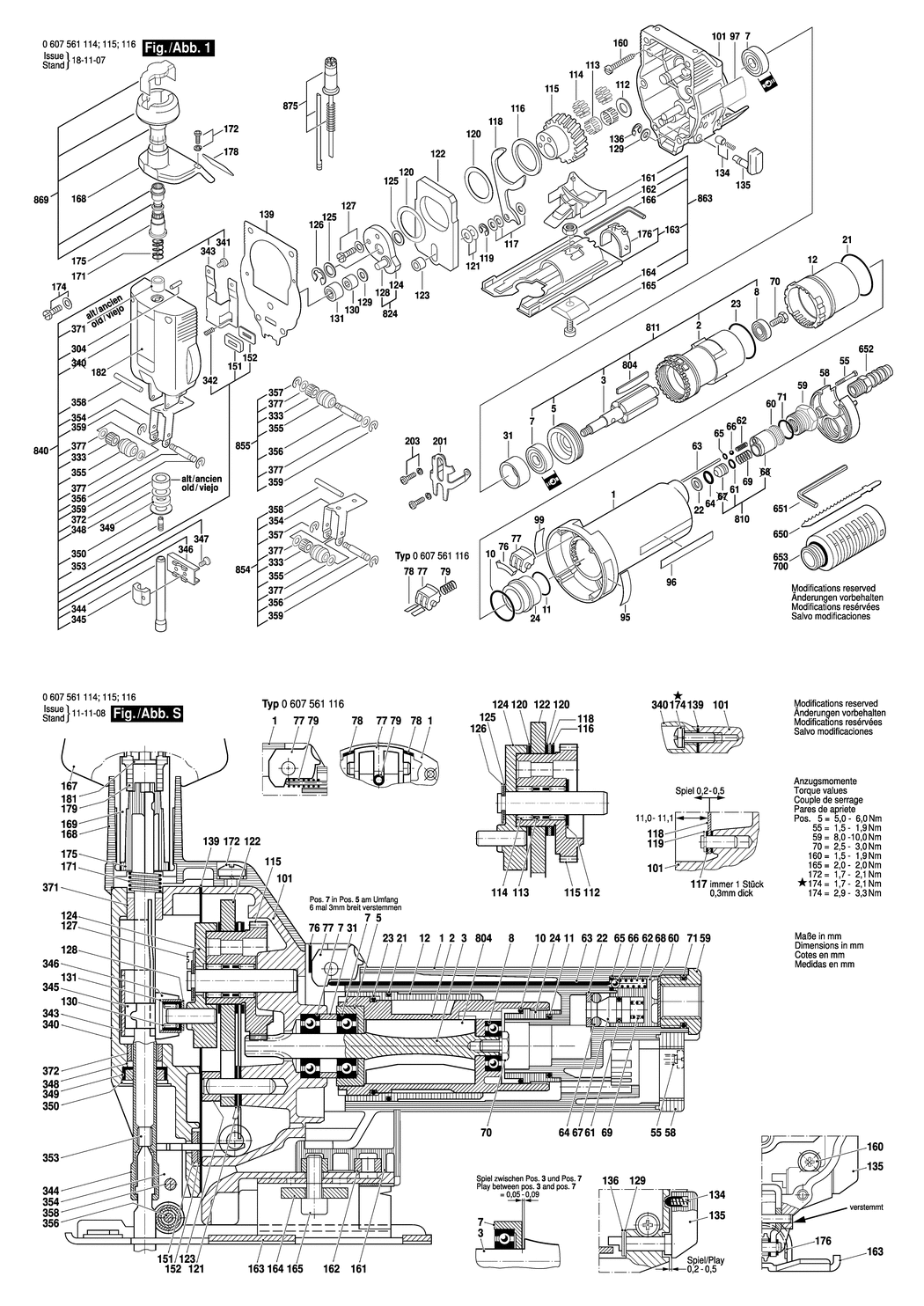

An exploded drawing and listing for the Bosch 400 WATT-SERIE / 0607561114 / ---
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-3605108059.A31 3605108059 £27.23 £32.68
2 - STATOR 400W BSD-3604090046.A5 3604090046 £102.57 £123.08
3 - ROTOR BSD-3604220047.A5 3604220047 £93.88 £112.65
5 - BEARING FLANGE BSD-3605700076.A61 3605700076 £48.38 £58.06
7 - GROOVE BALL BEARING 9x24x7 MM BSD-3600905039.A350 3600905039 £12.04 £14.45
8 - GROOVE BALL BEARING 7x17x5 BSD-1900905028.A7 1900905028 £33.74 £40.49
10 - O-RING 25x2 MM BSD-1900210124.A33 1900210124 £2.80 £3.36
11 - O-RING 20x2 MM BSD-1900210118.A68 1900210118 £2.80 £3.36
12 - REDUCTION SLEEVE BSD-3600421001.A17 3600421001 £8.67 £10.41
21 - O-RING 39.0x2.0 MM BSD-3600210022.A25 3600210022 £3.72 £4.47
22 - STOP DISC BSD-3600100022.A11 3600100022 £2.16 £2.59
23 - O-RING 33.0x2.0 MM BSD-2600210019.A40 2600210019 £1.75 £2.10
24 - GUIDE SLEEVE BSD-3600327001.A4 3600327001 £13.12 £15.75
31 - INTERMEDIATE RING BSD-3600200058.A0 3600200058 £21.52 £25.83
55 - TAPPING SCREW DIN 7971-ST3.9x22-F BSD-2910211021.A834 2910211021 £1.75 £2.10
58 - CONNECTION COVER BSD-3605500032.A30 3605500032 £8.67 £10.41
59 - FITTING BSD-3603462011.A31 3603462011 £14.91 £17.89
60 - FILTER SCREEN BSD-3600002004.A4 3600002004 £2.80 £3.36
61 - O-RING 6.0x2.0 MM BSD-3600210023.A23 3600210023 £3.72 £4.47
62 - COMPRESSION SPRING BSD-2604611025.A4 2604611025 £2.80 £3.36
63 - STRAIGHT PIN BSD-3604710054.A25 3604710054 £3.72 £4.47
64 - O-RING 5.94x3.53 MM BSD-3600210024.A33 3600210024 £2.16 £2.59
65 - O-RING 2.7x1.5 MM BSD-3600210025.A23 3600210025 £2.16 £2.59
66 - BALL DIN 5401-3 MM-III-ST BSD-1903230004.A124 1903230004 £2.16 £2.59
69 - COMPRESSION SPRING BSD-3604610024.A12 3604610024 £1.75 £2.10
70 - HEX SCREW BSD-3603450006.A10 3603450006 £5.30 £6.36
71 - O-RING 15x2 MM BSD-1900210112.A44 1900210112 £2.61 £3.13
76 - LEAF SPRING BSD-3604682002.A1 3604682002 £10.10 £12.12
77 - TOGGLE SWITCH BSD-3602033001.A29 3602033001 £3.72 £4.47
95 - NAMEPLATE BSD-160111A3HF.A144 160111A3HF £3.72 £4.47
96 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A264 1601110481 £2.16 £2.59
97 - STICKER BSD-2601110055.A3 2601110055 £4.26 £5.11
99 - REFERENCE PLATE BSD-3601119236.A1313 3601119236 £3.72 £4.47
101 - GEAR HOUSING BSD-3605808008.A6 3605808008 £81.81 £98.17
112 - SHIM 0.5 MM BSD-2600101616.A447 2600101616 -
113 - NEEDLE-ROLLER CAGE BSD-2600913036.A38 2600913036 £1.75 £2.10
114 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A137 2603201037 £2.61 £3.13
115 - ECCENTRIC COG WHEEL BSD-1619P02581.A7 1619P02581 £21.68 £26.01
116 - SHIM 1.0 MM BSD-2600102653.A157 2600102653 £1.75 £2.10
117 - SHIM 0.3 MM BSD-2600100515.A170 2600100515 £2.61 £3.13
117 - SHIM 0.5 MM BSD-2600100516.A61 2600100516 £2.16 £2.59
118 - FORK LEVER BSD-2601923004.A114 2601923004 £2.80 £3.36
119 - LOCKING WASHER 4 DIN 6799 BSD-2916080907.A19 2916080907 £2.16 £2.59
120 - SHIM 0.5 MM BSD-2600102652.A71 2600102652 £1.75 £2.10
121 - SHIM 0.1 MM BSD-2600100625.A155 2600100625 -
121 - SHIM 0.2 MM BSD-2600100626.A73 2600100626 -
121 - SHIM 0.3 MM BSD-2600100627.A183 2600100627 -
121 - SHIM 0.5 MM BSD-2600100628.A97 2600100628 £1.75 £2.10
122 - COUNTERWEIGHT BSD-2601098003.A53 2601098003 £8.67 £10.41
123 - SPACER SLEEVE BSD-2600309009.A121 2600309009 £1.75 £2.10
124 - ECCENTRIC DISC BSD-2601072010.A2 2601072010 -
125 - SHIM 0.2 MM BSD-2600100575.A278 2600100575 £2.16 £2.59
125 - SHIM 0.3 MM BSD-2600100576.A12 2600100576 -
125 - SHIM 0.5 MM BSD-2600100577.A285 2600100577 £1.75 £2.10
126 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A288 2916080910 £2.16 £2.59
127 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A118 2914551176 £1.75 £2.10
127 - SCREW AND WASHER ASSEMBLY M 4x12 MM BSD-2914501028.A18 2914501028 £1.75 £2.10
128 - BEARING BOLT BSD-2603100024.A0 2603100024 -
129 - SHIM 0.5 MM BSD-2600100568.A279 2600100568 £1.75 £2.10
129 - SHIM 1.0 MM BSD-2600100569.A12 2600100569 £1.75 £2.10
129 - SHIM 0.3 MM BSD-2600100607.A827 2600100607 £1.75 £2.10
130 - NEEDLE-ROLLER BEARING dia6 MM BSD-2600914010.A806 2600914010 £2.80 £3.36
131 - BEARING SLEEVE BSD-2600400012.A31 2600400012 £4.26 £5.11
134 - RATCHET CAP BSD-2600590006.A1001 2600590006 £1.75 £2.10
135 - ROTARY KNOB BSD-2602026036.A126 2602026036 -
136 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A197 2916080908 £1.75 £2.10
139 - SEAL BSD-2601015050.A54 2601015050 £2.61 £3.13
151 - SEALING PLATE BSD-2601015055.A6 2601015055 £1.95 £2.34
152 - FIXING PLATE 0.6 MM BSD-2601015008.A38 2601015008 £2.16 £2.59
160 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST BSD-2912401020.A1074 2912401020 £2.16 £2.59
161 - SEALING CAP BSD-3605500035.A6 3605500035 £5.30 £6.36
162 - HEX NUT BSD-3603435044.A41 3603435044 £2.16 £2.59
163 - BASE PLATE BSD-2601016903.A137 2601016903 £16.41 £19.69
164 - PROFILE BEADING BSD-2601030019.A75 2601030019 £2.61 £3.13
165 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A86 2910141197 £1.75 £2.10
166 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A475 1907950006 £4.26 £5.11
168 - FLANGED ELBOW FITTING BSD-3605703057.A0 3605703057 £12.04 £14.45
171 - COMPRESSION SPRING BSD-2604617003.A70 2604617003 -
172 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A60 2603410054 £2.61 £3.13
174 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A145 2603410049 £1.75 £2.10
175 - COUPLING HALF BSD-2606491001.A0 2606491001 -
176 - SCALE PLATE BSD-2601328044.A161 2601328044 £2.61 £3.13
178 - STICKER BSD-2601110930.A23 2601110930 £1.32 £1.58
182 - STICKER BSD-2601110764.A18 2601110764 -
201 - SAFETY DEVICE BSD-2601322021.A61 2601322021 £4.26 £5.11
203 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A144 2603410049 £1.75 £2.10
304 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A449 1903201042 £2.16 £2.59
333 - NEEDLE BEARING BSD-2600917000.A13 2600917000 £5.58 £6.70
340 - GEAR COVER BSD-2605808079.A5 2605808079 -
341 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A289 2603410048 £1.75 £2.10
342 - COMPRESSION SPRING BSD-2604613000.A136 2604613000 £1.75 £2.10
343 - GUIDE BRACKET BSD-1616B00224.A198 1616B00224 £11.32 £13.58
344 - LIFTING ROD BSD-1619P12765.A11 1619P12765 £16.41 £19.69
345 - CLAMPING SADDLE BSD-2602329011.A259 2602329011 £4.75 £5.70
346 - SLIDING PIECE BSD-1619P12767.A6 1619P12767 £9.47 £11.36
347 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A115 2603421040 £1.75 £2.10
348 - SUPPORTING DISC 0.5 MM BSD-2600112031.A10 2600112031 £1.75 £2.10
349 - SEAL RING 0.5 MM BSD-2600290017.A115 2600290017 £1.75 £2.10
350 - SHIM 0.5 MM BSD-2600101612.A92 2600101612 £1.75 £2.10
353 - CLAMP SCREW BSD-2603490006.A0 2603490006 -
354 - ROLLER LEVER BSD-2601321046.A4 2601321046 £7.78 £9.33
355 - GUIDE ROLLER BSD-2600326019.A8 2600326019 £5.58 £6.70
356 - BEARING BOLT BSD-2603105089.A0 2603105089 £1.75 £2.10
357 - LOCKING WASHER BSD-2600116011.A116 2600116011 £2.16 £2.59
358 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A22 2917530101 £2.80 £3.36
359 - LOCKING WASHER BSD-2916080905.A22 2916080905 £1.75 £2.10
371 - SINTERED-METAL BUSHING BSD-2600301046.A71 2600301046 £3.72 £4.47
372 - BUSHING BSD-2600301045.A156 2600301045 £2.80 £3.36
377 - SHIM 0.2 MM BSD-2600100032.A105 2600100032 £1.75 £2.10
650 - SAW BLADE SET BSD-2607010403.A37 2607010403 £7.78 £9.33
651 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A476 1907950006 £4.26 £5.11
652 - HOSE FITTING BSD-3603386068.A37 3603386068 £21.52 £25.83
653 - SILENCER BSD-3607000073.A121 3607000073 £18.96 £22.75
700 - SILENCER BSD-3607000073.A122 3607000073 £18.96 £22.75
804 - ROTOR LAMELLA BSD-3607030030.A6 3607030030 £31.64 £37.97
810 - PISTON ASSEMBLY GROUP BSD-3607030494.A23 3607030494 £18.96 £22.75
811 - ROTOR BSD-3607030124.A0 3607030124 £306.65 £367.98
824 - ECCENTRIC DISC BSD-2601072901.A2 2601072901 £7.36 £8.83
840 - GEAR COVER BSD-2605808920.A22 2605808920 £70.24 £84.29
854 - ROLLER LEVER BSD-2601321902.A7 2601321902 -
855 - ROLLER SET BSD-1619P01375.A68 1619P01375 £11.30 £13.56
863 - BASE PLATE BSD-3607030131.A4 3607030131 £23.86 £28.63
869 - HANDLE BSD-3602025030.A4 3602025030 -
875 - MODIFICATION SET 100-240V BSD-2606491917.A72 2606491917 £21.52 £25.83
