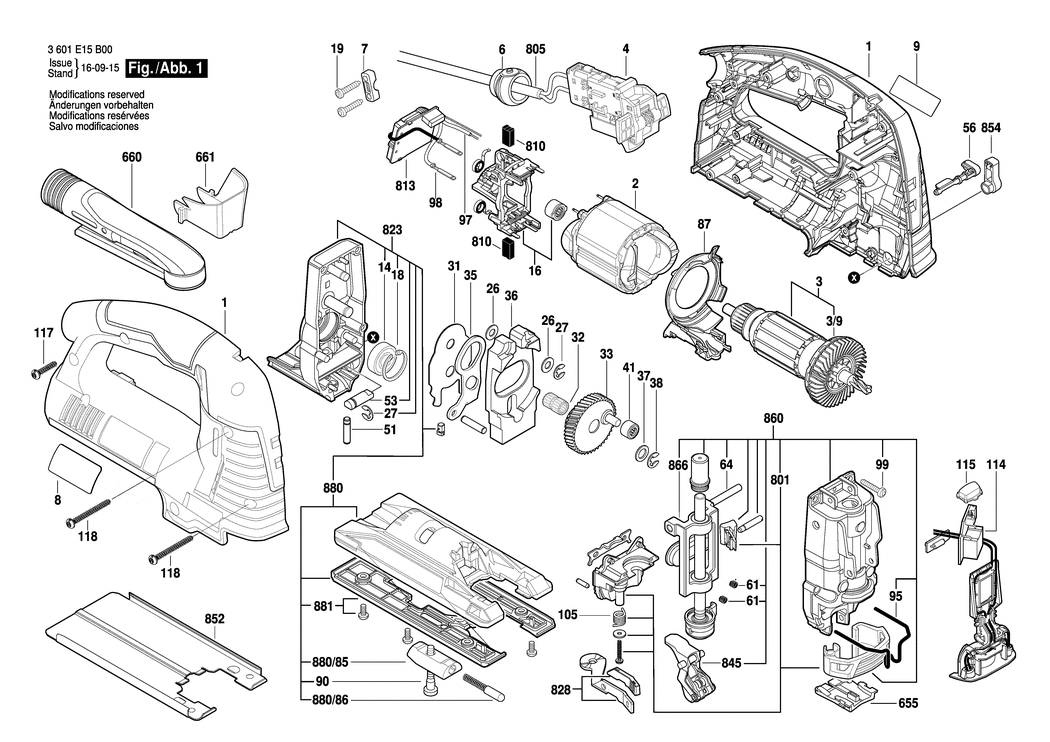

An exploded drawing and listing for the Bosch BJS TH140 / 3601E15B00 / EU 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605105197.A0 2605105197 £36.63 £43.96
2 - FIELD 230-240V BSD-2604220740.A30 2604220740 £37.26 £44.71
3 - ARMATURE 230-240V BSD-2604011420.A32 2604011420 £54.42 £65.30
3/9 - FAN BSD-2606610089.A18 2606610089 £5.30 £6.36
4 - SWITCH BSD-2607200694.A1 2607200694 £21.52 £25.83
6 - GROMMET BSD-2600707078.A8 2600707078 £2.80 £3.36
7 - CABLE CLIP BSD-2601035004.A145 2601035004 £2.16 £2.59
8 - NAMEPLATE BSD-2601112505.A0 2601112505 £2.61 £3.13
9 - MANUFACTURER'S NAMEPLATE Berner BSD-2601112556.A3 2601112556 £2.61 £3.13
14 - GROOVE BALL BEARING 9x24x7 BSD-2600905112.A8 2600905112 £12.04 £14.45
16 - BRUSH PLATE BSD-2605807137.A26 2605807137 £21.68 £26.01
18 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A443 2916660008 £2.16 £2.59
19 - SCREW 4x16 BSD-2603490022.A663 2603490022 £1.75 £2.10
26 - SHIM BSD-2600100040.A32 2600100040 £1.75 £2.10
27 - LOCKING WASHER 5 DIN 6799 BSD-2916080908.A130 2916080908 £1.75 £2.10
31 - SHIM BSD-2600101124.A39 2600101124 £1.75 £2.10
32 - NEEDLE-ROLLER ASSEMBLY BSD-2600913040.A26 2600913040 £5.58 £6.70
33 - ECCENTRIC COG WHEEL BSD-2606320107.A30 2606320107 £21.52 £25.83
35 - FORK LEVER BSD-2601923015.A8 2601923015 £2.80 £3.36
36 - COUNTERWEIGHT BSD-2601098120.A32 2601098120 £18.96 £22.75
37 - SHIM 0.3 MM BSD-2600101047.A379 2600101047 £1.75 £2.10
38 - LOCKING WASHER DIN 6799-6-FST BSD-2916080909.A86 2916080909 £1.75 £2.10
41 - NEEDLE BEARING BSD-2600917900.A312 2600917900 £8.67 £10.41
51 - BEARING BOLT BSD-2603105131.A11 2603105131 £2.16 £2.59
53 - CONTROL SHAFT BSD-2603124157.A32 2603124157 £5.30 £6.36
56 - ROTARY KNOB BSD-2602026193.A5 2602026193 £2.61 £3.13
61 - COMPRESSION SPRING BSD-2604610140.A2 2604610140 £1.75 £2.10
64 - STRAIGHT PIN BSD-2601322045.A35 2601322045 £1.75 £2.10
87 - AIR-DEFLECTOR RING BSD-2605500206.A23 2605500206 £10.10 £12.12
90 - HEX SOCKET HEAD CAP SCREW DIN 7984 M6x30-8.8 BSD-2910131205.A0 2910131205 £2.16 £2.59
95 - PROTECTING COVER BSD-2603101060.A9 2603101060 £4.26 £5.11
97 - EARTH CONDUCTOR BSD-2604448270.A21 2604448270 £1.75 £2.10
98 - CONNECTING CABLE BSD-2604448365.A1 2604448365 £2.16 £2.59
99 - THREAD-FORMING TAP. SCREW BSD-2603410051.A48 2603410051 £1.75 £2.10
105 - TORSION SPRING BSD-2604690060.A28 2604690060 £1.75 £2.10
114 - EL LUMA MODULE 230V BSD-1607233384.A37 1607233384 £31.64 £37.97
115 - HEADLAMP SWITCH BSD-2600030032.A2 2600030032 £2.61 £3.13
117 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A1083 2603490023 £1.75 £2.10
118 - TORX OVAL-HEAD SCREW 4x40 BSD-2603490027.A105 2603490027 £1.75 £2.10
655 - SPLINTERING PROTECTOR BSD-2601016093.A3 2601016093 £4.26 £5.11
660 - SUCTION SOCKET BSD-2605730061.A22 2605730061 £18.96 £22.75
661 - COVERING HOOD BSD-2605510296.A26 2605510296 £3.72 £4.47
801 - EJECTION LEVER BSD-2607990154.A0 2607990154 £5.30 £6.36
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A232 1607000386 £21.52 £25.83
810 - CARBON-BRUSH SET BSD-2604320918.A26 2604320918 £12.04 £14.45
813 - SPEED GOVERNOR 230V BSD-160723358H.A0 160723358H £54.42 £65.30
823 - GEAR HOUSING BSD-2605806869.A4 2605806869 £120.11 £144.13
828 - TENSIONING LEVER BSD-2602098025.A5 2602098025 £6.52 £7.83
845 - ROLLER LEVER BSD-2601321909.A19 2601321909 £46.37 £55.64
852 - WORK BOARD BSD-2601098121.A9 2601098121 £18.96 £22.75
854 - ROTARY KNOB BSD-2602026915.A0 2602026915 £2.61 £3.13
860 - GEAR COVER BSD-2605808941.A1 2605808941 £156.22 £187.46
866 - LIFTING ROD BSD-1600A00HG1.A19 1600A00HG1 £63.50 £76.20
880 - BASE PLATE BSD-2601016911.A2 2601016911 £48.38 £58.06
880/85 - CLAMPING PIECE BSD-2602317067.A9 2602317067 £4.26 £5.11
880/86 - RATCHET CAP BSD-2600590018.A4 2600590018 £2.80 £3.36
881 - WORK BOARD BSD-2601099900.A2 2601099900 £14.91 £17.89
