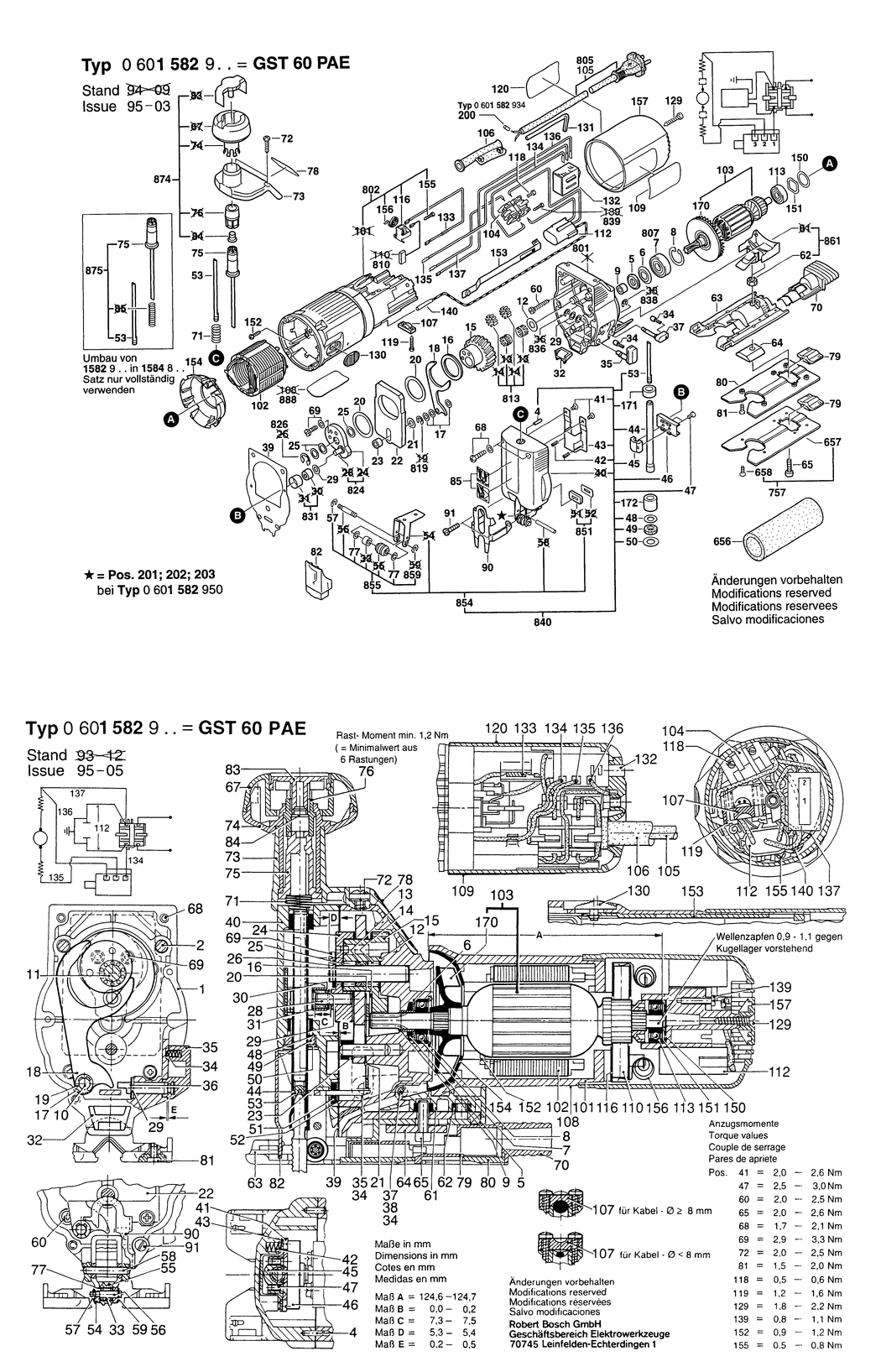

An exploded drawing and listing for the Bosch GST 60 PAE / 0601582903 / EU 220 Volt
Ex VAT Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A163 1903201042 £2.16 £2.59
5 - FELT WASHER BSD-2600108077.A366 2600108077 £1.75 £2.10
6 - CUPPED WASHER BSD-2600500002.A515 2600500002 £1.75 £2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A106 2600905021 £8.67 £10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A174 2916660008 £2.16 £2.59
9 - RECEPTACLE BSD-2600400008.A620 2600400008 £1.75 £2.10
12 - SHIM 0.5 MM BSD-2600101616.A66 2600101616 -
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A197 1619P02581 £21.68 £26.01
16 - SHIM 1.0 MM BSD-2600102653.A99 2600102653 £1.75 £2.10
17 - SHIM 0.3 MM BSD-2600100515.A55 2600100515 £2.61 £3.13
17 - SHIM 0.5 MM BSD-2600100516.A170 2600100516 £2.16 £2.59
18 - FORK LEVER BSD-2601923004.A131 2601923004 £2.80 £3.36
20 - SHIM 0.5 MM BSD-2600102652.A129 2600102652 £1.75 £2.10
21 - SHIM 0.1 MM BSD-2600100625.A21 2600100625 -
21 - SHIM 0.2 MM BSD-2600100626.A217 2600100626 -
21 - SHIM 0.3 MM BSD-2600100627.A21 2600100627 -
21 - SHIM 0.5 MM BSD-2600100628.A277 2600100628 £1.75 £2.10
22 - COUNTERWEIGHT BSD-2601098003.A169 2601098003 £8.67 £10.41
23 - SPACER SLEEVE BSD-2600309009.A134 2600309009 £1.75 £2.10
25 - SHIM 0.2 MM BSD-2600100575.A97 2600100575 £2.16 £2.59
25 - SHIM 0.3 MM BSD-2600100576.A218 2600100576 -
25 - SHIM 0.5 MM BSD-2600100577.A100 2600100577 £1.75 £2.10
29 - SHIM 0.5 MM BSD-2600100568.A85 2600100568 £1.75 £2.10
29 - SHIM 1.0 MM BSD-2600100569.A189 2600100569 £1.75 £2.10
29 - SHIM 0.3 MM BSD-2600100607.A361 2600100607 £1.75 £2.10
32 - AIR ELIMINATOR BSD-2602305042.A162 2602305042 £1.75 £2.10
34 - RATCHET CAP BSD-2600590006.A419 2600590006 £1.75 £2.10
35 - ROTARY KNOB BSD-2602026036.A7 2602026036 -
37 - ROTARY KNOB BSD-2602026037.A174 2602026037 £2.80 £3.36
39 - SEAL BSD-2601015050.A155 2601015050 £2.61 £3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A159 2603410048 £1.75 £2.10
42 - COMPRESSION SPRING BSD-2604613000.A21 2604613000 £1.75 £2.10
43 - GUIDE BRACKET BSD-1616B00224.A53 1616B00224 £11.32 £13.58
44 - LIFTING ROD BSD-1619P12765.A98 1619P12765 £16.41 £19.69
45 - CLAMPING SADDLE BSD-2602329011.A10 2602329011 £4.75 £5.70
46 - SLIDING PIECE BSD-1619P12767.A130 1619P12767 £9.47 £11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A218 2603421040 £1.75 £2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A207 2600112031 £1.75 £2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A154 2600290017 £1.75 £2.10
50 - SHIM 0.5 MM BSD-2600101612.A190 2600101612 £1.75 £2.10
57 - LOCKING WASHER BSD-2600116011.A25 2600116011 £2.16 £2.59
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A754 2603490024 £1.75 £2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A97 2915011007 -
63 - BASE PLATE BSD-2608000073.A45 2608000073 £21.68 £26.01
64 - PROFILE BEADING BSD-2601030007.A2 2601030007 £2.52 £3.02
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A306 2910141197 £1.75 £2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A248 2603410049 £1.75 £2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A20 2914551176 £1.75 £2.10
70 - SUCTION NOZZLE BSD-2605730033.A0 2605730033 £2.33 £2.80
71 - COMPRESSION SPRING BSD-2604617003.A8 2604617003 -
72 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A105 2603410054 £2.61 £3.13
73 - FLANGED FITTING BSD-2605702016.A33 2605702016 £7.36 £8.83
77 - SHIM 0.2 MM BSD-2600100032.A9 2600100032 £1.75 £2.10
78 - STICKER BSD-2601110930.A28 2601110930 £1.32 £1.58
79 - PLATE BSD-2601099013.A38 2601099013 £4.26 £5.11
80 - PLATE BSD-2601099029.A7 2601099029 £4.26 £5.11
81 - SOCKET HEAD CAP SCREW DIN 84-M4x6-4.8 BSD-2910001116.A0 2910001116 £1.75 £2.10
82 - COVERING HOOD BSD-2601320022.A40 2601320022 £2.48 £2.97
90 - SAFETY DEVICE BSD-2601322021.A109 2601322021 £4.26 £5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A46 2910011128 £1.75 £2.10
102 - FIELD 220-240V BSD-2604220709.A74 2604220709 £27.23 £32.68
103 - ARMATURE 230-240V BSD-2604010578.A19 2604010578 £48.38 £58.06
104 - SWITCH BSD-2607200674.A109 2607200674 £16.41 £19.69
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A21 2600703027 £1.75 £2.10
107 - CABLE CLIP BSD-2601035001.A2295 2601035001 £1.75 £2.10
109 - STICKER BSD-2601110905.A0 2601110905 -
112 - SUPPRESSION FILTER BSD-2607329104.A75 2607329104 £10.10 £12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A578 1900905018 £18.96 £22.75
116 - BRUSH HOLDER BSD-1600A003G4.A184 1600A003G4 £3.72 £4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2375 2603410001 £1.75 £2.10
119 - SCREW 4x16 BSD-2603490022.A2157 2603490022 £1.75 £2.10
120 - STICKER BSD-2601110763.A13 2601110763 -
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A6 2910601321 -
130 - SWITCH HANDLE BSD-2602026015.A18 2602026015 £1.75 £2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A826 1907950006 £4.26 £5.11
132 - SPEED GOVERNOR 220-240V BSD-2607230115.A55 2607230115 -
133 - SUPPRESSOR BOX BSD-2604465106.A110 2604465106 £4.26 £5.11
134 - CONNECTING CABLE L=86MM BSD-2604448044.A20 2604448044 £1.75 £2.10
135 - CABLE L=103MM BSD-2604448140.A47 2604448140 £1.32 £1.58
136 - CONNECTING CABLE L=128MM BSD-2604448046.A20 2604448046 £1.32 £1.58
137 - CONNECTING CABLE L=125MM BSD-2604448040.A94 2604448040 £2.61 £3.13
140 - INSULATION TUBING BSD-2600409017.A51 2600409017 £1.75 £2.10
150 - SHIM WASHER 0.3 MM BSD-2600101027.A303 2600101027 £1.75 £2.10
150 - SHIM 0.2 MM BSD-2600101022.A188 2600101022 £1.75 £2.10
150 - SHIM 0.5 MM BSD-2600101020.A444 2600101020 £1.75 £2.10
151 - SHIM BSD-2600150004.A574 2600150004 £2.16 £2.59
152 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A284 2603435015 £2.16 £2.59
153 - ADJUSTING SLIDE BSD-2602319005.A185 2602319005 £1.75 £2.10
154 - COVER DISC BSD-2601328045.A292 2601328045 £2.16 £2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A321 2603490017 £2.16 £2.59
156 - SPIRAL SPRING BSD-2604652009.A7 2604652009 £1.75 £2.10
157 - HOUSING COVER BSD-2600508037.A42 2600508037 £7.36 £8.83
170 - FAN BSD-2606610049.A229 2606610049 £2.16 £2.59
171 - SINTERED-METAL BUSHING BSD-2600301046.A227 2600301046 £3.72 £4.47
172 - BUSHING BSD-2600301045.A0 2600301045 £2.80 £3.36
658 - COUNTERSUNK-HEAD SCREW BSD-2910861118.A8 2910861118 £1.75 £2.10
710/800 - SUPPORT CLAMP BSD-2608598001.A21 2608598001 -
757 - WORK BOARD BSD-2607001085.A5 2607001085 £11.30 £13.56
801 - GEAR HOUSING BSD-2605808917.A63 2605808917 £63.50 £76.20
802 - MOTOR HOUSING BSD-2605108904.A48 2605108904 £23.86 £28.63
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F BSD-1607000386.A532 1607000386 £21.52 £25.83
810 - CARBON-BRUSH SET BSD-2604320912.A189 2604320912 £10.10 £12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A0 2607001130 £5.58 £6.70
819 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A533 2916080007 £2.61 £3.13
824 - ECCENTRIC DISC BSD-2601072901.A155 2601072901 £7.36 £8.83
826 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A18 2916080910 £2.16 £2.59
831 - NEEDLE BEARING BSD-2600917900.A36 2600917900 £8.67 £10.41
836 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A36 2916080008 -
838 - SPRING RETAINING RING BSD-2600116006.A17 2600116006 £1.75 £2.10
839 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A446 2910611006 £1.75 £2.10
840 - GEAR COVER BSD-2605808920.A36 2605808920 £70.24 £84.29
851 - SEALING PLATE BSD-2601015901.A51 2601015901 £2.80 £3.36
854 - ROLLER LEVER BSD-2601321902.A124 2601321902 -
855 - ROLLER SET BSD-1619P01375.A46 1619P01375 £11.30 £13.56
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A47 2916080005 -
861 - FAN COVER BSD-2605500900.A138 2605500900 £4.26 £5.11
874 - HANDLE BSD-2602026900.A3 2602026900 -
875 - MODIFICATION SET 100-240V BSD-2606491917.A5 2606491917 £21.52 £25.83
888 - NAMEPLATE BSD-160111A3H3.A3895 160111A3H3 £2.61 £3.13
