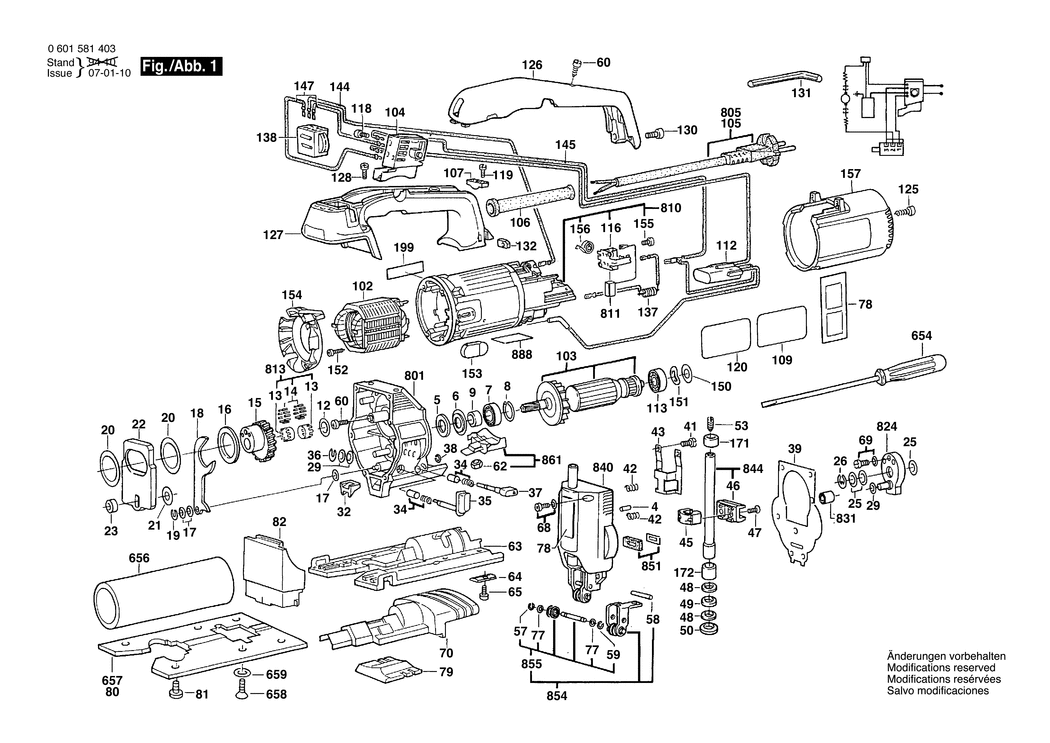

An exploded drawing and listing for the Bosch GST 60 PBAE / 0601581403 / EU 220 Volt
Ex VAT Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A462 1903201042 £2.16 £2.59
5 - FELT WASHER BSD-2600108077.A99 2600108077 £1.75 £2.10
6 - CUPPED WASHER BSD-2600500002.A111 2600500002 £1.75 £2.10
7 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A673 2600905021 £8.67 £10.41
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A855 2916660008 £2.16 £2.59
9 - RECEPTACLE BSD-2600400008.A195 2600400008 £1.75 £2.10
12 - SHIM 0.5 MM BSD-2600101616.A231 2600101616 -
13 - NEEDLE-ROLLER CAGE BSD-2600913036.A58 2600913036 £1.75 £2.10
14 - NEEDLE ROLLER 1.5x5.8 MM BSD-2603201037.A108 2603201037 £2.61 £3.13
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A115 1619P02581 £21.68 £26.01
16 - SHIM 1.0 MM BSD-2600102653.A165 2600102653 £1.75 £2.10
17 - SHIM 0.3 MM BSD-2600100515.A167 2600100515 £2.61 £3.13
17 - SHIM 0.5 MM BSD-2600100516.A64 2600100516 £2.16 £2.59
18 - FORK LEVER BSD-2601923004.A56 2601923004 £2.80 £3.36
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A136 2916080007 £2.61 £3.13
20 - SHIM 0.5 MM BSD-2600102652.A63 2600102652 £1.75 £2.10
21 - SHIM 0.1 MM BSD-2600100625.A165 2600100625 -
21 - SHIM 0.2 MM BSD-2600100626.A63 2600100626 -
21 - SHIM 0.3 MM BSD-2600100627.A194 2600100627 -
21 - SHIM 0.5 MM BSD-2600100628.A67 2600100628 £1.75 £2.10
22 - COUNTERWEIGHT BSD-2601098003.A113 2601098003 £8.67 £10.41
23 - SPACER SLEEVE BSD-2600309009.A2 2600309009 £1.75 £2.10
25 - SHIM 0.2 MM BSD-2600100575.A164 2600100575 £2.16 £2.59
25 - SHIM 0.3 MM BSD-2600100576.A155 2600100576 -
25 - SHIM 0.5 MM BSD-2600100577.A165 2600100577 £1.75 £2.10
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A403 2916080910 £2.16 £2.59
29 - SHIM 0.5 MM BSD-2600100568.A154 2600100568 £1.75 £2.10
29 - SHIM 1.0 MM BSD-2600100569.A137 2600100569 £1.75 £2.10
29 - SHIM 0.3 MM BSD-2600100607.A836 2600100607 £1.75 £2.10
32 - AIR ELIMINATOR BSD-2602305042.A53 2602305042 £1.75 £2.10
34 - RATCHET CAP BSD-2600590006.A1247 2600590006 £1.75 £2.10
35 - ROTARY KNOB BSD-2602026036.A144 2602026036 -
36 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A222 2916080008 -
37 - ROTARY KNOB BSD-2602026037.A51 2602026037 £2.80 £3.36
38 - SPRING RETAINING RING BSD-2600116006.A36 2600116006 £1.75 £2.10
39 - SEAL BSD-2601015050.A118 2601015050 £2.61 £3.13
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A470 2603410048 £1.75 £2.10
42 - COMPRESSION SPRING BSD-2604613000.A272 2604613000 £1.75 £2.10
43 - GUIDE BRACKET BSD-1616B00224.A83 1616B00224 £11.32 £13.58
45 - CLAMPING SADDLE BSD-2602329011.A146 2602329011 £4.75 £5.70
46 - SLIDING PIECE 31/35 MM BSD-2601321022.A53 2601321022 -
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A50 2603421040 £1.75 £2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A121 2600112031 £1.75 £2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A62 2600290017 £1.75 £2.10
50 - SHIM 0.5 MM BSD-2600101612.A179 2600101612 £1.75 £2.10
53 - CLAMP SCREW BSD-2603400000.A242 2603400000 £4.26 £5.11
57 - LOCKING WASHER BSD-2600116011.A47 2600116011 £2.16 £2.59
58 - STRAIGHT PIN DIN 6325-4M6x24 BSD-2917530101.A0 2917530101 £2.80 £3.36
59 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A287 2916080005 -
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A98 2603490024 £1.75 £2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1008 2915011007 -
63 - BASE PLATE BSD-2608000073.A15 2608000073 £21.68 £26.01
64 - PROFILE BEADING BSD-2601030007.A30 2601030007 £2.52 £3.02
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A148 2910141197 £1.75 £2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A3 2603410049 £1.75 £2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A63 2914551176 £1.75 £2.10
70 - SUCTION NOZZLE BSD-2605730033.A23 2605730033 £2.33 £2.80
77 - SHIM 0.2 MM BSD-2600100032.A149 2600100032 £1.75 £2.10
78 - STICKER BSD-2601110764.A30 2601110764 -
79 - PLATE BSD-2601099013.A14 2601099013 £4.26 £5.11
80 - PLATE BSD-2601099029.A22 2601099029 £4.26 £5.11
81 - SOCKET HEAD CAP SCREW DIN 84-AM4x6-8.8 BSD-2910021116.A272 2910021116 £2.16 £2.59
82 - COVERING HOOD BSD-2601320022.A1 2601320022 £2.48 £2.97
90 - SAFETY DEVICE BSD-2601322021.A53 2601322021 £4.26 £5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A199 2910011128 £1.75 £2.10
102 - FIELD 220-240V BSD-2604220709.A73 2604220709 £27.23 £32.68
103 - ARMATURE 230-240V BSD-2604010578.A146 2604010578 £48.38 £58.06
104 - SWITCH BSD-2607200260.A112 2607200260 £11.30 £13.56
106 - GROMMET dia8.2-dia9.4x95 MM BSD-2600703026.A5 2600703026 £1.32 £1.58
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A106 2600703027 £1.75 £2.10
106 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703028.A5 2600703028 £1.75 £2.10
107 - CABLE CLIP BSD-2601035001.A921 2601035001 £1.75 £2.10
109 - STICKER BSD-2601110786.A0 2601110786 -
112 - SUPPRESSION FILTER BSD-2607329105.A10 2607329105 -
113 - BALL BEARING 7x22x7 BSD-1900905018.A1198 1900905018 £18.96 £22.75
116 - BRUSH HOLDER BSD-1600A003G4.A387 1600A003G4 £3.72 £4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A786 2603410001 £1.75 £2.10
119 - TAPPING SCREW DIN 7981-ST3.9x16-C-H BSD-2910611019.A0 2910611019 £2.80 £3.36
120 - STICKER BSD-2601110763.A20 2601110763 -
125 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A166 2910601321 -
126 - STRAP-SHAPED HANDLE BSD-2602025040.A10 2602025040 £11.78 £14.13
127 - STRAP-SHAPED HANDLE BSD-2602025041.A26 2602025041 £8.49 £10.19
128 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A58 2603410054 £2.61 £3.13
130 - SCREW AND WASHER ASSEMBLY M 4x20 MM BSD-2914501021.A20 2914501021 £1.75 £2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A102 1907950006 £4.26 £5.11
132 - SQUARE NUT M4 BSD-2603320001.A119 2603320001 £1.75 £2.10
137 - SUPPRESSOR BOX BSD-2604465106.A7 2604465106 £4.26 £5.11
138 - SPEED GOVERNOR 220-240V BSD-2607230115.A54 2607230115 -
144 - CONNECTING CABLE L = 278 MM BSD-2604448012.A36 2604448012 £1.32 £1.58
145 - CONNECTING CABLE L = 288 MM BSD-2604448062.A87 2604448062 £1.32 £1.58
147 - CONNECTING CABLE L=124 MM BSD-2604448018.A69 2604448018 £2.33 £2.80
150 - SHIM WASHER 0.3 MM BSD-2600101027.A155 2600101027 £1.75 £2.10
150 - SHIM 0.2 MM BSD-2600101022.A335 2600101022 £1.75 £2.10
150 - SHIM 0.5 MM BSD-2600101020.A297 2600101020 £1.75 £2.10
151 - SHIM BSD-2600150004.A378 2600150004 £2.16 £2.59
152 - RECESSED-HEAD SCREW DIN 7981-ST3.5x9.5-F BSD-2603435015.A182 2603435015 £2.16 £2.59
153 - PLUG BSD-2603231032.A86 2603231032 -
154 - COVER DISC BSD-2601328045.A110 2601328045 £2.16 £2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1477 2603490017 £2.16 £2.59
156 - SPIRAL SPRING BSD-2604652009.A131 2604652009 £1.75 £2.10
157 - HOUSING COVER BSD-2600508038.A36 2600508038 -
171 - SINTERED-METAL BUSHING BSD-2600301046.A12 2600301046 £3.72 £4.47
172 - BUSHING BSD-2600301045.A215 2600301045 £2.80 £3.36
199 - STICKER BSD-1601110265.A45 1601110265 -
658 - COUNTERSUNK-HEAD SCREW DIN 963-M 4x8-5.8 BSD-2910775118.A11 2910775118 -
659 - O-RING 3.1x1.5 MM BSD-2600210033.A15 2600210033 -
801 - GEAR HOUSING BSD-2605808915.A25 2605808915 £37.72 £45.27
805 - POWER SUPPLY CORD EU 2.6m 2 x 1.0 mm BSD-1607000385.A216 1607000385 £14.91 £17.89
810 - MOTOR HOUSING BSD-2605108904.A65 2605108904 £23.86 £28.63
811 - CARBON-BRUSH SET BSD-2604320912.A122 2604320912 £10.10 £12.12
824 - ECCENTRIC DISC BSD-2601072901.A65 2601072901 £7.36 £8.83
831 - NEEDLE BEARING BSD-2600917900.A430 2600917900 £8.67 £10.41
840 - GEAR COVER BSD-2605808916.A32 2605808916 -
844 - LIFTING ROD BSD-2600780913.A15 2600780913 -
851 - SEALING PLATE BSD-2601015901.A176 2601015901 £2.80 £3.36
854 - ROLLER LEVER BSD-2601321902.A102 2601321902 -
855 - ROLLER SET BSD-1619P01375.A123 1619P01375 £11.30 £13.56
861 - FAN COVER BSD-2605500900.A104 2605500900 £4.26 £5.11
888 - NAMEPLATE BSD-160111A3H3.A1704 160111A3H3 £2.61 £3.13
899 - WORK BOARD BSD-2607001085.A21 2607001085 £11.30 £13.56
