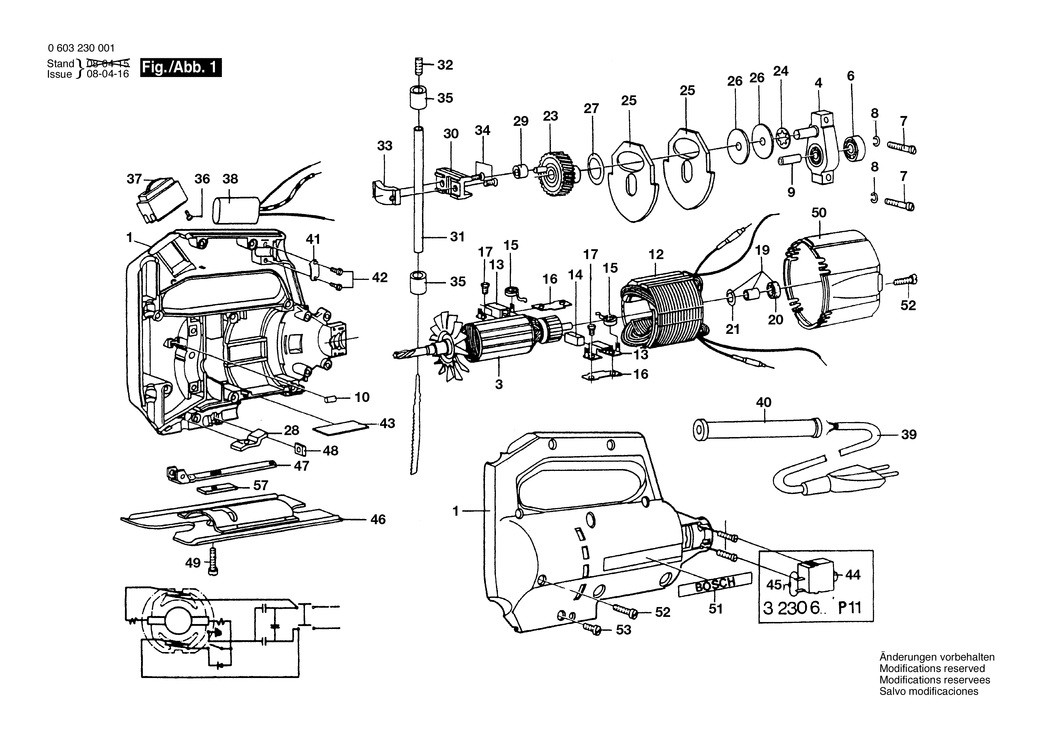

An exploded drawing and listing for the Bosch P 11 / 0603230648 / F 220 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-2605104902.A11 2605104902 -
1 - HOUSING SECTION BSD-2605104932.A6 2605104932 -
3 - ARMATURE 220-240V BSD-2604010371.A10 2604010371 -
4 - BEARING BRACKET BSD-2605807000.A17 2605807000 -
6 - GROOVE BALL BEARING BSD-2600900001.A6 2600900001 -
7 - SOCKET HEAD CAP SCREW BSD-2603410027.A14 2603410027 -
8 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A809 2916690003 £1.75 £2.10
9 - GUIDE SLEEVE BSD-2600400024.A10 2600400024 £2.80 £3.36
10 - NEEDLE ROLLER A 3x9.8G2DIN 5402 BSD-1903201041.A6 1903201041 -
12 - POLE SHOE 220V BSD-2604220293.A3 2604220293 -
13 - BRUSH HOLDER BSD-1601323007.A83 1601323007 -
15 - SPIRAL SPRING BSD-1604652004.A115 1604652004 £2.61 £3.13
16 - BRUSH PLATE BSD-1601034025.A38 1601034025 -
17 - TAPPING SCREW DIN 7972-BZ2.9x6.5 BSD-2910601004.A25 2910601004 -
19 - SINTERED-METAL BUSHING BSD-1600301900.A68 1600301900 -
20 - FELT WASHER BSD-1600205023.A99 1600205023 £1.32 £1.58
21 - O-RING 8.0x2.5 MM BSD-1610210014.A11 1610210014 -
23 - ECCENTRIC COG WHEEL Z=39 BSD-2606319073.A42 2606319073 -
24 - SPRING WASHER BSD-2600150050.A10 2600150050 £1.75 £2.10
25 - COUNTER WEIGHT BSD-1619P02421.A20 1619P02421 £8.67 £10.41
26 - SHIM 0.5 MM BSD-2600102658.A10 2600102658 £1.32 £1.58
26 - SHIM 0.2 MM BSD-2600102656.A60 2600102656 £1.32 £1.58
27 - SHIM dia 18.3 MM BSD-2600101673.A23 2600101673 £1.75 £2.10
28 - DRILLING SPINDLE BSD-2601030017.A5 2601030017 -
29 - NEEDLE BEARING BSD-2600917904.A9 2600917904 £7.36 £8.83
30 - SLIDING PIECE BSD-2601321036.A35 2601321036 -
31 - LIFTING ROD BSD-2600780900.A17 2600780900 -
31 - LIFTING ROD BSD-2600780002.A23 2600780002 -
32 - CLAMP SCREW BSD-2603400000.A61 2603400000 £4.26 £5.11
33 - CLAMPING SADDLE BSD-2602329011.A6 2602329011 £4.75 £5.70
34 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A268 2603421040 £1.75 £2.10
35 - SINTERED-METAL BUSHING BSD-2600301049.A22 2600301049 £1.75 £2.10
36 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A2197 2603410001 £1.75 £2.10
37 - ON-OFF SWITCH BSD-2607200048.A91 2607200048 -
38 - SUPPRESSION CAPACITOR BSD-2607329099.A0 2607329099 -
39 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A121 1604460427 £12.04 £14.45
40 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703012.A831 2600703012 £2.80 £3.36
40 - GROMMET dia7.6-dia8.2x95 MM BSD-2600703013.A393 2600703013 £2.61 £3.13
40 - GROMMET dia8.3-dia9.4x95 MM BSD-2600703011.A431 2600703011 £2.80 £3.36
41 - FASTENING CLAMP BSD-1601034026.A6 1601034026 -
42 - TAPPING SCREW DIN 7971-BZ2.9x6.5 BSD-2910211004.A130 2910211004 -
44 - CHANGE-OVER SWITCH BSD-1607200050.A29 1607200050 -
45 - SILICON DIODE BSD-2607320008.A114 2607320008 -
46 - BASE PLATE BSD-2601016043.A9 2601016043 -
48 - SQUARE NUT DIN 562-M5-04 BSD-2915121005.A15 2915121005 £1.75 £2.10
49 - PAN HEAD SCREW BSD-2603410028.A9 2603410028 -
50 - SEALING CAP BSD-1605500078.A15 1605500078 -
50 - HOUSING COVER BSD-2605500037.A9 2605500037 -
51 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A125 2601007003 -
51 - MANUFACTURER'S NAMEPLATE BSD-2601110043.A2 2601110043 -
52 - TAPPING SCREW DIN 7971-ST3.9x16-F BSD-2910211019.A403 2910211019 £1.75 £2.10
53 - TAPPING SCREW DIN 7971-BZ3.9x9.5 BSD-2910211017.A72 2910211017 -
54 - TAPPING SCREW DIN 7971-BZ2.9x13 BSD-2910211006.A243 2910211006 £1.75 £2.10
57 - INTERMEDIATE PLATE BSD-2601000014.A6 2601000014 -
814 - CARBON BRUSH BSD-1604321900.A42 1604321900 -
847 - RETAINING BRACKET BSD-2608135900.A23 2608135900 -
888 - NAMEPLATE BSD-160111A3H3.A3541 160111A3H3 £2.61 £3.13
