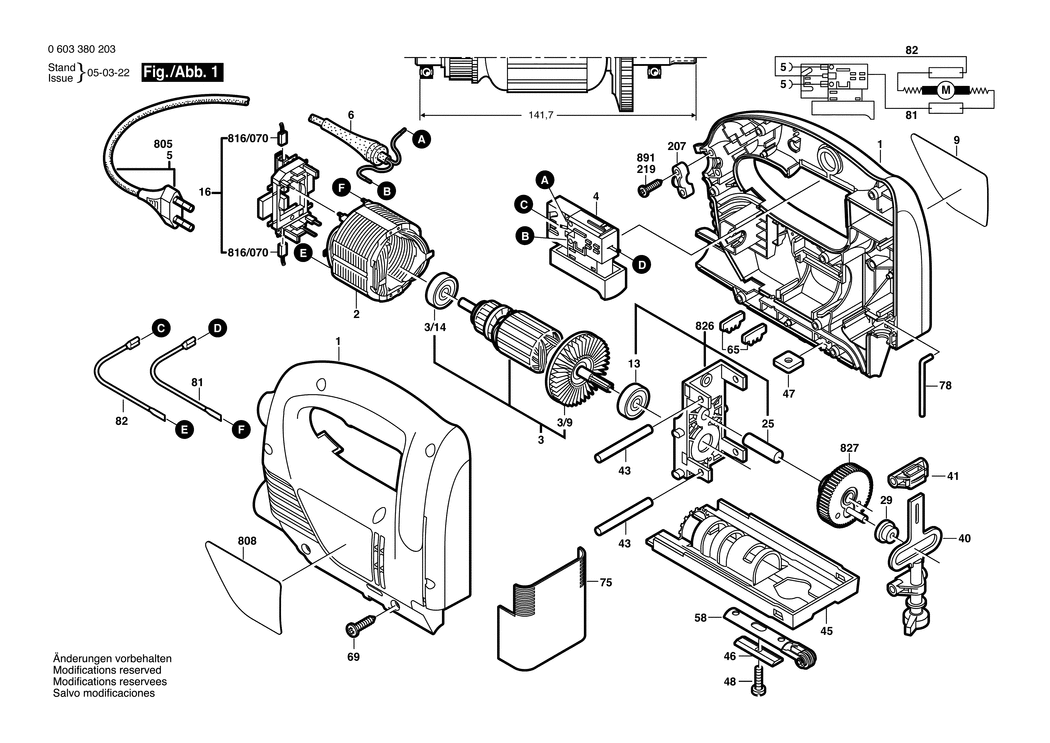

1 - HOUSING SECTION
BSD-2605105087.A7
2605105087
|
-
|
|
|
2 - FIELD 230-240V
BSD-2604220652.A19
2604220652
|
-
|
|
|
3 - ARMATURE 230V
BSD-2604011361.A0
2604011361
|
-
|
|
|
3/9 - ARMATURE WITH FAN
BSD-2606610097.A46
2606610097
|
£3.72
|
£4.47
|
|
3/14 - GROOVE BALL BEARING 8x22x7 608-2Z/C3
BSD-3130900020.A109
3130900020
|
£6.52
|
£7.83
|
|
4 - ON-OFF SWITCH
BSD-2607200581.A9
2607200581
|
£23.86
|
£28.63
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460243.A11
2604460243
|
£13.12
|
£15.75
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A740
2600703017
|
£2.61
|
£3.13
|
|
9 - MANUFACTURER'S NAMEPLATE PST 650 E
BSD-2601117236.A2
2601117236
|
-
|
|
|
9 - MANUFACTURER'S NAMEPLATE PST 700 E
BSD-2601116418.A1
2601116418
|
-
|
|
|
9 - MANUFACTURER'S NAMEPLATE PST 6500 E
BSD-2601116187.A4
2601116187
|
-
|
|
|
13 - GROOVE BALL BEARING
BSD-2600905098.A8
2600905098
|
£8.67
|
£10.41
|
|
16 - BRUSH PLATE
BSD-1600A012AZ.A33
1600A012AZ
|
£11.30
|
£13.56
|
|
25 - BEARING BOLT
BSD-2603105083.A21
2603105083
|
£2.80
|
£3.36
|
|
29 - PLAIN BEARING
BSD-2605801044.A21
2605801044
|
-
|
|
|
40 - LIFTING ROD
BSD-2600780146.A12
2600780146
|
-
|
|
|
41 - GUIDE BEARING
BSD-2605801037.A6
2605801037
|
-
|
|
|
43 - NEEDLE ROLLER
BSD-2603201089.A74
2603201089
|
£5.58
|
£6.70
|
|
45 - BASE PLATE
BSD-2601016080.A32
2601016080
|
-
|
|
|
46 - PROFILE BEADING
BSD-2601032021.A2
2601032021
|
£2.61
|
£3.13
|
|
47 - FIXING PLATE
BSD-2600040003.A84
2600040003
|
£2.16
|
£2.59
|
|
48 - SOCKET HEAD CAP SCREW
BSD-2603413034.A71
2603413034
|
£1.75
|
£2.10
|
|
58 - RETAINING BRACKET
BSD-2601321063.A19
2601321063
|
-
|
|
|
65 - LOCKING ELEMENT
BSD-2601038111.A2
2601038111
|
-
|
|
|
69 - SCREW 4x16
BSD-2603490022.A1267
2603490022
|
£1.75
|
£2.10
|
|
75 - COVERING HOOD
BSD-2605510169.A32
2605510169
|
-
|
|
|
78 - LOCKING PIN
BSD-2603105088.A47
2603105088
|
£1.75
|
£2.10
|
|
81 - CONNECTING CABLE L=243 MM
BSD-2604448033.A13
2604448033
|
-
|
|
|
82 - CONNECTING CABLE L=220 MM
BSD-2604448232.A28
2604448232
|
£2.16
|
£2.59
|
|
207 - CABLE CLIP
BSD-2601035001.A440
2601035001
|
£1.75
|
£2.10
|
|
219 - SCREW 4x16
BSD-2603490022.A1268
2603490022
|
£1.75
|
£2.10
|
|
808 - REFERENCE PLATE
BSD-2601116845.A0
2601116845
|
-
|
|
|
816/070 - CARBON-BRUSH SET
BSD-2604321925.A32
2604321925
|
£8.67
|
£10.41
|
|
826 - BEARING BRACKET
BSD-2605807935.A17
2605807935
|
-
|
|
|
827 - ECCENTRIC COG WHEEL
BSD-2606320903.A15
2606320903
|
-
|
|
|
891 - CROSS RECESSED-HEAD SCREW M3x5
BSD-2603410046.A118
2603410046
|
£2.16
|
£2.59
|
|
