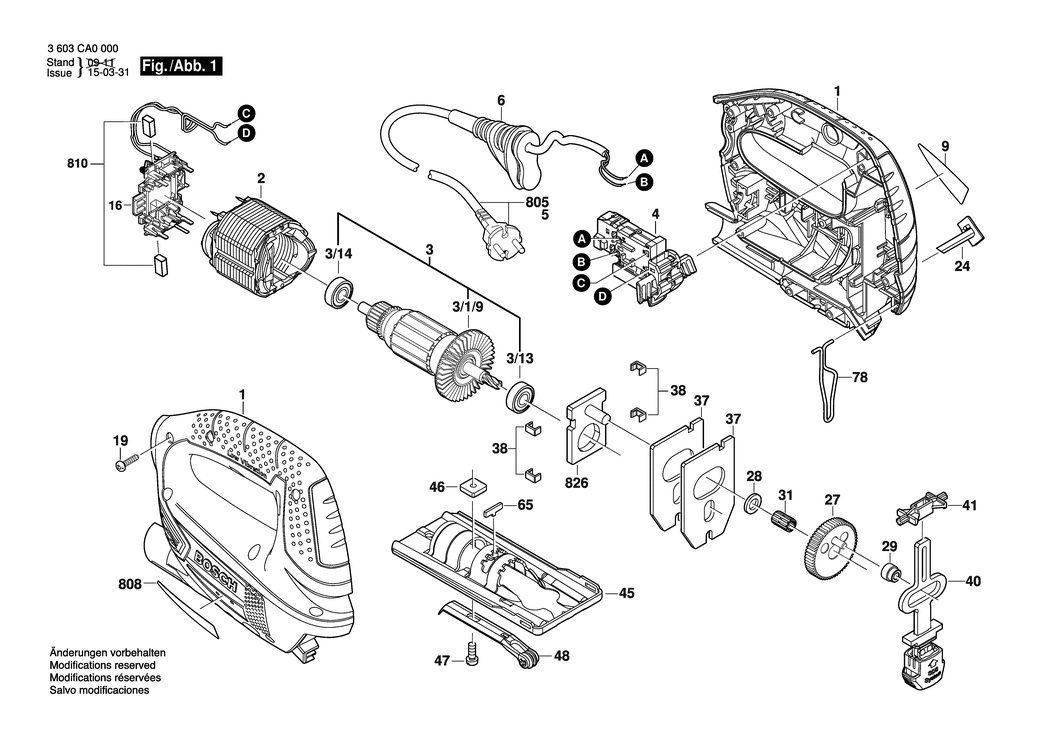

1 - HOUSING SECTION
BSD-2609003335.A1
2609003335
|
£14.91
|
£17.89
|
|
|
2 - FIELD 220-240V
BSD-2609002875.A10
2609002875
|
£13.12
|
£15.75
|
|
|
3 - ARMATURE 220-240V
BSD-2609003266.A2
2609003266
|
£21.52
|
£25.83
|
|
|
3/1/9 - FAN
BSD-2609002159.A42
2609002159
|
£2.16
|
£2.59
|
|
|
3/13 - GROOVE BALL BEARING 8x22x7 608-2Z/C5
BSD-2609000639.A12
2609000639
|
£2.16
|
£2.59
|
|
|
3/14 - GROOVE BALL BEARING 8x22x7
BSD-2600905110.A5
2600905110
|
£5.58
|
£6.70
|
|
|
4 - SWITCH
BSD-1607200516.A5
1607200516
|
£19.45
|
£23.34
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460243.A56
2604460243
|
£13.12
|
£15.75
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2609003080.A43
2609003080
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE PST 700 E
BSD-2609003533.A2
2609003533
|
£2.61
|
£3.13
|
|
|
16 - BRUSH PLATE
BSD-2609003338.A0
2609003338
|
-
|
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1091
2603490022
|
£1.75
|
£2.10
|
|
|
24 - SWITCH SLIDE
BSD-2609003337.A6
2609003337
|
£1.75
|
£2.10
|
|
|
27 - ECCENTRIC COG WHEEL
BSD-2609003443.A4
2609003443
|
£11.30
|
£13.56
|
|
|
28 - PLAIN WASHER
BSD-2609003341.A2
2609003341
|
£1.75
|
£2.10
|
|
|
29 - PLAIN BEARING
BSD-2609003636.A3
2609003636
|
£1.75
|
£2.10
|
|
|
31 - NEEDLE-ROLLER ASSEMBLY
BSD-2600913040.A105
2600913040
|
£5.58
|
£6.70
|
|
|
37 - COUNTERWEIGHT
BSD-2609002128.A2
2609002128
|
£2.61
|
£3.13
|
|
|
38 - GUIDE COMPONENT
BSD-2609002125.A7
2609002125
|
£1.75
|
£2.10
|
|
|
40 - LIFTING ROD
BSD-2609003489.A1
2609003489
|
£18.96
|
£22.75
|
|
|
41 - GUIDE BEARING
BSD-2605801053.A11
2605801053
|
£3.72
|
£4.47
|
|
|
45 - BASE PLATE
BSD-2609003347.A3
2609003347
|
£8.67
|
£10.41
|
|
|
46 - FIXING PLATE
BSD-2600040003.A49
2600040003
|
£2.16
|
£2.59
|
|
|
47 - SOCKET HEAD CAP SCREW
BSD-2603413034.A24
2603413034
|
£1.75
|
£2.10
|
|
|
48 - RETAINING BRACKET
BSD-160804011G.A2
160804011G
|
£8.49
|
£10.19
|
|
|
65 - ADJUSTMENT ELEMENT
BSD-2609003349.A3
2609003349
|
£1.75
|
£2.10
|
|
|
78 - PROTECTING COVER
BSD-2609003350.A9
2609003350
|
£1.75
|
£2.10
|
|
|
808 - NAMEPLATE
BSD-2609003535.A0
2609003535
|
£2.33
|
£2.80
|
|
|
810 - CARBON-BRUSH SET
BSD-2610391290.A83
2610391290
|
£8.67
|
£10.41
|
|
|
826 - BEARING BRACKET
BSD-2609003863.A3
2609003863
|
£11.30
|
£13.56
|
|
