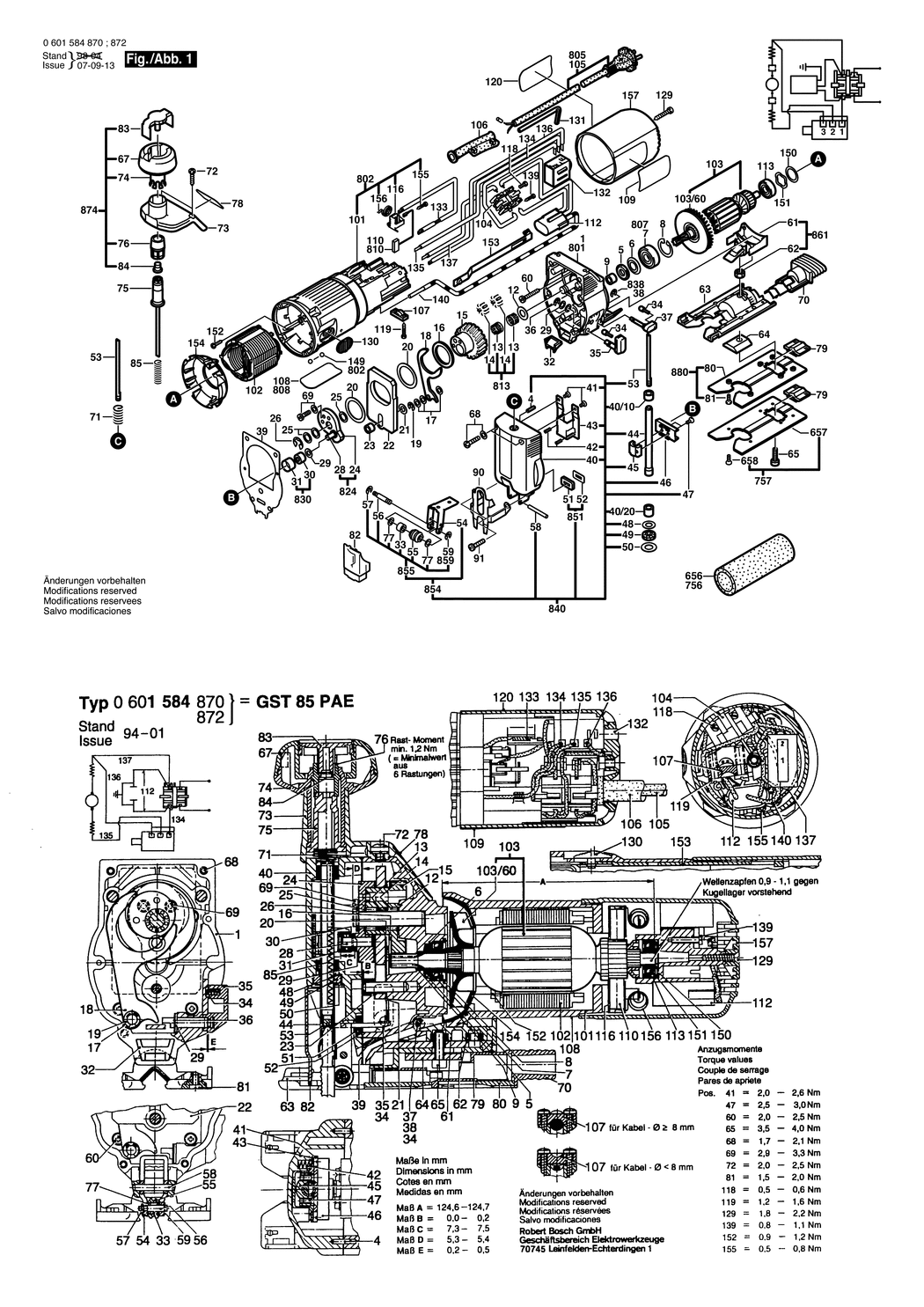

An exploded drawing and listing for the Bosch STP 60 EA / 0601584872 / CH 230 Volt
Ex VAT Inc VAT
4 - NEEDLE ROLLER DIN 5402-A3x11.8-G2 BSD-1903201042.A349 1903201042 £2.16 £2.59
5 - FELT WASHER BSD-2600108077.A235 2600108077 £1.75 £2.10
6 - CUPPED WASHER BSD-2600500002.A239 2600500002 £1.75 £2.10
8 - SPRING RETAINING RING DIN 472-24x1.2 MM BSD-2916660008.A568 2916660008 £2.16 £2.59
9 - RECEPTACLE BSD-2600400008.A17 2600400008 £1.75 £2.10
12 - SHIM 0.5 MM BSD-2600101616.A438 2600101616 -
15 - ECCENTRIC COG WHEEL BSD-1619P02581.A56 1619P02581 £21.68 £26.01
16 - SHIM 1.0 MM BSD-2600102653.A145 2600102653 £1.75 £2.10
17 - SHIM 0.3 MM BSD-2600100515.A196 2600100515 £2.61 £3.13
17 - SHIM 0.5 MM BSD-2600100516.A40 2600100516 £2.16 £2.59
18 - FORK LEVER BSD-2601923004.A70 2601923004 £2.80 £3.36
19 - LOCKING WASHER DIN 6799-4-FSt BSD-2916080007.A269 2916080007 £2.61 £3.13
20 - SHIM 0.5 MM BSD-2600102652.A83 2600102652 £1.75 £2.10
21 - SHIM 0.1 MM BSD-2600100625.A109 2600100625 -
21 - SHIM 0.2 MM BSD-2600100626.A119 2600100626 -
21 - SHIM 0.3 MM BSD-2600100627.A137 2600100627 -
21 - SHIM 0.5 MM BSD-2600100628.A143 2600100628 £1.75 £2.10
22 - COUNTERWEIGHT BSD-2601098003.A10 2601098003 £8.67 £10.41
23 - SPACER SLEEVE BSD-2600309009.A68 2600309009 £1.75 £2.10
25 - SHIM 0.2 MM BSD-2600100575.A236 2600100575 £2.16 £2.59
25 - SHIM 0.3 MM BSD-2600100576.A54 2600100576 -
25 - SHIM 0.5 MM BSD-2600100577.A238 2600100577 £1.75 £2.10
26 - LOCKING WASHER DIN 6799-7-FSt BSD-2916080910.A354 2916080910 £2.16 £2.59
29 - SHIM 0.5 MM BSD-2600100568.A221 2600100568 £1.75 £2.10
29 - SHIM 1.0 MM BSD-2600100569.A54 2600100569 £1.75 £2.10
29 - SHIM 0.3 MM BSD-2600100607.A675 2600100607 £1.75 £2.10
31 - BEARING SLEEVE BSD-2600400012.A29 2600400012 £4.26 £5.11
32 - AIR ELIMINATOR BSD-2602305042.A4 2602305042 £1.75 £2.10
34 - RATCHET CAP BSD-2600590006.A830 2600590006 £1.75 £2.10
35 - ROTARY KNOB BSD-2602026036.A80 2602026036 -
36 - LOCKING WASHER DIN 6799-5-FSt BSD-2916080008.A126 2916080008 -
37 - ROTARY KNOB BSD-2602026037.A104 2602026037 £2.80 £3.36
39 - SEAL BSD-2601015050.A42 2601015050 £2.61 £3.13
40/10 - SINTERED-METAL BUSHING BSD-2600301046.A88 2600301046 £3.72 £4.47
40/20 - BUSHING BSD-2600301045.A139 2600301045 £2.80 £3.36
41 - THREAD-FORMING TAP. SCREW M4x8 BSD-2603410048.A282 2603410048 £1.75 £2.10
42 - COMPRESSION SPRING BSD-2604613000.A171 2604613000 £1.75 £2.10
43 - GUIDE BRACKET BSD-1616B00224.A147 1616B00224 £11.32 £13.58
44 - LIFTING ROD BSD-1619P12765.A39 1619P12765 £16.41 £19.69
45 - CLAMPING SADDLE BSD-2602329011.A211 2602329011 £4.75 £5.70
46 - SLIDING PIECE BSD-1619P12767.A19 1619P12767 £9.47 £11.36
47 - COUNTERSUNK-HEAD SCREW DIN 7962-M3.5x8-10.9 BSD-2603421040.A70 2603421040 £1.75 £2.10
48 - SUPPORTING DISC 0.5 MM BSD-2600112031.A62 2600112031 £1.75 £2.10
49 - SEAL RING 0.5 MM BSD-2600290017.A76 2600290017 £1.75 £2.10
50 - SHIM 0.5 MM BSD-2600101612.A4 2600101612 £1.75 £2.10
53 - CLAMP SCREW BSD-2603490011.A33 2603490011 £6.52 £7.83
57 - LOCKING WASHER BSD-2600116011.A88 2600116011 £2.16 £2.59
58 - STRAIGHT PIN BSD-2609002725.A32 2609002725 £1.75 £2.10
60 - TORX OVAL-HEAD SCREW 4x25 BSD-2603490024.A461 2603490024 £1.75 £2.10
62 - HEX NUT DIN 934-M6-8-A BSD-2915011007.A1155 2915011007 -
63 - BASE PLATE BSD-2608000073.A19 2608000073 £21.68 £26.01
64 - PROFILE BEADING BSD-2601030007.A10 2601030007 £2.52 £3.02
65 - HEX SOCKET HEAD CAP SCREW DIN 912-M6x16-8.8 BSD-2910141197.A49 2910141197 £1.75 £2.10
68 - THREAD-FORMING TAP. SCREW M4x12 MM BSD-2603410049.A152 2603410049 £1.75 £2.10
69 - MICROENCAPSULATED SCREW DIN 7985-M4x12MM BSD-2914551176.A169 2914551176 £1.75 £2.10
70 - SUCTION NOZZLE BSD-2605730033.A26 2605730033 £2.33 £2.80
71 - COMPRESSION SPRING BSD-2604617003.A60 2604617003 -
72 - THREAD-FORMING TAP. SCREW M 5x16 BSD-2603410054.A96 2603410054 £2.61 £3.13
73 - FLANGED FITTING BSD-2605702016.A19 2605702016 £7.36 £8.83
75 - COUPLING HALF BSD-2606491015.A4 2606491015 £6.52 £7.83
77 - SHIM 0.2 MM BSD-2600100032.A76 2600100032 £1.75 £2.10
78 - STICKER BSD-2601110930.A16 2601110930 £1.32 £1.58
79 - PLATE BSD-2601099013.A18 2601099013 £4.26 £5.11
81 - COUNTERSUNK-HEAD SCREW BSD-2910861118.A38 2910861118 £1.75 £2.10
82 - COVERING HOOD BSD-2601320022.A20 2601320022 £2.48 £2.97
85 - COMPRESSION SPRING BSD-2604610040.A7 2604610040 £1.75 £2.10
90 - SAFETY DEVICE BSD-2601322021.A91 2601322021 £4.26 £5.11
91 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8 BSD-2910011128.A291 2910011128 £1.75 £2.10
102 - FIELD 220-240V BSD-2604220709.A11 2604220709 £27.23 £32.68
103 - ARMATURE 230-240V BSD-2604010578.A69 2604010578 £48.38 £58.06
103/60 - FAN BSD-2606610049.A490 2606610049 £2.16 £2.59
104 - SWITCH BSD-2607200674.A27 2607200674 £16.41 £19.69
105 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F BSD-1604460427.A24 1604460427 £12.04 £14.45
106 - GROMMET dia6.5-dia6.9x95 MM BSD-2600703027.A88 2600703027 £1.75 £2.10
107 - CABLE CLIP BSD-2601035001.A237 2601035001 £1.75 £2.10
109 - MANUFACTURER'S NAMEPLATE BSD-2601118464.A0 2601118464 -
112 - SUPPRESSION FILTER BSD-2607329104.A101 2607329104 £10.10 £12.12
113 - BALL BEARING 7x22x7 BSD-1900905018.A839 1900905018 £18.96 £22.75
116 - BRUSH HOLDER BSD-1600A003G4.A299 1600A003G4 £3.72 £4.47
118 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A137 2603410001 £1.75 £2.10
119 - SCREW 4x16 BSD-2603490022.A1543 2603490022 £1.75 £2.10
120 - STICKER BSD-2601110837.A7 2601110837 -
129 - TAPPING SCREW DIN 7982-ST3.9x22C-H BSD-2910601321.A153 2910601321 -
130 - SWITCH HANDLE BSD-2602026015.A120 2602026015 £1.75 £2.10
131 - OFFSET SCREWDRIVER DIN 911-SW5 BSD-1907950006.A425 1907950006 £4.26 £5.11
132 - SPEED GOVERNOR 220-240V BSD-2607230115.A28 2607230115 -
133 - SUPPRESSOR BOX BSD-2604465106.A88 2604465106 £4.26 £5.11
134 - CONNECTING CABLE L=86MM BSD-2604448044.A104 2604448044 £1.75 £2.10
135 - CABLE L=103MM BSD-2604448140.A62 2604448140 £1.32 £1.58
136 - CONNECTING CABLE L=128MM BSD-2604448046.A58 2604448046 £1.32 £1.58
137 - CONNECTING CABLE L=125MM BSD-2604448040.A19 2604448040 £2.61 £3.13
139 - TAPPING SCREW DIN 7981-ST2.9x13-C-H BSD-2910611006.A37 2910611006 £1.75 £2.10
140 - INSULATION TUBING BSD-2600409017.A95 2600409017 £1.75 £2.10
149 - PLUG BSD-2603231032.A113 2603231032 -
150 - SHIM WASHER 0.3 MM BSD-2600101027.A50 2600101027 £1.75 £2.10
151 - SHIM BSD-2600150004.A144 2600150004 £2.16 £2.59
152 - TAPPING SCREW BSD-2603435086.A315 2603435086 £1.75 £2.10
153 - ADJUSTING SLIDE BSD-2602319005.A63 2602319005 £1.75 £2.10
154 - COVER DISC BSD-2601328045.A10 2601328045 £2.16 £2.59
155 - TORX OVAL-HEAD SCREW 3x10 BSD-2603490017.A1207 2603490017 £2.16 £2.59
156 - SPIRAL SPRING BSD-2604652009.A250 2604652009 £1.75 £2.10
157 - HOUSING COVER BSD-2600508014.A12 2600508014 -
657 - PLATE BSD-2601099029.A19 2601099029 £4.26 £5.11
658 - SOCKET HEAD CAP SCREW DIN 84-M4x6-4.8 BSD-2910001116.A8 2910001116 £1.75 £2.10
801 - GEAR HOUSING BSD-2605808917.A50 2605808917 £63.50 £76.20
802 - MOTOR HOUSING BSD-2605108906.A11 2605108906 £14.72 £17.67
807 - GROOVE BALL BEARING 9x24x7 BSD-2600905021.A504 2600905021 £8.67 £10.41
808 - NAMEPLATE BSD-160111A3HC.A2 160111A3HC £2.61 £3.13
810 - CARBON-BRUSH SET BSD-2604320912.A62 2604320912 £10.10 £12.12
813 - NEEDLE-ROLLER CAGE BSD-2607001130.A143 2607001130 £5.58 £6.70
824 - ECCENTRIC DISC BSD-2601072901.A51 2601072901 £7.36 £8.83
830 - NEEDLE BEARING BSD-2600917900.A252 2600917900 £8.67 £10.41
838 - SPRING RETAINING RING BSD-2600116009.A29 2600116009 £1.75 £2.10
840 - GEAR COVER BSD-2605808921.A41 2605808921 £81.81 £98.17
851 - SEALING PLATE BSD-2601015901.A79 2601015901 £2.80 £3.36
854 - ROLLER LEVER BSD-2601321902.A47 2601321902 -
855 - ROLLER SET BSD-1619P01375.A80 1619P01375 £11.30 £13.56
859 - LOCKING WASHER DIN 6799-2.3 BSD-2916080005.A207 2916080005 -
861 - FAN COVER BSD-2605500900.A9 2605500900 £4.26 £5.11
874 - HANDLE BSD-2602026900.A62 2602026900 -
880 - WORK BOARD BSD-2607001085.A25 2607001085 £11.30 £13.56
