Dewalt DCS332 Type 2 Cordless Jigsaw Spare Parts

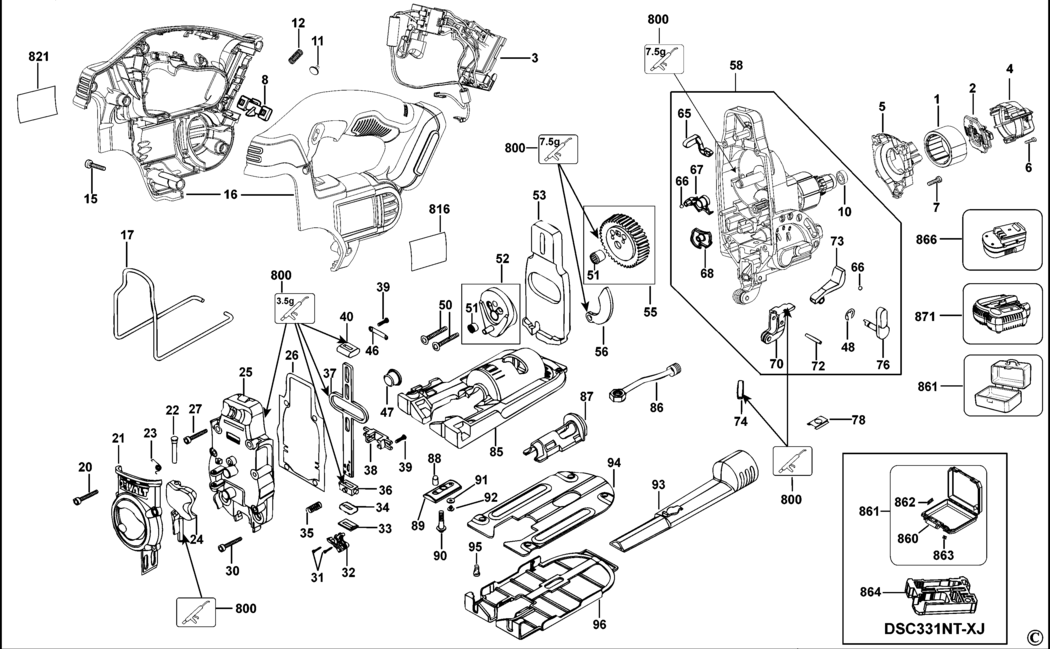

An exploded drawing and spare parts listing for the Dewalt DCS332 Type 2 Cordless Jigsaw

	Ex VAT	Inc VAT
1 - MAGNET BDE-NA146883.A13 NA146883	£30.08	£36.10
2 - BRUSHPLATE BDE-N012060.A23 N012060	£9.41	£11.29
3 - ELECTRONIC & SWITCH GB BDE-N165194.A1 N165194	£126.63	£151.96
4 - BRUSH HOLDER BDE-N093117.A1 N093117	£1.50	£1.80
5 - ADAPTOR BDE-N394566.A2 N394566	£1.82	£2.19
6 - SCREW BDE-330065-27.A13 330065-27	£1.50	£1.80
7 - SCREW BDE-330045-15.A111 330045-15	£1.50	£1.80
8 - BUTTON LOCK-OFF BDE-N060864.A12 N060864	£1.50	£1.80
10 - BEARING BDE-N110357.A12 N110357	£3.30	£3.96
11 - BLOCK BDE-N122099.A23 N122099	£1.50	£1.80
12 - SPRING BDE-N119679.A14 N119679	£1.50	£1.80
15 - SCREW BDE-330019-03.A35 330019-03	£1.50	£1.80
16 - CLAMSHELL PAIR BDE-N165199.A2 N165199	£24.39	£29.27
17 - GUARD BDE-581269-00.A6 581269-00	£10.85	£13.02
20 - SCREW BDE-324006-00.A63 324006-00	£1.50	£1.80
21 - CASTING BDE-581577-00.A7 581577-00	£12.17	£14.60
22 - PIN BDE-584627-00.A9 584627-00	£1.50	£1.80
23 - SPRING BDE-581418-00.A10 581418-00	£1.50	£1.80
24 - ACTUATOR BDE-589055-00.A16 589055-00	£10.85	£13.02
25 - GEARCASE COVER BDE-N142821.A1 N142821	£44.14	£52.97
26 - GASKET BDE-N444301.A12 N444301	£1.50	£1.80
27 - SCREW BDE-330045-09.A24 330045-09	£1.50	£1.80
30 - SCREW BDE-330045-06.A95 330045-06	£1.50	£1.80
31 - BOLT BDE-582837-00.A11 582837-00	£1.50	£1.80
32 - BLADE CLAMP BDE-N127658.A17 N127658	£12.17	£14.60
33 - HOLDER BDE-582262-00.A8 582262-00	£1.50	£1.80
34 - FELT SEAL BDE-582263-00.A17 582263-00	£1.50	£1.80
35 - SPRING BDE-586646-00.A14 586646-00	£1.50	£1.80
36 - BEARING BDE-490330-00.A23 490330-00	£1.50	£1.80
37 - SHAFT BDE-589013-00.A3 589013-00	£16.03	£19.24
38 - SUPPORT BEARING BDE-582260-00.A7 582260-00	£3.80	£4.56
39 - SCREW BDE-324006-00.A64 324006-00	£1.50	£1.80
40 - BEARING BDE-490329-00.A17 490329-00	£1.50	£1.80
46 - CLAMP BDE-582261-00.A18 582261-00	£1.50	£1.80
47 - DRIVE ROLLER BDE-582257-00.A18 582257-00	£7.18	£8.62
48 - CLIP BDE-571181-00.A15 571181-00	£1.50	£1.80
50 - SCREW BDE-N127249.A0 N127249	£1.50	£1.80
51 - BEARING NEEDLE BDE-330004-02.A71 330004-02	£1.50	£1.80
52 - CRANK KIT BDE-479403-00.A9 479403-00	£16.03	£19.24
53 - COUNTERWEIGHT BDE-589012-00.A13 589012-00	£25.70	£30.84
55 - GEAR SA BDE-589014-01.A6 589014-01	-
56 - ACTUATOR BDE-581247-00.A7 581247-00	£4.69	£5.63
58 - GEARCASE SA GB BDE-N381427.A1 N381427	£144.10	£172.92
65 - LEVER BDE-581255-05.A11 581255-05	£1.50	£1.80
66 - DETENT BDE-326467-00.A70 326467-00	£1.50	£1.80
67 - BODY BDE-582830-05.A10 582830-05	£1.50	£1.80
68 - BAFFLE BDE-582831-00.A8 582831-00	£1.50	£1.80
70 - SUPPORT BRACKET BDE-589056-00.A2 589056-00	£18.91	£22.69
72 - PIN BDE-330041-29.A13 330041-29	£1.50	£1.80
73 - NOZZLE BDE-584450-00.A17 584450-00	£1.50	£1.80
74 - PIN BDE-330041-49.A16 330041-49	£1.50	£1.80
76 - LEVER BDE-581257-01.A4 581257-01	£7.18	£8.62
78 - SPRING CLIP BDE-N089310.A12 N089310	£1.50	£1.80
85 - SHOE BDE-581263-00.A9 581263-00	£17.48	£20.97
86 - LEVER BDE-493248-00.A13 493248-00	£3.80	£4.56
87 - ADAPTOR BDE-581266-00.A9 581266-00	£1.88	£2.25
88 - PLUNGER BDE-584686-00.A9 584686-00	£2.78	£3.34
89 - CLAMP BDE-496996-00.A10 496996-00	£3.30	£3.96
90 - BOLT BDE-582826-00.A10 582826-00	£7.85	£9.42
91 - WASHER BDE-582828-00.A11 582828-00	£1.50	£1.80
92 - BOLT BDE-582827-00.A19 582827-00	£1.50	£1.80
93 - VACUUM ADAPTOR BDE-581281-00.A10 581281-00	£4.69	£5.63
94 - SOLE PLATE BDE-581264-00.A10 581264-00	£5.88	£7.06
95 - SCREW TORX BDE-N056875.A0 N056875	£1.50	£1.80
96 - SOLE PLATE BDE-581268-00.A12 581268-00	£2.67	£3.20
800 - GREASE BDE-870889-03.A163 870889-03	£7.85	£9.42
816 - BRAND LABEL BDE-N137254.A1 N137254	£3.30	£3.96
821 - RATING LABEL GB BDE-N267143 N267143	£2.26	£2.71
861 - KITBOX BDE-581580-03.A0 581580-03	£34.00	£40.80
866 - BATTERY 14.4V - 4.0AH DCS332L2 - DCS332M2 GB BDE-N195932.A10 N195932	£144.10	£172.92
871 - CHARGER 10.8V - 18V GB BDE-N450537.A197 N450537	£157.18	£188.61
