Dewalt DW318 Type 2 Jigsaw Spare Parts

Home Details Reviews Delivery

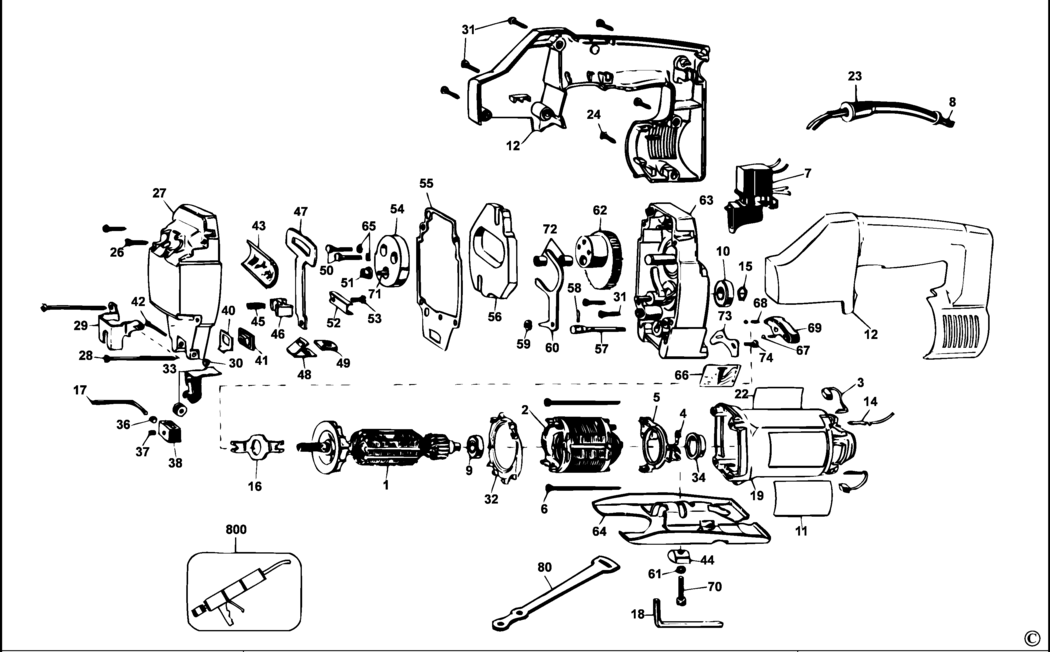

An exploded drawing and spare parts listing for the Dewalt DW318 Type 2 Jigsaw

	Ex VAT	Inc VAT
2 - FIELD 230V BDE-185184-01 185184-01	-
4 - BRUSH SPRING BDE-445860-00.A63 445860-00	£1.66	£1.99
5 - RING BDE-449899-05.A33 449899-05	£9.69	£11.63
6 - SCREW BDE-445880-00.A11 445880-00	£1.66	£1.99
7 - NO LONGER AVAILABLE BDE-000000-00.A127412 000000-00	-
8 - NO LONGER AVAILABLE BDE-000000-00.A127413 000000-00	-
9 - BEARING BDE-605040-06.A276 605040-06	£3.92	£4.70
10 - BEARING BDE-605040-15.A25 605040-15	£4.83	£5.80
11 - BRAND LABEL BDE-395047-00.A76 395047-00	£1.66	£1.99
12 - HANDLE SA BDE-603209-00.A1 603209-00	-
14 - NO LONGER AVAILABLE BDE-000000-00.A127414 000000-00	-
15 - CIRCLIP BDE-444793-00.A58 444793-00	£1.66	£1.99
16 - RETAINER BDE-445874-00.A1 445874-00	-
17 - NO LONGER AVAILABLE BDE-000000-00.A127415 000000-00	-
18 - HEX KEY 5 MM BDE-098000-11.A20 098000-11	£1.66	£1.99
19 - FIELDCASE BDE-445857-03.A4 445857-03	£5.88	£7.06
22 - NO LONGER AVAILABLE BDE-000000-00.A127416 000000-00	-
23 - CORD PROTECTOR BDE-N542553.A251 N542553	£3.92	£4.70
24 - SCREW BDE-330019-13.A520 330019-13	£1.66	£1.99
26 - SCREW BDE-330045-08.A17 330045-08	£1.66	£1.99
27 - NO LONGER AVAILABLE BDE-000000-00.A127417 000000-00	-
28 - SCREW BDE-330019-27.A1 330019-27	-
29 - GUIDE BDE-400765-00.A1 400765-00	-
30 - NO LONGER AVAILABLE BDE-000000-00.A127418 000000-00	-
31 - SCREW BDE-90611830.A130 90611830	£1.66	£1.99
32 - BAFFLE BDE-445876-00.A6 445876-00	£1.66	£1.99
33 - NO LONGER AVAILABLE BDE-000000-00.A127419 000000-00	-
34 - SLEEVE BDE-445217-02.A99 445217-02	£1.66	£1.99
36 - NO LONGER AVAILABLE BDE-000000-00.A127440 000000-00	-
37 - SCREW BDE-330022-16.A10 330022-16	£1.66	£1.99
38 - NO LONGER AVAILABLE BDE-000000-00.A127420 000000-00	-
40 - NO LONGER AVAILABLE BDE-000000-00.A127421 000000-00	-
41 - NO LONGER AVAILABLE BDE-000000-00.A127422 000000-00	-
42 - NO LONGER AVAILABLE BDE-000000-00.A127423 000000-00	-
43 - NO LONGER AVAILABLE BDE-000000-00.A127424 000000-00	-
44 - NO LONGER AVAILABLE BDE-000000-00.A127425 000000-00	-
45 - NO LONGER AVAILABLE BDE-000000-00.A127426 000000-00	-
46 - NO LONGER AVAILABLE BDE-000000-00.A127427 000000-00	-
47 - NO LONGER AVAILABLE BDE-000000-00.A127428 000000-00	-
48 - NO LONGER AVAILABLE BDE-000000-00.A127429 000000-00	-
49 - NO LONGER AVAILABLE BDE-000000-00.A127430 000000-00	-
50 - NO LONGER AVAILABLE BDE-000000-00.A127431 000000-00	-
51 - NO LONGER AVAILABLE BDE-000000-00.A127432 000000-00	-
52 - NO LONGER AVAILABLE BDE-000000-00.A127433 000000-00	-
53 - SCREW BDE-330045-05.A148 330045-05	£1.66	£1.99
54 - PLATE BDE-133828-01SV.A7 133828-01SV	£7.85	£9.42
55 - NO LONGER AVAILABLE BDE-000000-00.A127434 000000-00	-
56 - NO LONGER AVAILABLE BDE-000000-00.A127435 000000-00	-
57 - NO LONGER AVAILABLE BDE-000000-00.A127436 000000-00	-
58 - NO LONGER AVAILABLE BDE-000000-00.A127437 000000-00	-
59 - NO LONGER AVAILABLE BDE-000000-00.A127438 000000-00	-
60 - NO LONGER AVAILABLE BDE-000000-00.A127439 000000-00	-
61 - WASHER BDE-098198-05.A10 098198-05	£1.66	£1.99
62 - GEAR SA BDE-133827-02SV.A2 133827-02SV	£38.80	£46.56
63 - NO LONGER AVAILABLE BDE-000000-00.A127441 000000-00	-
64 - NO LONGER AVAILABLE BDE-000000-00.A127442 000000-00	-
65 - NO LONGER AVAILABLE BDE-000000-00.A127443 000000-00	-
66 - NO LONGER AVAILABLE BDE-000000-00.A127444 000000-00	-
67 - BALL STEEL 3/16" BDE-475-00.A14 475-00	£1.66	£1.99
68 - SPRING BDE-604892-00.A0 604892-00	-
69 - NO LONGER AVAILABLE BDE-000000-00.A127445 000000-00	-
70 - SCREW BDE-98121-31.A0 98121-31	-
71 - NO LONGER AVAILABLE BDE-000000-00.A127446 000000-00	-
72 - BEARING NEEDLE BDE-330004-06.A110 330004-06	£1.66	£1.99
73 - NO LONGER AVAILABLE BDE-000000-00.A127447 000000-00	-
74 - SCREW BDE-80164-00.A19 80164-00	£1.66	£1.99
80 - HOLDER BDE-65288-02.A0 65288-02	£1.66	£1.99
800 - GREASE 90 GMS BDE-870889-02.A570 870889-02	£8.08	£9.70
