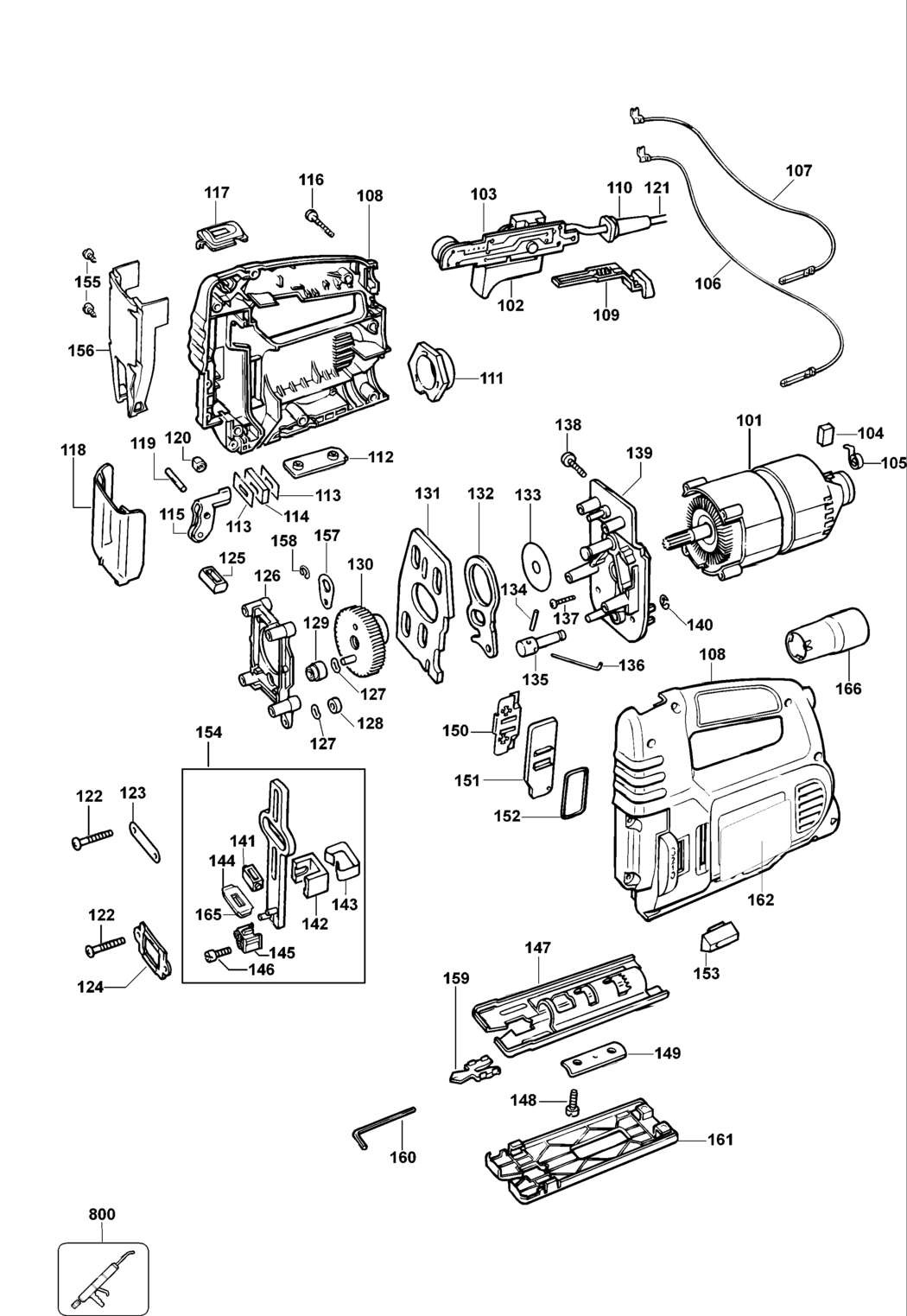

An exploded drawing and spare parts listing for the Dewalt DW320-----D Type 1 Jigsaw
Ex VAT Inc VAT
101 - NO LONGER AVAILABLE BDE-000000-00.A118589 000000-00 -
101 - NO LONGER AVAILABLE TYPE 1A 115V BDE-000000-00.A118590 000000-00 -
101 - NO LONGER AVAILABLE TYPE 1A 230V BDE-000000-00.A118591 000000-00 -
102 - SWITCH BDE-795668-02.A9 795668-02 -
103 - NO LONGER AVAILABLE XW BDE-000000-00.A118600 000000-00 -
103 - ELECTRONIC SA GB BDE-795690-01.A1 795690-01 £29.32 £35.18
104 - BRUSH BDE-832998-07.A5 832998-07 -
105 - NO LONGER AVAILABLE BDE-000000-00.A118592 000000-00 -
106 - NO LONGER AVAILABLE GB BDE-000000-00.A118593 000000-00 -
106 - NO LONGER AVAILABLE XW BDE-000000-00.A118594 000000-00 -
107 - NO LONGER AVAILABLE GB BDE-000000-00.A118595 000000-00 -
107 - NO LONGER AVAILABLE XW BDE-000000-00.A118596 000000-00 -
108 - NO LONGER AVAILABLE BDE-000000-00.A118597 000000-00 -
109 - NO LONGER AVAILABLE BDE-000000-00.A118598 000000-00 -
110 - PROTECTOR BDE-770235.A212 770235 £1.50 £1.80
111 - NO LONGER AVAILABLE BDE-000000-00.A118604 000000-00 -
112 - PLATE BDE-795666.A6 795666 £3.70 £4.44
113 - NO LONGER AVAILABLE BDE-000000-00.A118601 000000-00 -
114 - NO LONGER AVAILABLE BDE-000000-00.A118602 000000-00 -
115 - NO LONGER AVAILABLE BDE-000000-00.A118603 000000-00 -
116 - SCREW BDE-809961.A18 809961 -
117 - NO LONGER AVAILABLE BDE-000000-00.A118605 000000-00 -
118 - GUARD BDE-795881.A6 795881 -
119 - NO LONGER AVAILABLE BDE-000000-00.A118606 000000-00 -
120 - BUSH BDE-795673.A5 795673 £2.21 £2.65
121 - CABLE SA XW BDE-330061-07.A12 330061-07 £36.42 £43.70
121 - CORDSET GB BDE-330060-28.A62 330060-28 £24.39 £29.27
122 - SCREW BDE-807025.A11 807025 -
123 - CLAMP BDE-795647.A29 795647 £1.50 £1.80
124 - CLAMP BDE-795682.A9 795682 £3.70 £4.44
125 - BEARING BDE-795680-01.A5 795680-01 £1.51 £1.81
126 - NO LONGER AVAILABLE BDE-000000-00.A118607 000000-00 -
127 - WASHER BDE-823954.A39 823954 £1.50 £1.80
128 - SPACER BDE-795708-01.A3 795708-01 £1.78 £2.13
129 - ROLLER TYPE 1A BDE-795688-00.A43 795688-00 £1.50 £1.80
129 - NO LONGER AVAILABLE TY 1 DC FROM 9607 BDE-000000-00.A118608 000000-00 -
129 - NO LONGER AVAILABLE TY 1 DC UPTO 9607 BDE-000000-00.A118609 000000-00 -
130 - NO LONGER AVAILABLE TYPE 1 GB BDE-000000-00.A118610 000000-00 -
130 - NO LONGER AVAILABLE LX BDE-000000-00.A118611 000000-00 -
130 - NO LONGER AVAILABLE TYPE 1A BDE-000000-00.A118612 000000-00 -
131 - NO LONGER AVAILABLE BDE-000000-00.A118613 000000-00 -
132 - NO LONGER AVAILABLE BDE-000000-00.A118614 000000-00 -
133 - NO LONGER AVAILABLE BDE-000000-00.A118615 000000-00 -
134 - NO LONGER AVAILABLE BDE-000000-00.A118616 000000-00 -
135 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A18949 000000-00 -
135 - NO LONGER AVAILABLE TYPE 1A BDE-000000-00.A18950 000000-00 -
136 - ROD BDE-795675.A7 795675 £1.42 £1.70
137 - SCREW BDE-747329.A49 747329 £1.50 £1.80
138 - SCREW BDE-849256.A235 849256 -
139 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A18951 000000-00 -
139 - GEARCASE SA TYPE 1A BDE-584392-01.A6 584392-01 £15.63 £18.76
140 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A18952 000000-00 -
141 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A18953 000000-00 -
142 - CARRIER BDE-795645.A18 795645 £1.50 £1.80
143 - NO LONGER AVAILABLE BDE-000000-00.A18954 000000-00 -
144 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A18955 000000-00 -
145 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A18956 000000-00 -
145 - CLAMP TYPE 1A BDE-368382-01.A0 368382-01 -
146 - SCREW BDE-571055-00.A2 571055-00 -
147 - NO LONGER AVAILABLE BDE-000000-00.A18968 000000-00 -
148 - SCREW TYPE 1A BDE-571056-00.A17 571056-00 -
148 - SCREW TYPE 1 BDE-571056-00.A18 571056-00 -
149 - NO LONGER AVAILABLE BDE-000000-00.A18957 000000-00 -
150 - NO LONGER AVAILABLE BDE-000000-00.A18958 000000-00 -
151 - NO LONGER AVAILABLE BDE-000000-00.A18959 000000-00 -
152 - NO LONGER AVAILABLE BDE-000000-00.A18960 000000-00 -
153 - NO LONGER AVAILABLE BDE-000000-00.A18961 000000-00 -
154 - NO LONGER AVAILABLE BDE-000000-00.A18962 000000-00 -
155 - SCREW BDE-821057.A318 821057 £1.50 £1.80
156 - NO LONGER AVAILABLE BDE-000000-00.A18963 000000-00 -
157 - NO LONGER AVAILABLE TY 1 DC FROM 9607 BDE-000000-00.A18964 000000-00 -
157 - NO LONGER AVAILABLE TY 1 DC UPTO 9607 BDE-000000-00.A18965 000000-00 -
157 - SPACER TYPE 1A BDE-795708-01.A10 795708-01 £1.78 £2.13
158 - NO LONGER AVAILABLE TYPE 1 BDE-000000-00.A18966 000000-00 -
159 - NO LONGER AVAILABLE BDE-000000-00.A18967 000000-00 -
160 - TORX 50 WRENCH TYPE 1 BDE-571057-01.A16 571057-01 £1.50 £1.80
160 - TORX 50 WRENCH TYPE 1A BDE-571057-01.A17 571057-01 £1.50 £1.80
161 - NO LONGER AVAILABLE BDE-000000-00.A18969 000000-00 -
162 - NO LONGER AVAILABLE BDE-000000-00.A18970 000000-00 -
165 - SEAL TYPE 1 BDE-795694.A5 795694 £1.50 £1.80
166 - NO LONGER AVAILABLE BDE-000000-00.A18981 000000-00 -
800 - GREASE 90 GMS BDE-870889-02.A137 870889-02 £7.85 £9.42
