Mafell 961271 Drilling station BST 460 S with Parallel fence , Copying insert,special drill bit for copying insert Spare Parts

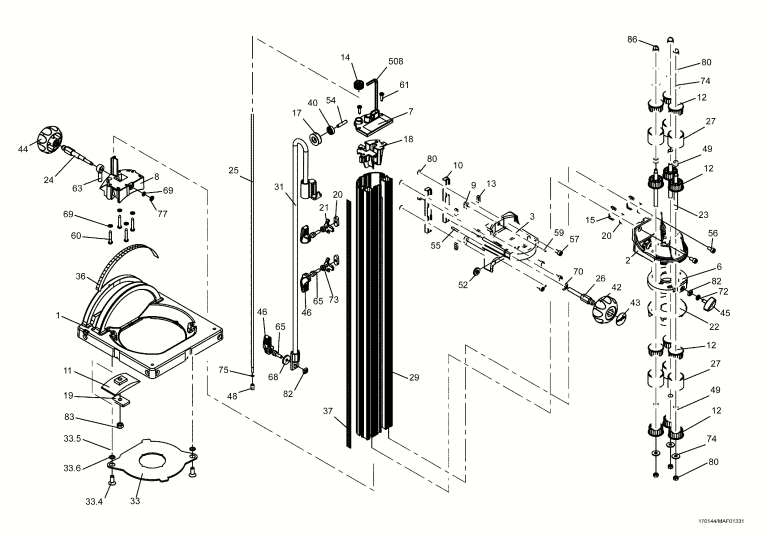

An exploded drawing and spare parts listing for the Mafell 961271 Drilling station BST 460 S with Parallel fence , Copying insert,special drill bit for copying insert

	Ex VAT	Inc VAT
1 - BASE PLATE MAF-204047.A4 204047	-
2 - RETAINING PLATE MAF-204071.A6 204071	£145.20	£174.24
3 - TELESCOPIC SUPPORT MAF-204058.A7 204058	£122.38	£146.86
6 - SETTING DISK MAF-204059.A5 204059	-
7 - COVER MAF-204048.A6 204048	-
8 - INTERMEDIATE PIECE MAF-204073.A4 204073	-
9 - GUIDE ELEMENT MAF-204052.A5 204052	£3.55	£4.26
10 - LEDGE MAF-204054.A9 204054	-
11 - CLAMPING DEVICE MAF-204053.A3 204053	-
12 - TAKE-UP MAF-204297.A4 204297	-
13 - SLIDING BLOCK MAF-204065.A9 204065	£4.20	£5.04
14 - SWITCH TRIGGER MAF-204051.A5 204051	-
15 - SPACER MAF-204292.A0 204292	-
17 - ROPE ROLL MAF-204055.A2 204055	-
18 - INSERT MAF-204401.A5 204401	-
19 - CLAMPING PLATE MAF-204408.A1 204408	-
20 - CLAMPING NUT MAF-038676.A6 038676	-
21 - STOP PLATE MAF-204067.A0 204067	-
22 - COVER MAF-204068.A4 204068	-
23 - GUIDE BOLT MAF-204062.A0 204062	-
24 - ECCENTRIC ARBOR MAF-204049.A3 204049	-
25 - PUSHER ROD MAF-204296.A0 204296	-
26 - TENSIONING SCREW MAF-204056.A6 204056	£13.86	£16.63
27 - GUIDE BUSH MAF-204298.A0 204298	-
29 - COLUMN MAF-204044.A0 204044	-
31 - TRACTION ROPE, CPL. MAF-204402.A2 204402	-
33 - INSERT PLATE MAF-204060.A4 204060	-
36 - ANGLE SCALE MAF-204069.A0 204069	-
37 - DEPTH SCALE MAF-204293.A0 204293	-
40 - GROOVED BALL BEARING MAF-006296.A3 006296	-
42 - HANDLE MAF-038970.A28 038970	£8.36	£10.03
43 - NAME PLATE MAF-201166.A23 201166	£8.13	£9.76
44 - HANDLE MAF-039101.A18 039101	-
45 - WING SCREW MAF-079080.A7 079080	£7.70	£9.24
46 - TENSIONING LEVER MAF-203397.A16 203397	-
48 - PRESSURE SPRING MAF-066158.A3 066158	-
49 - PRESSURE SPRING MAF-066072.A11 066072	£4.98	£5.97
52 - CUP SPRING MAF-006665.A2 006665	£3.46	£4.15
54 - CYLINDRICAL PIN MAF-058006.A8 058006	-
55 - CYLINDRICAL PIN MAF-058156.A14 058156	£3.46	£4.15
56 - CYLINDER-HEAD SCREW MAF-005536.A12 005536	-
57 - CYLINDER-HEAD SCREW MAF-055037.A16 055037	-
59 - THREADED PIN MAF-052011.A0 052011	-
60 - SELF-TAPPING OVAL-HEAD SCREW MAF-055256.A2 055256	-
61 - SELF-TAPPING OVAL-HEAD SCREW MAF-055157.A9 055157	-
63 - THREADED EYE-BOLT MAF-057018.A1 057018	-
65 - SHOULDER SCREW MAF-202258.A9 202258	-
68 - WASHER MAF-034208.A10 034208	-
69 - WASHER MAF-006100.A21 006100	£2.01	£2.41
70 - WASHER MAF-006102.A35 006102	-
72 - WASHER MAF-006101.A46 006101	£1.54	£1.85
73 - WASHER MAF-038928.A6 038928	-
74 - WASHER MAF-061044.A28 061044	£1.65	£1.98
75 - LOCKING WASHER MAF-061025.A5 061025	-
77 - LOCKING WASHER MAF-061073.A24 061073	-
80 - LOCKING NUT MAF-005979.A17 005979	£2.54	£3.05
82 - SQUARE NUT MAF-005953.A26 005953	-
83 - HEXAGONAL NUT MAF-005920.A38 005920	-
86 - HEXAGONAL PROTECTIVE CAP MAF-077009.A3 077009	-
508 - ALLEN KEY MAF-093034.A4 093034	-
