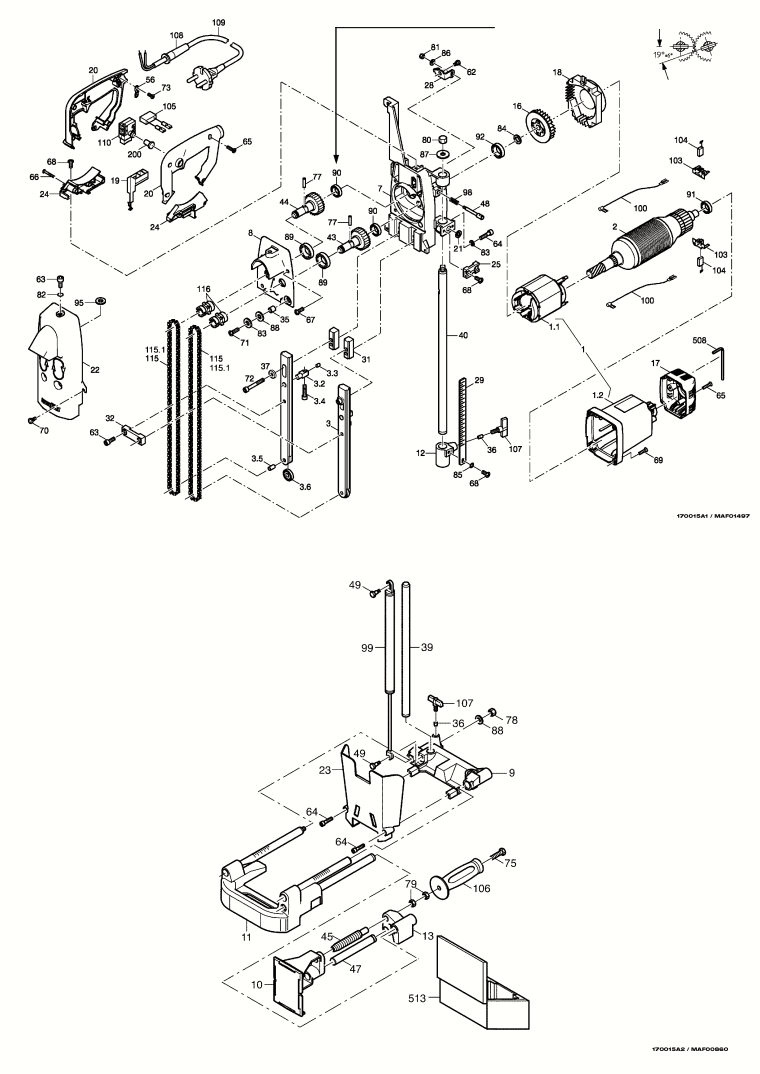

1 - MOTOR CASING WITH INDUCTOR
MAF-084525.A2
084525
|
-
|
|
|
|
1.1 - INDUCTOR WITH COIL
MAF-084527.A1
084527
|
£104.50
|
£125.40
|
|
|
1.2 - MOTOR CASING, EMPTY
MAF-202044.A1
202044
|
£66.81
|
£80.17
|
|
|
2 - ARMATURE, BALANCED
MAF-088165.A1
088165
|
£171.62
|
£205.94
|
|
|
3 - CHAIN BARS
MAF-091000.A1
091000
|
£386.82
|
£464.19
|
|
|
3.2 - CHAIN TENSIONING PIECE
MAF-202981.A1
202981
|
-
|
|
|
|
3.3 - PRESSURE BIT
MAF-202378.A5
202378
|
-
|
|
|
|
3.4 - CYLINDER-HEAD SCREW
MAF-055060.A4
055060
|
-
|
|
|
|
3.5 - CYLINDRICAL PIN
MAF-058199.A2
058199
|
-
|
|
|
|
3.6 - GROOVED BALL BEARING
MAF-062086.A0
062086
|
-
|
|
|
|
7 - GEAR CASING
MAF-202942.A0
202942
|
-
|
|
|
|
8 - BEARING COVER
MAF-202944.A2
202944
|
-
|
|
|
|
9 - BASE PLATE
MAF-202946.A0
202946
|
-
|
|
|
|
10 - FENCE WITH STRAIGHT ANGLE
MAF-202948.A1
202948
|
-
|
|
|
|
11 - STOP PLATE
MAF-202973.A2
202973
|
-
|
|
|
|
12 - SETTING RING
MAF-202952.A0
202952
|
-
|
|
|
|
13 - SUPPORT
MAF-202972.A2
202972
|
£112.02
|
£134.42
|
|
|
16 - FAN
MAF-200015.A2
200015
|
£7.85
|
£9.42
|
|
|
17 - MOTOR COVER
MAF-200183.A0
200183
|
-
|
|
|
|
18 - AIR CONDUCTING RING
MAF-200918.A0
200918
|
-
|
|
|
|
19 - SWITCH TRIGGER
MAF-201434.A1
201434
|
-
|
|
|
|
20 - HANDLE SHELLS (PAIR)
MAF-202741.A0
202741
|
-
|
|
|
|
21 - WASHER
MAF-202374.A0
202374
|
-
|
|
|
|
22 - CHAIN GUARD
MAF-202953.A1
202953
|
-
|
|
|
|
23 - PROTECTIVE COVER
MAF-202955.A0
202955
|
£35.12
|
£42.15
|
|
|
24 - HANDLE ADAPTERS, PAIR
MAF-202959.A1
202959
|
-
|
|
|
|
25 - DEPTH INDICATOR
MAF-202989.A0
202989
|
-
|
|
|
|
28 - LEVER
MAF-202987.A1
202987
|
-
|
|
|
|
29 - DEPTH SCALE
MAF-202990.A1
202990
|
-
|
|
|
|
31 - GUIDE PIECE
MAF-202957.A0
202957
|
-
|
|
|
|
32 - CLIP
MAF-202985.A1
202985
|
-
|
|
|
|
35 - DISTANCE SLEEVE
MAF-035272.A1
035272
|
-
|
|
|
|
36 - CLAMPING BOLT
MAF-037589.A4
037589
|
£6.03
|
£7.24
|
|
|
37 - WASHER
MAF-061172.A1
061172
|
-
|
|
|
|
39 - COLUMN, SHORT
MAF-202965.A2
202965
|
-
|
|
|
|
40 - COLUMN, LONG
MAF-202966.A0
202966
|
-
|
|
|
|
43 - GEAR SHAFT, RISING TO THE RIGHT
MAF-202969.A0
202969
|
£51.98
|
£62.37
|
|
|
44 - GEAR SHAFT, RISING TO THE LEFT
MAF-202970.A1
202970
|
£51.98
|
£62.37
|
|
|
45 - SPINDLE
MAF-202976.A2
202976
|
-
|
|
|
|
47 - COLUMN
MAF-202978.A1
202978
|
-
|
|
|
|
48 - LOCKING BOLT
MAF-202986.A2
202986
|
-
|
|
|
|
49 - SHOULDER SCREW
MAF-202988.A2
202988
|
-
|
|
|
|
56 - CABLE CLAMP
MAF-029584.A35
029584
|
-
|
|
|
|
62 - SHOULDER SCREW
MAF-055186.A2
055186
|
-
|
|
|
|
63 - CYLINDER-HEAD SCREW
MAF-055037.A3
055037
|
-
|
|
|
|
64 - CYLINDER-HEAD SCREW
MAF-055060.A0
055060
|
-
|
|
|
|
65 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055061.A32
055061
|
£1.71
|
£2.05
|
|
|
66 - OVAL-HEAD SCREW
MAF-055069.A9
055069
|
£2.16
|
£2.59
|
|
|
67 - OVAL-HEAD SCREW
MAF-055101.A0
055101
|
£2.04
|
£2.45
|
|
|
68 - OVAL-HEAD SCREW
MAF-055102.A3
055102
|
-
|
|
|
|
69 - OVAL-HEAD SCREW
MAF-055114.A4
055114
|
-
|
|
|
|
70 - SHOULDER SCREW
MAF-055118.A8
055118
|
£2.41
|
£2.89
|
|
|
71 - OVAL-HEAD SCREW
MAF-055130.A0
055130
|
-
|
|
|
|
72 - CYLINDER-HEAD SCREW
MAF-055212.A0
055212
|
-
|
|
|
|
73 - CYLINDRICAL OVAL-HEAD SCREW
MAF-055233.A5
055233
|
£1.71
|
£2.05
|
|
|
75 - HEXAGON-HEAD SCREW
MAF-005692.A0
005692
|
-
|
|
|
|
77 - CYLINDRICAL PIN
MAF-058153.A8
058153
|
£3.56
|
£4.27
|
|
|
78 - CAP NUT
MAF-005934.A8
005934
|
-
|
|
|
|
79 - HEXAGONAL NUT
MAF-005920.A8
005920
|
-
|
|
|
|
80 - CAP NUT
MAF-005950.A2
005950
|
-
|
|
|
|
81 - LOCKING NUT
MAF-005986.A2
005986
|
-
|
|
|
|
82 - WASHER
MAF-006101.A33
006101
|
£1.54
|
£1.85
|
|
|
83 - LOCKING WASHER
MAF-006113.A21
006113
|
£1.92
|
£2.31
|
|
|
84 - SHIM RING
MAF-006120.A5
006120
|
-
|
|
|
|
85 - LOCKING WASHER
MAF-006179.A5
006179
|
£1.53
|
£1.84
|
|
|
86 - WASHER
MAF-061013.A16
061013
|
-
|
|
|
|
87 - WASHER
MAF-061038.A8
061038
|
-
|
|
|
|
88 - WASHER
MAF-061044.A13
061044
|
£1.65
|
£1.98
|
|
|
89 - GROOVED BALL BEARING
MAF-006231.A2
006231
|
£13.65
|
£16.38
|
|
|
90 - GROOVED BALL BEARING
MAF-006234.A2
006234
|
£14.68
|
£17.62
|
|
|
91 - GROOVED BALL BEARING
MAF-006282.A9
006282
|
£14.68
|
£17.62
|
|
|
92 - GROOVED BALL BEARING
MAF-006280.A5
006280
|
£13.65
|
£16.38
|
|
|
95 - SEALING RING
MAF-065015.A7
065015
|
£3.01
|
£3.61
|
|
|
98 - PRESSURE SPRING
MAF-006645.A1
006645
|
-
|
|
|
|
99 - GAS SPRING
MAF-066141.A1
066141
|
-
|
|
|
|
100 - CONNECTING CABLE
MAF-085156.A2
085156
|
-
|
|
|
|
103 - BRUSH HOLDER
MAF-063160.A9
063160
|
£10.07
|
£12.08
|
|
|
104 - CARBON BRUSH WITH AUTOMATIC CUT-OFF
MAF-063166.A1
063166
|
£12.02
|
£14.42
|
|
|
105 - INTERFERENCE SUPPRESSION CAPACITOR
MAF-076973.A0
076973
|
-
|
|
|
|
106 - HANDLE
MAF-078135.A0
078135
|
£16.37
|
£19.64
|
|
|
107 - WING SCREW
MAF-079073.A1
079073
|
£7.20
|
£8.64
|
|
|
108 - CABLE PROTECTING SLEEVE
MAF-086064.A23
086064
|
£3.37
|
£4.04
|
|
|
109 - MAINS CABLE 4 M (13.1 FT)
MAF-087323.A3
087323
|
£39.41
|
£47.29
|
|
|
110 - 2-POLE SWITCH WITH LOCK-OFF BUTTON
MAF-087828.A0
087828
|
£21.78
|
£26.14
|
|
|
115 - MORTISING CHAIN
MAF-091001.A
091001
|
£417.99
|
£501.59
|
|
|
115.1 - REPLACEMENT CHAIN LINKS + RIVETS
MAF-091006.A
091006
|
-
|
|
|
|
116 - SPROCKET
MAF-091002.A2
091002
|
£77.91
|
£93.49
|
|
|
508 - ALLEN KEY
MAF-093278.A1
093278
|
-
|
|
|
|
513 - CARRYING CASE
MAF-095001.A2
095001
|
-
|
|
|
